Mobile Substation Product

Overview

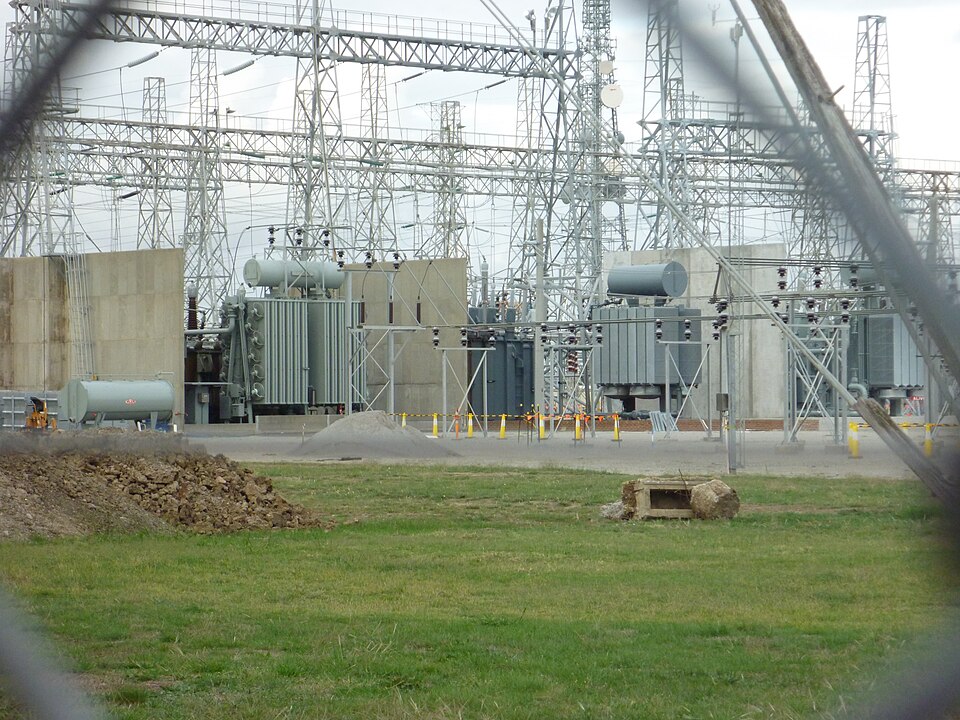

A mobile substation is a self-contained electrical transformation and distribution unit mounted on a trailer, designed to deliver temporary or supplemental power to distribution networks during construction, maintenance, outages, or disaster recovery. It combines three core functions: stepping high voltage (69 kV and above) down to medium voltage (4–34 kV) via a power Power Transformer Assembly, switching and isolating circuits through Medium Voltage Switchgear, and protecting the distribution feeders with intelligent [[mobile-substation-protection|protection relays]].

Mobile substations serve utilities, industrial plants, and municipalities needing rapid power restoration without waiting for permanent substation construction. A typical 50 MVA unit can supply 5000–10,000 homes or an industrial facility for months while permanent facilities are repaired or upgraded.

How it Works

Trailer Mobility and Deployment

The [[mobile-substation-trailer|trailer chassis]] is a heavy-haul platform rated for 40–60 ton load. Standard 53-foot trailers have tandem or triple-axle suspensions for load distribution across highways. The [[mobile-substation-coupling|ISO coupler]] mates to any standard tractor unit, and the [[mobile-substation-suspension|air suspension]] smooths the ride over rough terrain.

On-site, operators deploy [[mobile-substation-jacks|leveling jacks]] at four corners, ensuring the [[mobile-substation-frame|support frame]] is plumb and stable on uneven ground. Proper leveling is critical: the transformer [[mobile-substation-tank|tank]] must sit level to maintain uniform oil circulation and prevent hotspots.

Once jacked up, work crews install [[mobile-substation-earthing|grounding]], anchor the substation to bedrock with copper rods, and fasten [[mobile-substation-bonding-straps|bonding cables]] from the steel frame to the [[mobile-substation-tank|transformer tank]] and all switchgear enclosures. Low ground resistance (typically <5 ohms) is mandatory for personnel safety and transient surge suppression.

Primary Voltage Transformation

The Power Transformer Assembly is the heart. A 50 MVA unit receiving 138 kV on its primary winding will output approximately 12.47 kV on the secondary (voltage ratio 138:12.47). The transformer employs a [[mobile-substation-core-coil|laminated silicon steel core and copper windings]] immersed in insulating oil.

Inside the steel [[mobile-substation-tank|pressure vessel]], the high-voltage primary conductor enters through a [[mobile-substation-bushings|porcelain bushing]], winds around the core, and the secondary coil exits through another bushing. The [[mobile-substation-tap-changer|on-load tap changer]] is a rotating selector contact allowing the operator (or automatic control) to adjust the secondary voltage by selecting different winding taps, typically ±10% range (e.g., 11.2–13.8 kV) without switching the breaker.

Oil serves two purposes: electrical insulation (dielectric strength ~30 kV/mm) and heat transfer. As core losses (hysteresis and eddy currents) heat the oil, the liquid rises through the [[radiator|radiator]] where air circulation cools it back down. A [[mobile-substation-thermostat|thermostat]] automatically engages the [[mobile-substation-fan-motor|fan motor]] when oil temperature exceeds ~55 °C, preventing insulation degradation.

Secondary Distribution and Switching

The secondary winding connects to the [[mobile-substation-switchgear|medium-voltage switchgear enclosure]]. This cubicle contains:

• Primary Breaker: A [[mobile-substation-breaker-primary|vacuum or SF₆ interrupter-type breaker]] rated for the secondary voltage (e.g., 13.8 kV, 2000 A). It isolates the transformer from the distribution circuits and operates under load without requiring manual switching.

• Feeder Breakers: Four to six [[mobile-substation-breaker-secondary|secondary breakers]], each protecting an individual distribution feeder. If a fault (short circuit or overload) occurs on any feeder, that breaker's protective [[mobile-substation-relay-unit|relay]] senses excessive current via a [[mobile-substation-current-transducers|current transformer (CT)]] and trips the breaker, isolating the faulted line while the other feeders remain powered.

• Disconnect Switches: Manual [[mobile-substation-disconnect-switch|disconnect switches]] allow operators to isolate equipment for safe maintenance without relying on breakers.

All connections inside the switchgear use [[mobile-substation-cable-lugs|compression lugs]] and bolted joints to minimize transition resistance and heat generation at high current.

Protection and Relay Coordination

The [[mobile-substation-protection|protection system]] is the nervous system. Three [[mobile-substation-current-transducers|current transformers (CTs)]] monitor line currents on the three-phase secondary. Three [[mobile-substation-voltage-transducers|potential transformers (PTs)]] step down secondary voltage (13.8 kV) to 120 V, suitable for relay inputs.

A [[mobile-substation-relay-unit|multi-function digital protective relay]] receives these signals and runs algorithms:

• Overcurrent protection: If current exceeds 120% rated for >0.5 seconds, trip the breaker.
• Overfrequency protection: If frequency rises above 60.5 Hz (indicating generation/load imbalance), prepare for load shedding.
• Underfrequency protection: If frequency drops below 59.5 Hz (indicating generation loss), automatically drop the smallest feeder to stabilize the network.
• Distance protection: Calculates impedance to a fault; if within the protected zone, trips instantly; if beyond, times out to coordinate with downstream relays.

When a fault is detected, the relay sends a trip signal to the breaker's operating mechanism, which releases stored energy (springs or hydraulics) to part the contacts in milliseconds. The [[mobile-substation-alarm-panel|alarm panel]] emits a red light and audible tone, alerting operators to investigate.

Control and Monitoring

The [[mobile-substation-control-cabin|control cabin]] is a small insulated booth mounted on the substation. Inside are:

• Local switches: Pushbuttons for manual breaker operation (in case of relay failure or testing).
• Meters: An [[lcd-panel|LCD display]] showing instantaneous voltage, current, power factor, and cumulative energy in kWh.
• SCADA modem: A [[mobile-substation-modem|cellular or Ethernet modem]] transmitting real-time data to a utility control center, enabling remote monitoring. Control center operators can view load profiles, issue breaker trip commands, and trigger automated load-shedding routines.

The cabin also houses a [[power-supply|DC supply]] powering relay coils, pilot lights, and communications equipment.

Operational Scenarios

Outage Restoration

During a planned outage (e.g., substation maintenance), a mobile unit is rolled in to carry load from the affected network. Once connected and synchronized to the remaining grid infrastructure, distribution feeders energize from the mobile transformer. When the permanent substation is restored, a short switchover (seconds of coordinated relay timing) transfers load back, and the mobile unit is disconnected and withdrawn.

Temporary Construction Power

New industrial parks often need power before permanent substations are built. A mobile unit supplies medium voltage to step-down transformers serving temporary trailers and construction equipment. Over 18–24 months of construction, it carries the increasing load, then is removed when permanent infrastructure is commissioned.

Disaster Recovery

After a major storm or earthquake damages a substation, utilities deploy mobile units to critical feeders within hours. The unit stabilizes voltage to hospitals, water treatment plants, and fire stations while repair crews rebuild the permanent facility.

Load Growth and Deferred Investment

Utilities facing peak-load growth may rent mobile substations instead of building expensive permanent facilities. This "deferred capital" approach postpones investment until growth stabilizes, improving financial returns.

Cooling and Thermal Design

Mobile substation transformers use forced-oil-air cooling (typically ONAN or ODAF nomenclature in IEEE standards):

• ONAN: Oil Natural, Air Natural—buoyancy-driven circulation and natural convection (passive, no fans). Used for small 10–25 MVA units with low overload duty.
• ODAF: Oil-Directed, Air-Forced—a pump circulates oil through the radiator, and a motor-driven fan forces air. Enables overload capability (125% nameplate rating for limited periods) without exceeding 65 °C hotspot temperature.

Larger mobile units employ ODAF to maximize capacity and responsiveness to load surges.

Electrical Integration and Grounding

The [[mobile-substation-earthing|grounding system]] is non-negotiable. Using the [[mobile-substation-ground-rods|copper-bonded ground rods]] and [[mobile-substation-ground-bus|main ground bus]], a ground resistance of <5 ohms is targeted. In rocky or sandy soil, multiple deep rods or a radial mat of buried cable may be required.

All conductive components—transformer tank, switchgear frame, rail, cabin—bond to the [[mobile-substation-ground-bus|ground bus]] with [[mobile-substation-bonding-straps|flexible cables]] of at least #4 AWG copper. During a line-to-ground fault, current flows safely to earth without arcing at connection points.

The neutral point of the transformer secondary may be grounded solidly (permanent substation), impedance-grounded (mobile units), or ungrounded, depending on utility coordination and fault current objectives. Mobile units often use impedance grounding to limit transient overvoltages during switching.

Deployment Checklist

1. Survey and prepare site: Level ground, adequate clearance for radiator air intake and exhaust.
2. Transport and position: Tractor-trailer delivers unit; rough position on-site.
3. Level and jack up: Hydraulic jacks at four corners bring frame plumb within ±0.5°.
4. Grounding: Drive ground rods, install ground bus, bond all frames and equipment.
5. Electrical connections: High-voltage transmission lines connected to primary bushings (often using cable lugs and dead-front switching); medium-voltage distribution cables to secondary compartment feeders.
6. System checks: Insulation resistance tests (megohm meter), DC voltage test on control circuits, relay function tests.
7. Synchronization: Parallel the mobile unit's secondary to the distribution network, matching voltage and phase angle; close breakers in a choreographed sequence to avoid inrush shock.
8. Operations handoff: Local and remote operators trained; SCADA comms verified.

Deployment typically requires 2–4 hours for the entire sequence.

Maintenance and Service Life

Mobile substation transformers are high-reliability equipment. Oil-immersed units are designed for 30–40 year service life if:

• Oil is tested annually (moisture, acid number, dielectric breakdown) and reconditioned (dehydration, degassing) every 5–10 years.
• Breaker contacts are inspected every 10 years and replaced if erosion exceeds manufacturer specs.
• Cooling radiators are flushed every 3 years to prevent scale buildup.
• Grounding resistance is re-verified every 2–3 years (soil dries or compacts over time, increasing resistance).

After 20–25 years, the substation is typically returned to the manufacturer for major overhaul—new windings, gaskets, internal bushings—extending life another 15–20 years.

Standards and Regulation

Mobile substations must comply with:

• IEEE C57.12.90: Transformer tests and specifications.
• IEEE C37.90: Switchgear testing and coordination.
• NFPA 70 (NEC): Electrical installation code.
• ANSI C84.1: Voltage and power-quality bands.
• OSHA 1910.303–1910.399: Electrical safety and grounding.
• Local utility interconnection rules: IEEE 1547 (distributed resource interconnection), transmission planning criteria.

Environmental regulations limit noise to <80 dB(A) at 1 meter (fan operation), and spill containment is required beneath the transformer in sensitive groundwater areas.
