Modular Synthesizer System Product

Overview

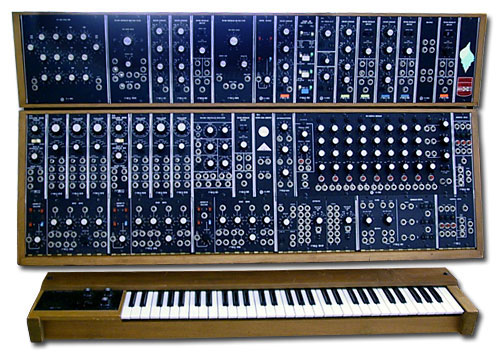

A modular synthesizer is a collection of independent electronic sound-generation and sound-shaping modules assembled into a single case and connected via patch cables to create custom instruments. Unlike a keyboard synthesizer with fixed signal flow, a modular system offers complete patching flexibility: oscillators can feed filters, filters can modulate oscillators, envelopes can control any parameter, and the user rewires the signal path as needed for each sound design challenge.

The Eurorack format (named for its use of DIN rails) is the modern standard. A typical starter system includes a Eurorack Case housing a Eurorack Power Supply Module and five to seven core modules: a VCO (Voltage-Controlled Oscillator) for tone generation, a VCF (Voltage-Controlled Filter) for tone shaping, a VCA (Voltage-Controlled Amplifier) for amplitude control, an ADSR Envelope Generator for dynamic shaping, and a Audio Input Mixer for combining signals. The user connects these with color-coded Patch Cable Set, creating signal flow paths that range from straightforward (VCO → filter → amplifier) to complex feedback and cross-modulation.

How it works

At the heart is the VCO (Voltage-Controlled Oscillator), which generates a continuous periodic waveform. Its output frequency is determined by a control voltage (CV): 1 volt per octave is the universal standard, meaning a 0 V input might yield 55 Hz (A1), a 1 V input yields 110 Hz (A2), a 5 V input yields 1.76 kHz (A5), and so on. This CV input can come from a keyboard, a sequencer, or even another oscillator (for frequency modulation). The VCO outputs three waveforms simultaneously: Waveform Output sawtooth (bright, harmonically rich), pulse (nasal, variable width for tone color), and triangle (pure, mellow).

These oscillator signals pass through the Audio Input Mixer, which sums multiple inputs (e.g., two oscillators, a noise generator, an external line) into a single audio stream. This mixed signal then enters the VCF (Voltage-Controlled Filter), a resonant lowpass filter that attenuates high frequencies based on a Cutoff CV Input cutoff frequency control voltage. The Resonance Control potentiometer emphasizes the filter's corner frequency, creating a self-oscillating peak; extreme resonance can cause the filter to ring indefinitely or burst into oscillation when modulated. The filtered signal passes through the VCA (Voltage-Controlled Amplifier), which is a linear or exponential amplifier whose gain is controlled by a CV input, typically from an ADSR Envelope Generator.

The ADSR Envelope Generator is a voltage generator shaped by four time controls: Attack (how fast the envelope rises from trigger), Decay (how fast it falls from peak to sustain), Sustain (the held level), and Release (how fast it falls to zero after the gate ends). When a keyboard key is pressed, it sends a gate signal (high voltage) to the envelope; the envelope ramps up, holds, and when the key is released, the gate falls and the envelope decays to silence. By patching the envelope output to the VCA (Voltage-Controlled Amplifier), the sound naturally decays even if the filter and oscillator are still running. By patching the envelope to the VCF (Voltage-Controlled Filter), the filter opens and closes with the note, adding dynamic filtering.

The Eurorack Power Supply Module distributes +12 V (for audio and modulation circuits), −12 V (for opamp dual-rail operation), and +5 V (for digital control logic and LED indicators) to all modules via a Busboard. These voltages power the analog electronics: operational amplifiers (opamps) that integrate, sum, and multiply audio and control signals.

Patch cables and signal flow

The magic of modular synthesis is the ability to patch any output jack to any input jack, creating custom signal flows. A simple patch is VCO out → filter in, filter out → amplifier in, amplifier out → speaker. A complex patch might be: Oscillator 1 → filter cutoff input, Oscillator 2 → filter audio input, Filter output → amplifier, Envelope → amplifier CV, Keyboard → oscillator pitch CV, LFO (low-frequency oscillator) → oscillator frequency for vibrato, and Filter output also → amplifier CV input for dynamic level. This flexibility allows sound designers to sculpt tones impossible on preset-based synthesizers.

Control voltage standard

All voltage-based controls in the modular world follow a standard: 1 V = 1 octave for pitch, 0–10 V for most other parameters (e.g., filter cutoff, modulation depth). This standardization allows modules from different manufacturers to interoperate seamlessly. A keyboard sends 0–5 V (representing MIDI note 0–127) to the VCO (Voltage-Controlled Oscillator) pitch input; a sequencer outputs the same voltage format; an LFO (oscillating control voltage) from another module can modulate the pitch, creating a siren effect.

Sound design applications

Modular synthesis excels at:

• Subtractive synthesis: Start with a harmonically rich oscillator (sawtooth), sculpt it with a resonant filter sweep (controlled by an envelope), and shape the amplitude (using the VCA + envelope). This is the basis of bass and lead sounds.
• Additive synthesis: Use multiple oscillators tuned to different pitches, summing them in the mixer to approximate harmonic spectra of acoustic instruments.
• Frequency modulation: Patch one oscillator's output to another oscillator's pitch input, creating bell tones, metallic timbres, and evolving spectra.
• Cross-modulation and feedback: Patch signals in complex, interdependent loops to create self-modifying, evolving soundscapes.

Professional sound designers spend decades exploring the tonal palette of modular synthesis. The physical act of patching—reconnecting cables between sessions—means each performance or recording session can have a completely different instrument architecture, keeping the creative process fresh and unpredictable.
