Morgue Refrigerator Product

Overview

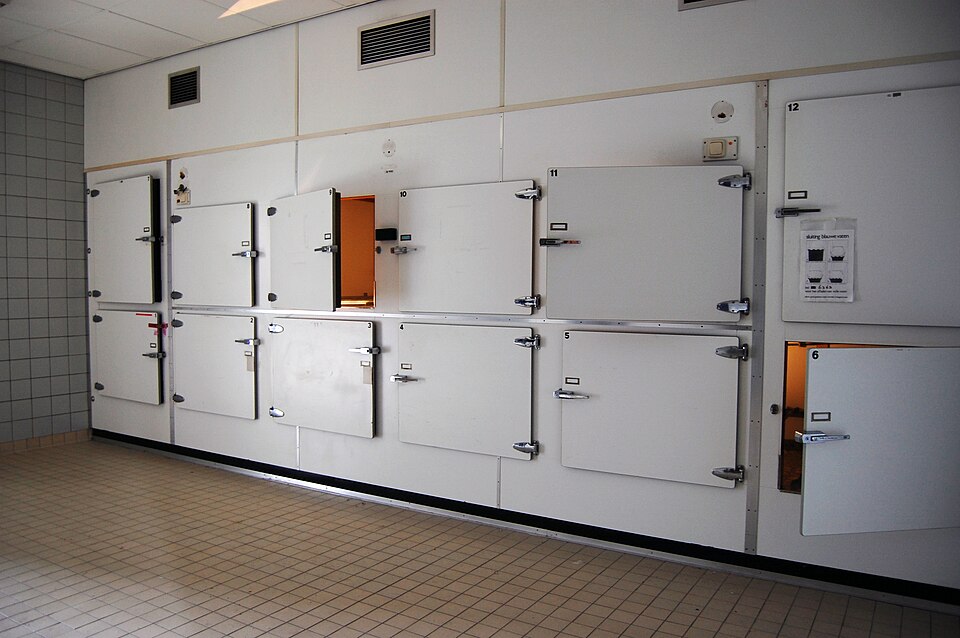

A morgue refrigerator (also called a body cooler or mortuary refrigerator) is a specialized large-capacity refrigerated cabinet designed for temporary preservation of deceased individuals pending autopsy, identification, release to funeral homes, or other disposition. Unlike medical laboratory freezers, morgue units prioritize ease of tray access, organizational capacity (4–6 independent bodies), and fail-safe thermal monitoring. The cold environment slows microbial decomposition and putrefaction, extending the window for forensic investigation, DNA collection, and identification procedures.

The refrigerator comprises a heavily insulated Insulated Cabinet Enclosure, a sealed Refrigeration System with redundant controls, and a Body Tray System allowing secure, clean storage of each body on separate Stainless Steel Body Trays that slide in and out of the main enclosure. Modern units include remote Temperature Monitoring & Alarm with audible and visual alarms, data logging for regulatory compliance, and network connectivity for centralized temperature oversight across multiple morgues in a medical examiner's office.

Cabinet insulation and structure

The Insulated Cabinet Enclosure is a double-walled stainless steel or aluminum enclosure. The Outer Steel Shell provides a corrosion-resistant exterior; the Inner Stainless Lining creates a smooth, sanitary interior surface. Between them lies a thick Foam Insulation Layer layer—typically 75 mm of closed-cell polyurethane foam with an R-value approaching 12 K·m²/W. This insulation minimizes heat ingress and reduces compressor run time, lowering operating costs. The Floor Pan with Slope slopes toward a drainage point, allowing condensation and accidental fluid spills to exit via a floor drain connection.

The Reinforcement Ribs welded inside the cabinet prevent the panels from flexing or oil-canning under the pressure difference between the insulated interior and ambient room air, maintaining structural integrity over decades of operation.

Refrigeration cycle

The Refrigeration System is a vapor-compression cycle using R-404A refrigerant, chosen for its low-temperature performance and established safety record in food and medical applications. The Hermetic Reciprocating Compressor is a reciprocating piston unit rated 1.5–2 kW at 1450 rpm, operating continuously or via a Microcontroller Module thermostat to maintain –25 to –15°C (operator-adjustable).

Hot, high-pressure gas from the compressor flows to the Air-Cooled Condenser, an aluminum tube-fin core mounted on the back of the cabinet. A Condenser Fan Motor draws ambient air across the condenser coil, rejecting heat and condensing refrigerant to liquid. The liquid passes through a Drier/Filter Cartridge (containing silica gel and molecular sieves) to remove residual moisture—critical, as water freezes in the evaporator at these temperatures, potentially blocking flow. A morgue-refrigerator-thermostatic-expansion-valve (TXV) meters refrigerant into the cabinet-mounted Cabinet Evaporator.

The Cabinet Evaporator is a plate-fin core mounted above the body trays in an insulated air duct. An Evaporator Circulation Fan (EC motor with variable PWM speed control) circulates cabinet air across the cold coil, extracting heat from the space and bodies. Cold, low-pressure refrigerant returns to the compressor inlet, completing the cycle.

A Solenoid Refrigerant Valve enables automatic hot-gas defrost cycles, periodically bypassing the TXV to warm the evaporator coil and melt any frost buildup without requiring manual intervention.

Body tray system

The Body Tray System is the user-facing component. Each Stainless Steel Body Tray is a welded stainless steel pan, typically 2 m × 0.7 m × 0.08 m deep—dimensions chosen to accommodate an average adult body. The tray rim is slightly raised and smoothed to prevent spillage. A morgue-refrigerator-tray-drain-hole in one corner allows washings to drain during cleaning. The trays rest on a sliding Guide Rail / Track using Roller Wheel Assembly wheels of nylon or rubber, allowing smooth insertion and retraction with minimal force.

Each tray includes a ID Label Holder—a clear acrylic bracket—for a paper ID card listing the decedent's name, case number, and admission date. An Anti-Ejection Stop at the full-open position prevents accidental ejection of the tray from the cabinet, a critical safety feature in high-throughput medical examiner facilities.

Doors and access

The Door Assembly typically comprises single or double swing doors, each a heavy, insulated sandwich structure. The Door Panel is 35–50 kg, with an outer stainless facing, foam insulation, and an inner liner. Heavy-duty Heavy-Duty Hinges with teflon liners support the weight and resist corrosion. A perimeter Door Gasket Seal of EPDM rubber or magnetic foam compresses when the door closes, sealing the interior and preventing warm air infiltration. The Keyed Door Lock is keyed, restricting access and preventing unauthorized removal of bodies.

A Pull Handle allows a single operator to open the door using minimal force despite the weight and air pressure. Some units include a powered door assist (hydraulic or pneumatic damper) to further ease access and prevent sharp closure.

Monitoring and alarms

The Temperature Monitoring & Alarm system is critical for regulatory compliance and rapid response to equipment failure. A RTD Thermometer (Pt100 RTD mounted in the air duct) continuously measures cabinet temperature. The Microcontroller Module—a microcontroller-based unit—compares the measured temperature to the operator setpoint. If temperature rises above a threshold (e.g., –10°C when set to –20°C), the controller activates a compressor contactor to increase cooling. If temperature falls below a low-alarm limit (indicating over-cooling), it cycles the compressor off.

The LCD Display Panel on the front of the cabinet shows the current internal temperature and setpoint as a 4-digit LED or LCD display. Alarm status is indicated by colored indicators: green (normal operation), yellow (low battery or door ajar), red (high-temp alarm, compressor failure, or system fault). A Audible Alarm Buzzer sounds if temperature deviates, alerting staff to investigate.

A Remote Temperature Probe system (either hardwired or wireless) allows a monitoring station elsewhere in the facility—such as the medical examiner's office manager—to receive real-time alerts via phone, email, or dashboard, ensuring prompt intervention if the cooling system fails. This is vital because body decomposition accelerates dramatically above 15°C, and loss of a body to decomposition in a morgue is a serious liability and ethical breach.

Electrical and drainage

The Electrical Power & Control Panel panel contains the Main Disconnect Switch, a Compressor Contactor (energized by the control module), and a Thermal Overload Relay (protects the compressor motor from sustained over-current). The Mains IEC Inlet is a standard 230 V IEC Schuko connector; total draw during compressor run is ~2–3 A peak.

The Condensate Drainage System system collects condensate from the evaporator and any spillage. A Drain Sump Pan under the cabinet holds this liquid; a Condensate Drain Pump with a float switch automatically activates when sump level rises, pumping waste to the facility drain or holding tank. This prevents mold growth, odor, and contamination of the cabinet interior.

Compliance and lifecycle

Morgue refrigerators must meet EN 346 (mortuary equipment) and local health codes. Refrigerant handling, annual servicing, and certification of repairs are documented for regulatory inspections. Many jurisdictions require a 50+ year service life, with spare parts availability from manufacturers or aftermarket suppliers.
