Overview

A motorcycle alarm system is a multi-layer security device that detects unauthorized movement and theft attempts, triggering both audible and electrical deterrents. When parked and armed, the motorcycle is monitored by motion and tilt sensors; if the bike is moved (tilted, bumped, or towed), the system triggers a loud siren alarm and can electrically immobilize the engine by cutting fuel or ignition. Modern systems use wireless keyfob remotes with rolling-code encryption to prevent replay attacks, and some integrate GPS tracking for recovery.

Threat Model & Detection Strategy

Motorcycle theft occurs in two primary scenarios:

Scenario 1: Direct Theft (Thief Starts the Bike)

• Attacker picks the steering lock and/or helmet lock, sits on the bike.
• Kick-starts or presses the start button.
• Must be prevented by ignition-cut immobilizer.

Prevention: Engine Immobilizer Relay cuts fuel pump or ignition before engine start.

Scenario 2: Rolling Theft (Thief Pushes the Bike)

• Attacker applies force to move or tilt the bike, either to ride away (if already keyed) or to load onto a truck.
• Sensitive motion detection must trigger instantly.

Prevention: Motion & Tilt Sensor detects movement and triggers Electronic Siren to deter the thief and alert nearby persons.

Sensor Technology

Accelerometer Detection

The Acceleration Sensor is a MEMS (Micro-Electro-Mechanical Systems) dual-axis accelerometer with ±8 g range:

• Sensitivity: 1.5 g threshold (approximately 0.3 m/s² linear acceleration).
• Sampling rate: 100–200 Hz (10–20 ms per measurement).
• Noise floor: ~±0.05 g (digital filtering reduces false positives from vibration).

Tilt Detection

The Tilt Switch is a mechanical tilt switch (ball-in-tube):

• Ball rests in a mercury or conductive liquid reservoir at the bottom (parked orientation).
• If the bike tilts beyond 30–45° from vertical, the ball rolls out of the reservoir, breaking electrical contact.
• Threshold is adjustable by rotating the switch housing; typically set to 35° (allows the bike to lean on the kickstand, ~15° angle, plus some headroom for wind sway).

Sensor Fusion Logic

The Sensor Conditioning conditioning circuit uses AND/OR logic to reduce false alarms:

1. Acceleration-only trigger: If accelerometer detects >1.5 g for >500 ms (not a single bump), AND
2. Tilt-only trigger: If mechanical tilt switch opens (bike tilted beyond kickstand angle), OR
3. Combination: Either event alone triggers alarm.

False-positive reduction:

• Motorcycle wind sway: Rarely exceeds 1.5 g; short bumps (<500 ms) are ignored.
• Rain drops on the sensor: Negligible acceleration.
• Parked bike vibration (nearby traffic): Usually <1 g; filtered by 500 ms debounce.

Typical false-alarm rate: <1% in urban environment.

Siren & Acoustic Design

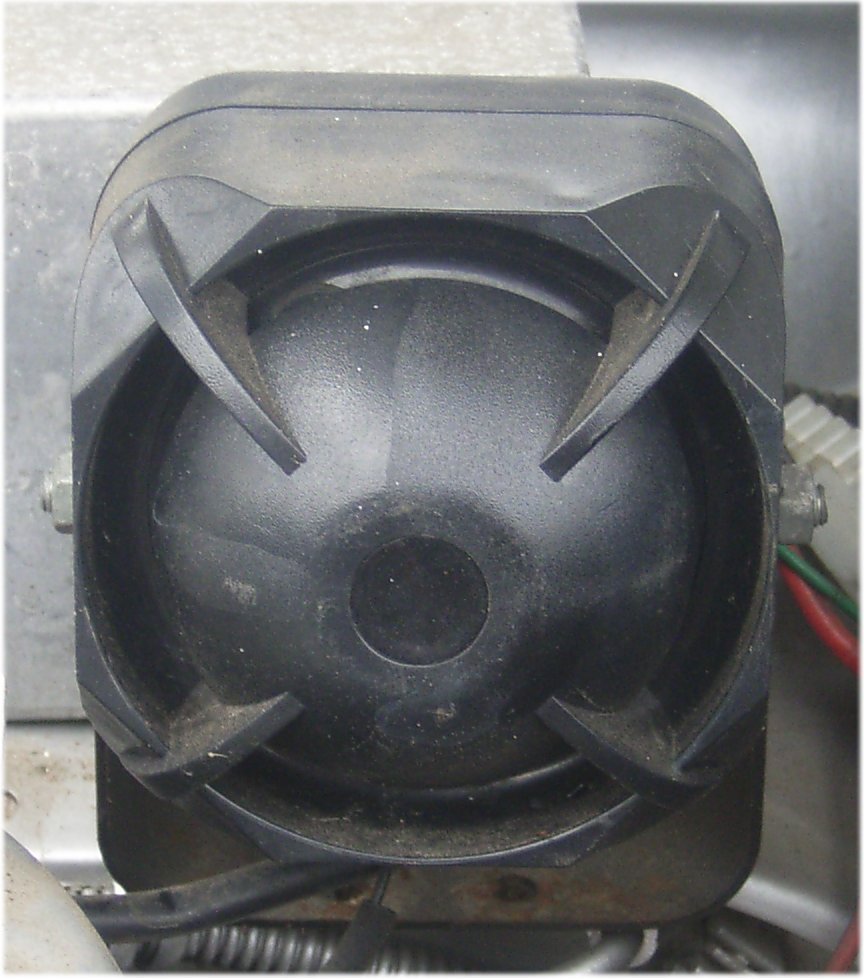

The Electronic Siren produces an attention-grabbing alarm:

Acoustic Specifications

• Frequency: 1–3 kHz (speech and warning frequencies; audible even to people with hearing loss).
• SPL (Sound Pressure Level): 110–120 dB @ 1 meter.
  • 110 dB: Damage threshold (extended exposure >90 minutes causes hearing damage).
  • 120 dB: Pain threshold (human ear discomfort).
  • For comparison: Jet engine ~140 dB, chainsaw ~110 dB, car horn ~100–110 dB.
• Duty cycle: 30–60 seconds of continuous alarm, then auto-shutoff to prevent battery drain.

Siren Driver Types

Piezoelectric Buzzer:

• Tiny crystal that oscillates at a resonant frequency.
• Lightweight (5 g), low current (10–50 mA).
• Output: 110–115 dB easily achievable.
• Advantage: Simple, cheap (~USD 2–5).
• Disadvantage: Tone is fixed (less pleasant, more annoying—which is the goal).

Dynamic Speaker Driver:

• Moving-coil speaker (2–3 W rated).
• Programmable tone (chime, wail, pulse).
• Higher current (200–300 mA at full power).
• Output: 115–120 dB with proper enclosure.
• Advantage: More versatile, can produce multiple tones.
• Disadvantage: Larger, more expensive (~USD 30–50).

Most motorcycle alarms use a piezoelectric buzzer for simplicity and low power consumption.

Immobilizer Relay

The Engine Immobilizer Relay is the engine kill-switch:

How It Works

Two possible immobilization strategies:

Strategy A: Fuel Pump Cut (Preferred)

• Engine Immobilizer Relay is in series with the fuel pump ground wire.
• When armed and alarm triggered, relay opens, cutting ground.
• Fuel pump de-energizes; no fuel pressure reaches the fuel rail.
• Engine will not start (modern fuel-injected bikes rely on fuel pump pressure).
• Thief can crank the starter, but engine won't fire.

Strategy B: Ignition Coil Cut

• Relay interrupts the ignition coil primary circuit.
• Engine won't have spark plugs fire even if fuel is available.
• Less common because it can damage the ignition coil (prolonged cranking generates high voltage spikes in the primary coil without a load).

Relay Specifications

The Relay Contacts must handle:

• Current: Fuel pump draws 5–20 A depending on bike. Relay contacts rated 20 A at 12 V DC.
• Inductive load: When a relay contact opens an inductive load (fuel pump), a voltage spike occurs. Relay must have arc suppression (freewheeling diode or metal oxide varistor) to clamp the spike.
• Contact material: Silver-palladium or silver-alloy contacts resist erosion and pitting from repeated switching.

Time to Kill

When the alarm triggers and the relay opens:

• Fuel pump stops immediately (<100 ms).
• Fuel pressure in the rail drops rapidly (5–10 seconds).
• If the thief tries to start the bike at this point, the engine cranks but doesn't fire (no fuel).

Total time to prevent engine start: <1 second from alarm trigger.

Remote Control System

Keyfob Transmitter

The RF Transmitter sends encrypted commands:

• Frequency: 433 MHz (ISM band, unlicensed worldwide; also used for car key fobs, garage door openers).
• Modulation: OOK (on-off keying) or 2-FSK (frequency shift keying).
• Transmit power: ~100 mW (FCC Part 15 limit for license-exempt devices).
• Range: 50–100 m line-of-sight (reduced to 10–20 m through walls/buildings due to attenuation).

Rolling-Code Encryption

Modern systems use rolling-code to prevent replay attacks:

1. First press: Transmitter sends code = f(PIN, sequence_number, challenge), where sequence_number auto-increments.
2. Receiver validation: Control module checks: incoming_code_seq > last_accepted_seq. If yes, accept; if no, reject (prevent replays).
3. Each press: Transmitter increments sequence_number. Receiver must accept new sequence.

Advantage: Attacker cannot record a single button press and replay it later; each press is cryptographically different.

Implementation: Rolling-code chips (e.g., HCS301 by Microchip) handle encryption/validation in hardware on both transmitter and receiver.

Button Functions

Most remotes have two buttons:

1. Arm/Disarm: Toggles armed state.

   • Armed: Sensors active, siren ready, immobilizer armed.
   • Disarmed: Sensors inactive, rider can start bike normally.

2. Panic/Locate: Activates siren for 30 seconds (for locating the bike in a parking lot).

Advanced systems add a third button for trunk/seat unlock.

Control Module Logic

The Main Control Module MCU runs a state machine:

States

1. Disarmed: Sensors inactive, relay allows normal engine start.
2. Armed (idle): Sensors active, waiting for alarm trigger.
3. Alarm triggered: Siren on, immobilizer relay active, waiting for 30–60 second timer to expire or for rider to disarm via remote.
4. Immobilized: Fuel pump cut or ignition cut remains active until disarmed by remote.

State Transitions

''' Disarmed -> [remote arm button pressed] -> Armed Armed -> [sensor detects motion/tilt] -> Alarm triggered Alarm triggered -> [30–60 second timer expires] -> Immobilized (silent, but immobile) Immobilized -> [remote disarm button pressed] -> Disarmed '''

Firmware Features

• Automatic re-arm: If alarm triggers and auto-resets to immobilized state, the system re-arms sensors automatically (prevents thief from disabling after first alarm).
• Low-battery warning: Control module monitors battery voltage; if <10.5 V, MCU outputs a different tone (beep instead of siren) to alert rider to charge bike.
• Timed arm: Some systems allow "arm in 30 seconds" countdown, giving rider time to dismount and walk away before alarm activates.

Power Management

The system draws minimal power when disarmed:

• Standby current: <50 mA (mostly RF receiver listening, MCU in sleep mode).
• Armed, idle: <30 mA (accelerometer sampling, sensor monitoring).
• Alarm active (siren on): 500–1000 mA (siren driver at full power).

Typical motorcycle battery (12 Ah):

• Standby drain: 50 mA × 24 hours ≈ 1.2 Ah (negligible).
• If siren triggers: 750 mA × 1 minute ≈ 12.5 mAh (very small drain).

The alarm system is virtually parasitic on the bike's electrical system.

Installation & Wiring

Professional installation typically requires:

1. Sensor mounting: Accelerometer/tilt module is mounted on the frame (usually under seat) in a sealed housing.
2. Siren mounting: Loud speaker is mounted under the seat or in fairing; must be audible from outside the helmet.
3. Control module: MCU is mounted under seat or inside the fairing, sealed against moisture.
4. Relay installation: Relay is spliced into the fuel pump ground wire (or ignition coil primary).
5. Keyfob remote: Handed to the rider; stored in pocket or attached to keyring.

Wiring color codes (typical):

• Red: Battery positive (+12 V)
• Black: Ground (battery negative)
• Blue: Fuel pump circuit (to be interrupted)
• Yellow: Siren output
• Green: RF receiver antenna

Installation time: 2–3 hours for a professional mechanic; 4–6 hours for DIY.

Typical Alarm Scenario

1. Rider parks bike, locks it, walks away.
2. Rider presses "Arm" on keyfob; alarm beeps twice (confirmation).
3. Thief approaches the bike, tries to push it (towing attempt).
4. Tilt sensor detects bike tilted >35°; accelerometer also triggers.
5. Control module evaluates both sensors as valid alarm condition.
6. Relay opens immediately, cutting fuel pump.
7. Siren activates at 120 dB for 60 seconds (extremely loud).
8. Thief is startled and runs away.
9. Nearby person hears alarm and may check on the bike or call police.
10. After 60 seconds, siren stops but immobilizer stays active (fuel pump remains cut).
11. Thief attempts to kick-start the bike; engine cranks but doesn't fire (no fuel).
12. Rider returns, presses "Disarm" on keyfob.
13. Alarm state resets to disarmed, relay closes, fuel pump re-energizes.
14. Rider can now start the bike normally.

Reliability & Maintenance

The system is designed for minimal maintenance:

• Battery: Coin cell in keyfob lasts ~1–2 years (500+ button presses); replace annually as preventive maintenance.
• Wiring: Check annual for corrosion, damage, or loose connectors; clean with dielectric grease if needed.
• Siren: Test monthly (press keyfob panic button) to ensure alarm activates; if siren doesn't sound, check power and wiring.
• Motorcycle battery: Ensure bike's main battery is in good condition; weak battery (voltage drop) can prevent relay from closing properly.

Limitations

1. GPS not included: Basic alarms don't track the bike's location; rider must rely on police theft recovery. Premium systems integrate GPS and cloud connectivity.
2. Steering lock only: Alarm doesn't lock the steering; a motivated thief with a truck can still load the bike (though alarm and immobilizer provide enough time for help).
3. False positives: Windy parking lots or vibrant traffic can occasionally trigger false alarms. Proper sensor threshold adjustment reduces this to <1%.
4. No remote start: Unlike some car systems, motorcycle alarms don't support remote engine start (too dangerous on a bike due to braking requirements).

Overall, motorcycle alarms reduce theft risk significantly and are considered essential security for street-parked bikes in high-theft urban areas.
