Motorcycle Lift Table Product

Overview

A motorcycle lift table is a service platform that elevates motorcycles for maintenance and repair. Unlike automotive four-post lifts (which grip wheels directly), motorcycle lifts center the bike on a deck and secure it with wheel clamps, allowing access to the frame, engine, suspension, and undercarriage. The scissor mechanism—crossed steel beams pivoting at the center—provides compact storage height and smooth vertical travel. Two power options (manual foot pump or electric hydraulic pump) make these lifts suitable for both home garages and professional service bays.

Scissor Mechanism Fundamentals

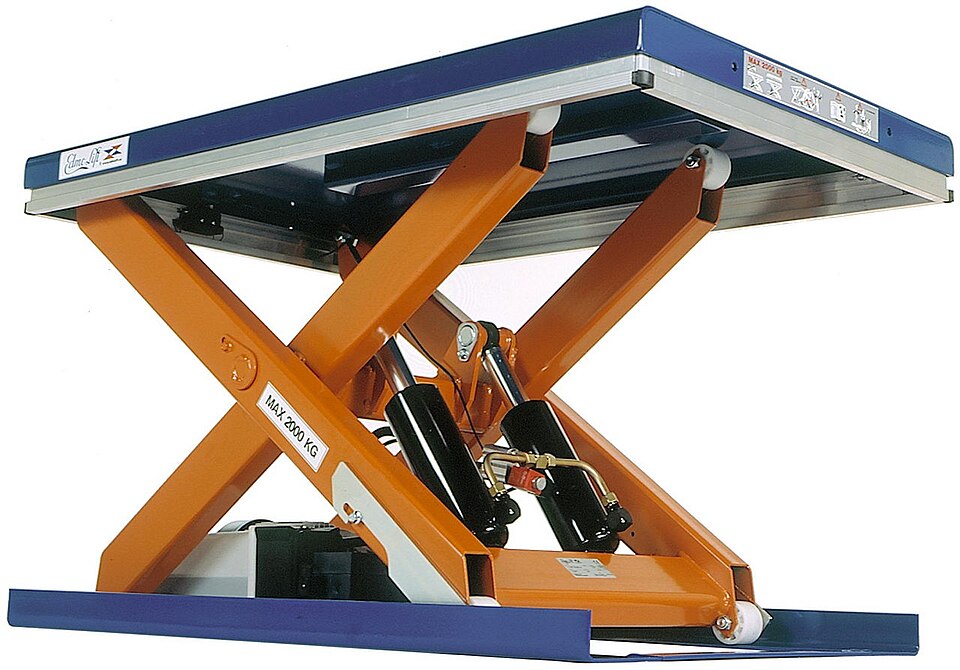

The Scissor Frame Assembly is the heart of the lift. Four Main Beam Tube are arranged in an X pattern, with each pair of opposite beams hinged at the center by Central Pivot Pin pins. When a Lifting Cylinder extends (pushed by hydraulic pressure), it forces the scissor beams apart, raising the top platform exponentially.

Geometric Principle

The vertical lift height is a function of the horizontal scissor angle:

• At 0° (fully collapsed), the platform is lowest (~150–200 mm off the ground).
• At ~60° (intermediate), the platform is at ~600 mm (waist height).
• At 85° (near fully extended), the platform is at maximum height (1000–1200 mm).

This geometric advantage means the single Lifting Cylinder (50 mm bore, ~210 bar) can lift 300–400 kg with modest pressure, because the mechanical advantage increases as the scissor opens.

Stability & Lateral Rigidity

The Diagonal Reinforcement diagonal reinforcement members connect the base corners, preventing lateral racking (the X-frame can sway sideways if not braced). These braces, welded at 45° angles, transfer side loads from the raised platform back to the four base feet.

Hydraulic System Architecture

Pump Options

The Hydraulic Pump & Accumulator comes in two configurations:

Manual Foot Pump

• Piston Pump Element: A 32 mm diameter hardened-steel piston that reciprocates 5–8 cm per foot stroke, displacing 15–25 mL of ISO VG 46 hydraulic fluid.
• Each foot stroke adds ~15 mL at ~180 bar (typical peak manual pressure).
• Lifting a 300 kg motorcycle from minimum to maximum height requires ~40–60 foot strokes (5–10 minutes).
• Advantage: simple, maintenance-free, no electricity required.
• Disadvantage: labor-intensive for repeated lifts.

Electric Pump

• 24 V DC motor driving a gear pump at ~1000–1500 rpm.
• Displacement: ~5–8 mL per revolution, achieving ~30–50 mL/s flow.
• Lift time: 30–45 seconds from floor to max height.
• Advantage: fast, suitable for busy service shops.
• Disadvantage: requires electrical connection and power budget.

Accumulator & Pressure Smoothing

The Pressure Accumulator is a nitrogen-precharged pressure vessel (typically pre-charged to 0.6 bar atmospheric equivalent) that smooths pressure spikes when the pump switches from lift to hold mode. On manual pumps, the accumulator also allows the platform to be held steady during the pause between strokes (rather than creeping downward).

Relief Valve Protection

The Relief Valve valve (set at 210 bar) prevents system overpressure. If the pump is forced to lift beyond maximum height, the relief valve opens, returning excess fluid to the reservoir at low pressure. This prevents hose rupture and seal failure.

Lift Cylinder Design

The Lifting Cylinder is a double-acting hydraulic cylinder (50 mm bore, 200 mm stroke, ISO 4413 standard):

• Extend (raise): Pump pressure applied to the cap-end (rod-side) of the piston, pushing the piston rod outward.
• Retract (lower): Pump pressure applied to the head-end (cap-side), pulling the piston rod inward; or gravity and load pressure act on the cap-end, creating a gentle lowering motion if the directional valve is set to neutral.

The piston rod (Piston Rod) is chrome-plated to resist corrosion and wear; internal Piston Seals (nitrile lip seals or PTFE ring seals) prevent internal leakage at 210 bar.

Each Cylinder Mount Clevis is a welded or bolted clevis bracket that allows the cylinder to pivot at both ends, connecting from the base to the movable scissor beams.

Work Deck & Wheel Clamps

The Work Platform is a welded steel platform (1200×600 mm, 5 mm thickness) with a Non-Slip Coating non-slip coating (rubberized epoxy or grit-embedded epoxy, 1–2 mm thick) to prevent motorcycle tires from rolling during lifting.

The Motorcycle Wheel Restraint system constrains the motorcycle:

• Front wheel clamp: A movable assembly with rubber-lined clamping pads (Clamping Pad) that grip the tire sidewall on both sides.
• Rear wheel clamp: A fixed clamp post or a hinged clamp assembly.
• Clamping force: Applied via manual screws (Tightening Screw, M16 grade, 300+ N·m torque) or pneumatic cylinders (for rapid locking/unlocking in professional shops).

The Sliding Rail Base is a 1200 mm rail with roller bearings that slides fore-aft to accommodate motorcycles with different wheelbases (800–1600 mm for most street bikes, up to 1900 mm for cruisers).

Wheel Clamp Function

The clamps serve two purposes:

1. Prevent lateral drift during lifting (scissor tables can sway sideways if the load is off-center; clamps resist this).
2. Secure the motorcycle so the rider's hands are free for inspection and light maintenance.

The rubber clamping pads grip the tire without marring the sidewall; hardness (durometer 60–70A) is chosen to be soft enough not to cut the tire but hard enough to resist permanent deformation.

Safety Systems

Mechanical Locks & Stops

The Safety Pin (hardened steel shear pins, 12 mm diameter, Grade 8.8) are inserted through pre-drilled holes in the scissor frame at the desired height. The pins prevent the scissor from collapsing if a hydraulic hose bursts or the directional valve fails.

The Mechanical Stop Block mechanical stop block (adjustable rubber-faced post welded to the frame) limits downward travel by contacting the moving scissor beam if hydraulic pressure is lost, preventing a free-fall descent.

The Safety Lanyard (Grade 70 steel chain, 8 mm links) is a secondary lanyard tethering the platform to the base. If both hydraulic locks fail and the mechanical stop is not engaged, the chain prevents the platform from dropping more than a few centimeters.

Pressure & Load Monitoring

The Pressure Gauge pressure gauge (0–250 bar Bourdon tube, 2.5% accuracy) allows operators to monitor system pressure. If pressure drops suddenly while holding, a hose may have ruptured; the operator should lower the lift and investigate rather than leaving the motorcycle suspended.

Drop Panel for Exhaust Clearance

The Adjustable Drop Panel is a removable or hinged panel beneath the deck that clears hot engine exhaust components. The panel:

• Hangs 50–100 mm below the deck on hinges or quick-release brackets.
• Is made from formed steel or heat-resistant plastic.
• Can be fully removed or swung down to access the full undercarriage.

This is critical because many motorcycles (especially cruisers and adventure bikes) have low-slung exhausts that would hit the lift deck if the panel were solid.

Pressure & Flow Specifications

Parameter	Value	Note
Working Pressure	210 bar (3000 psi)	ISO 4413 industrial standard
Maximum Transient	250 bar	Before relief valve opens
Pump Displacement (manual)	15–25 mL/stroke	40–60 strokes for full lift
Pump Displacement (electric)	~5 mL/rev at 1200 rpm = 30–50 mL/s	Full lift in 30–45 seconds
Cylinder Bore	50 mm (1.97 in)	Standard ISO 4413 size
Cylinder Stroke	200 mm (7.87 in)	Determines max height
Accumulator Pre-charge	0.6 bar (6 psi)	Nitrogen, typical setting
Hydraulic Fluid	ISO VG 46 (46 cSt @ 40°C)	Mineral oil or synthetic
Fluid Capacity	30–50 L	Depends on cylinder volume and hose length

Geometric & Load Analysis

For a symmetric scissor (both arms of equal length L):

• Angle θ = angle between one scissor arm and vertical
• Platform height h ≈ L · (1 - cos θ)
• Mechanical advantage MA ≈ L / (2 · sin θ)

At θ = 30° (intermediate): MA ≈ 1.7 (small mechanical advantage, high force from cylinder) At θ = 70°: MA ≈ 5.3 (high mechanical advantage, lower force required)

With a 50 mm bore cylinder at 210 bar:

• Cylinder force ≈ (π/4) · (50 mm)² · 210 bar ≈ 41 kN (4.1 tonnes equivalent lift)

With a mechanical advantage of 3–4 at typical working heights, the lift can safely handle 300–400 kg motorcycles.

Installation & Maintenance

Motorcycle lifts are either:

• Mobile (mounted on four swivel casters with locking brakes): Weighing 400–600 kg empty, they can be rolled into position and locked down.
• Fixed: Bolted to the workshop floor for permanent installation.

Routine maintenance includes:

1. Hydraulic fluid inspection every 250 operating hours (change every 2000 hours or annually).
2. Hose inspection for cracks or bulges (replace if aged >5 years or visibly degraded).
3. Pivot pin inspection for play or corrosion; lubricate annually with NLGI 2 grease.
4. Seal inspection during pump servicing; replace if leaking internally.

The entire system is designed for 10+ years of service with basic care.
