Overview

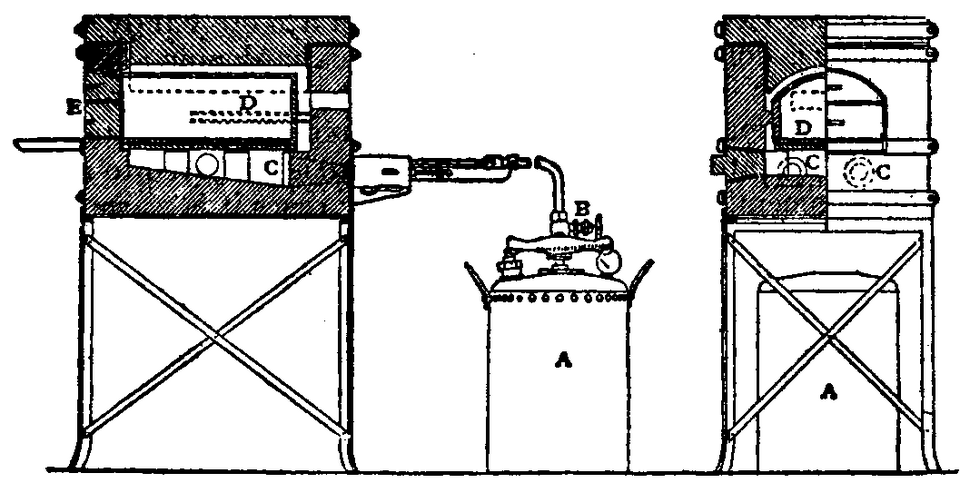

A muffle furnace is a high-temperature laboratory furnace used for ashing, ignition, heat treatment, sintering, and gravimetric analysis. The defining feature is the muffle: a refractory chamber that surrounds the sample and separates it from the heating elements and any combustion products, so the load is heated by uniform radiation from glowing walls rather than by direct contact with the heat source. This isolation keeps samples clean and protects the elements from corrosive vapors. Typical uses include burning organic matter out of a sample to weigh the inorganic residue (loss on ignition), determining ash content in foods and fuels, and annealing metals and ceramics.

Reaching 1100 °C and holding it uniformly requires turning electrical power into radiant heat efficiently, confining that heat tightly, and controlling it without overshoot — all while keeping the operator safe from the very high temperatures involved.

Construction

Heat is generated by the Heating System. Resistance Heating Element coils or rods of an iron-chromium-aluminium alloy run through Element Supports, grooved refractory channels around the chamber walls; FeCrAl forms a protective alumina scale that lets it operate red-hot in air for long element life. Power reaches them through heat-resistant Power Terminals and is switched by a Solid-State Relay that time-proportions the mains supply, with a Thermal Fuse as a last-resort cutout.

The Muffle Chamber is the muffle itself. Its Muffle Liner is sintered ceramic that absorbs heat from the elements and re-radiates it evenly onto the load resting on the Hearth Plate. A Thermocouple projects into the chamber to sense temperature, and a plugged Spy Hole lets gases vent and the load be observed.

Confining the heat is the job of the Insulation Package package, which is layered for performance. Low-mass Fiber Board sits closest to the chamber so the furnace heats and cools quickly without storing much energy; Insulating Firebrick adds structural insulation; and Backing Wool plus a Reflective Foil shield cut the remaining loss so the outer skin stays cool. The Door & Safety continues this insulation with a refractory Door Plug that seals the mouth. Critically, the door carries a Safety Switch that de-energizes the elements the instant the door is opened, protecting the operator from live, exposed heating elements at lethal temperature.

How it works

The Temperature Controller runs the furnace as a ramp-and-soak program: heat at a set rate to a target, hold for a set time, then ramp to the next segment or cool. It reads the thermocouple through a cold-junction-compensated Thermocouple Amplifier and applies PID control, commanding the solid-state relay to deliver just enough power to approach the setpoint without overshooting — important because many samples have defined ignition temperatures and overshoot can volatilize the analyte. Setpoints and programs are entered on the Display Module.

Safety is layered. Beyond the door interlock, an independent Over-Temp Board watches a second sensor and cuts all power if the chamber exceeds a safe limit, so a single failure cannot drive the furnace out of control. The Housing & Frame keeps the case at a safe touch temperature through its insulation and Cooling Vents, which set up a convective gap behind the skin.

During ashing, samples give off moisture, smoke, and organic vapors, so the Exhaust & Venting system vents them: a roof Flue releases the gases, a Vent Damper trades heat retention against fume clearance, and an optional Fume Catalyst oxidizes organic fumes before they leave. After a run, the low thermal mass of the fiber insulation lets the chamber cool in a fraction of the heat-up time, returning crucibles to a desiccator for weighing.
