Plastic Mulch Layer Product

Overview

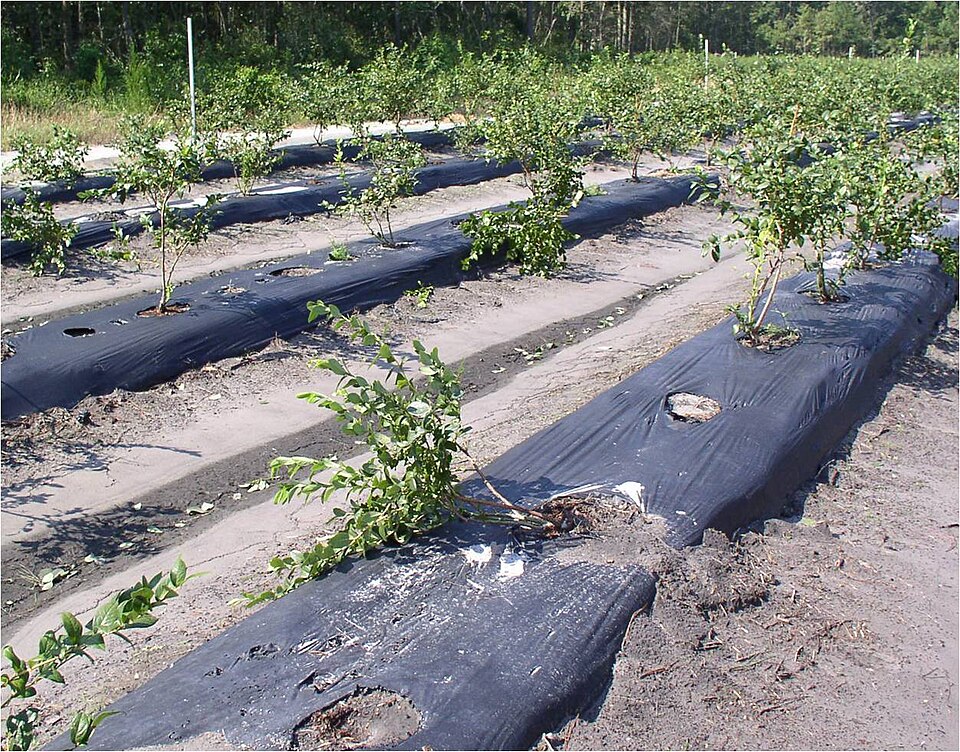

Plastic mulch is a horticultural practice that covers soil with polyethylene (PE) or other synthetic film to control soil temperature, reduce weed pressure, conserve moisture, and improve crop quality. A plastic mulch layer is a mechanized implement that automates the labor-intensive job of laying down film across prepared soil beds and securing edges with soil burial.

The machine combines four operations in one pass:

1. Soil Preparation: Bed-forming discs and moldboards create raised ridges (150–300 mm high), loosening soil and concentrating nutrients in the root zone.
2. Film Unrolling: A large spindle releases plastic film at a controlled rate synchronized to ground speed, ensuring consistent film geometry.
3. Film Pressing: Rubber wheels compress film onto soil, removing air pockets.
4. Edge Burial: Angled soil-covering discs push film edges into furrows, anchoring the film against wind uplift.

This technology became widespread in North America in the 1980s and is now standard for premium vegetable crops (strawberries, tomatoes, peppers, melons, cucumbers). A single machine covers 3–4 acres per day compared to hand-laying (0.5 acres/day), making mechanized mulching economically viable for mid-to-large operations.

How it works

Film Roll Mounting: A fresh film roll (typically 0.5–1.5 km of film at 1.2–1.5 m width) is loaded onto the horizontal spindle. Film rolls are available in standard sizes (e.g., 1500 m × 1.2 m) and can be pulled from inventory as needed.

Hydraulic Drive: The tractor's PTO shaft drives a hydraulic pump that powers three independent motors:

• Main motor drives the Friction Brake, Soil Covering Discs, and Press Wheels.
• Bed-forming motor independently drives the Bed Forming Discs at 600–1200 rpm.
• A Flow Divider couples the spindle brake (which controls film unroll) to ground speed via the tractor's drive wheels.

Bed Formation: As the tractor moves forward, the dual-disc gang (4 large discs) engages the soil and turns it, moving soil from the paths toward the center ridges. The Shaping Share and Ridge Former Wings mold the turned soil into a raised ridge 150–300 mm high, with sides angled at ~45 degrees. A Forming Gauge Wheel maintains consistent ridge height by feedback to the draft linkage.

Film Unrolling: Immediately behind the ridge formation, the plastic film unrolls from the spindle onto the ridge surface. The Flow Divider ensures film release rate matches ground speed—if the tractor slows, film also slows, preventing excess slack or tension variations.

The Friction Brake maintains tension on the spindle by applying resistance torque (50–200 N·m, adjustable for film thickness and humidity). Without tension, film would unroll too quickly and become wrinkled; excessive tension can tear thinner films.

Film Pressing: Dual Press Wheel Assembly positioned behind the film release point press the film firmly onto the ridge. Rubber wheels apply 20–30 kN downward load via pneumatic springs, conforming the film to the ridge shape and removing air pockets that would cause trapping of moisture.

Edge Burial: Trailing the press wheels, the angled Soil Covering Discs (4 concave discs, positioned at 25–35 degree angle) push the film edges down and into prepared furrows on both sides of the ridge. Soil from the furrows covers and anchors the film edges, preventing wind uplift and maintaining a moisture seal.

Film Centering: Optional cutting blades (Cutting Blade) trim excess film from the edges, centering the film on the ridge crest. Trimmed scraps fall into furrows and are buried by the covering discs.

Hydraulic Cooling: Continuous operation at 30 kW PTO load generates heat. The hydraulic system typically includes an oil cooler to prevent overheating (oil should stay <60°C). On hot days, operator may reduce ground speed slightly to reduce power draw and thermal load.

Operational Parameters

Film Thickness Selection:

• 25 µm (0.001"): Minimal insulation, used primarily for weed suppression. Tears easily; avoid rocky soil. Typical lifespan 2–4 months.
• 38 µm (0.0015"): Standard thickness, balances durability and cost. Modest soil warming (+2–3°C). Lifespan 4–6 months.
• 50 µm (0.002"): Heavy-duty, used in cool climates and long-season crops (strawberries, peppers). Excellent UV resistance. Lifespan 8–12 months.

Ridge Height Adjustment: Taller ridges (250–300 mm) are used for crops that need intensive soil warming (peppers, tomatoes in cool climates) or for better water infiltration in clayey soil. Shorter ridges (150–200 mm) reduce tractor power requirements and are adequate for spring lettuce or early cool-season crops.

Ground Speed: Operating speed of 3–8 km/h is typical. Slower speeds (3–4 km/h) allow better film conformance and burial on soft or uneven soil; faster speeds (6–8 km/h) suit firm, well-prepared fields. Speed must be consistent; varying speed causes film tension fluctuations and wrinkles.

Film Edge Burial Depth: Typically 50–100 mm of soil covers film edges. Deeper burial (100–150 mm) is required in windy regions or for longer-season crops where film must resist seasonal wind loading. Shallow burial (<50 mm) increases risk of edge lifting, especially with PE film under thermal stress.

Practical Considerations

Soil Preparation: Successful mulching requires well-prepared soil beds. Large stones, clods, or heavy residue cause film tearing and burial failures. Fields should be chiseled, disk-harrowed, and smoothed before mulch layering.

Moisture Content: Soil moisture at mulching should be 60–70% of field capacity. Dry soil is hard to shape into ridges and resists film burial. Overly wet soil compacts and creates poor aeration; press-wheel loads may cause wheel slippage on clay soil.

Film Unrolling Issues:

• Wrinkles: Caused by brake tension too loose or uneven ground. Increase brake pressure slightly; ensure ridge is evenly shaped.
• Tearing: Brake tension too tight, rocks catching film edge, or worn brake discs with inconsistent friction. Reduce brake load; slow ground speed; inspect and replace brake lining if worn.
• Sideways Drift: Film shifts during unroll if ridge is asymmetric or side-shift adjustment is needed. Use edge cutters to trim wayward film; realign Blade Holder to center film.

Environmental Stress: PE film shrinks slightly with temperature changes (5–8% length contraction from 20°C to 0°C). In cold climates, film laid in fall may become taut with winter frost; slight slack is desirable in fall applications. Spring applications after winter storage can be laid tighter.

Wind Effects: Film laying should occur on low-wind days (<5 knots). Strong wind billows film, complicates burial, and can cause edge lifting before soil contact is complete. Some operators lay mulch in early morning or late evening when wind is lighter.

Crop Integration

Drip Irrigation: Many farms install drip tape on the ridges before laying mulch. The Soil Covering Discs must be angled shallow enough to avoid cutting drip lines (buried 50–100 mm deep). Some machines have adjustable disc angles for this purpose.

Transplanting: After mulch is in place, planting holes or slits are cut through film using hand-held knives or mechanical slicers. In some regions, automated transplanters are adapted to plant directly through film, using heated chisels to create planting pockets.

End-of-Season Removal: PE mulch is non-biodegradable and must be collected at season end, creating labor and disposal costs. Biodegradable films (polylactic acid, starch-based) are emerging but currently 3–5× more expensive and less durable. Some regions have government collection and recycling programs for PE film scrap.

Machine Variations

Single-Ridge vs. Multi-Ridge: Most machines lay one ridge at a time (2.5–3.0 m covering width). Twin-ridge machines exist but are heavier and require larger tractors (100+ kW).

Tractor-Mounted vs. Trailed: Mounted machines (described here) offer superior control and visibility. Fully trailed machines are available for large-scale operations but require dedicated tractors and are less maneuverable at field ends.

Manual vs. Fully Hydraulic: Basic machines use ground wheels and gravity for some functions (film unroll, burial angle). Fully hydraulic machines allow proportional adjustment of all functions, increasing operational flexibility but requiring larger PTO horsepower.

Maintenance & Seasonal Care

Brake Disc Inspection: Friction brake pads wear gradually with use. Worn pads exhibit slippage (film unrolls faster than ground speed despite brake lever pulled). Replacement pads are available as retrofit kits; typical life is 1000–2000 hours.

Bearing Lubrication: Spindle bearings, disc shaft bearings, and press-wheel bearings should be greased weekly during heavy use (every 50 hours of operation). Use NLGI Grade 2 multipurpose grease; over-greasing causes seal damage.

Disc Sharpening: Bed-forming and covering discs dull with soil abrasion, reducing cutting efficiency and increasing power requirement. Discs can be sharpened with a grinding stone (5–10 minute touch-up per disc) or replaced when wear exceeds 2 mm depth. Sharpening cost is 20% of new disc cost.

Film Roll Storage: PE film rolls should be stored out of direct sunlight and extreme temperature. UV exposure and heat (>40°C) degrade film tensile strength over time. Covered storage (barn or shade) extends shelf life to 2+ years.

Seasonal Tear-Down: At season end, hydraulic fluid should be drained and inspected for contamination (water, sludge). If fluid appears clear and passes particle count test (ISO 4406 16/14/11 or better), it can be stored for reuse. Otherwise, complete fluid replacement is recommended before next season.

Blade Sharpening: Edge-cutting blades dull quickly when cutting multiple film rolls. Blades should be sharpened or replaced every 500–1000 meters of film laid. Dull blades produce ragged edges that fray easily during burial.

Cost & Productivity

A new plastic mulch layer costs $60,000–90,000 (mounted) or $120,000–150,000 (fully autonomous). Operating cost is approximately $20–30 per acre for fuel, labor, maintenance, and wear parts (not including film cost, which is $1500–3000 per acre depending on film gauge and width).

Productivity is 3–4 acres per day with one operator and a 40–60 kW tractor. This represents a 6–8× improvement over hand-laying. Return on investment typically occurs within 3–5 years for operations >50 acres of annual mulched area.

Efficiency gains from mulch (yield improvements, reduced weed control costs, water savings) typically offset mulch material and labor costs by 2–3×, making mechanized mulching profitable even at small to medium scales.
