Navigation Buoy Product

Overview

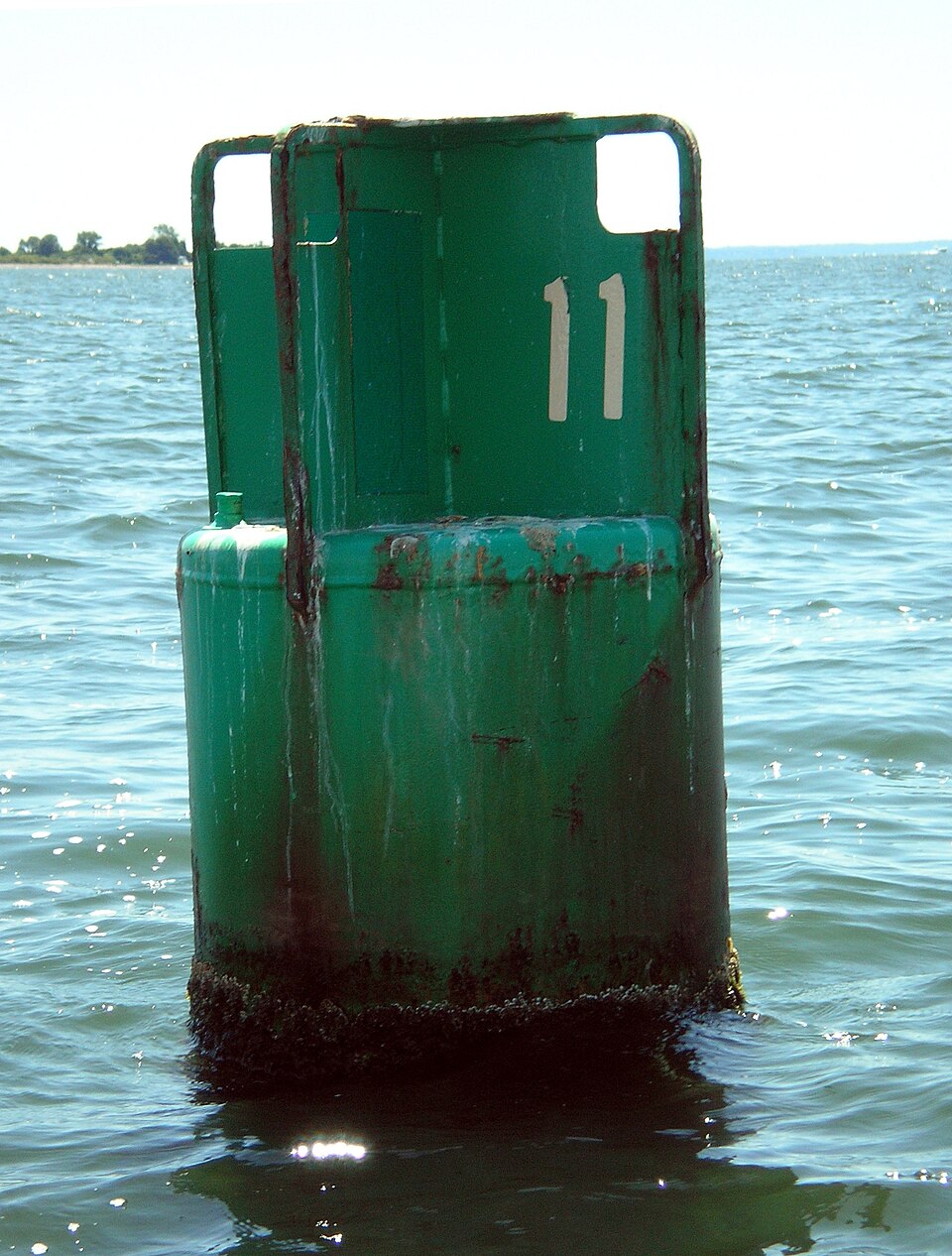

A navigation buoy is a permanently-moored floating structure marking a channel, hazard, or turning point in commercial or recreational waterways. The Float Body is a hollow steel vessel providing positive buoyancy and housing the power and control systems. A solar-powered Lantern Assembly rises 2–4 m above water, emitting a timed light flash every second or two, visible for 3–10 nautical miles at night depending on atmospheric conditions.

The buoy is held in place by a Mooring System — a chain and anchor on the seabed, sized so the buoy stays within a tight radius even in strong currents or storm surge. During daylight, the Daymark — a painted geometric shape and colour pattern — identifies the buoy's purpose. The Radar Reflector and GPS/AIS transceiver (in modern systems) confirm the buoy's position to passing vessels.

Navigation buoys are the backbone of safe waterborne commerce: every major shipping channel, river estuary and offshore wind farm is marked by a constellation of buoys. The International Association of Marine Aids to Navigation and Lighthouse Authorities (IALA) governs buoy shapes, colours and light characteristics worldwide.

Types and meanings

IALA defines five buoy types by shape and colour:

• Port hand (red, cylindrical): marks the left side entering a channel.
• Starboard hand (green, conical): marks the right side entering a channel.
• Preferred channel (red-and-white stripes): when traffic is heavy, vessels prefer one side; the buoy guides them.
• Cardinal marks (black-and-yellow diamonds): mark the safe side of a shoal or rock (North, South, East, West cardinal points).
• Special marks (yellow): mark special areas (military zone, pipeline, dredging, etc).

Each type has a corresponding light colour (red, green, white) and flash pattern (e.g., port light flashes once every 4 seconds; starboard flashes twice every 6 seconds). A navigator seeing a buoy at night immediately knows its purpose from the flash rhythm.

Float body

The Float Body is typically a steel conical or cylindrical vessel, 1–2.5 m in diameter, with an overall height of 3–6 m above and below the waterline. The outer Outer Shell is painted in marine enamel and treated with antifouling copper-based paint to resist barnacle growth. The interior is partitioned by Internal Partition steel plates, creating sealed compartments. Flotation Foam bonded to the inner hull adds buoyancy and ensures the buoy remains afloat even if the shell is breached. Reinforcing Ring welded bands prevent the shell from collapsing under the pressure of deep water or strong horizontal currents.

Access for maintenance is via the Access Hatch, a bolted cover on top. Inside, the lantern pole, battery, and solar panel are mounted on simple brackets. Drain Plug on the lower side allow the crew to pump out condensation and bilge water during annual service visits.

Lantern and light system

The Lantern Assembly sits atop the Lantern Pole, a stainless steel or aluminium mast rising 2–4 m above the float body to ensure clear visibility above sea spray and passing vessels. The LED Module is a compact solid-state light source, producing 1–10 candela (a standard navigational light is defined in candelas, not lumens, because beam pattern and directional intensity matter more than total output). Modern LEDs last 50,000+ hours, versus 1,000 hours for traditional incandescent bulbs, radically reducing maintenance visits.

The Solar Panel (20–50 W) is angled to track the sun and mounted on a swivel arm at the top of the lantern pole. The Control Electronics — a sealed module containing a microcontroller, charge controller and GPS/AIS transceiver — manages the charging cycle, strobe timing and position reporting.

The Lantern Dome is a transparent acrylic or polycarbonate housing protecting the LED from salt spray and directing light downward. The light flashes via a Strobe Timer circuit that turns the LED on for 100–200 ms every 4–6 seconds (typical patterns vary by buoy type). Some systems use a Fresnel Lens to focus the light into a narrow beam, extending the effective range. Others use a Light Diffuser to spread the light over a wider angle, ensuring visibility from all bearings.

Power system

The Power System is entirely autonomous, running 365 days/year without shore power or crew visits. The Solar Panel charges a Lithium Battery during daylight; the battery powers the LED strobe and GPS/AIS transmitter during daylight and continuously at night. Battery capacity is typically 100–400 Wh (lithium LiFePO4), chosen to ensure 10+ days of operation even if the panel is fouled by algae or the sky is heavily overcast.

A Charge Controller (MPPT or PWM type) regulates the solar panel voltage, preventing battery overcharge and equalising cell voltage. The Low-Voltage Distribution panel delivers 12 V or 24 V DC to the LED Driver (which further steps down to 3–5 V for the LED) and the GPS/AIS module. A Fuse Block provides short-circuit protection.

In winter or high latitudes, solar output is marginal. Modern buoys include an Anemometer Sensor that dims the LED in high winds (when fewer vessels are out), reducing night power demand and extending battery life through the dark months.

Optical performance and visibility

The effective range of a navigation light depends on the intensity (candela), the pattern (flashing vs steady), the contrast (night sky luminance), and the observer's height of eye. A 5 candela red light from a 3 m buoy is visible at approximately 5 nm on a clear night. Haze, rain, or fog dramatically reduce range. IALA standards define minimum intensities for each buoy type and the geographic area; tropical buoys have higher intensities than Baltic buoys because of different typical weather.

The Daymark visible during daylight is equally critical. The painted shape and colour (conical, cylindrical, spar, spherical) and the Reflective Tape retroreflective strips allow a navigator to identify the buoy from a distance even in bright sun. Colour-blind mariners rely on shape; therefore every buoy type has a distinctive shape, not just colour.

Mooring

The Mooring System is sized for the worst expected conditions: storm surge, extreme currents, and collision loading. The Anchor is typically a Danforth (fluke) or Halls (stockless) type, weighing 1–5 tonnes depending on bottom type and water depth. The Chain (16–20 mm stud-link, galvanised) runs from the anchor to the buoy body, a length equal to roughly 3–5 times the water depth; this scope allows the chain to lie on the bottom in a catenary, reducing strain. A Swivel prevents the chain from twisting under rotational loading from current. The buoy is shackled to the chain via a Shackle; the shackle pins are moused (wired) to prevent accidental opening.

In shallow water, a Chain Buoy — a small float — marks the chain position to warn fishing boats or other traffic of entanglement hazard.

GPS and AIS

Modern navigation buoys broadcast their position via satellite and terrestrial systems. The GPS receiver in the Control Electronics logs position once per hour and/or immediately reports via AIS (Automatic Identification System) when a vessel requests it or when the buoy drifts out of position. This real-time feedback allows coastal authorities to detect a broken mooring or drifting buoy within hours, rather than discovering it when a vessel strikes a misplaced hazard.

Maintenance and service life

Navigation buoys are serviced annually or biennially. A dedicated buoy tender vessel visits each buoy, hauls it aboard, replaces the battery, cleans the solar panel and hull, touches up paint, and checks the anchor and chain. The entire float body is overhauled every 10–15 years; the lantern and electronics are refurbished or replaced. The combination of stainless steel and galvanised steel means the buoy's service life is typically 20–30 years if properly maintained.
