Laser Interferometer Product
Overview
An optical interferometer measures displacement, distance, or surface shape by exploiting the wavelike nature of light. When coherent laser beams travel different path lengths and recombine, the phase difference between them creates an interference pattern—bright and dark fringes whose spacing and intensity encode the path-length difference with nanometer precision. Michelson interferometers are the classical architecture: a beam splitter sends light down two arms (reference and measurement), mirrors return the light to recombine, and photodetectors read the fringes. By counting fringes as distance changes or analyzing their spatial distribution, the operator infers displacement, film thickness, or micron-scale surface deformation.
The Laser Head Assembly provides a stabilized source, frequency-locked to prevent drift. Light passes through a Beam Path Optics that splits it into reference and measurement arms. The Reference Arm is fixed; the Measurement Arm bounces light off the object under test and includes a piezo stage for fine-tuning path length. Recombined light falls on the Detector Module, where quadrant photodiodes read fringe intensity. The Signal Processor uses digital lock-in detection to extract phase from the noisy photodiode signal, and the Environmental Compensation assembly compensates for temperature drift and air-refractive-index variation that would corrupt the nanometer-scale measurement. Vibration isolation via the Vibration Isolation Stage stage keeps external floor vibration from smearing the fringes.
How it works
At the Beam Splitter Cube, a single laser beam splits into two arms with equal amplitude and phase. Each arm bounces off a mirror—one fixed (reference) and one on the sample. The beams recombine at a detector, where their wavefronts add. If the path-length difference is zero, they reinforce (constructive interference, bright fringe). If it is λ/2, they cancel (destructive interference, dark fringe). More generally, if the path difference is Δℓ, the phase shift is 2π·Δℓ/λ, and the fringe intensity is I = I₀(1 + cos(2π·Δℓ/λ)).
When the measurement-arm mirror moves a distance d, the path difference changes by 2d (light travels there and back), so the fringe pattern shifts by 2d/λ fringes. For a He-Ne laser at 632.8 nm, one fringe equals 316.4 nm displacement. By counting dark-to-bright transitions, the operator measures displacement to a fraction of a fringe via phase-sensitive electronics.
The Detector Module contains quadrant photodiodes that split the interference pattern spatially. This allows digital lock-in at the Signal Processor to extract both phase and amplitude from a high-frequency carrier modulated onto the reference mirror via the Piezo Fine-Tuning Stage, rejecting laser intensity noise and detector dark current.
Environmental stability is critical because the air's refractive index changes with temperature and humidity, altering the optical path length of light propagating through the setup. The Environmental Compensation assembly monitors temperature with high precision and adjusts a compensating air-path cell, keeping the effective path length constant. Mechanical vibration couples into fringe motion, so the Vibration Isolation Stage stage rests on damped feet that cut high-frequency vibration coupling from the floor.
The Optics Mount Assembly provides micron-level translational and angular adjustment for both arms, essential during alignment and to optimize fringe contrast.
Applications

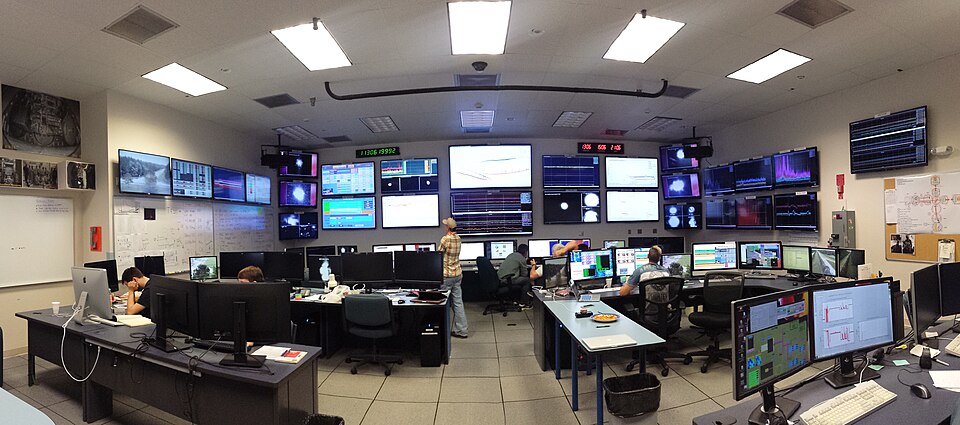

Interferometry is the gold standard for precision displacement measurement in metrology, manufacturing, and materials science. Engineers use it to measure machine-tool runout, quantify vibration amplitude on motors and bearings, and characterize the deformation of structures under load. In optical manufacturing, interferometry verifies lens surface curvature and coating uniformity. In thin-film deposition, real-time interferometric monitoring controls film thickness with sub-nanometer precision. In fundamental physics, Michelson-type interferometers underlie gravitational-wave detectors and tests of relativistic effects.
Build & assembly graph
expand / collapse · shared sub-assemblies converge · links to related products · est. labourTap an assembly to expand/collapse · tap a part to open it · use “Open page” for any node · drag to pan, scroll to zoom.
Bill of materials
9 top-level lines · 42 rows shown · 118 parts total · indented to 3 levels| # | Item / sub-assembly | Part no. | Qty/assy | Ext. qty | Parts | Type |
|---|---|---|---|---|---|---|
| 1 | Laser Head Assembly 4 parts | optical-interferometer-laser-head | 1× | 1 | 4 | assembly |
| 1.1 | Laser Tube | optical-interferometer-laser-tube | 1× | 1 | — | part |
| 1.2 | Laser Power Supply | optical-interferometer-laser-psu | 1× | 1 | — | part |
| 1.3 | Frequency Lock Module | optical-interferometer-frequency-lock | 1× | 1 | — | part |
| 1.4 | Beam Shaper and Expander | optical-interferometer-beam-shaper | 1× | 1 | — | part |
| 2 | Beam Path Optics 4 parts | optical-interferometer-beam-path | 1× | 1 | 4 | assembly |
| 2.1 | Beam Splitter Cube | optical-interferometer-beamsplitter | 1× | 1 | — | part |
| 2.2 | Polarizer Optics | optical-interferometer-polarizer | 1× | 1 | — | part |
| 2.3 | Analyzer Plate | optical-interferometer-analyzer | 1× | 1 | — | part |
| 2.4 | Optic Mount Base | optical-interferometer-optic-mount | 1× | 1 | — | part |
| 3 | Reference Arm 4 parts | optical-interferometer-reference-arm | 1× | 1 | 4 | assembly |
| 3.1 | Corner Cube Retroreflector | optical-interferometer-retroreflector | 1× | 1 | — | part |
| 3.2 | Reference Mirror | optical-interferometer-reference-mirror | 1× | 1 | — | part |
| 3.3 | Reference Arm Mount | optical-interferometer-reference-mount | 1× | 1 | — | part |
| 3.4 | Fastener Set | fastener-set | 1× | 1 | — | part |
| 4 | Measurement Arm 4 parts | optical-interferometer-measurement-arm | 1× | 1 | 4 | assembly |
| 4.1 | Measurement Mirror | optical-interferometer-measure-mirror | 1× | 1 | — | part |
| 4.2 | Piezo Fine-Tuning Stage | optical-interferometer-piezo-stage | 1× | 1 | — | part |
| 4.3 | Sample Holder Fixture | optical-interferometer-sample-holder | 1× | 1 | — | part |
| 4.4 | Measurement Arm Mount | optical-interferometer-measure-mount | 1× | 1 | — | part |
| 5 | Detector Module 4 parts | optical-interferometer-detector-module | 1× | 1 | 84 | assembly |
| 5.1 | Photodiode Array | optical-interferometer-photodiode | 2× | 2 | — | part |
| 5.2 | Trans-impedance Amplifier | optical-interferometer-amplifier | 1× | 1 | — | part |
| 5.3 | Detector Interface Board | optical-interferometer-detector-board | 1× | 1 | — | part |
| 5.4 | SMD Passive (R/C/L) | smd-passives | 80× | 80 | — | part |
| 6 | Signal Processor 4 parts | optical-interferometer-signal-processor | 1× | 1 | 6 | assembly |
| 6.1 | High-Speed ADC IC | optical-interferometer-adc-ic | 1× | 1 | — | part |
| 6.2 | DSP Processor | optical-interferometer-dsp | 1× | 1 | — | part |
| 6.3 | Bare PCB | pcb-bare | 1× | 1 | — | part |
| 6.4 | Connector | connector | 3× | 3 | — | part |
| 7 | Environmental Compensation 3 parts | optical-interferometer-environmental | 1× | 1 | 3 | assembly |
| 7.1 | Temperature Sensor | optical-interferometer-temp-sensor | 1× | 1 | — | part |
| 7.2 | Air-Path Compensator | optical-interferometer-air-path-cell | 1× | 1 | — | part |
| 7.3 | Stability Heater Strip | optical-interferometer-heater | 1× | 1 | — | part |
| 8 | Vibration Isolation Stage 2 parts | optical-interferometer-vibration-isolation | 1× | 1 | 5 | assembly |
| 8.1 | Isolation Feet | optical-interferometer-isolation-feet | 4× | 4 | — | part |
| 8.2 | Damping Fluid Charge | optical-interferometer-damping-fluid | 1× | 1 | — | part |
| 9 | Optics Mount Assembly 4 parts | optical-interferometer-optics-mount | 1× | 1 | 4 | assembly |
| 9.1 | Base Plate | optical-interferometer-base-plate | 1× | 1 | — | part |
| 9.2 | X-Axis Stage | optical-interferometer-x-stage | 1× | 1 | — | part |
| 9.3 | Y-Axis Stage | optical-interferometer-y-stage | 1× | 1 | — | part |
| 9.4 | Z-Axis Stage | optical-interferometer-z-stage | 1× | 1 | — | part |
Sourcing — likely vendors
Companies that make this · indicative price $100–$8k · MOQ & lead are typical| Vendor | HQ | Specialty | MOQ | Lead time |
|---|---|---|---|---|
| 🇯🇵Canon canon.com ↗ | Tokyo, JP | Imaging & optics | 500 units | 10–16 wks |
| 🇯🇵Nikon nikon.com ↗ | Tokyo, JP | Imaging & optics | 500 units | 10–16 wks |
| 🇩🇪ZEISS zeiss.com ↗ | Oberkochen, DE | Optics & optoelectronics | 500 units | 10–16 wks |
| leica-camera.com ↗ | Wetzlar, DE | Cameras & optics | 500 units | 10–16 wks |
| flir.com ↗ | Wilsonville, US | Thermal imaging | 500 units | 10–16 wks |
