Pachinko Machine Product

Overview

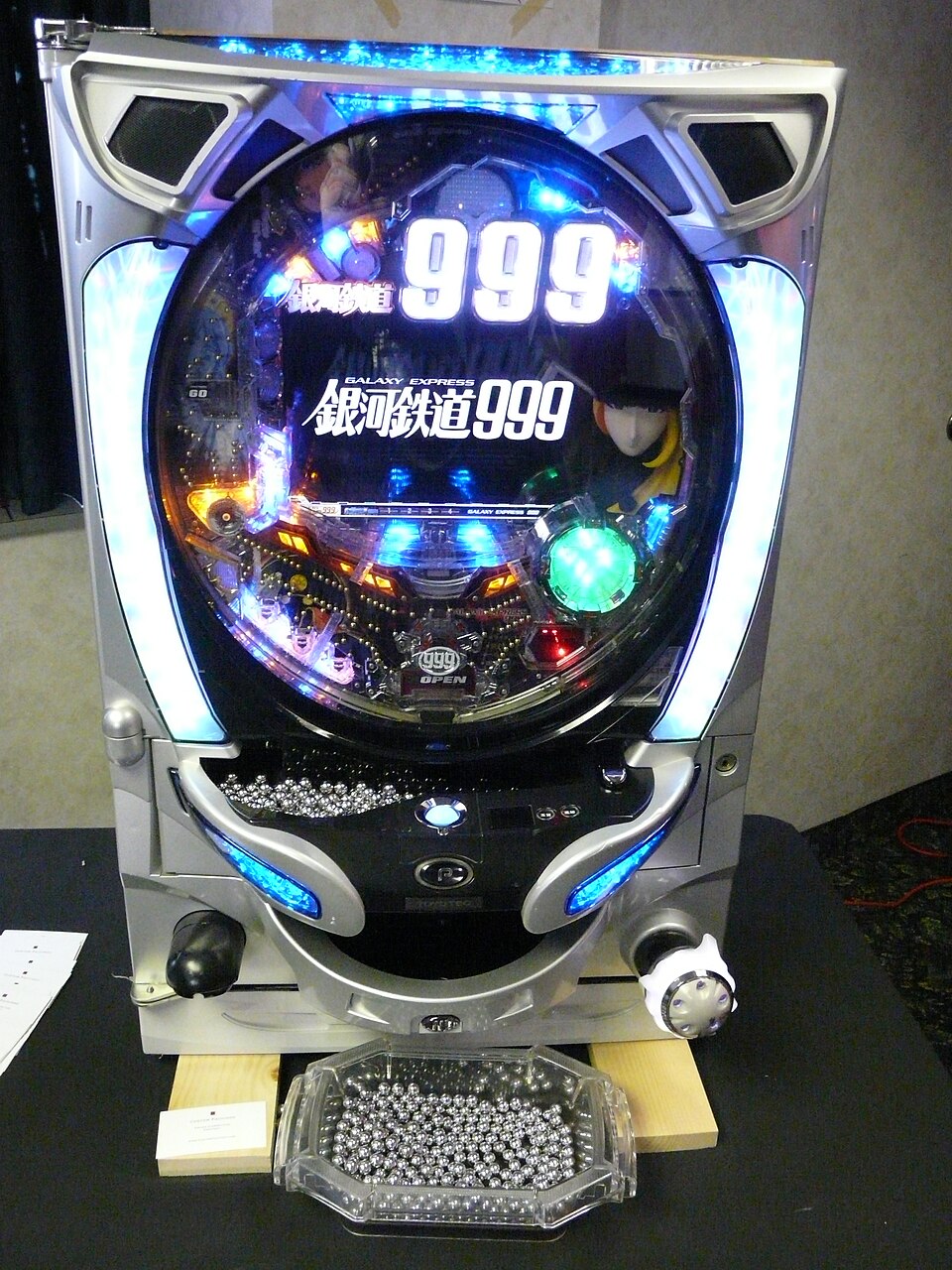

Pachinko is a Japanese arcade gambling game where balls are launched up a vertical playboard containing hundreds of fixed pins, sliding gates, and LED-lit target holes. As a ball falls, it bounces unpredictably off the pins, eventually landing in either a losing chute or a winning gate that triggers coin payout and bonus animations. The Pachinko Machine is a vertical cabinet combining mechanical pinball physics with computerized payout logic and light-show displays. Pachinko is hugely popular in Japan, occupying dedicated arcades (pachinko parlors) where players exchange coins for balls and cash out prizes at end-of-session.

Gameplay Mechanics

The player inserts coins or a prepaid card into the [[pachinko-machine|machine]], which credits them with 20–50 steel balls. They take a seat facing the Playboard Assembly and begin pulling the [[pachinko-machine-launcher-dial|spring-loaded dial]], loading and launching one ball per pull into the upper playboard.

Each launched ball tumbles downward through a maze of 100+ [[pachinko-machine-pin|conical pins]], bouncing and deflecting as it falls. The player has zero control after launch—all randomness is mechanical (pin placement, ball weight, launch angle variation). Skilled players claim to modulate launch speed to favor certain falling paths, though reproducibility is disputed.

As the ball descends, it may encounter a [[pachinko-machine-ramp|sliding ramp]] gate, solenoid-controlled to open or close, routing the ball into a bonus lane. Or it may hit a [[pachinko-machine-bumper|pop bumper]], which springs upward under solenoid actuation, launching the ball back into play. Finally, the ball either:

• Lands in a losing chute (bottom center, under the playboard)—no payout.
• Enters the primary winning [[pachinko-machine-target-gate|prize gate]] (hit rate 5–15%)—typically 8–10 balls worth of payout (80–100 yen).
• Lands in a bonus chute—triggers a reel spin animation on the LCD Panel and potential jackpot multiplier.

Electronically Controlled Gates

Modern pachinko machines employ [[pachinko-machine-electronics|digital logic boards]] controlling the timing and probability of gate opening. When a ball approaches a Prize Target Gate, an optical sensor detects it, and the MCU decides—based on internal RNG and "fever mode" status—whether to activate the [[pachinko-machine-solenoid|solenoid]] to open the gate.

This computerized control enables "fever mode," a player-experienced phenomenon where winning gates suddenly stay open for 30–60 seconds, allowing rapid consecutive ball captures. Fever mode is entertaining but carefully regulated by gaming laws to prevent addiction spirals. The machine logs all solenoid timings and gate outcomes to a tamper-evident audit trail.

Payout Accumulation

Each ball landing in a winning gate passes through a Ball Counter Sensor optical gate sensor, incrementing the player's score on the LCD Panel. Modern machines automatically calculate prize value: one ball ≈ 8–10 yen in credits. Some machines dispense 50-yen or 100-yen coins directly via the [[pachinko-machine-coin-hopper|coin hopper]]; others accumulate credits electronically, requiring the player to cash out at a separate kiosk run by parlor staff.

High-volume players will accumulate 500–2000 yen in a 30-minute session. The parlor takes a percentage (typically 30–50%) and the player can exchange the remainder for cash or merchandise.

Ball Circulation

Balls captured in winning or bonus chutes fall into collection areas. Rather than constantly refilling from new coin insertions, machines employ a [[pachinko-machine-ball-circulation|ball elevator system]]: a motor-driven screw elevator lifts fallen balls back to the launcher reservoir, creating a closed-loop circulation. This reduces operational friction and allows extended play on a single initial coin purchase.

Regulatory and Cultural Context

Pachinko occupies a unique legal gray area in Japan. It is not classified as gambling in the strict sense—players cannot "cash out" directly but must exchange balls for prizes (typically novelty toys or certificates redeemable for cash at affiliated shops). This legal distinction allows pachinko parlors to operate openly, even in prefectures with strict gaming restrictions.

Addiction concerns have grown, and modern machines incorporate limits: some machines automatically shut down after a set time (e.g., 2 hours) or require ID verification on high-payout machines. The NPO Center for Pachinko Problems reports that ~3 million Japanese suffer from pachinko dependence.

Mechanical Wear and Maintenance

The [[pachinko-machine-pin|steel pins]] accumulate ball dents and rough patches after 5+ years of operation, affecting ball trajectory unpredictably. Parlor operators replace entire playboards every 5–10 years. The [[pachinko-machine-solenoid|solenoids]] controlling gates and bumpers are subject to duty cycles of 1000+ activations per day; coil cores degrade and pull-in force weakens over 3–5 years.

The [[pachinko-machine-elevator-tube|ball elevator]] spiral can jam with dust and ball fragments; preventive maintenance includes disassembly and cleaning quarterly.

Modern Trend: Digitization

Traditional all-mechanical pachinko (rare now) relied purely on pin physics. Modern machines blend mechanical playboards with heavily stylized LCD animations. Some newest machines (2020+) feature oversized 15–20 inch LCD screens occupying the center playboard, running video-reel spin animations synchronized with actual mechanical reel spinners. These "hybrid" machines appeal to younger audiences but are more prone to electronics failure.

An average pachinko parlor operates 50–200 machines, cycling through renovations and refurbishments every 3–5 years as newer models with better themes and LCD displays arrive.
