Pad-Mounted Transformer Product

Overview

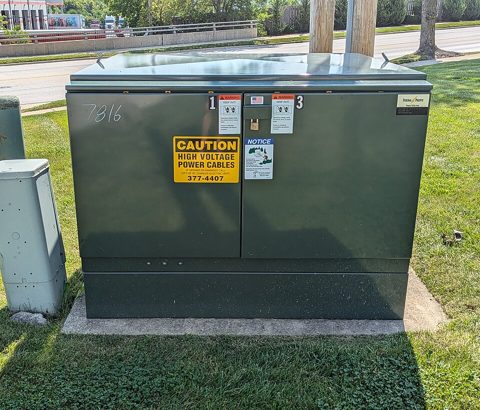

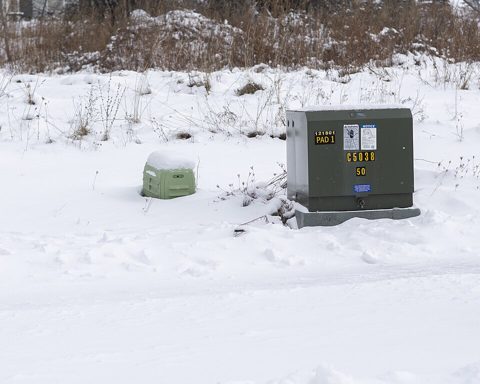

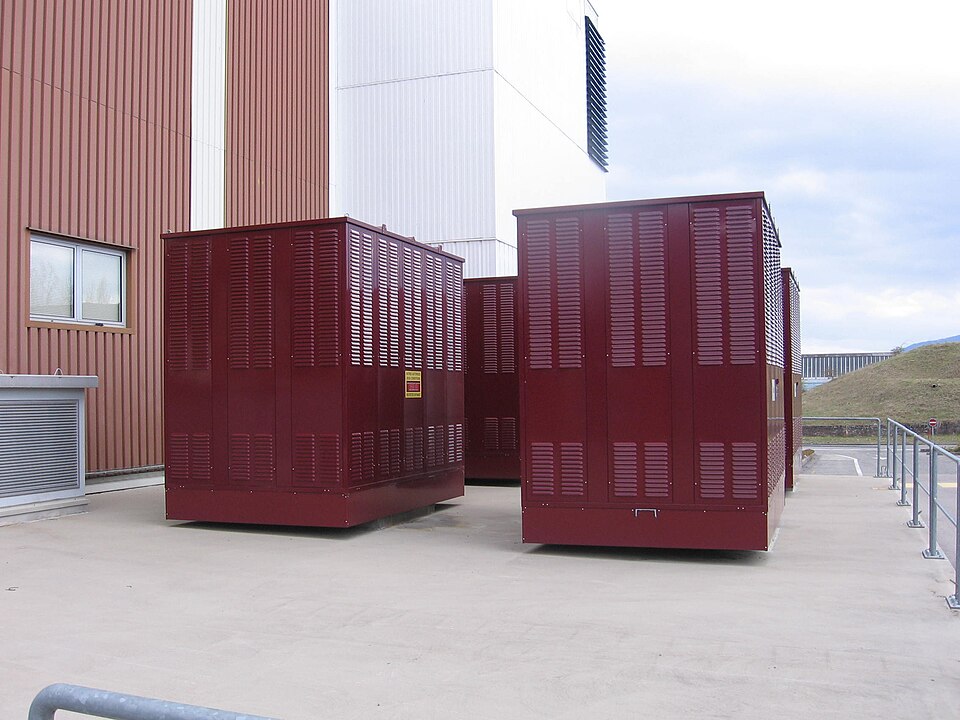

A pad-mounted transformer is a ground-level distribution transformer housed in a sealed, weather-resistant steel enclosure, connecting medium-voltage (MV) distribution lines from a utility substation to low-voltage (LV) service for neighborhoods, shopping centers, and small industrial parks. Unlike pole-mounted transformers (hung from distribution poles), pad-mount units sit on concrete pads, occupying a small footprint and providing easier access for maintenance and operation.

The transformer steps voltage down through electromagnetic induction: a high-voltage primary coil receives 4–34 kV power; a low-voltage secondary coil delivers 120/240 V single-phase or 208/120 V three-phase. Inside a sealed [[pad-mounted-transformer-tank|tank]], the [[pad-mounted-transformer-core-coil|core and coil]] are immersed in insulating fluid, dissipating heat through passive [[pad-mounted-transformer-cooling-fins|radiator fins]] on the tank exterior.

Typically, 5–20 such transformers serve a 1000-home subdivision, each transformer feeding 50–200 homes on a secondary (low-voltage) circuit. Their standardized interfaces, reliability, and standardized safety features make them the workhorses of utility distribution networks.

How it Works

Electromagnetic Transformation

The [[pad-mounted-transformer-core-coil|core and coil]] assembly is the heart. The [[pad-mounted-transformer-core|laminated silicon steel core]] provides a high-permeability magnetic path, minimizing magnetizing current. The [[pad-mounted-transformer-primary-winding|primary winding]] receives AC voltage at medium voltage (e.g., 12.47 kV). Alternating current through this coil produces a time-varying magnetic field in the core.

The [[pad-mounted-transformer-secondary-winding|secondary winding]], located on the same core, experiences this changing magnetic flux, inducing a proportional voltage. The voltage ratio equals the turns ratio: if the primary has 500 turns and the secondary has 25 turns, the voltage is stepped down by a factor of 20 (500:25 = 20:1). Thus, 12.47 kV primary yields 624 V secondary (before impedance losses).

For a transformer stepping 12.47 kV primary to 240 V secondary with 50 kVA capacity:

• Primary current at full load: 50 kVA / (12.47 kV × √3) ≈ 2.3 A (three-phase) or 4 A (single-phase equivalent)
• Secondary current: 50 kVA / (240 V) ≈ 208 A

The secondary coil must handle much higher current at lower voltage; hence, it uses larger-diameter copper wire (lower resistance) than the primary.

Primary Compartment and Switches

The [[pad-mounted-transformer-tank|sealed tank]] is subdivided into compartments. The primary compartment houses the [[pad-mounted-transformer-hv-bushing|high-voltage bushings]] and the [[pad-mounted-transformer-hv-switch|primary load-break switch]].

The [[pad-mounted-transformer-hv-switch|primary switch]] is a vacuum-interrupter or gas-insulated switch rated for the full primary voltage and current. Unlike a simple disconnect, a load-break switch can safely interrupt current under load without generating hazardous arc. A utility technician can pull the switch handle (visible on the outside of the enclosure, with a padlock provision) to de-energize the transformer for safe maintenance. The switch opening is quenched in vacuum or SF₆ gas, preventing sustained arcing.

Tap Changer and Voltage Regulation

The [[pad-mounted-transformer-tap-changer|tap changer]] adjusts the primary-to-secondary voltage ratio. Instead of a single fixed 20:1 ratio, the primary winding is wound with intermediate tap points. The transformer might have 9 taps: -4%, -2%, 0% (center), +2%, +4%, for example.

At the center tap (0% position), the transformer operates at its nominal 12.47 kV:240 V ratio. If utility voltage drifts to 11.96 kV (4% below nominal), the operator (or automatic control) selects the +4% tap, which adjusts the turns ratio to compensate, maintaining approximately 240 V secondary despite the lower primary voltage.

Early transformers used a [[pad-mounted-transformer-tap-selector|manual rotary selector]] requiring a technician to open the enclosure and physically move a contact. Modern units employ electronic tap changers that respond automatically to secondary voltage and load conditions, adjusting taps without interrupting service. The [[pad-mounted-transformer-tap-indicator|indicator]] (mechanical pointer or digital display) shows the current tap position.

Secondary Compartment and Customer Interface

The secondary compartment contains the [[pad-mounted-transformer-lv-bushing|low-voltage bushings]] (three line conductors and neutral) and the [[pad-mounted-transformer-lv-switch|secondary disconnect switch]]. Distribution cables from local neighborhoods are connected to these bushings via compression lugs.

The secondary switch is a simple lever-operated disconnect; because secondary voltage is only 120/240 V, the switch need not employ vacuum or gas interrupters. When fully open, the secondary circuit is isolated, and utility crews can safely work on secondary cables feeding the neighborhood transformer bank.

Cooling and Thermal Management

The [[pad-mounted-transformer-core-coil|core and coil]] generate heat due to:

• Core losses (hysteresis and eddy currents in the steel): proportional to frequency and flux density, roughly constant regardless of load.
• Copper losses (I²R heating in primary and secondary windings): proportional to load current squared; zero at no-load.

Total loss at rated load is typically 1–2% of power (e.g., a 50 kVA transformer dissipates 500–1000 W as heat). This heat is absorbed by the surrounding insulating [[pad-mounted-transformer-coolant|mineral oil]], which conducts heat to the [[pad-mounted-transformer-cooling-fins|radiator fins]] on the tank exterior. The fins increase surface area for natural convection to ambient air.

As oil temperature increases, viscosity decreases, and convection velocity rises. At steady state, a balance is reached: heat generation = heat dissipation. A 50 kVA transformer in an urban environment (ambient ~25 °C) typically stabilizes at oil temperature of 65–75 °C.

Overload conditions (e.g., a 100 kVA load on a 50 kVA transformer) can raise oil temperature toward 95 °C. Most transformers are rated for 65 °C temperature rise above ambient (oil hotspot temperature not to exceed 80 °C for mineral oil, 95 °C for ester fluid). Above this, insulation aging accelerates exponentially, shortening service life.

The [[pad-mounted-transformer-tank-vent|silica-gel breather]] allows the oil to breathe (expand and contract with temperature) while excluding moisture and dust. Silica gel desiccant absorbs atmospheric moisture before it enters the oil. Every 2–3 years, the cartridge is inspected and replaced if saturated (pink saturation color indicates water absorption).

Surge Protection and Grounding

Distribution networks regularly experience voltage surges from:

• Lightning strikes on upstream lines
• Capacitor bank switching transients
• Fuse or breaker operations
• Ferroresonance in long distribution lines

The [[pad-mounted-transformer-lightning-protection|surge protection system]] consists of:

• Primary arrestor ([[pad-mounted-transformer-arrestor-hv|metal-oxide varistor (MOV)]]): Nonlinear resistor connected between primary line and ground. Under normal voltage, it draws negligible current. During a surge (e.g., 50 kV transient), its resistance drops dramatically, shunting surge current to ground, protecting the transformer's primary insulation.
• Secondary arrestor ([[pad-mounted-transformer-arrestor-lv|low-voltage arrestor]]): Protects customer-side equipment from surges propagating through the transformer secondary.

The [[pad-mounted-transformer-ground-lug|ground lug]] connects the transformer tank to the utility ground grid (ground rod or system). This low-impedance path (typically <5 ohms) allows surge current to flow safely to earth. The [[pad-mounted-transformer-bonding-strap|bonding strap]] links the tank to the ground system, ensuring all conductive parts (tank, bushings, switches) rise to the same potential during a surge, preventing arcing across small air gaps.

Environmental Sealing and Reliability

The [[pad-mounted-transformer-tank|sealed enclosure]] is key to reliability. Moisture ingress is the primary failure mode: water dissolved in oil reduces dielectric breakdown strength, promoting insulation failure. By keeping water content below 100 ppm, the transformer's electrical integrity is preserved.

The compartmentalized design provides additional safety:

• Primary and secondary compartments are isolated, so a secondary fault (e.g., arcing in the secondary switch) doesn't contaminate the primary insulation.
• The transformer compartment is sealed, preventing liquid or debris from entering.
• All external surfaces are epoxy-coated to resist corrosion and UV degradation, extending enclosure life to 30–40 years.

Deployment and Installation

A pad-mount transformer is installed on-site as follows:

1. Foundation preparation: A concrete pad is poured, reinforced with rebar, and sized for the transformer weight (500–2500 kg depending on rating). The pad must drain away rainwater to prevent pooling and eventual seepage into the enclosure.

2. Positioning: The transformer is delivered on a truck and off-loaded (using a crane or forklift) onto the concrete pad. It is oriented to align bushings with incoming/outgoing cable routes.

3. Grounding: A ground rod (typically 3/4-inch diameter, 10 feet long) is driven adjacent to the transformer. The [[pad-mounted-transformer-ground-lug|ground lug]] on the transformer is bonded to the rod with #4 AWG or larger copper wire.

4. Primary cable connection: Incoming utility distribution cable is terminated onto the [[pad-mounted-transformer-hv-bushing|primary bushings]] using compression lugs and bolted connectors. Cable must be rated for the primary voltage and sized to limit voltage drop to <3% at full load.

5. Secondary cable connections: Outgoing secondary cables (three lines + neutral) are similarly connected to the [[pad-mounted-transformer-lv-bushing|secondary bushings]]. Secondary cable is typically larger gauge (e.g., #1/0 or 4/0 copper) due to higher current.

6. Testing and energization: Before load is applied, insulation resistance of primary and secondary windings is measured (megohm meter test). Voltage is applied to the primary with secondary open-circuited, verifying no short-circuit current. The transformer is then energized and monitored for temperature rise and correct secondary voltage.

Maintenance and Service Life

Maintenance is minimal:

• Annual: Visual inspection for corrosion, oil seepage, or wildlife damage. Breather cartridge condition checked.
• Every 3–5 years: Oil sample analysis (dielectric breakdown, moisture, acid number, dissolved gas analysis). If moisture exceeds 100 ppm or acid number rises, oil reconditioning or replacement is scheduled.
• Every 10 years: Comprehensive testing—turns ratio, impedance, leakage reactance—to detect winding degradation.

With proper maintenance, mineral oil-filled transformers typically achieve 25–35 years of service. Newer biodegradable ester fluids offer longer life and better environmental properties if a transformer ruptures; they are increasingly specified for urban and environmentally sensitive locations.

Modern Innovations

Smart transformers are emerging with integrated monitoring:

• Real-time temperature, voltage, and current sensors.
• Automatic tap-changer control optimizing secondary voltage to customer demand.
• Cellular modem enabling remote diagnostics.
• Predictive analytics flagging maintenance needs before failure.

Biodegradable ester fluids (synthetic hydrocarbons or plant-based esters) are approved by NFPA and IEEE, offering superior environmental performance (non-toxic, biodegradable, fire-resistant) and extended thermal life (higher hotspot limits of 95–105 °C).

Urban resilience: Transformers are increasingly co-located with distributed energy resources (rooftop solar, battery storage, EV charging), requiring bidirectional power flow through the transformer. Traditional transformers accept this; no hardware changes are needed, though protection coordination becomes more complex.

Standards

Pad-mount transformers conform to:

• IEEE C57.12.25: Liquid-immersed distribution transformers.
• NEMA TP-2: Energy-efficient transformers (voluntary efficiency guidelines).
• ANSI C57.23.90: Transformer tap changers.
• ANSI/IEEE 519: Total harmonic distortion limits for customer loads.
• Local utility standards: Each utility specifies preferred voltage ratings, efficiency classes, and protection schemes.
