Parking Meter Product

Overview

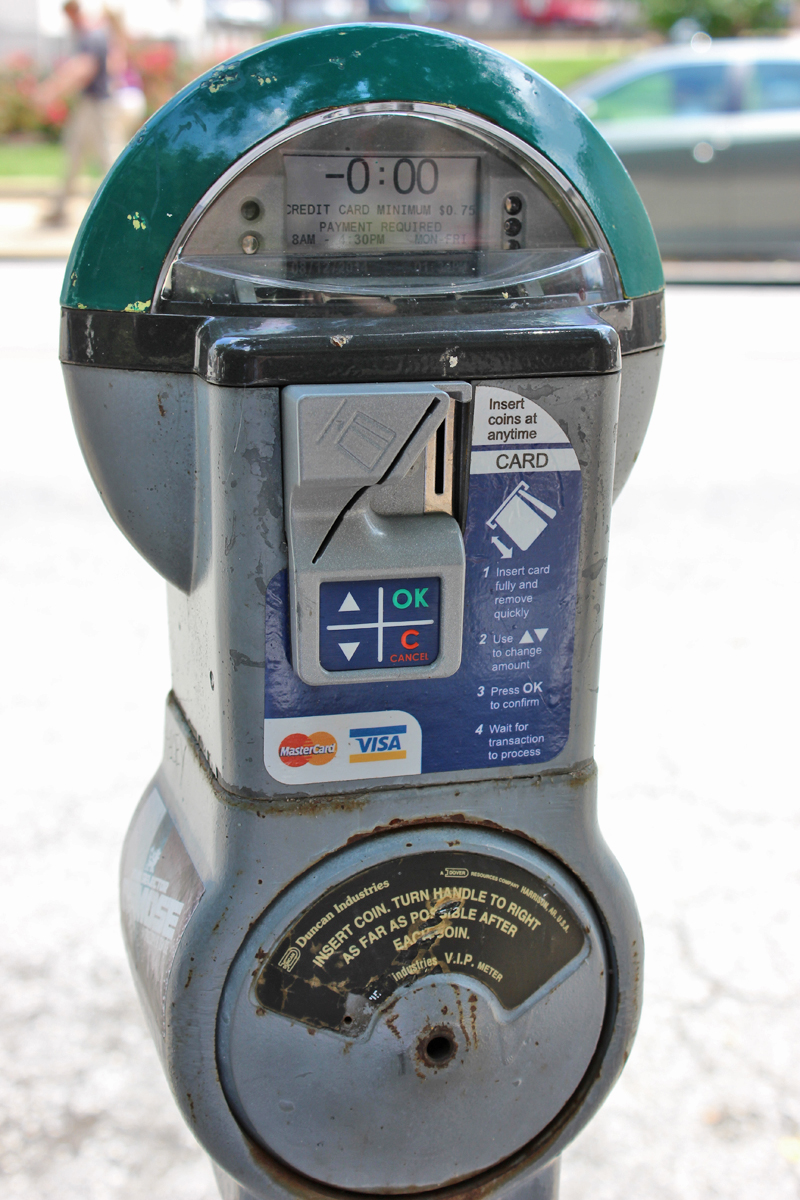

A parking meter is the ubiquitous street furniture that manages paid parking, collecting revenue and enforcing time limits. Modern smart meters replace mechanical coin slots and spinning dials with electronic payment, real-time transmission of occupancy, and cashless operation that scales from single streets to city-wide systems.

The meter sits on a vertical pole and is approached by drivers who need to pay for a parking space. The Payment System accepts coins via a mechanical validator and contactless cards via the Card Reader. Once payment is received, the Display Unit shows the parking session details: time purchased, expiration, and rate information. Meanwhile, the Master Controller logs the transaction and instructs the Telemetry Module to report it to a backend system so the city knows which spaces are occupied.

Power is the critical challenge in an unattended street device. The meter draws on the Solar Panel during the day and stores excess energy in the Battery System. On cloudy days or at night, the batteries carry the load. A backup connection to mains power exists in some deployments, but most modern smart meters are designed for off-grid operation, reducing installation cost and allowing rapid deployment.

How it works

When a driver deposits a coin, it tumbles through the Coin Acceptor, a mechanical sorter that validates genuine coins by size and weight, rejecting counterfeits and slugs. The validation signal travels to the Payment System, which updates the parking session duration. For card payments, the Card Reader reads the NFC credential wirelessly and the payment gateway communicates over the Telemetry Module to confirm the charge. The Master Controller then maintains the session: a countdown timer on the Display Unit shows minutes remaining, and when time expires, the backend system can dispatch enforcement officers or send the driver an SMS reminder.

The electrical architecture is hybrid. The Solar Panel feeds the Charging Regulator, which is an MPPT controller that extracts maximum power from the panel across varying sun angles and cloud cover. Charging current flows into the Battery System, where the BMS Board prevents overcharge and monitors cell health. At night, the Battery System alone supplies all subsystems: the controller microprocessor, the display backlight, the radio modem, and the payment logic.

The Telemetry Module uses GSM Modem to report every transaction and occupancy change to the backend. The GPS Receiver logs physical location, which helps reconcile field reports if the meter is moved or the database is queried later. These transmissions happen over the 2G cellular network—still widely deployed in many cities—and cost just a few cents per message, making it economical to ping every occupied meter hourly or even on every payment event.

Display and user feedback are simple but essential. The Display Unit is a 16×2 character LCD mounted behind a polycarbonate window. It shows the cost per hour, time purchased, and time remaining. In some designs, a beeping sounder warns when time is about to expire. The Pole Housing is powder-coated aluminum, galvanized steel, or stainless steel—corrosion resistance is non-negotiable because the meter stands outside day and night in all weather.
