Overview

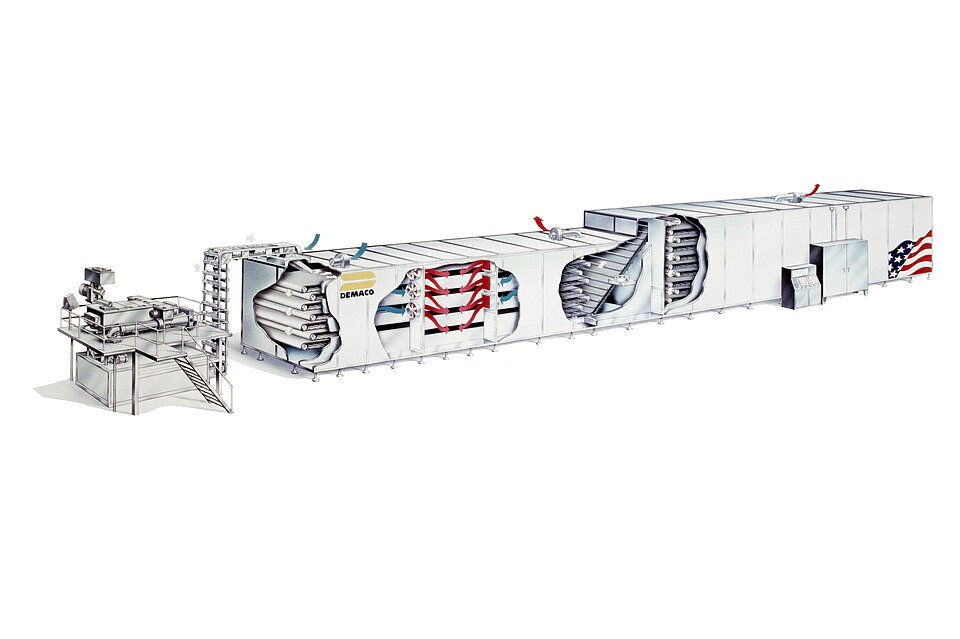

A pasta drying line is a two-chamber system that progressively reduces pasta moisture from ~30% (freshly extruded) to 12% (finished, shelf-stable). The Pre-Drying Chamber applies high heat and low humidity for rapid initial moisture loss; the Final Drying Chamber operates cooler and more slowly to prevent case-hardening (surface drying while interior stays moist, causing cracking).

Dried pasta producers, artisanal makers, and contract manufacturers use multi-stage dryers because single-stage drying produces inferior product: too-fast drying creates internal stress and breakage; too-slow drying extends cycle time and risks microbial contamination.

Pasta loading and stick conveyor

The Stick or Tray Loader is a manual or semi-automatic station where fresh-extruded pasta (typically long strands like spaghetti or penne tubes) is hung on Stick Carrier Blocks. Sticks (or trays) are then placed onto the Conveyor Through Dryers, a moving chain that transports them through both dryer chambers.

The Conveyor Through Dryers runs at constant, slow speed (0.5–1 m/min), typically taking 2–5 hours for a full cycle depending on product. Sticks are indexed by pneumatic or mechanical pushers onto the chain at regular intervals.

Pre-drying chamber operation

The Pre-Drying Chamber is hot and dry, designed to rapidly remove surface moisture before the pasta skin can fully harden. Temperature is typically 60–75 °C; humidity is low (40–50% RH). The Pre-Dryer Heater element provides heat, and the Dehumidification System system (adsorption desiccant wheel) strips moisture from recirculating air.

The Circulation Fan circulates air continuously to prevent dead zones and ensure uniform conditions. Air velocity is controlled: too fast causes surface cracking (outside dries before inside); too slow is inefficient. Typical velocities are 0.5–1.5 m/s across the product.

Residence time in the pre-dryer is 30–90 minutes depending on pasta shape and intended finished moisture. Long strands (spaghetti) dry faster than thick tubes (rigatoni); lower final moisture targets require longer times.

Final drying chamber

The Final Drying Chamber operates cooler (50–70 °C) and with slightly higher humidity (55–65% RH) than the pre-dryer. This gentler environment allows interior moisture to migrate outward and equilibrate with the outside, preventing stress cracks.

The Final Heater is milder; the Humidity Control system may actively add steam (via Humidity Nozzle) to prevent over-drying. The Final Fan is a gentle circulation blower, not aggressive turbulence.

Total final-dryer time is 60–180 minutes. The pasta exits at 12–14% moisture (safe for room-temperature storage).

Climate control system

The Climate Control System includes two independent Temperature Probe (one per chamber) and one Humidity Sensor. The Climate Controller PLC reads these sensors and modulates heater power and humidity injection.

The process is programmed in "recipes": a recipe specifies a sequence of setpoints and times. Example:

• Pre-dryer: 70 °C, 45% RH for 60 min; ramp to 65 °C over 10 min.
• Final dryer: 55 °C, 60% RH for 90 min; hold.

Different pasta shapes have different recipes stored in memory; the operator selects "Long Pasta" or "Short Pasta" and the machine auto-configures.

Humidity generation and control

The pasta-drying-dehumidification system uses a silica gel or synthetic desiccant rotor wheel. As air passes through the wheel, moisture is absorbed. The wheel is continuously rotated (by Dehumidifier Motor), and a portion of the air is periodically diverted through the wheel (in the regeneration stream) to drive off absorbed moisture and reactivate the desiccant. This cycle repeats every 4–8 hours.

The Humidity Solenoid in the final dryer is pulsed to inject steam or water mist when humidity drops below setpoint. Modern systems measure moisture directly (via capacitive humidity sensor) rather than relying on time-based injection; this is more responsive and avoids overshoot.

Conveyor drive and synchronization

The Conveyor Motor drives the chain at constant speed via the Gearbox. The Unload Arm is synchronized to the chain speed by the PLC, which tracks chain position via a rotary encoder. When a stick reaches the unload station, the PLC triggers the arm to grip and remove it.

The Pallet Stacking Magazine is a magazine of waiting unloaded sticks; the pushers index a fresh empty stick onto the chain as a loaded stick exits, maintaining continuous operation.

Quality considerations

Drying is a balance: too-fast drying produces brittle pasta prone to breakage during transport and handling; too-slow drying extends cycle time and risks mold (if humidity stays above 65% for extended time, mold can grow). The two-stage approach optimizes this: the pre-dryer accelerates moisture loss safely, and the final dryer equilibrates the product.

Final moisture is critical for shelf stability. 12–14% is standard for durum pasta; softer wheat pastas may target 13–15%. Below 10% moisture, pasta becomes glassy and difficult to bite; above 15%, it risks mold growth in humid climates or if stored long-term.

Stress cracking (internal fissures, visible when the pasta is broken) indicates too-fast drying or excessive temperature. Prevention involves:

• Starting pre-drying temperature at 55–60 °C and ramping to peak over 30 min.
• Maintaining humidity >40% in pre-dryer (not bone-dry).
• Running final dryer at lower temperature and longer time.

Starch retrogradation and texture

During cooling after drying, starch molecules re-crystallize (retrogradation). Slow cooling (letting the dryer exhaust temperature drop gradually rather than abruptly) produces better bite and mouthfeel. Some advanced systems cool the final-dryer air over 30–60 minutes before the sticks exit.

Throughput and economics

A dryer occupying 10 m length and processing 200–300 kg/hour of finished pasta is typical for medium-scale production. Annual throughput is roughly (operating hours per year) × 250 kg/h. For 8 hours/day, 5 days/week, 50 weeks/year operation: 8 × 5 × 50 × 250 ≈ 500 metric tons per year.

Drying cost is significant: 20–30 kW × 24 hrs of operation (amortized, since cycles last 2–5 hours and the dryer idles between batches) × energy rate. In Europe (0.15 €/kWh), this is ~€90–135 per operating day, roughly €10–20 per metric ton of pasta.

Maintenance

Daily: Sticks are inspected for pasta residue; any stuck crumbs are gently brushed off. The pre-dryer and final dryer interiors are visually checked for mold or algae (rare but can occur if humidity control fails).

Weekly: The desiccant wheel air inlet is cleaned of dust (a clogged inlet starves the wheel of fresh air). The Humidity Nozzle is flushed with water to prevent mineral buildup.

Monthly: The Temperature Probes are verified against a reference thermometer; if deviation exceeds ±2 °C, the sensor is recalibrated or replaced. The Humidity Sensor is wiped clean; dust or salt crusts falsify readings.

Quarterly: The desiccant wheel is visually inspected; if it appears darkened or saturated (not white/tan), the regeneration cycle may have failed, and the wheel must be replaced.

Annually: The motor gearbox oil is changed. The conveyor chain is inspected for rust or corrosion; stainless chain lasts 5–10 years; carbon steel chain may require replacement every 3–5 years in humid climates.

Troubleshooting

• Pasta cracking: Increase humidity in pre-dryer or reduce temperature ramp rate.
• Slow drying: Check desiccant wheel color; if dark, replace. Verify fan is running at full speed.
• Mold growth: Humidity is too high. Verify Desiccant Wheel is turning and regenerating. Lower setpoint humidity.
• Uneven moisture (some sticks over-dry, others under-dry): Check that conveyor speed is constant. Verify heater and humidity system are responding to setpoint changes.
