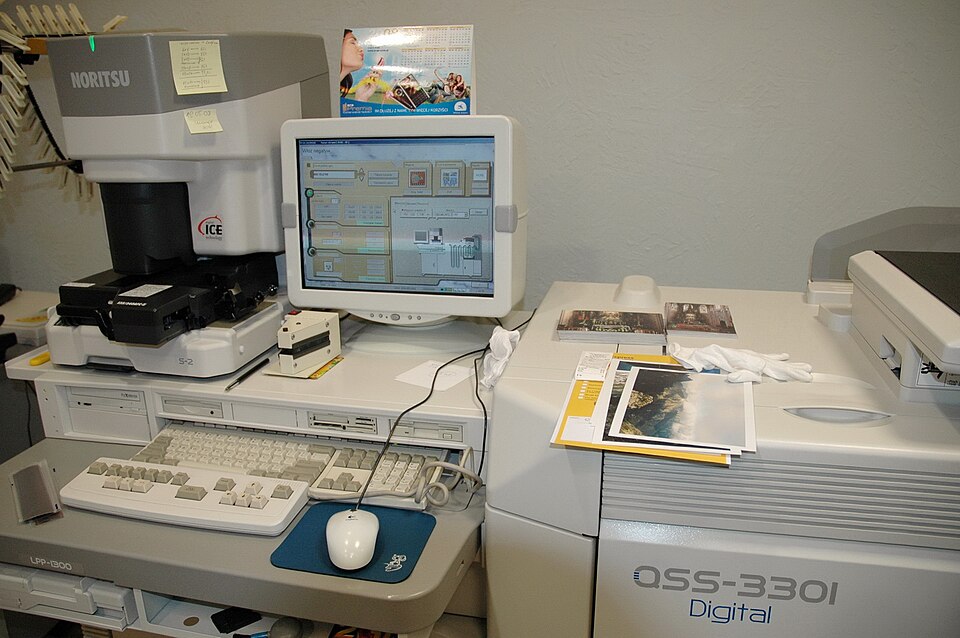

A photo minilab is a small automated factory for making silver-halide color prints from digital files or scans. A customer uploads images, the minilab receives the order, and within minutes, a stack of color photographs is printed, dried, and ready for pickup. The device combines precision optics, chemical processing, and motion control into a compact desktop footprint, turning digital files into tangible prints for events, studios, and retail locations.

The Paper Magazine supplies continuous roll or cut-sheet photographic paper. The Exposure Engine scans an RGB laser or LED light across the paper line-by-line, modulating the beam intensity to expose the paper with a digital image. The Processor Tank Assembly then submerge the exposed paper in developer, stop bath, and fixer—traditional silver-halide chemistry—to form a visible image. The Dryer Assembly removes moisture, and the Sorter Unit stacks finished prints.

The color accuracy and speed depend on tight control: the Chemistry Heater maintains developer temperature to ±0.5 °C (small deviations shift color balance), the Exposure Engine must deliver consistent light output across the paper width, and the processing time must be carefully managed (too short and the image is pale; too long and it over-develops).

How it works

The workflow starts with a digital image file. The Main Controller loads the image, applies color correction for the film type and lighting conditions, and converts it to a bitmap matching the paper's color gamut. This bitmap is streamed to the Exposure Engine.

The exposure process is a line-scan: the Scan Head Assembly moves horizontally across the paper width (8–12 inches), carrying the Exposure Light Source and focusing optics. As it moves, the beam scans vertically (via a Scanning Mirror) at high speed, strobing each pixel with the correct color and intensity. A single line is exposed in milliseconds. The paper advances incrementally after each line, building up the image line-by-line.

RGB lasers offer excellent color control: the red, green, and blue channels are modulated independently, so any color in RGB space can be rendered. LEDs are cheaper but often less color-accurate. Both require precise Exposure Optics to focus the scanning spot to a few hundred micrometers—too large and the image blurs; too small and light throughput is insufficient.

Once exposed, the paper is transported through the Processor Tank Assembly tanks in sequence:

1. Developer: A heated bath (30–35 °C) that reduces exposed silver halide crystals to metallic silver. Unexposed crystals remain unchanged. This bath is buffered and replenished as paper moves through, because the silver sludge and exhausted chemistry degrade color fidelity.

2. Stop bath: A weak acid (typically acetic acid) that halts development by neutralizing the alkaline developer. Dwell time is 5–10 seconds.

3. Fixer: A sodium thiosulfate solution that dissolves unexposed silver halide, making the image stable to light. Fixer is reused until saturated (indicated by silver-halide buildup), then replaced.

Paper transport is via motorized rollers controlled by the Drive System. Speed through each tank is critical and usually set to industry standards (e.g., 1 m/min) to ensure consistent dwell times.

The hot-air or infrared Dryer Assembly evaporates residual moisture in 30–60 seconds. Excessive heat causes image fading and paper warping, so the Thermal Fuse prevents overtemp.

The Sorter Unit collects dried prints in a stack or (in some designs) sorts them by order. Waste chemistry (fixer and developer) drains into the Waste Tank for later disposal.

Color balance throughout is critical. The developer temperature, light output, chemistry concentration, and transport speed must all stay within tight tolerances. Modern minilabs include automated test strips: a reference image is exposed and processed with each batch, then optically analyzed to verify color and density. The Main Controller adjusts laser power or chemistry replenishment based on the result.
