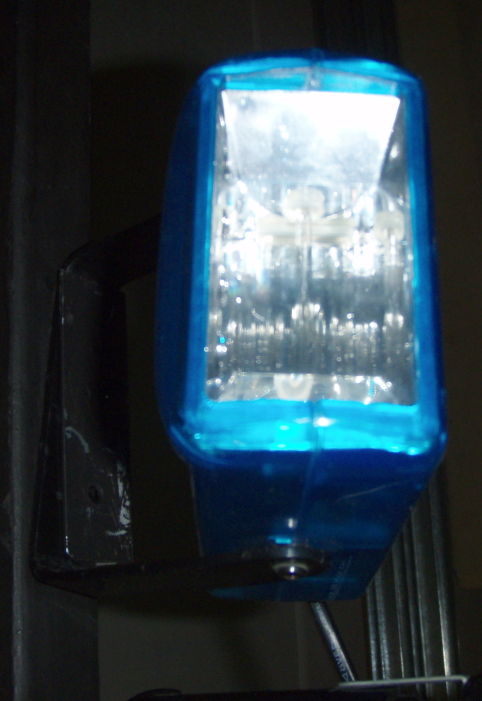

Studio Strobe Light Product

Overview

A studio strobe (or monolight) is a self-contained photographic flash: charging electronics, energy storage, flash tube, and controls all live in one head that mounts on a light stand. It differs from a camera speedlight in scale — a typical monolight stores 200 to 1,200 joules against a speedlight's ~75 J — and in its continuous Modeling Lamp, which lets the photographer see where shadows will fall before the flash fires.

The unit is organized around an energy pipeline. Mains power feeds the Charging Circuit, which fills the Capacitor Bank to about 360 V. On a trigger signal, the Control Board fires the Trigger Transformer, the xenon in the Xenon Flash Tube ionizes, and the bank dumps hundreds of amps through the tube in a fraction of a millisecond. The Housing & Mount front carries the Bowens S-Mount Ring, the near-universal bayonet for softboxes and reflectors.

How it works

Energy storage sets everything else. The Photoflash Capacitors are a special class of electrolytic capacitor built for photoflash duty: they tolerate being discharged almost completely in around a millisecond, thousands of times, which ordinary electrolytics do not survive. Several are paralleled on Bus Bars to keep loop inductance low; at peak discharge the tube current reaches several hundred amperes, and stray inductance would otherwise stretch the flash and waste energy. Bleeder Resistors drain the bank after switch-off, and a dump Relay dissipates energy quickly when the user reduces the power setting, since the capacitors cannot simply "un-charge."

The flash itself is a confined arc. Xenon at low pressure inside the quartz tube is normally an insulator; the trigger transformer's multi-kilovolt pulse on an external wire ionizes a channel through the gas, the gas becomes conductive, and the capacitor bank discharges through the resulting plasma at roughly 6,000 K. The spectrum is close to daylight, which is why flash photography needs little color correction. Modern strobes shape the pulse with an IGBT Power Module in series with the tube: instead of charging the bank to a lower voltage for partial power (which shifts color temperature), the controller fires at full voltage and the IGBT chops the current early. This is how a 1/10,000 s effective duration is achieved at low power settings — short enough to freeze splashing water.

Power control happens in the charging stage. The HV Transformer runs as a flyback converter at tens of kilohertz, monitored through the Voltage Sense Divider divider so the bank lands within about 1% of target voltage; flash exposure repeatability between frames depends directly on this accuracy. Recycle time — 0.05 to 2 s on current units — is set by how much current the converter can push without overheating, which is why the Cooling System fan and Thermistor sensors gate sustained burst shooting.

Triggering and control

The Microcontroller on the control board accepts three trigger paths. The Sync Jack is the oldest: the camera closes a contact at the moment the shutter is fully open. The Optical Slave Sensor fires the unit when its photodiode sees another flash, with microsecond latency, so multiple heads fire together from a single master; a pre-flash-ignore mode skips the metering flashes that TTL systems emit. The Radio Receiver Module is now the standard path — a 2.4 GHz link from a camera-mounted transmitter that also carries remote power adjustment per group, so the photographer changes ratios without walking to each light. Power is set on the Power Encoder Knob in 0.1-stop steps and shown on the LCD Panel.

Modeling and modifiers

The modeling lamp sits at the center of the ring-shaped flash tube so its illumination pattern matches the flash. Older strobes used 150–650 W halogen lamps; current units use a LED Modeling Lamp of 20–60 W that runs cool enough for fabric softboxes and doubles as a continuous source for video. The Lamp Dimming Driver can track the flash power setting proportionally, so relative brightness between several heads previews their flash ratio.

Light shaping is mechanical. The Bowens S-mount's three lugs on a 96 mm circle accept softboxes, beauty dishes, grids, and snoots from dozens of manufacturers; the Internal Reflector and frosted Protective Glass Dome establish the bare-bulb pattern those modifiers reshape. The Tilt Bracket locks the head's elevation on the stand, and the Umbrella Channel holds an umbrella shaft on the optical axis. A failed tube is user-replaceable via the Flash Tube Socket — tubes are rated for 100,000+ full-power flashes but darken with metal sputtered from the electrodes long before outright failure.
