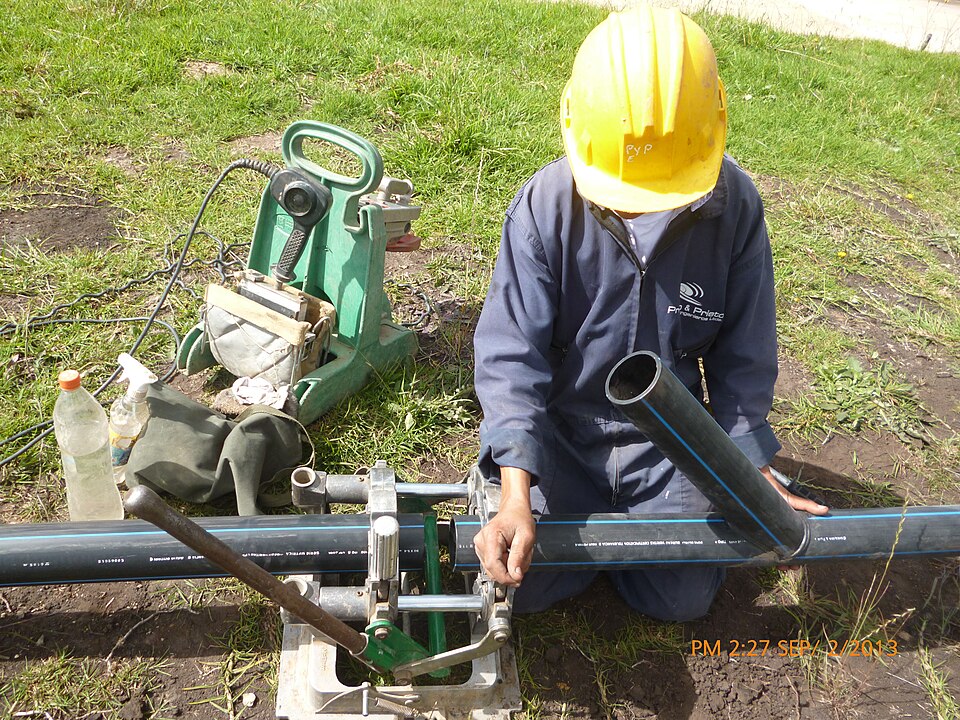

HDPE Pipe Butt-Fusion Machine Product
Overview
Butt fusion is the standard method of joining high-density polyethylene (HDPE) pressure pipe for water, gas, and sewer service. Unlike a gasketed or threaded joint, a fused joint is a continuation of the pipe itself: both ends are melted and pressed together so polymer chains diffuse across the interface, and the finished joint is as strong as the parent pipe. A butt-fusion machine exists to make that process repeatable in a trench — holding the pipes round and coaxial, machining their faces flat, controlling melt temperature, and applying exactly the right force for exactly the right time.
The machine has four separable working elements: the Clamping Carriage that clamps and moves the pipe, the Heating Plate Assembly, the Facing Tool, and the Hydraulic Power Unit that powers the carriage, all coordinated by the Fusion Controller.
The fusion cycle
A joint follows a fixed sequence defined in ISO 21307 and ASTM F2620.
Clamping. Both pipe ends are locked into the carriage — one in the Fixed Jaw pair, one in the Moving Jaw pair, with Clamp Insert liners matching the pipe diameter. The jaws also re-round pipe that has ovalized in storage. Pipe Support Roller stands support the pipe string so the clamps carry no bending load.
Facing. The Facing Tool is locked between the ends and its Planer Disc, driven by the Facer Drive Motor, rotates at about 60 rpm while the carriage presses both pipes against it. The double-sided disc cuts both faces in the same operation, which is what guarantees they end up parallel. Facing continues until each Facer Blade produces a continuous ribbon all the way around — proof of full face contact. An interlock Facer Interlock Switch stops the blades unless the facer is locked in position.
Heating. The facer is swapped for the Heating Plate Assembly, a PTFE-coated aluminum Heater Plate Body held at 200–230 °C (depending on material and standard) by embedded Heating Elements under Plate Thermocouple feedback. The carriage first presses the pipe ends against the plate at full pressure until a melt bead of specified size forms around each circumference, then drops to near-zero "heat soak" pressure so the melt zone deepens without being squeezed out. For 315 mm SDR11 pipe the soak runs several minutes.
Changeover and fusion. The plate is pulled and the ends brought together within a strict changeover window — typically under 8–10 seconds — before the faces skin over. The Hydraulic Cylinders ramp to the fusion pressure calculated from pipe area (the interfacial pressure target is about 0.15 MPa for PE), and the joint cools under that held pressure, unclamped only after the cooling time expires: roughly one minute per millimetre of wall. Correct parameters produce a uniform double bead rolled back onto both pipe surfaces; the bead is the inspector's first quality check.
Hydraulics and drag
Fusion force must be applied at the joint interface, but the gauge reads pressure at the pump, so the operator first measures drag pressure — the pressure just sufficient to slide the carriage and pipe string — and adds it to the theoretical figure. The Hydraulic Gear Pump supplies up to 7 MPa through the Directional Control Valve, read on the Pressure Gauge and electronically by a Pressure Sensor. Twin Hydraulic Hose Set lines with flat-face Quick Couplers let the power unit sit outside the trench while only the carriage goes in.
Control and traceability
On semi-automatic machines the Fusion Controller does more than regulate plate temperature. The operator enters pipe diameter, SDR, and material on the Membrane Keypad; the controller computes bead-up pressure, soak time, fusion pressure, and cooling time, prompts each phase, and records the achieved pressure and temperature curves against time. The per-joint log — exportable over USB — is increasingly mandatory on utility gas work, where a single cold joint can pass a pressure test and still fail years later. Two Relays switch the heater and pump; an LCD Panel walks the operator through the cycle.
Why fusion quality is unforgiving
Almost every butt-fusion failure traces to procedure: contaminated faces (hence facing immediately before heating and never touching the planed surface), too-slow changeover, wrong interfacial pressure, or removing clamps before cooling completes. The machine's contribution is to remove the variables it can — face parallelism within 0.3 mm from the dual-sided facer, plate temperature within ±5 °C, force held constant by hydraulics rather than operator muscle. Field crews verify the rest with bent-strap or bead destructive tests on sample joints at shift start.
Build & assembly graph
expand / collapse · shared sub-assemblies converge · links to related products · est. labourTap an assembly to expand/collapse · tap a part to open it · use “Open page” for any node · drag to pan, scroll to zoom.
Bill of materials
7 top-level lines · 63 rows shown · 110 parts total · indented to 3 levels| # | Item / sub-assembly | Part no. | Qty/assy | Ext. qty | Parts | Type |
|---|---|---|---|---|---|---|
| 1 | Clamping Carriage 6 parts | pipe-fusion-welder-carriage | 1× | 1 | 17 | assembly |
| 1.1 | Guide Rod | pipe-fusion-welder-guide-rod | 2× | 2 | — | part |
| 1.2 | Fixed Jaw | pipe-fusion-welder-fixed-jaw | 2× | 2 | — | part |
| 1.3 | Moving Jaw | pipe-fusion-welder-moving-jaw | 2× | 2 | — | part |
| 1.4 | Clamp Insert | pipe-fusion-welder-clamp-insert | 8× | 8 | — | part |
| 1.5 | Hydraulic Cylinder | pipe-fusion-welder-cylinder | 2× | 2 | — | part |
| 1.6 | Fastener Set | fastener-set | 1× | 1 | — | part |
| 2 | Heating Plate Assembly 6 parts | pipe-fusion-welder-heater | 1× | 1 | 8 | assembly |
| 2.1 | Heater Plate Body | pipe-fusion-welder-plate-body | 1× | 1 | — | part |
| 2.2 | Heating Element | heating-element | 2× | 2 | — | part |
| 2.3 | Plate Thermocouple | pipe-fusion-welder-thermocouple | 2× | 2 | — | part |
| 2.4 | Heater Handle | pipe-fusion-welder-heater-handle | 1× | 1 | — | part |
| 2.5 | Thermal Fuse | thermal-fuse | 1× | 1 | — | part |
| 2.6 | Wire Bundle | wire-bundle | 1× | 1 | — | part |
| 3 | Facing Tool 5 parts | pipe-fusion-welder-facer | 1× | 1 | 9 | assembly |
| 3.1 | Planer Disc | pipe-fusion-welder-planer-disc | 1× | 1 | — | part |
| 3.2 | Facer Blade | pipe-fusion-welder-facer-blade | 4× | 4 | — | part |
| 3.3 | Helical Gear Pair | gear-pair | 1× | 1 | — | part |
| 3.4 | Facer Interlock Switch | pipe-fusion-welder-microswitch | 1× | 1 | — | part |
| 3.5 | Ball Bearing | ball-bearing | 2× | 2 | — | part |
| 4 | Facer Drive Motor 5 parts | pipe-fusion-welder-facer-motor | 1× | 1 | 26 | assembly |
| 4.1 | Stator Assembly 3 parts | stator-assembly | 1× | 1 | 3 | assembly |
| 4.1.1 | Stator Core (laminations) | stator-core | 1× | 1 | — | part |
| 4.1.2 | Copper Winding | copper-winding | 1× | 1 | — | part |
| 4.1.3 | Slot Insulation | stator-insulation | 1× | 1 | — | part |
| 4.2 | Rotor Assembly 4 parts | rotor-assembly | 1× | 1 | 19 | assembly |
| 4.2.1 | Rotor Shaft | rotor-shaft | 1× | 1 | — | part |
| 4.2.2 | Rotor Core | rotor-core | 1× | 1 | — | part |
| 4.2.3 | Neodymium Magnet | neodymium-magnet | 16× | 16 | — | part |
| 4.2.4 | Ball Bearing | ball-bearing | 1× | 1 | — | part |
| 4.3 | Motor Housing | motor-housing | 1× | 1 | — | part |
| 4.4 | Ball Bearing | ball-bearing | 2× | 2 | — | part |
| 4.5 | Helical Gear Pair | gear-pair | 1× | 1 | — | part |
| 5 | Hydraulic Power Unit 8 parts | pipe-fusion-welder-hydraulics | 1× | 1 | 12 | assembly |
| 5.1 | Hydraulic Gear Pump | pipe-fusion-welder-hyd-pump | 1× | 1 | — | part |
| 5.2 | Oil Reservoir | pipe-fusion-welder-reservoir | 1× | 1 | — | part |
| 5.3 | Directional Control Valve | pipe-fusion-welder-directional-valve | 1× | 1 | — | part |
| 5.4 | Pressure Gauge | pipe-fusion-welder-pressure-gauge | 1× | 1 | — | part |
| 5.5 | Pressure Sensor | pressure-sensor | 1× | 1 | — | part |
| 5.6 | Hydraulic Hose Set | pipe-fusion-welder-hose-set | 1× | 1 | — | part |
| 5.7 | Quick Coupler | pipe-fusion-welder-quick-coupler | 4× | 4 | — | part |
| 5.8 | Oil Seal | oil-seal | 2× | 2 | — | part |
| 6 | Fusion Controller 8 parts | pipe-fusion-welder-controller | 1× | 1 | 12 | assembly |
| 6.1 | Bare PCB | pcb-bare | 1× | 1 | — | part |
| 6.2 | Microcontroller | mcu | 1× | 1 | — | part |
| 6.3 | SMD Passive (R/C/L) | smd-passives | 1× | 1 | — | part |
| 6.4 | LCD Panel | lcd-panel | 1× | 1 | — | part |
| 6.5 | Membrane Keypad | pipe-fusion-welder-keypad | 1× | 1 | — | part |
| 6.6 | Relay | relay | 2× | 2 | — | part |
| 6.7 | Connector | connector | 4× | 4 | — | part |
| 6.8 | Wire Bundle | wire-bundle | 1× | 1 | — | part |
| 7 | Chassis and Trolley 6 parts | pipe-fusion-welder-chassis | 1× | 1 | 26 | assembly |
| 7.1 | Frame Weldment | pipe-fusion-welder-frame | 1× | 1 | — | part |
| 7.2 | Wheel Assembly 5 parts | wheel-assembly | 2× | 2 | 9 | assembly |
| 7.2.1 | Alloy Wheel | alloy-wheel | 1× | 2 | — | part |
| 7.2.2 | Tire | tire | 1× | 2 | — | part |
| 7.2.3 | TPMS Sensor | tpms-sensor | 1× | 2 | — | part |
| 7.2.4 | Lug Nut | lug-nut | 5× | 10 | — | part |
| 7.2.5 | Valve Stem | valve-stem | 1× | 2 | — | part |
| 7.3 | Pipe Support Roller | pipe-fusion-welder-pipe-roller | 2× | 2 | — | part |
| 7.4 | Stowage Bracket | pipe-fusion-welder-stow-bracket | 2× | 2 | — | part |
| 7.5 | Sheet Metal Panel | sheet-panel | 2× | 2 | — | part |
| 7.6 | Fastener Set | fastener-set | 1× | 1 | — | part |
