Pirate Ship Ride Product

Overview

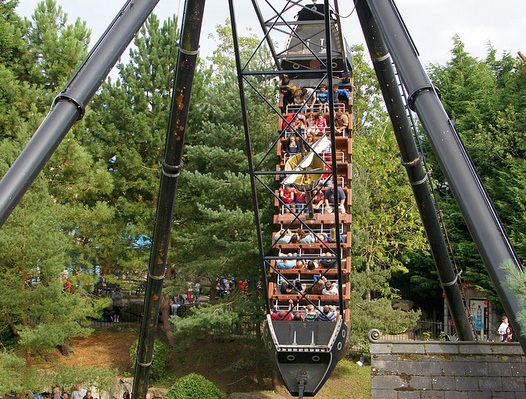

A pirate ship ride is a gravity-driven pendulum attraction where a large gondola shaped like a ship is suspended from a central pivot point and propelled to swing side-to-side by motorized friction-wheel drive tires gripping a central shaft. Riders experience weightlessness and lateral g-forces as the gondola reaches maximum angle (110–120° from vertical). The swinging motion is controlled by a variable-frequency-drive (VFD) motor that progressively accelerates the gondola, holds it at peak swing for dramatic effect, then decelerates smoothly back to rest.

Pirate ships emerged in the 1980s and remain popular in amusement parks worldwide due to their high capacity (30–50 riders per 3–5 minute cycle), low mechanical complexity compared to coasters, and theatrical visual spectacle.

How It Works

Suspension and Pivot System

The [[pirate-ship-gondola|gondola]] is suspended from a large slew bearing (2–3 meter diameter) mounted at the apex of a steel A-frame tower. The bearing accommodates radial loads (gondola weight), thrust loads (swinging momentum), and torsional forces (motor drive). The tower itself (15–25 meters tall) is anchored to concrete footings via four corner legs and guy-cables, transferring load into the ground.

A hollow or solid steel shaft (100–150 mm diameter) runs vertically through the bearing center. This shaft is the key to the ride's mechanics: it transmits torque from the drive motor and serves as a rolling surface for the friction-wheel drive tires.

Drive Mechanism

The [[pirate-ship-drive-system|drive system]] uses two or four large rubber tires (each 0.5–1 meter diameter) positioned on opposite sides of the shaft. As the tires rotate against the stationary shaft (or vice versa), friction accelerates the entire gondola, converting rotational motion into swinging momentum.

A gearbox reduces the motor shaft speed to match the required swing acceleration. The motor is a variable-frequency-drive (VFD) unit, allowing the operator to set swing intensity (angle and speed) via a control panel. Typical settings are:

• Gentle family mode: 45° swing, slow ramp.
• Thrilling mode: 110–120° swing, rapid acceleration to max angle.

The VFD ramps motor speed up and down over 5–20 seconds per half-swing, ensuring smooth transitions and preventing mechanical shock.

Swing Dynamics

As the gondola swings away from vertical, riders experience centripetal acceleration—a sensation of being pushed outward and upward (lateral g-force). At maximum angle (110–120° from vertical), riders reach 1.5–2.5 g. Because the gondola is open-air and the perspective is dramatic, the subjective sensation is often stronger than the actual g-force.

The gondola naturally swings back under gravity (it is essentially a pendulum). The drive tires apply gentle braking torque during the return phase to prevent overshooting and to eventually bring the gondola back to rest. This is achieved by the VFD commanding the motor to absorb energy as a regenerative brake, or by applying a friction brake on the motor shaft.

Restraint and Control

All passengers are secured with lap bars and/or over-shoulder harnesses. [[pirate-ship-restraint-module|Restraint modules]] are bolted to the seat frame at standard spacing. Each restraint has a Hall-effect proximity sensor that detects when the bar is fully closed and latched. The [[pirate-ship-control-system|control PLC]] monitors all restraint sensors; if any restraint reports "open" at cycle start, the PLC prevents motor energization and triggers a solenoid-lockout valve that isolates the motor circuit.

Likewise, the PLC monitors [[encoder|shaft rotation angle]] via a rotary encoder mounted on the motor output. If the gondola reaches maximum intended angle too quickly (indicating motor runaway or tire slippage), the PLC cuts motor power and applies a friction or spring-applied brake.

Passenger Experience

Passengers board from a low platform. A gate or turnstile prevents boarding while the gondola is in motion. Once all passengers are seated and restrained, the ride operator closes a perimeter gate and presses a "start" button.

The gondola accelerates gradually, swinging to one side. Riders feel increasing outward pressure as the angle increases. At peak angle, there is a 1–2 second pause (sometimes with a theatrical shout of "Arrrrr!" from a stereo system), then the gondola reverses and swings to the opposite side. Typically, the ride includes 3–5 full swings (left-right-left-right-rest) before coming to rest vertically.

Total ride time is 3–5 minutes. Passengers exit once the gondola stops and operator signals safety.

Structural and Mechanical Details

Gondola Frame

The gondola is a welded steel frame, typically 12–18 meters long and 4–6 meters wide. Interior compartments hold 30–50 passengers on bench or individual molded seats. The frame is rigid but allows slight flex during swinging to absorb shock and improve comfort.

The top of the frame terminates in a ring or bracket that connects to the slew bearing above via a rotating shaft or direct pivot pin. This top connection must handle thrust and radial loads without binding, requiring precision-machined bearing races.

A-Frame Tower

The support structure is a rigid welded steel A-frame or tripod tower, anchored at the base to a concrete mat foundation (4–6 meters deep, 20–40 meters square). Guy-cables or diagonal cross-bracing prevent sideways sway. The tower is designed to handle:

• Static load: Gondola weight (50–80 tons) plus passengers (5–10 tons).
• Dynamic load: Inertial forces during swinging (up to 3 × static load due to acceleration).
• Wind load: Lateral wind force on a 20-meter-tall object (design wind speed typically 30–50 m/s).

Stress analysis typically targets a 3:1 safety factor on all welds and bolt connections.

Slew Bearing

The main pivot bearing is a large slew ring (2–3 meter outer diameter), internally mounted with rolling elements (ball or roller) arranged to handle radial, thrust, and moment loads. The bearing is rated for 10–50 million cycles over the ride's 20–30 year lifetime.

Periodic maintenance includes:

• Lubrication inspection every 500 operating hours (grease-packed chambers do not require additional greasing).
• Bolt torque verification annually (operating loads can loosen fasteners over time).
• Ultrasonic thickness testing on bearing inner and outer races every 3–5 years to detect cracking.

Drive Tire and Motor System

The rubber drive tires are typically pneumatic (air-filled) or foam-filled to provide damping. Tire pressure is 1–3 bar and is monitored by a pressure transducer. Over-inflation or under-inflation reduces friction and increases slippage, which the control system detects as motor load anomaly.

The motor is an industrial electric unit (15–30 kW, 3-phase 480 V or 3-phase 208 V). A gearbox (ratio 10:1 to 50:1 depending on desired swing speed) reduces output shaft speed to 10–50 rpm, matching the intended gondola swing frequency.

The variable-frequency drive (VFD) allows smooth acceleration and deceleration ramps, preventing sudden jerks that would be uncomfortable for passengers. Typical ramp times are 5–20 seconds per direction change.

Electrical and Control Systems

The [[pirate-ship-control-system|control PLC]] is a programmable logic controller that runs the ride cycle. It enforces:

1. Pre-cycle check: All restraints must report "closed". If any restraint is open, the motor does not start.
2. Gate interlock: A door/gate sensor confirms that the loading gate is closed before allowing motor start.
3. Acceleration ramp: Motor speed increases gradually over 5–20 seconds to reach target swing angle.
4. Peak-angle hold: At maximum swing angle, the motor may briefly pause or reduce power.
5. Deceleration ramp: Motor speed ramps down, allowing gravity to bring the gondola back to vertical.
6. Final stop: Motor applies regenerative braking or friction braking to stop the gondola at zero angle within ±2°.

An operator can adjust ride settings (maximum angle, number of swings, ramp time) via an HMI (human-machine interface) touchscreen. All settings are stored in non-volatile memory and logged for compliance tracking.

Standards and Safety

Pirate ship rides are designed to ASTM F24 (F2374) and international EN 13814. Key requirements:

• Restraint hold forces: 2–4 kN per attachment point.
• Emergency stop: An E-stop button must cut motor power within 0.5 seconds; the gondola then decelerates under gravity and friction alone.
• Redundancy: The drive system has a secondary mechanical brake (friction pads or spring-applied brake) that engages if motor power is lost, preventing uncontrolled swinging.
• Bearing life: Rated for 30–50 year design life with maintenance.

Operational Costs and Economics

A pirate ship ride with 40–50 seat capacity costs $4–12 million including design, construction, and installation. Annual operating costs are $150,000–$400,000 (primarily labor, electricity, and bearing maintenance).

Revenue potential is $800,000–$2 million per season depending on ticket price and utilization. Capacity is typically 600–1,000 riders per hour.

Pirate ships are economically attractive because they have:

• High capacity (30–50 riders per cycle).
• Low mechanical complexity (compared to coasters).
• Spectacular visual effect (swinging motion visible from far away, drawing crowds).
• Broad appeal (non-inversion thrill, suitable for teens and adults).
• Minimal water or electricity for theming (optional lights and sound systems).

Modern variants include rotating pirate ships (the gondola rotates about its long axis while swinging) and pirate ships with 360° tilting mechanisms, adding rotational g-forces to the experience.
