Overview

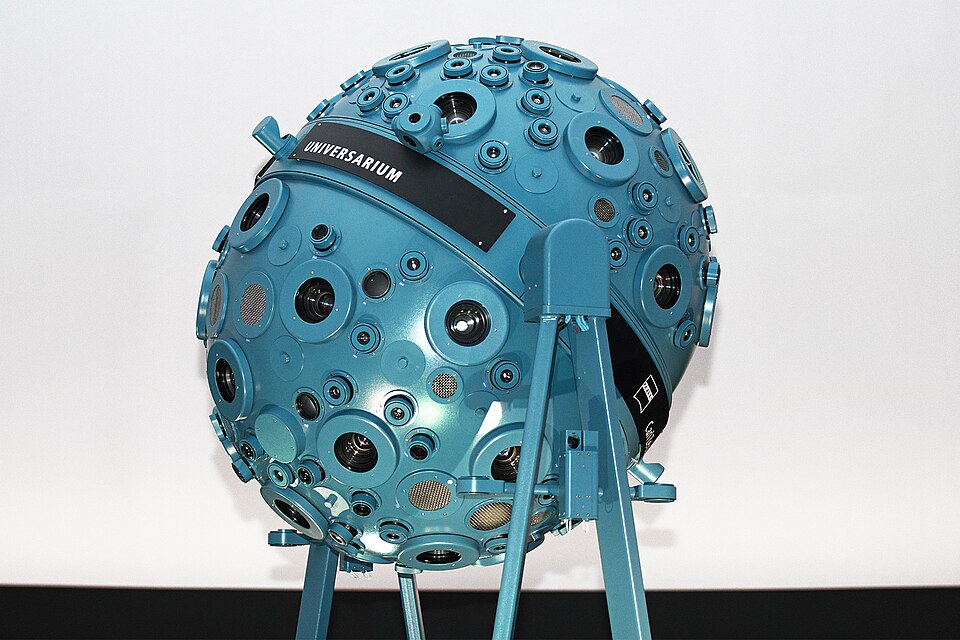

A planetarium projector recreates the night sky on an indoor dome, creating an immersive experience where visitors lie back and watch constellations, planets, and nebulae move in real time. Unlike a cinema projector that displays flat 2D images, a planetarium projector must produce a seamless all-sky scene: the Star Sphere Optics is typically a hemispherical dome of acrylic or glass, pierced by thousands of tiny apertures that the internal Light Source Array illuminates from behind, so each star appears as a pinpoint of light and the dome glows with color as nebulae.

The Light Source Array comprises multiple high-power LEDs or arc lamps, each collimated by its own optical train. The light passes through the Star Sphere Optics—a precision-molded optical element with apertures at positions matching a star catalog. A Diffuser Screen homogenizes the light so no "hot spots" are visible. Specialized Nebula Projector Unit units add colored nebulae and constellations on top of the static star image.

The Motion Control System is a three-axis gimbal: an Azimuth Drive Motor sweeps the projector left-right (compass heading), an Altitude Drive Motor tilts it up-down (elevation angle), and a Roll Drive Motor rotates the image about its center. Together they let an operator or automated controller "drive" the sky viewpoint as if an observer were flying through space or across Earth.

All motion and brightness are orchestrated by the Control System, which receives commands from the show computer (often a networked external system) and outputs motor control signals. Encoders on each axis provide closed-loop feedback so the projector knows its exact orientation at all times.

How it works

The star sphere is the elegant core. Each hole is a star; its size (typically 0.5–1.5 mm) governs perceived brightness. A LED Light Module—a high-power white LED with a LED Collimator Lens—sends collimated light through one or many stars, so all stars appear equally bright regardless of dome position. The collimators are critical: without them, light would scatter and degrade image quality.

Behind the star dome sit the Nebula Projector Unit units: specialized projectors that cast colored images of galaxies, planetary nebulae, and emission nebulae onto the dome surface. These are typically RGB LEDs or small arc lamps with optical masks, so they add rich color and structure around the static star field.

The gimbal Motion Control System allows smooth continuous motion. Each motor is a stepper or servo with a gearbox and encoder feedback. The control board reads the current sky catalog (position of thousands of stars on a sphere), applies the gimbal orientation to rotate that sphere, and then computes which LED to light and at what intensity to recreate that rotated view. Modern systems also add real-time dynamics: planets orbit, the moon rises, precession is visible over centuries—all calculated and animated live.

Thermal management is moderate because LEDs are efficient. A Thermal Management assembly with a blower and radiator keeps LEDs below 60 °C. Arc-lamp versions demand more cooling, as they dissipate significant heat.

Planetarium shows are 30–90 minutes long, so the system must run reliably for extended periods. Common configurations use a permanent overhead gimbal mount (saved space, no pedestals) or a floor pedestal (easier service access). The Frame Ring is a steel or aluminum ring that threads through Ball Bearing sets to pivot smoothly in all three axes. Balance and low friction are essential to keep motors small and noise low.
