Player Piano Product

Overview

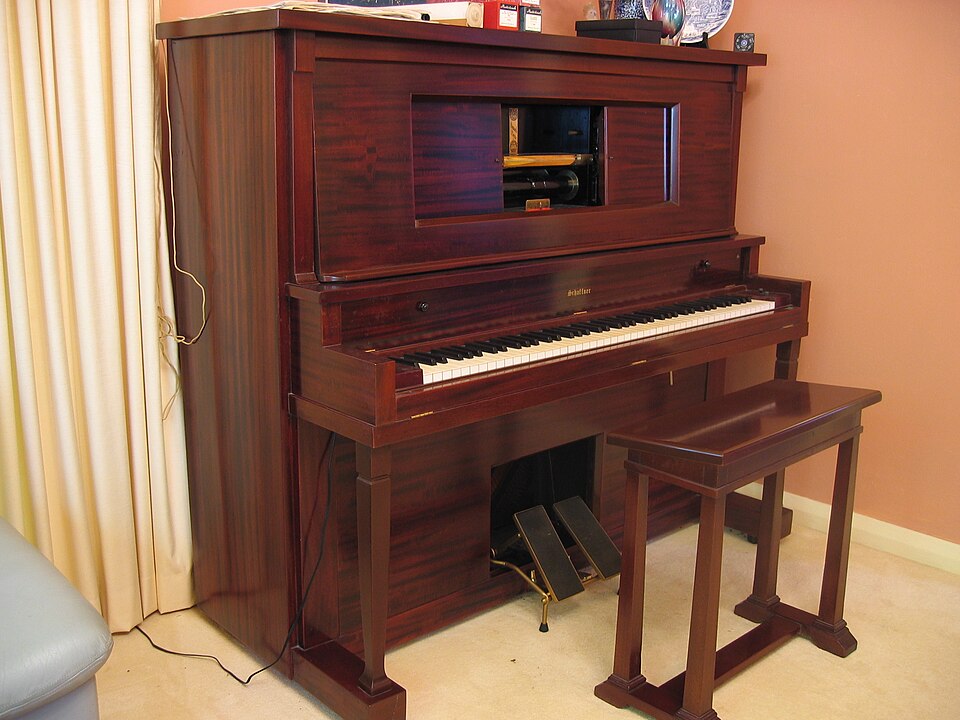

The player piano is a mechanical instrument that recreates piano performances by reading perforations in a paper roll and actuating the hammer action pneumatically, without human finger input. Invented by Henri Fourneaux in France (1863) and developed commercially by American manufacturers (1900–1930), the player piano democratized access to live concert-quality performances in homes. A skilled pianist''s interpretation could be encoded on a roll and played identically in thousands of homes.

The mechanism divides into four functional systems: roll transport and perforation sensing, pneumatic control, pressure generation, and mechanical linkage to the piano action. The encoding is simple: perforations in specific positions correspond to specific keys; the spacing of perforations along the roll encodes time and duration.

Paper Roll and Transport

The Roll Mechanism feeds a continuous perforated paper roll past a Tracker Bar that reads the encoding. The roll is wound on two spools: a Feed Spool holds the un-played roll at constant tension through a festooned (cascading) support system; a Takeup Spool winds the spent roll and is driven by the machine''s main power source.

Between the spools, the Roll Guide maintains roll tension and alignment. A Capstan Roller—a grooved drive roller—engages the perforations in the roll, advancing it by discrete steps. The capstan is driven via a Synchronous Drive (belt or gear) at constant speed, typically 5–12 inches per minute, adjustable for tempo control.

A standard 88-note piano roll is approximately 11 inches wide; the perforations are arranged in a grid pattern, with 88 columns (one per key) and the roll advancing row-by-row. Each row represents one time step; perforations in a row define which keys sound simultaneously. The spacing between rows (holes) encodes note duration.

Tracker Bar and Sensing

The Tracker Bar is a precision-machined brass or plastic bar positioned directly over the roll surface. It contains 88–100 small ports (sensing holes, 1–2 mm diameter), each aligned with a key column on the paper roll. When a perforation passes under a port, a vacuum applied to the port draws air through the perforation, creating a pneumatic signal.

The tracker bar assembly includes:

• Tracker ports array: 88 precisely spaced holes.
• Tracker body: The bar structure holding ports in accurate alignment.
• Tracker gaskets: Rubber or felt seals between ports and the roll, preventing air bypass.
• Port manifold: A tubing distribution block collecting all tracker port signals and routing them to the pneumatic control stage.

Precision is critical. Misalignment of even 0.5 mm can cause unintended notes to play. The tracker bar is typically adjustable to compensate for worn rolls that may stretch slightly over years of use.

Pneumatic Control

The Pneumatic Stack is an array of solenoid valves corresponding to each key. A solenoid is a pneumatic actuator: vacuum applied to one port and atmospheric pressure to another creates a pressure differential across a diaphragm, moving a pushrod. In the player piano, the tracker bar signals (vacuum pulses) drive these solenoids.

Each [[player-piano-solenoid-stack|solenoid]] (~25–40 mm length) houses a diaphragm and pushrod. When vacuum is applied (by a perforation passing the corresponding tracker port), the pushrod extends, driving a [[player-piano-solenoid-actuators|pushrod]] that engages the piano action.

The solenoids are housed in a compact stack mounted above or adjacent to the piano action. They are interconnected by Pneumatic Valves—directional control and check valves that manage airflow paths—and Vacuum Lines—rubber tubing carrying tracker bar signals from the manifold to the solenoid inputs.

An Air Filter upstream of the solenoid stack removes dust and moisture, protecting the pneumatic circuits from contamination.

Pressure Generation

The Bellows System generates the vacuum and pressure necessary to operate solenoids. Two separate bellows chambers are used:

Vacuum bellows (primary): A large pleated chamber (40–60 L) generating the vacuum supply for tracking (100–150 mbar below atmospheric). This vacuum is applied constantly to all tracker bar ports. When a perforation is present, vacuum is felt; when a perforation is absent, the port sees atmospheric pressure and the solenoid de-energizes.

Pressure bellows (secondary): A smaller chamber generating positive pressure (50–100 mbar above atmospheric) for expression and accent control. This pressure modulates solenoid actuator force, allowing encoded dynamics.

Both bellows are driven manually via a [[player-piano-foot-pedal-pump|foot pump]]—the operator pedals a lever, creating a pumping motion. Alternatively, a [[player-piano-motor-pump|motor pump]] (electric, 0.5–1.0 kW) can drive the bellows automatically, eliminating manual pumping.

A Pressure Regulator (governor valve) maintains consistent vacuum pressure (±5 mbar) across the bellows'' pumping cycle. Without regulation, pressure would decay as the bellows relaxed, causing solenoid response to weaken.

Mechanical Linkage

The Piano Action Interface integrates the pneumatic solenoid outputs with the piano''s existing hammer action. Rather than replacing the action, player mechanisms overlay it:

1. Solenoid-to-key interface: Each solenoid pushrod extends downward to a [[player-piano-key-knocker|key knocker]]—a lever positioned on the corresponding key''s stack (the mechanical assembly directly above the key). When the solenoid pushrod extends, it pushes the knocker downward.

2. Key knocker mechanics: The knocker lever pivots and downward motion translates to upward motion of the key itself (through a rocker or intermediate lever). The key''s upward motion then drives the hammer through the piano''s normal mechanical action: wippen, jack, and hammer assembly.

3. [[player-piano-hammer-linkage|Hammer linkage]]: Custom linkages may be added to optimize the mechanical advantage, ensuring solenoid actuation force (typically 5–10 N) suffices to trigger the hammer.

4. Sustain control: A [[player-piano-sustain-solenoid|sustain solenoid]] is wired to the sustain (damper lift) track on the roll. When the sustain perforation is present, this solenoid extends, pulling a [[player-piano-sustain-linkage|linkage rod]] that lifts all dampers simultaneously, allowing previously struck notes to ring.

A Check Wire mechanism ensures that dampers lift exactly when a note begins and drop when the note ends (as encoded in the roll''s duration pattern).

Expression and Tempo

Early player pianos were binary: a key either played or didn''t. Later models added expression control:

• [[player-piano-expression-valve|Expression valve]]: A pneumatic modulation valve varying the pressure applied to solenoids. Greater pressure produces stronger actuation, perceived as louder note articulation.

• [[player-piano-foot-pedal-expression|Expression pedal]]: A secondary foot control that adjusts expression valve position, allowing real-time dynamic shaping of the performance. A skilled roll creator (or an editing pianist playing the roll in real time) can emphasize important melodies and de-emphasize accompaniment.

• Tempo Control: A [[player-piano-speed-governor|governor]] regulates the capstan roller speed. A [[player-piano-tempo-lever|manual lever]] changes the gear ratio, allowing the operator to slow down or speed up playback (typically ±20% of nominal). This does not change pitch (unlike electric pianos); it simply changes the rate at which the roll advances.

Encoding and Roll Creation

Rolls were encoded by hand initially: a skilled note-reader viewed a piano score, and paper rollers used a punch press to create holes in the appropriate columns and positions. Later, encoding was automated: a pianist played a regular piano connected to a mechanical-electrical recording apparatus that punched holes in a blank roll in real time.

Some rolls encoded both performance notes and dynamical control: additional parallel tracks on the roll controlled sustain, expression, and tempo. These dual-encoding rolls produced recordings of genuine musical interpretation, not merely mechanical playback.

Operational Procedure

1. Load the roll: The roll is fitted onto the feed and takeup spools, advanced manually until the first note reaches the tracker bar.

2. Pump bellows (manual mode): The operator begins pedaling the foot pump, gradually increasing pressure and vacuum.

3. Engage tempo: The tempo lever is set to desired playback speed.

4. Start playback: The capstan roller is engaged (usually via a clutch), beginning roll advance. As perforations pass the tracker bar, they trigger solenoids, and the piano plays.

5. Expression and sustain: The operator can modulate expression pedal pressure in real time, and the roll''s encoded sustain track lifts dampers automatically.

6. End: At the roll''s end, the takeup spool is full, and the performance concludes. The roll can be rewound manually or via a rewind mechanism.

Acoustic Characteristics

Because the player mechanism overlays the existing piano action, the resulting tone and touch are similar to a piano played by a (sometimes mechanical-sounding) human performer. The hammer bounce, string resonance, and sustain pedal effects are acoustically identical to finger-played pianos. However, the constraint of binary (on/off) key actuation means the player cannot reproduce the infinite gradations of velocity a human can achieve. Some pianists find player pianos acceptable for classical repertoire but prefer human performance for romantic and impressionistic works.

Legacy and Modern Revival

Player pianos fell into decline after 1930 with the rise of radio and recorded phonographs. However, they have experienced revival since the 1980s, both as restored antiques and as modern reproductions incorporating electronic solenoid control (easier to manufacture than pneumatic systems). Modern player pianos use MIDI files and electromechanical solenoids to achieve performance, while pneumatic player pianos remain valued for their mechanical authenticity and acoustic fidelity.
