Overview

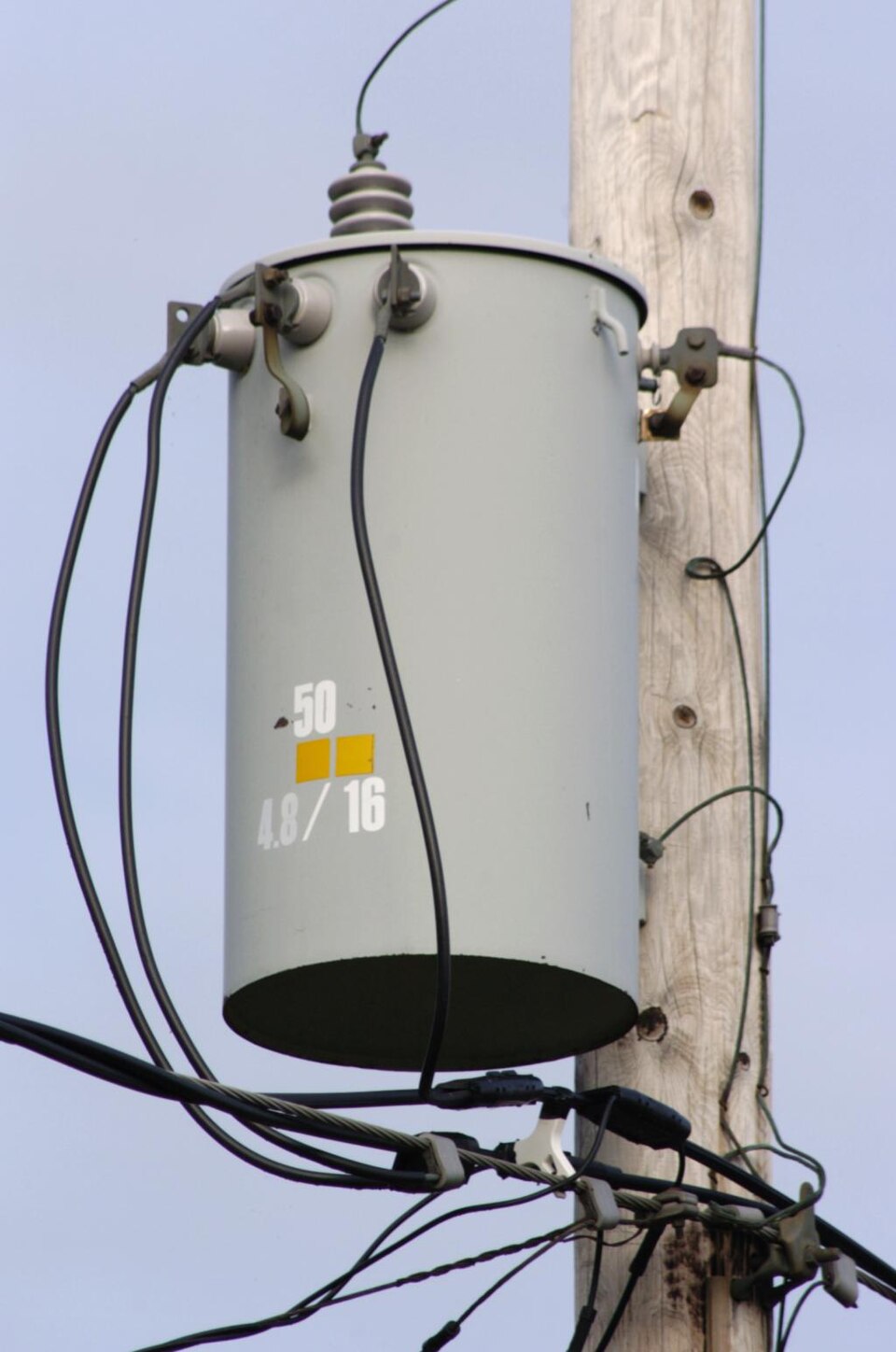

A pole-mounted transformer is a distribution-level step-down device affixed to a utility pole, supplying 25–100 kVA of power from the 12 kV medium-voltage distribution feeder to the 480 V or 277 V three-phase secondary serving commercial buildings, or 120/240 V single-phase for residential service. The Core & Coil Assembly is immersed in [[pole-mounted-transformer-tank|mineral oil]], which provides both electrical insulation and passive cooling via natural convection. The Pole Mounting frame allows rapid installation on wood or concrete poles without hot-stick work (energized line handling).

Pole-mounted transformers are the workhorses of rural and suburban distribution. A single feeder circuit running down a country road may serve a dozen transformers spaced 1/4 mile apart, each stepping down voltage for a small neighborhood or farm. The transformer is a passive device (no moving parts, no control electronics), simplifying maintenance and extending service life to 40–50 years.

How it works

The three-phase 12 kV primary feeder is fused at the distribution line fuse cutout (a tube fuse rated 50–100 A per phase). This feeder is wrapped around the Primary Bushing, entering the transformer core. The Core & Coil Assembly creates mutual inductance, stepping down voltage by the turns ratio (typically 25:1, producing 480 V secondary from 12 kV primary).

The secondary winding emerges through Secondary Bushing (three porcelain insulators rated 480 V), and the triplex cable (three insulated conductors + bare neutral) is secured to the pole via [[pole-mounted-transformer-cable-support|cable clamps]]. The cable drops 50–300 feet to the customer's main breaker panel or to a local distribution cabinet serving multiple smaller customers.

The Surge Arrester (surge arrester) is mounted directly on or near the primary bushing. If lightning strikes the feeder, the arrester conducts the impulse to ground, clamping voltage below 20 kV and protecting the transformer windings from insulation failure.

Cooling and temperature management

The Natural Cooling System relies entirely on natural convection:

1. Current flowing through the [[pole-mounted-transformer-primary-winding|primary winding]] and [[pole-mounted-transformer-secondary-winding|secondary winding]] generates I²R losses (heat).
2. This heat warms the oil surrounding the core.
3. Hot oil, being less dense, rises toward the top of the Oil Tank & Cooling.
4. The Cooling Fins on the tank exterior allow hot oil near the surface to cool by radiating heat to the ambient air (convection).
5. Cooled oil sinks back to the bottom, circulating naturally.

At full load, the Oil Temperature Indicator typically reads 60–75 °C (above a 30 °C ambient). If ambient temperature is exceptionally high (50 °C desert climate), the top-oil temperature may exceed 100 °C, approaching the insulation limit. Manufacturers publish derating curves; a 50 kVA transformer rated for 50 °C ambient may be derated to 35 kVA at 60 °C ambient.

Fault protection

The Surge Arrester protects against lightning and switching transients. The primary fuse cutout (utility-maintained) disconnects the transformer if secondary fault current reaches 100–200 A. The Oil Level Gauge visually indicates low oil (a sign of slow leak or major fault), triggering inspection.

If the secondary is short-circuited (e.g., installer error during live work), the secondary current is limited by the transformer impedance (typically 4–6 %). A 50 kVA transformer with 5 % impedance will deliver a maximum short-circuit current of about 1000 A, which the primary fuse will interrupt within 1 cycle (17 ms at 60 Hz). The Pressure Relief Vent vent opens if internal pressure exceeds 2–5 psi (from arc heating), preventing tank rupture.

Maintenance

The Oil Level Gauge should be checked quarterly. If oil level is below the minimum mark, the transformer may be leaking. Slow seepage (drops per month) is acceptable and is often due to thermal contraction/expansion; faster leaks indicate failed Oil Tank & Cooling or bushing gaskets and require replacement.

The Oil Temperature Indicator is checked during routine utility patrols. Unusual temperature (>80 °C on a cool day) may indicate overloading or reduced cooling (blocked fins, dirty oil). The oil itself should be sampled annually at busy transformers; samples are tested for moisture content, acid number, and dissolved gas (indicating winding temperature or incipient faults).

Secondary terminals and connections should be checked every 2 years for corrosion or loose connections, which cause heating and potential fire. The Mounting Bolts should be torqued annually during heavy load season to ensure transformer remains mechanically stable against wind loads.

Oil replacement and recycling

Transformer oil has a typical lifespan of 20–30 years before oxidation and moisture saturation require replacement. A complete oil change costs $2000–5000, including disposal of spent oil (must be tested for PCB content; pre-1980 oils may contain banned polychlorinated biphenyls). Some utilities employ oil reconditioning: vacuum degassing and moisture removal can extend oil life an additional 10 years. Modern transformers are filled with biodegradable synthetic oils (ester-based) that are non-toxic and environmentally safer, though they cost 3–5× more than mineral oil.

Evolution: Dry-Type Transformers

Newer distribution points often use dry-type (solid insulation) transformers instead of oil-immersed units. These use epoxy resin or compound insulation, eliminating fire risk and messy oil disposal. However, dry-type transformers cost 2–3× more and are larger for the same power rating, making them impractical for pole mounting. Oil-immersed transformers remain the cost leader for distribution, especially in rural areas where replacement every 40 years is economical.

Installation workflow

A utility technician approaches the pole with the transformer (using a bucket truck or climbing spikes). The transformer is positioned on the Pole Mounting brackets at a height of 10–15 feet (below where the primary feeder enters the pole, above where secondary drops attach). The primary feeder is wrapped around the primary bushing with a hook or roller tool, without cutting the line (pole-mounted transformers are hot-connected by design). The secondary cable is pulled down to the customer's meter and main breaker. The Surge Arrester is bolted to the primary bushing and grounded via a copper strap to a driven ground rod at the pole base. The transformer is energized via the primary fuse cutout, and secondary voltage is verified with a voltmeter.
