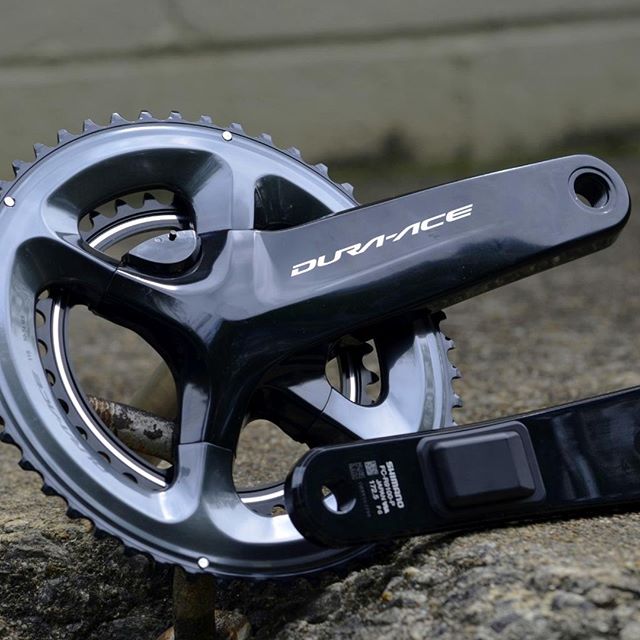

Power Meter Crankset Product

Overview

A power meter crankset measures the mechanical power a cyclist delivers — in watts, in real time — by instrumenting the crank itself as a torque transducer. Power is torque multiplied by angular velocity; the crank already carries all of the rider's torque and rotates at a measurable cadence, which is why the crank and its spider became the dominant measurement site. The principle is the same as an industrial torque cell: bond Foil Strain Gauge to metal where load produces predictable elastic strain, read the resistance change, and convert. What distinguishes a cycling power meter is doing this to ±1–2 % on a component that is hammered by weather, pressure-washed, and expected to run a year on a coin cell.

Measuring torque with strain

The Strain Gauge Package is the measurement core. Foil gauges — metal grids whose resistance changes about 0.2 % at full pedaling load — are bonded with heat-cured Gauge Adhesive to the Instrumented Spider or to the crank arms, in matched pairs oriented at ±45° to the axis. That geometry is the trick: torsional shear strain adds across the pair while bending strain and thermal expansion cancel. Wired as full Wheatstone bridges through the Bridge Wiring, the gauges produce a differential signal of a few millivolts at full scale that is inherently immune to supply drift.

The structure being measured is the Crank Arms & Spider itself — the spider or arm is simultaneously the drivetrain lever and the sensing spring, so its stiffness is part of the calibration and every unit is factory-characterized with known masses to establish its individual slope in N·m per volt. Spider-based designs gauge the Instrumented Spider because all chain torque passes through it regardless of which leg produced it; arm-based designs gauge the Non-Drive Arm (single-sided, doubling left power) or both arms for true left/right balance. A Temperature Sensor feeds firmware compensation for the residual thermal drift the bridge geometry cannot cancel; the pre-ride zero-offset the rider performs handles whatever remains.

From millivolts to watts

The Electronics Pod amplifies the bridge output in a low-drift Instrumentation Amplifier, digitizes it with a 24-bit 24-bit ADC at 50–200 Hz, and pairs it with cadence from the Cadence Accelerometer — a MEMS accelerometer that watches the gravity vector rotate once per revolution, eliminating the frame-mounted magnet of earlier designs. The Microcontroller integrates torque over each revolution, multiplies by angular velocity, and hands per-revolution power to the ANT+/BLE Radio, which broadcasts the ANT+ power profile and the BLE Cycling Power Service simultaneously at 4 Hz to head units and trainers. The whole pod lives in an IPX7 Pod Housing molded onto the spider or arm.

Power for all of this comes from the Battery System: classically a CR2032 Cell CR2032 behind an O-ring-sealed Battery Door, lasting 100–400 hours because the radio duty cycle, not the measurement, dominates the budget. A micropower Voltage Regulator holds the bridge excitation steady as the cell sags from 3.0 V toward 2.0 V; rechargeable variants swap the door for magnetic Charge Contacts so the seal is never broken.

Mechanical platform

Below the instrumentation, the product is a conventional high-end crankset. The Chainring Set bolts 50–53T and 34–39T rings to the instrumented spider with Chainring Bolts at about 12 N·m; because measurement happens upstream of the rings, spider-based meters tolerate ring swaps without recalibration. The Spindle & BB Interface passes a hollow 24–30 mm Spindle through the frame's Bottom Bracket, preloaded by the Preload Collar and clamped by the Crank Fixing Bolt at 35–50 N·m. One subtlety hides here: bottom bracket drag is downstream of a crank meter but upstream of a rear-hub meter, which is why crank-based units consistently read 1–2 % higher than hub-based ones on the same ride — both are correct about what they measure.

Accuracy in practice

The error budget is dominated by three terms. Slope stability depends on the Gauge Adhesive bond — a creeping epoxy joint is the canonical long-term drift mechanism. Thermal transients matter on fast descents, where the metal cools faster than the compensation can track; riders are told to re-zero after large temperature swings. And single-sided meters carry a systematic error equal to the rider's actual leg imbalance, commonly 2–6 %, which no calibration can remove. Within those limits, a maintained crank meter holds ±1–2 % — tight enough that training zones, FTP tests, and race pacing are all built on its numbers.

The category's significance is larger than the hardware: the power meter converted cycling training from speed- and heart-rate-based estimation into direct measurement of work, and the crank-based strain gauge design — first commercialized by SRM in the late 1980s — is still the reference architecture every newer approach (pedal spindles, hub torsion, optical deflection) is validated against.

Build & assembly graph

expand / collapse · shared sub-assemblies converge · links to related products · est. labour
product / assembly shared across products atomic part related product

Tap an assembly to expand/collapse · tap a part to open it · use “Open page” for any node · drag to pan, scroll to zoom.

Bill of materials

7 top-level lines · 36 rows shown · 38 parts total · indented to 3 levels
# Item / sub-assembly Part no. Qty/assy Ext. qty Parts Type
1 Strain Gauge Package 5 parts pmc-strain-gauge-pack 1 12 assembly
1.1 Foil Strain Gauge pmc-strain-gauges 8 part
1.2 Gauge Adhesive pmc-gauge-adhesive 1 part
1.3 Bridge Wiring pmc-bridge-wiring 1 part
1.4 Protective Coating pmc-gauge-coating 1 part
1.5 Temperature Sensor pmc-temp-sensor 1 part
2 Crank Arms & Spider 5 parts pmc-crank-structure 1 6 assembly
2.1 Drive-Side Arm pmc-drive-arm 1 part
2.2 Non-Drive Arm pmc-nondrive-arm 1 part
2.3 Instrumented Spider pmc-spider 1 part
2.4 Pedal Inserts pmc-pedal-inserts 2 part
2.5 Preload Collar pmc-preload-collar 1 part
3 Electronics Pod 8 parts pmc-electronics-pod 1 8 assembly
3.1 Bare PCB pcb-bare 1 part
3.2 Instrumentation Amplifier pmc-instrument-amp 1 part
3.3 24-bit ADC pmc-adc 1 part
3.4 Microcontroller mcu 1 part
3.5 ANT+/BLE Radio pmc-radio-chip 1 part
3.6 Cadence Accelerometer pmc-cadence-accel 1 part
3.7 SMD Passive (R/C/L) smd-passives 1 part
3.8 Pod Housing pmc-pod-housing 1 part
4 Battery System 4 parts pmc-power-cell 1 4 assembly
4.1 CR2032 Cell pmc-coin-cell 1 part
4.2 Battery Door pmc-battery-holder 1 part
4.3 Voltage Regulator pmc-voltage-regulator 1 part
4.4 Charge Contacts pmc-charge-contacts 1 part
5 Chainring Set 3 parts pmc-chainring-set 1 3 assembly
5.1 Outer Chainring pmc-outer-ring 1 part
5.2 Inner Chainring pmc-inner-ring 1 part
5.3 Chainring Bolts pmc-ring-bolts 1 part
6 Spindle & BB Interface 4 parts pmc-spindle-interface 1 4 assembly
6.1 Spindle pmc-spindle 1 part
6.2 Bottom Bracket pmc-bb-bearings 1 part
6.3 Bearing Seals pmc-spindle-seals 1 part
6.4 Crank Fixing Bolt pmc-crank-bolt 1 part
7 Fastener Set fastener-set 1 part
