Overview

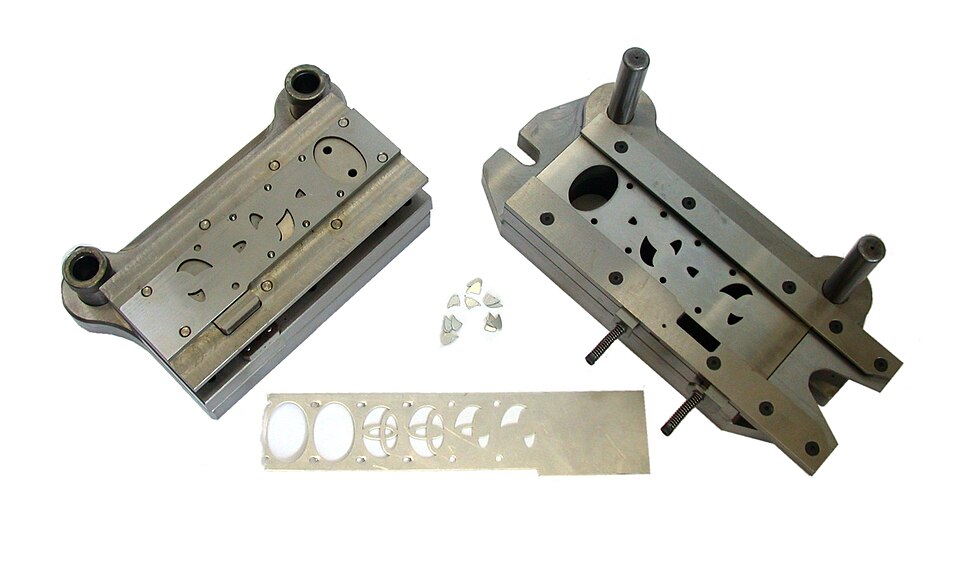

A progressive die is a compound stamping tool performing multiple forming and cutting operations simultaneously on a single press stroke. Unlike single-operation dies that require the operator to reposition the blank between strikes, a progressive die automates the workflow: the metal coil strip feeds automatically through the die, and each downstroke of the press performs four to eight distinct operations—blanking, piercing, forming, trimming—at separate stations aligned vertically. The workpiece advances one station per stroke, propelled by Pilot Pins engaging pre-punched holes in the carrier strip. After the final station, the completed part drops out and the scrap skeleton is carried away. A single progressive die can produce hundreds of thousands of parts in its lifetime, making it economical only for high-volume production.

Station sequence and workflow

A typical automotive stamping part (e.g., a motor bracket) might flow through four or five stations:

Station 1 (Blanking): The Blanking Punch descends and cuts the outer profile of the part from the continuous coil. The cut-out blank remains attached to the carrier strip via a small bridge.

Station 2 (Piercing): The Piercing Punch perforate mounting holes and feature holes. Each punch corresponds to a cavity in the Main Die Block.

Station 3 (Forming): The Forming Punch bends, embosses, or radii edges without cutting. The blank is now partially formed.

Station 4 (Trimming): A second blanking punch trims excess flash and separates the finished part from the carrier strip.

Between strokes, Pilot Springs retract the Pilot Pins, and the coil feeder advances the strip by one pitch. The strip then engages the pilot holes again, perfectly registering the workpiece for the next station.

Upper and lower shoe assemblies

The Upper Shoe Base Block is a hardened steel platform bolted to the press slide. All upper tools—Blanking Punch, Piercing Punch, and Forming Punch—are bolted or pressed into holes in this shoe, aligned with their corresponding lower cavities. The shoe itself is ground flat and parallel to tolerances of 0.002 inch per foot to ensure that all punches engage evenly.

The Lower Shoe Base Block sits on the press bolster and contains cavity dies. The Punch Guide Sleeves (hardened sleeves) guide each punch downward with minimal clearance (under 0.01 mm) to prevent punches from tilting or catching on the guide walls. Tilting causes one edge of the punch to cut prematurely and the opposite edge to leave a ragged burr—exactly what you want to avoid.

The upper and lower shoes are aligned by four Alignment Dowel Pins in opposite corners, typically 0.0001–0.0002 inch close-tolerance fit, so rotation is impossible.

Die cavity precision and inserts

The main Main Die Block is hardened AISI H13 or H11 steel (hardness 38–42 HRC after tempering) for toughness. Individual cavities are either direct-machined into the block or created as separate Die Insert (AISI D2 or tungsten-carbide) bolted into the block. Inserts are preferred because they can be replaced without regrinding the entire block. EDM (electrical discharge machining) is standard for cutting complex cavity shapes because it leaves no tool marks and cuts hardened steel without work-hardening the edges.

The cavity surface finish is polished to 0.4–0.8 μm Ra to minimize galling (cold-welding of the blank metal to the die). Dies that cut and form multiple materials (mild steel, stainless, aluminum) benefit from TiN or CrN coatings on the punch and die edges to reduce friction and extend life.

Stripping and ejection

After the stroke, the Stripper Plate must separate the stamped part from the punch cavity. The stripper is spring-loaded: as the press opens, Coil Spring compression forces in the progressive-die-set-stripper-system push the stripper plate upward, stripping the part off the punch tip. The Stripper Cam lobe on the upper shoe can add mechanical advantage, increasing the ejection force without requiring heavier springs. Some dies use Stripper Lift Rod (lift rods connected to the slide) to actively eject parts on the press open stroke.

Inadequate stripping causes parts to nest on the punches or bend, ruining the part and potentially jamming the die. Excessive spring pressure wastes energy and fatigues components.

Pilot alignment and feed registration

The Pilot Pins are hardened steel dowels extending from the Pilot Bushings in the stripper plate. Before each stroke, the coil-feed mechanism advances the metal strip by exactly one pitch. The pilot holes (typically Ø4–5 mm) engage the pilot pins, positioning the next blank centred under the punch array. After the stroke, the pilot springs retract the pins slightly so the feed mechanism can pull the strip forward without resistance. Pilot hole wear is the most common life-limiting factor for coil-fed progressive dies: after 1–2 million hits, the holes become enlarged (0.1–0.2 mm oversize), causing registration creep. The part contours shift gradually out of alignment with the punches, creating cosmetic flaws. Eventually, the part will move so far that a punch hits the carrier strip or a piece of scrap, breaking the punch.

Die materials and hardness

Upper punches are typically AISI A2 or O1 tool steel, hardened to 58–62 HRC, struck on the faces to resist thermal fatigue. Lower cavities are AISI H13 (50–54 HRC after tempering) for toughness, or AISI D2 (58–62 HRC) for wear resistance. Tungsten-carbide is reserved for high-volume (2+ million pieces) because of its cost: carbide dies can run 5–10× longer than steel but cost 3–5× more to fabricate.

Thermal and mechanical fatigue

Progressive dies undergo cyclic stress: each impact imposes bending and shear stresses on the punches, and each cycle heats the punch tips through friction and deformation. High-speed dies (200–400 strokes/min) generate significant heat. Dies cutting stainless steel or with small punch clearances are especially prone to galling and heat buildup. Regular die cleaning and application of cutting fluid (mineral, semi-synthetic, or soluble-oil) reduce heat and extend punch life.

Maintenance and die rework

After 500,000–1,000,000 pieces, punches may mushroom at the head (spreading from hammer blow impact) or develop hairline cracks. Rework involves removing the worn punch, grinding or EDM-recutting the cavity, and installing a new punch. A complete die rebuild costs 10–20 % of the original die cost but restores production capability. Worn pilot holes can be reamed up one size and new pilots installed, but this is a band-aid; eventually the entire pilot assembly must be replaced.

Progressive die design in CAD and simulation

Modern progressive die design uses 3D CAD software (CATIA, Pro/Engineer, or Solidworks) with integrated FEA (finite element analysis) to simulate material flow, punch stress, and wear patterns before construction. Software can predict punch life and optimal guard dimensions, reducing trial-and-error and accelerating time-to-first-part.
