Protein Skimmer Product

Overview

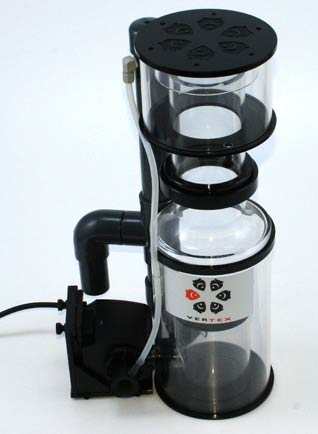

A Protein Skimmer is an aquarium water treatment device that separates dissolved organic waste (DOC) from saltwater through a process of foam fractionation. Operating on the principle that organic molecules are hydrophobic and preferentially bind to air-water interfaces, the skimmer generates millions of fine bubbles in a reaction chamber. These bubbles coalesce with proteins, fats, and other waste compounds, rising to the surface where they form a stable foam that drains into a collection cup. Modern reef and marine aquariums depend heavily on protein skimmers to maintain water clarity and suppress algal blooms.

The underlying mechanism works through adsorptive bubble separation. The Intake Impeller Assembly uses a Needle-Wheel Rotor spinning at 3000–6000 RPM to inject ambient air into a contact zone with incoming seawater. The needle-wheel design (rather than a conventional impeller) creates extreme shear, fragmenting large bubbles into particles 50–100 µm in diameter. These microbubbles have a dramatically increased surface-area-to-volume ratio, maximizing contact with organic molecules. As bubbles rise through the Reaction Chamber, organic compounds bond to bubble surfaces; the foam that accumulates at the top is then diverted into a Collection Cup.

Skimmer performance is controlled by three primary variables: bubble size (determined by impeller speed and design), residence time in the reaction chamber (proportional to chamber height and water flow rate), and air-to-water ratio. A properly tuned skimmer removes 5–10% of dissolved organic compounds per day, significantly extending water change intervals. Undersized or poorly adjusted skimmers produce wet foam that fails to stabilize; oversized units can cause excessive salt precipitation and waste valuable nutrients.

How it Works

Water enters the Intake Impeller Assembly under suction from the blower motor. The Blower Motor (typically a 20–75 W AC induction motor) drives the Needle-Wheel Rotor at 3000–6000 RPM. As the rotor spins, it ejects incoming water radially outward while simultaneously drawing ambient air into the center hub via a venturi action. The air and water collide at the rotor's needle-like blade edges, creating a violent mixing zone. This shear breaks the air stream into a foam of microbubbles, each carrying a thin shell of organic-laden water.

The bubble-water mixture rises through the Reaction Chamber, a tall (40–80 cm) vertical tube that provides residence time for bubble-to-foam transition. The internal Internal Baffles help distribute flow evenly and suppress turbulence that would break down the forming foam. Organic molecules (proteins, polysaccharides, fats) preferentially adsorb to bubble surfaces; as dozens of bubbles merge, they form larger, drier, more stable foam. This foam reaches the top of the chamber and flows into the Collection Cup, where it accumulates as a dark brown, moisture-rich sludge.

The Cup Drain Valve is opened periodically (daily to weekly depending on bioload) to expel accumulated skimmate. The purified water exits the skimmer via the return outlet and flows back into the main tank. The Air Silencer, wrapped around the motor intake, reduces noise by absorbing sonic energy in open-cell Acoustic Foam Pad material, lowering decibel output from 80–85 dB to 70–75 dB.

Optimization and Tuning

Protein skimmer adjustment is an iterative process. Most units ship with flow-control valves or air-bleed gates that allow the operator to tune the air-to-water ratio. Too little air produces no foam; too much causes the skimmer to overflow wet waste back into the tank. The "sweet spot" produces a foam with a consistency between toothpaste and whipped cream, stable enough to hold its shape but wet enough to drain freely into the collection cup.

Water level in the tank also affects skimmer function. The Reaction Chamber must be submerged with its outlet positioned at or near the dynamic waterline. As water level fluctuates (through evaporation or topping off), skimmer efficiency varies. Many advanced systems include a water-level sensor that adjusts intake depth automatically.

Common Applications

Reef aquariums with heavy bioload (fish-heavy systems) benefit from oversized skimmers (rated for 1.5× actual tank volume). Lightly stocked systems or those emphasizing corals can run smaller units or even skip skimmers entirely, relying on frequent water changes and biological filtration via Sump Filtration System. The Bottom Outlet Valve in the chamber base allows emergency drainage if foam production becomes excessive or if the skimmer malfunctions.

Marine hobbyists typically service the Collection Cup once or twice per week, discarding the accumulated skimmate (a high-nitrogen, nutrient-dense organic sludge sometimes re-used in terrestrial gardens). Long-term skimmer reliability depends on regular rinsing of the Needle-Wheel Rotor to prevent mineral scaling and biofilm clogging, especially in high-salinity or heavily fed tanks.
