Racing Wheelchair Product

Overview

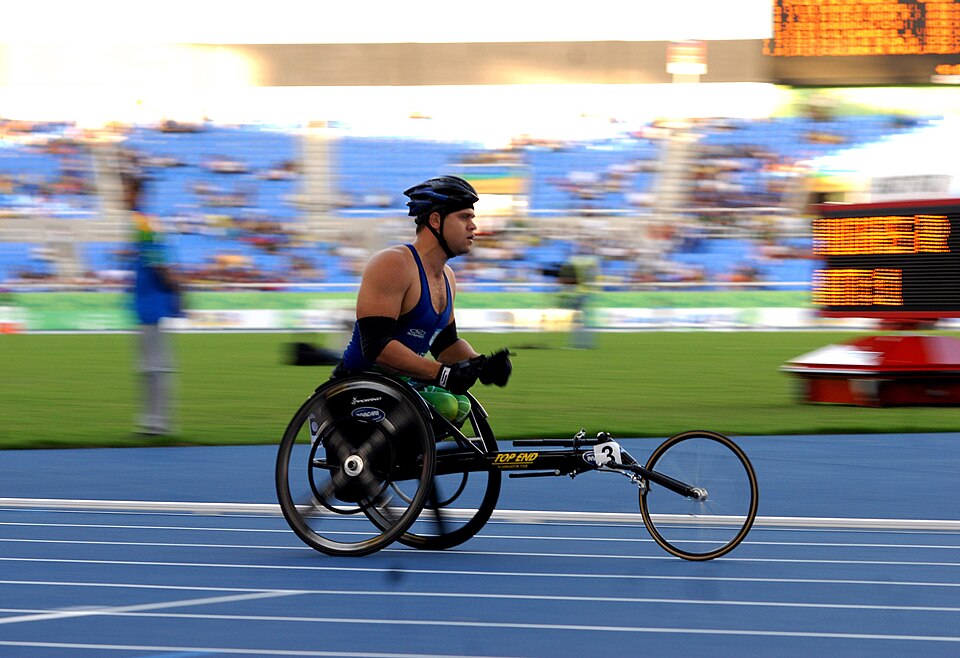

The racing wheelchair is a lightweight, high-performance four-wheeled human-powered vehicle designed for competitive wheelchair sports, particularly marathon racing and track events. Unlike mobility wheelchairs optimized for everyday accessibility, racing wheelchairs are built for speed, efficiency, and agility—featuring rigid frames, large cambered drive wheels (wheels tilted outward for cornering stability), a small front caster for steering, and push rims that allow hand propulsion to be converted directly to forward motion.

The race chair weighs 8–12 kg, can reach sustained speeds of 30–40 km/h, and is piloted by athletes with varying mobility impairments (spinal cord injury, amputation, cerebral palsy). The sport is governed by international rules (International Wheelchair and Amputee Sports, IWAS) that define weight, wheel size, and geometric limits to ensure competitive fairness and safety.

How it works

Propulsion System

The operator sits in a rigid seat, typically positioned 400–500 mm above ground level, with legs extended or supported on a footrest. The two large drive wheels (typically 660 mm, or 26 inches, diameter) are mounted with a 12–15 degree outboard camber—the axles angle away from the vertical centerline. This geometry lowers the center of gravity in corners and increases lateral stability when cornering at speed.

Each drive wheel is equipped with a concentric push rim—a steel or aluminum tube (25 mm diameter) bolted to the wheel hub. The athlete propels the chair by gripping and pushing downward on the push rim, converting arm and core power into rotational momentum. A complete push cycle typically lasts 1.5–2 seconds at racing pace, with the athlete's hand leaving the rim at the bottom of the arc to reset for the next push. Elite wheelchair racers can sustain pushing cadences of 45–60 pushes per minute over distances of 1500 m to 42 km.

Steering and Directional Control

A single small caster wheel (150 mm diameter) is mounted on a tapered fork at the front of the frame. The fork is usually angled (castor angle 60–75 degrees from vertical), placing the wheel contact point ahead of the pivot axis. This geometry creates automatic tracking stability: as the chair drifts from a straight line, the caster self-corrects because the contact patch aligns with the direction of travel.

For active steering, some racing chairs feature a toe-in compensator—an adjustable mechanism that changes the caster's alignment relative to the frame, allowing fine-tuning of steering response. Manual steering comes from asymmetric push power: pushing harder on the right wheel while easing off the left wheel creates a gentle left turn without requiring hand-off or mechanical steering input.

Frame Rigidity

The frame is typically welded aluminum alloy (6061-T6) or titanium tubing, designed to be torsionally stiff—resisting twisting forces that occur during high-speed cornering. Cross-bracing and careful tube routing minimize deflection while keeping overall mass low. Some high-end frames use carbon fiber tubes bonded to aluminum or titanium fittings to achieve sub-10 kg weights.

Seating and Stability

The seat is a rigid bucket or shell, usually made from molded carbon fiber or fiberglass, mounted directly to the frame. A multi-point harness (lap belt, torso strap) restrains the occupant, especially critical during high-speed descents or sharp turns where centrifugal forces can shift the athlete's weight. The seat height and fore-aft position are adjustable, allowing each athlete to optimize power transfer from their specific mobility level.

Braking

Hand-operated brake levers mounted on the push rims allow the athlete to squeeze the lever, which pulls a steel cable connected to disc or drum brakes on one or both drive wheels. Racing brakes must be responsive but progressive—abrupt locking causes wheel skids, which both waste speed and risk tipping. Some racers use a foot brake activated by shifting weight or a mechanical linkage triggered by hand.

Wheels and Tires

Racing wheels use high-tension spoked designs (48–64 spokes of 2.0 mm stainless steel) to minimize unsprung mass and maintain roundness under load. Aluminum alloy rims are laced to aluminum hubs with sealed bearing races (angular contact or hybrid ceramic bearings) to minimize rolling resistance. Tires are high-pressure pneumatic (80–100 psi) and very narrow (20–25 mm wide) to reduce rolling resistance; some manufacturers produce dedicated racing compounds with Kevlar or carbon-reinforced sidewalls to resist puncture.

Racing Classes and Variants

International wheelchair racing divides competitors into classes based on spinal cord injury level (T1–T10 and above), amputee status, and other impairments. Each class features different track distances (800 m, 1500 m, 5000 m) and road races (10 km to marathon 42.195 km). The athlete's body position and ability to drive affect design: T1–T4 (high tetraplegia) athletes often use a more upright seat and may employ chest straps; T10+ and paraplegics can benefit from a forward-leaning position that maximizes core and arm leverage.

All-terrain and recreational racing wheelchairs use slightly wider tires (28–35 mm) and may include suspension dampening on the caster to handle grass, gravel, or lightweight off-road surfaces. Handcycle variants add upper-body cranks for athletes with complete lower-limb paralysis.

Performance Standards

Official racing wheelchairs must not exceed 12 kg (including the athlete's weight limit, they race within a 25 kg chair-plus-athlete class). The drive wheel diameter cannot exceed 30 inches, and all wheels must be pneumatic. Seat height is limited to create a minimum ground clearance. These regulations prevent technological arms races while allowing innovation in materials and geometry.

Modern racing wheelchairs achieve rolling resistance equivalent to elite bicycles (coefficient of rolling resistance around 0.003–0.004), making them among the most efficient human-powered vehicles. Record times for the marathon wheelchair race are approximately 1 hour 22 minutes, corresponding to an average speed of 30.6 km/h—comparable to competitive cycling performance.
