Overview

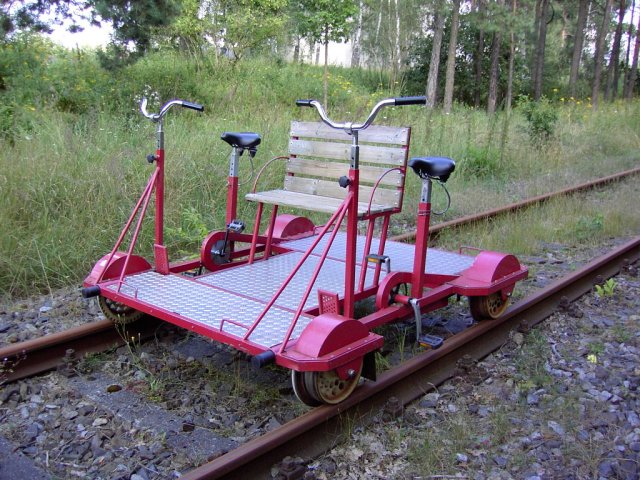

The rail bike is a pedal-powered human-locomotion rail vehicle designed for recreational or maintenance travel on railroad tracks. It combines bicycle-style pedal propulsion with railroad flanged wheels, allowing pairs of riders to pedal together and propel themselves across rail networks. The vehicle features an outrigger wheel (an auxiliary wheel on a lateral arm) for stability, preventing tipping on curves.

Rail bikes have seen a resurgence in recent decades as heritage tourism attractions, where rail corridors abandoned for freight are converted to recreational rail-trail routes. Operators run services where passengers pedal the bike from station to station, providing exercise and novel transportation experiences. Some rail systems also use rail bikes for track inspection and crew mobility.

A typical rail bike weighs 80–120 kg and can carry 2 operators sustainably pedaling at 12–18 km/h on level track, with downhill speeds exceeding 40 km/h.

How it works

Pedal Propulsion

Each operator sits on their own seat (either side-by-side or tandem) with feet on pedals mounted on a central crankshaft. As both operators pedal in synchrony, the crankshaft rotates, driving a front sprocket (36 teeth) that engages a roller chain. The chain drives a smaller rear sprocket (18 teeth) mounted on the rear wheel axle, providing a 2:1 gear ratio.

The mechanical advantage means one complete pedal rotation (one revolution of the crankshaft) turns the rear axle twice, converting moderately fast pedaling cadences (70–90 rpm) into wheel speeds of 14–18 km/h on 500 mm diameter wheels. This ratio balances human pedaling comfort with practical transport speed—higher ratios would require unsustainably fast pedaling, while lower ratios would feel sluggish.

Two operators working together roughly double the power available compared to a single-rider bicycle, allowing sustained travel at comfortable conversational pace even on slight grades.

Steering and Control

The front wheels are flanged wheels mounted on a front axle, rigidly attached to the frame. A handlebar connected via tie-rods to the front wheel mounting allows limited steering input. However, the fundamental constraint is that on a straight rail, steering is minimal—the wheels must follow the rail direction or derail.

True steering comes from the rail geometry itself: curves in the track guide the front and rear wheels naturally. The outrigger wheel (a small auxiliary wheel on a lateral arm) touches the rail surface and provides additional support, preventing the vehicle from tipping during high-speed curves. The outrigger wheel does not steer actively; it simply provides a third point of contact, lowering the overall center of gravity and widening the effective wheel track.

Wheel Design and Rail Interface

Wheels are solid cast or forged steel with an internal flange (inward-facing lip) that engages the inner edge of the rail. This flange prevents lateral movement, keeping the vehicle centered on the track. The wheel tread (outer surface) is flat or slightly curved, designed to roll smoothly on steel rail with minimal resistance.

Because wheels run directly on steel rails (no tires, no cushioning), the ride is somewhat harsh compared to rubber-tired vehicles. However, the low rolling resistance and mechanical efficiency are significant advantages: the energy loss to tire deformation and heat is eliminated. Wheel bearings are typically sealed ball races, requiring minimal maintenance.

Braking

Hand-operated brake levers (one per operator) pull steel cables connected to mechanical disc brakes on the rear wheels. Disc brakes are positioned close to the wheel axles, using stainless steel rotors and friction pads to generate stopping force. Brake modulation is critical: wheels on rails cannot slip sideways, so locking the brakes causes an abrupt stop with risk of derailment if one wheel locks before the other.

Experienced operators use rhythmic brake modulation (pumping the lever) to control descent on grades, maintaining safe wheel speed without uncontrolled sliding.

Frame and Seating

The frame is welded steel tube, optimized for bending stiffness (resisting sagging under occupant weight) and torsional stiffness (resisting twisting during cornering). Seats are typically padded benches or bucket-style seats, mounted side-by-side or in tandem, depending on desired operator interaction and visibility.

The outrigger arm extends laterally 250–350 mm from the frame center, with its wheel positioned just above the rail surface. The outrigger arm itself is rigid, designed to not deflect under load; it is structurally independent of the main frame, bolted at a single point to allow removal for narrow-gauge compatibility or maintenance.

Heritage Rail Operations

Rail bike tourism emerged in the 2000s, with operations in North America, Europe, and Asia on decommissioned freight lines. The Iron Horse Bicycle Company pioneered rail bike tourism in the United States, establishing routes in Colorado, Oregon, and other states. Modern rail bike stations operate 2–6 hour excursions, carrying 4–30 passengers in a series of bikes that pedal together on the same track, with guides managing the group's pace and safety.

Safety considerations include speed limits (typically 15 km/h in populated areas, 25+ km/h on open track), helmet requirements, and pre-ride briefings on braking and steering. Regular brake inspections are critical, as worn brakes can result in inability to stop before derailments or obstacles.

Track Maintenance Variant

Some railroads use smaller two-person or single-rider rail bikes for track inspection and maintenance crew transport. These variants are lighter (50–70 kg) and may omit the outrigger in favor of tighter turning geometry. They allow workers to inspect rail alignment, switches, and fasteners while riding, stopping as needed to inspect or repair problem areas.

A skilled inspector can pedal 30–50 km of track per day, conducting visual inspection and noting defects for later repair crews.

Mechanical Simplicity and Reliability

Rail bikes are valued for their mechanical simplicity—a pedal drivetrain with chain and sprockets, mechanical brakes, and rolling wheel bearings. There are no engines, no electronics, and no batteries to manage. This simplicity makes rail bikes reliable in remote locations and easy to maintain with basic tools. A simple bearing replacement or brake pad change can be accomplished by any mechanical technician, without specialized diagnostic equipment.
