Overview

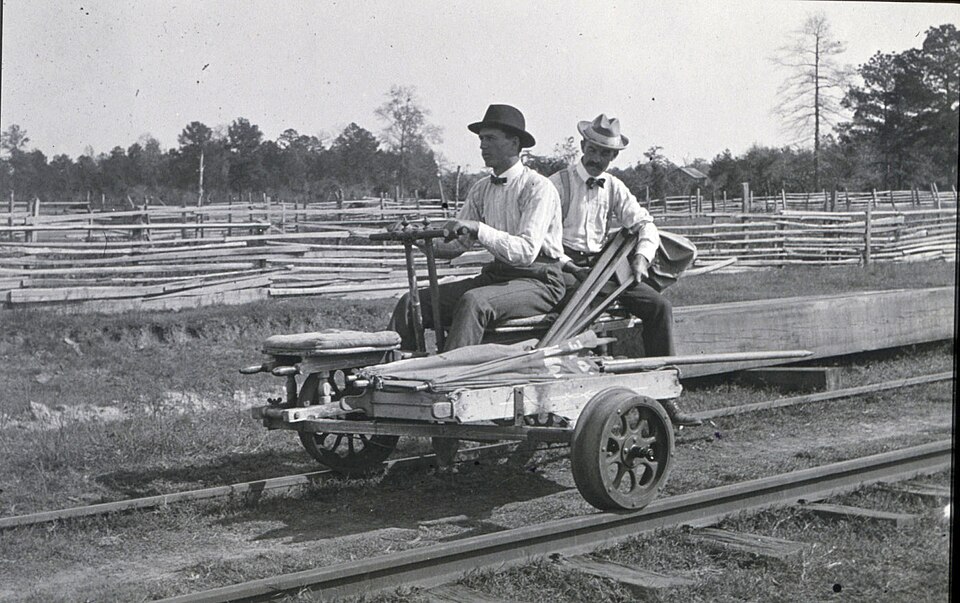

The railway handcar (also called a pump car, jigger, or maintenance trolley) is a human-powered rail vehicle operated by a walking-beam pump handle mechanism. Workers stand on either side of a central pivot and rhythmically pump handles up and down, converting reciprocating motion through a crankshaft and gear system into wheel rotation. Handcars were historically used for railroad maintenance crews to inspect tracks, transport tools and materials, and move light loads along rail corridors. Modern handcars persist in heritage railways, narrow-gauge operations, and some industrial rail systems.

A typical handcar weighs 300–500 kg empty and can carry 2–5 workers or 1000–5000 kg of cargo depending on grade and design. Four operators working in synchrony can achieve steady speeds of 12–15 km/h on level track, while downhill momentum can exceed 30 km/h.

How it works

Walking-Beam Pump Drive

The propulsion system consists of two handle arms mounted on a central pivot pin, similar to a playground seesaw. Each arm extends downward from the pivot, terminating in a handle or platform. Operators (typically two, one per handle) stand facing each other. As one operator pushes down on their handle, the opposite handle rises; the other operator pulls down on the rising handle, continuing the cycle.

Each handle arm is mechanically linked to a crankshaft via a connecting rod (a rigid or semi-rigid link). As the handles rock up and down, the connecting rods force the crankshaft to rotate continuously. The motion is similar to a steam engine's piston-and-crankshaft arrangement, but with human legs providing the force instead of steam pressure.

The rhythm is smooth and efficient when two operators work in synchrony: operator A pushes down (crankshaft rotates half a turn), operator B pushes down on the now-rising handle (crankshaft completes the rotation). With four operators (two pairs), the motion becomes even smoother, as two operators are always in the power phase of their cycle.

Gear Transmission

A small gear (typically 20 teeth) is mounted on the crankshaft; a larger gear (typically 60 teeth) is mounted on the wheel axle. This 3:1 reduction ratio converts the relatively slow, high-torque crankshaft motion into faster wheel rotation. The mechanical advantage (3:1) helps overcome rolling resistance and grade resistance, allowing human power to move the heavily loaded vehicle.

Detailed mechanics: one complete pump cycle (down-up-down-up from one operator's perspective) is one full crankshaft rotation. With a 3:1 ratio, the wheels rotate 3 times per complete crankshaft cycle. On a 600 mm diameter wheel, this translates to 3 × π × 0.6 = 5.65 meters per pump cycle. At a rate of 40 pump cycles per minute (a comfortable sustained cadence), the vehicle travels 5.65 × 40 = 226 meters per minute, or 13.6 km/h.

Wheels and Rail Adherence

The handcar runs on standard gauge railroad track (1435 mm spacing, though narrow-gauge variants exist). Wheels are cast iron or forged steel, with a distinctive flange (an inward-facing lip) on the inner surface of each wheel. The flange engages the inner edge of the rail, preventing lateral displacement and keeping the vehicle centered. The wheels are rigidly mounted on a fixed axle, so there is no differential or steering—the handcar must follow the rail direction.

The wheel tread (outer surface) is typically a simple flat or slightly curved profile, optimized for rolling rather than traction. Wheel bearings are usually ball races or plain bronze bushings, kept simple and easy to service in remote locations.

Braking

A mechanical brake lever (hand-operated) pulls a rod or cable system that forces a friction-lined brake shoe against the wheel rim. Brake shoes are typically made from cast iron or from metal-backed friction material (similar to modern brake pads). The mechanical lever provides a mechanical advantage, allowing operators to generate sufficient braking force despite the heavy vehicle. Some handcars use both wheels' brakes; others use one wheel with a more substantial brake assembly.

Downhill braking requires careful modulation: locking wheels can cause skids, which are dangerous on rails and accelerate brake material wear. Experienced operators rhythmically pump the brake lever or dragging mechanism (a blade or rope) to control descent speed.

Platform and Coupling

The vehicle is an open platform, typically with low railings or handles for stability. Seating is minimal—operators stand to pump and may rest on benches during coasting. The vehicle has a drawbar extending from the front or rear frame, fitted with a standard rail coupler allowing the handcar to tow or be towed by other rail vehicles (loaded freight cars, additional handcars, etc.).

Towing capacity depends on grade and operator endurance: on level track, 4 operators can sustain towing 2000–3000 kg; on 1% grade, capacity drops to 1000–1500 kg; on steeper grades, operators cannot maintain forward progress.

Historical Development

Railway handcars emerged in the 19th century, initially powered by steam engines or horses, but human-powered designs became dominant for maintenance work due to simplicity and minimal operational cost. By the 1920s–1980s, handcars were standard equipment on virtually every railroad, deployed in pairs or groups for track inspection, maintenance crew transport, and light material movement. The pump handle design was standardized across most railroads, making them interchangeable and easy to service.

With the rise of motorized rail vehicles and automated track inspection, handcar use declined significantly after the 1990s. However, heritage railways, narrow-gauge tourist operations, and some freight railroads in remote areas still maintain and operate handcars for crew mobility and heritage demonstration.

Modern Variants

Motorized Conversions: Some vintage handcars have been retrofitted with small gasoline or electric motors coupled to the drive shaft, retaining the pump mechanism for backup or supplemental propulsion.

Narrow-Gauge Designs: Industrial and heritage railways operating narrow-gauge track (760 mm, 1000 mm gauges) use proportionally smaller handcars, with the same mechanical principle but lighter construction.

Load Variants: Freight-focused designs eliminate seating and lower the platform to accommodate larger cargo; passenger-oriented variants add benches and side railings for comfort.

The handcar remains an icon of railroad history and continues to serve practical and recreational roles in rail operations where simplicity, reliability, and zero emissions are valued.
