Record Cleaning Machine Product

Overview

A record cleaning machine is an essential tool for vinyl record collectors and archivists seeking to remove surface contamination before playing records. Dust particles, fingerprints, pressing debris, and years of accumulated grime embed themselves in the vinyl groove, causing audible pops and clicks during playback and gradually abrading the stylus of the playback cartridge. A cleaning machine applies a specialized cleaning solution to the groove while rotating the record slowly, then extracts the dirty solution via vacuum suction, leaving the vinyl clean and quiet.

The machine consists of four major systems: (1) a Turntable and Spindle that holds and slowly rotates the record, (2) a Cleaning Solution Applicator that applies cleaning solution, (3) a Suction Extraction Arm that extracts dirty solution, and (4) pumps and tanks that manage solution flow and storage.

How it Works

Platter Rotation

The Platter Drive Motor drives the Turntable and Spindle at 33 RPM—one full record speed. This slow speed differs from playback speed (33.33 RPM for LPs) because the cleaning cycle requires only three to five minutes per record. Rotating at slower speeds extends the cleaning contact time without requiring excessive machine runtime.

The motor's pulley is connected via a Drive Belt to the platter's larger pulley with a 30:1 or 40:1 reduction ratio, stepping the motor speed down from approximately 1200 RPM to the required 33 RPM. The Record Spindle centers the record, and a Record Clamp spring-loaded collet secures the record's center label, preventing slipping.

Solution Application

The Pressurized Solution Pump pressurized pump draws cleaning solution from the Clean Solution Chamber upper chamber and pressurizes it to 2–5 PSI (low pressure, avoiding record damage). The solution flows through the Silicone Tubing silicone tubing to the Cleaning Solution Applicator. The Solution Nozzle spray nozzle directs the solution onto the rotating record's groove, wetting all surface areas. The operator adjusts the flow rate using a needle valve, finding the sweet spot: enough flow to saturate the groove, but not so much that excess solution splashes.

Vacuum Extraction

Immediately following the applicator, the Suction Extraction Arm suction arm hovers just above the record surface. The vacuum-pump rotary-vane vacuum pump creates approximately 60–80 kPa suction (roughly 0.6–0.8 bar, or 20% below atmospheric pressure). This suction pulls the wet solution and dissolved contaminants through the narrow Vacuum Slot Opening slot opening (typically 1 mm wide) into the collection chamber.

The vacuum arm must be carefully positioned: too high above the record surface, and suction is ineffective; too low, and the arm contacts the record, causing damage. Many machines allow vertical adjustment of the vacuum arm to accommodate records of varying thickness.

Contamination Removal

The cleaning solution is typically distilled water or a proprietary surfactant-based mixture. Water alone is sufficient for most dust removal; surfactants (similar to dish soap, but gentler) aid in breaking up oils and fingerprints. The vacuum extraction removes three categories of contamination:

1. Particulate dust: Dust particles and pressing debris suspended in the solution are drawn into the tank.
2. Organic residue: Fingerprints, mold spores, and decomposed label paper dissolve in the solution.
3. Static electricity: Vinyl records accumulate static charge, attracting dust. Conducting the solution through the record effectively grounds the charge.

Solution Recycling and Separation

The Cleaning Solution Reservoir and Separator dual-chamber design allows solution reuse. Dirty solution extracted from records flows into the lower "dirty" chamber. Over several cleaning cycles, heavier contaminants (pressing debris, dust) settle to the bottom. A Tank Float Valve float valve isolates the upper "clean" chamber, which can be recirculated for several more records before requiring a complete tank drain and refill. This approach conserves both solution and cost.

Drying

After the vacuum extraction, the record is wet but not soaked. The record continues to rotate for an additional 10–20 seconds under vacuum suction with the applicator nozzle closed, allowing residual solution to be extracted. The operator then removes the record and stands it upright on its edge to air-dry for 15–30 minutes, or uses compressed air to speed drying (careful: high-pressure air can disturb dried contaminants back onto the surface).

Cleaning Solution Formulations

Distilled water alone is sufficient for routine cleaning, removing dust and light oils. Some collectors use deionized water (even purer than distilled) to minimize mineral residue.

Commercial cleaning solutions often add:

• Surfactants (wetting agents reducing surface tension)
• Isopropyl alcohol (enhancing evaporation and degreasing)
• Anti-static agents (reducing charge attraction)
• Biocides (preventing mold growth during storage)

A well-maintained record (cleaned and stored in archival sleeves) degrades only from stylus wear, not from environmental contamination.

Mechanical and Electrical Considerations

The machine's motor must be robust, as vacuum suction creates significant mechanical load on the platter shaft. Ball Bearing angular-contact bearings handle this load while maintaining low friction. The Platter Gasket gasket around the platter creates an airtight seal, allowing the vacuum pump to evacuate air from the suction slot.

The motor wiring is typically AC-powered (120 V or 240 V depending on region). Some machines use low-voltage DC motors powered by transformer/rectifier supplies for quieter operation.

Comparison with Manual Cleaning

A manual wet-cleaning method (using a brush and distilled water) can remove surface dust but requires careful technique to avoid damaging the record. A cleaning machine automates the process, removing human variable. Vacuum extraction is superior to simple water rinsing because it fully removes the wet solution, preventing water stains as the record dries.

Record Collection Maintenance Workflow

A serious collector typically establishes a routine: upon acquiring a used record, the record is cleaned using the machine before first playback. This eliminates any stylus wear from pre-existing contaminants. Records are then stored in polylined inner sleeves (not glassine or plain paper, which introduce dust) and archival outer sleeves. With proper storage, cleaned records remain quiet for decades.

Professional and Archival Use

Record cleaning machines are standard equipment in archival facilities, universities, and studios preserving rare recordings. These facilities often use semi-automated or fully automated machines with multiple cleaning/rinsing stages and precise environmental controls (temperature, humidity). A single rare 78 RPM record (shellac, fragile) might be cleaned in a specialized ultrasonic bath before digitization, ensuring the highest playback quality for subsequent transfer.

Ultrasonic Cleaning Alternative

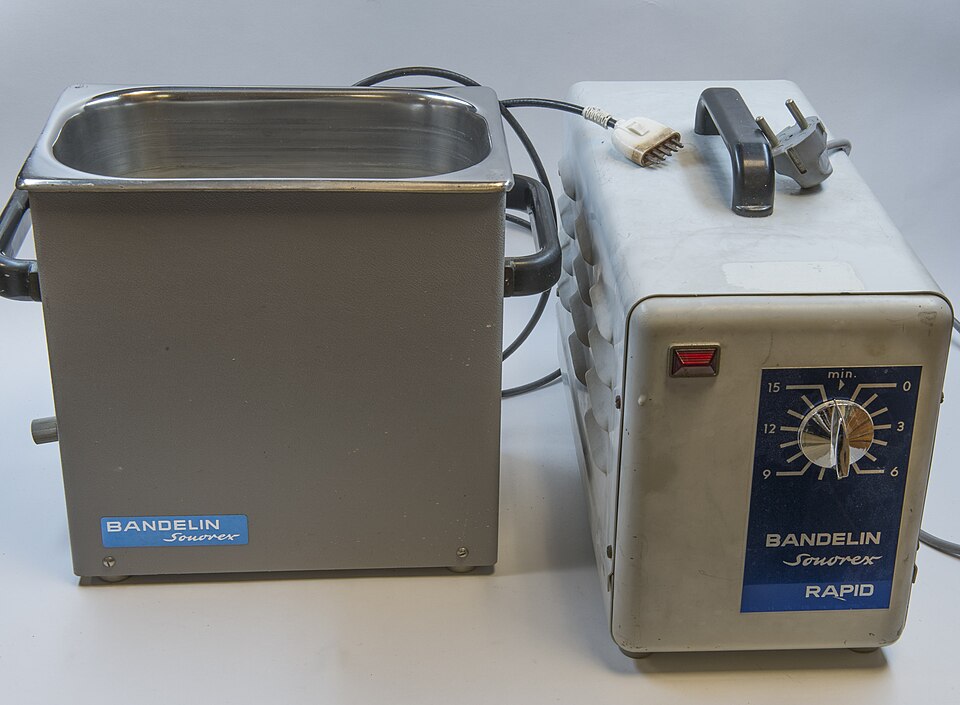

Some advanced cleaning machines use ultrasonic waves (40 kHz or higher) vibrating the cleaning solution to dislodge microscopic particles. Ultrasonic cleaning is more thorough but carries a slight risk of structural damage to records if the ultrasonic intensity is excessive. Traditional mechanical vacuum extraction remains the standard for routine vinyl care.
