Thermal Rifle Scope Product

Overview

A thermal rifle scope mounts on a rifle and shows the shooter a thermal image of the target, allowing accurate aiming in darkness, smoke, or obscuring brush. The Thermal Camera Core detects long-wave infrared radiation (heat) from living things, vehicles, and fires. The Thermal Objective Lens focuses that heat onto a microbolometer. The Eyepiece Display Module shows the thermal image on a tiny OLED screen magnified to the shooter's eye. The Reticle & Ballistics Processor overlays a digital reticle with ballistic corrections: distance to target, wind, gravity, and angle are computed in real time, and the reticle moves to show the corrected aim point.

Military and law-enforcement users rely on thermal scopes for night operations, where thermal optics reveal humans and warm vehicles that are invisible to visible-light night-vision. Hunters use them for long-range shots in variable light. The Battery Tube Housing houses the power supply and main electronics.

How it works

The Thermal Objective Lens is a multi-element lens made of germanium or sapphire (which transmit infrared). A Zoom Lens Group allows the shooter to magnify the thermal image (from, say, 1.5× to 6×), and a Focus Motor adjusts objective focus for sharp imagery at different ranges. The magnification range is narrower than optical rifle scopes because the thermal image already has limited resolution (160×120 or 320×256 pixels); digitally zooming beyond ~6× just makes the image blocky.

The Thermal Camera Core microbolometer array is at the objective focal plane. Unlike visible cameras (which measure light intensity at each pixel), the microbolometer measures temperature. Each detector is a tiny vanadium-oxide resistor that changes resistance with temperature. The Thermal Readout ASIC scans the array and reads out a temperature map.

A key challenge is "non-uniformity": due to manufacturing variations, each bolometer has a slightly different sensitivity. The readout electronics apply a non-uniformity correction (NUC) table, calibrated at the factory, to make all pixels report temperature consistently. In the field, the shooter may periodically run an automatic NUC (placing the scope's view on a uniform thermal surface, like a wall) to refresh the calibration.

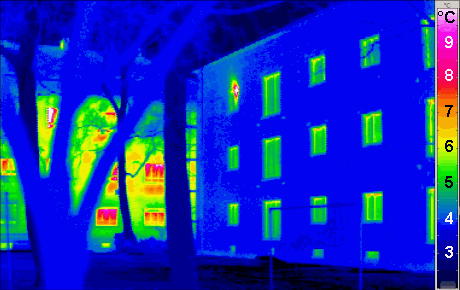

The temperature map is processed: a lookup table (stored in the Reticle & Ballistics Processor SoC) maps temperature into a false-color image (e.g., hot=white, cold=black, or a "hot iron" palette of reds and oranges). The image is then streamed to the Eyepiece Display Module OLED, which updates at ~30 Hz. The shooter sees a real-time thermal video.

The Reticle & Ballistics Processor overlays a digital reticle—a crosshair, circle, or subtension marks—and, in advanced scopes, displays range, wind, gravity hold-over, and angle corrections. Some scopes include a rangefinder (laser or image-based stereopsis), which measures distance to the target and automatically computes the ballistic correction. Others require the shooter to manually input distance via a control knob.

The Brightness/Contrast Control allows the shooter to adjust the OLED display brightness and the reticle brightness, critical for different lighting conditions.

Thermal detection range depends on target size and contrast. A human body is roughly 37 °C; on a cold night (−5 °C ambient), the thermal signature is strong, visible to 1000–1500 m. On a hot day (30 °C), the contrast is lower, reducing detection range to 300–500 m. A running engine is hotter and visible farther; a cold vehicle or sleeping person is harder to detect.

Reticle subtension (the size of reticle elements in angular units) is pre-calibrated for common weapons and zero distances. A reticle marked for a 200-yard zero has hold-over marks for 300, 400, and 500 yards. Some modern scopes use digital reticles that adjust automatically based on computed ballistics.

Battery Tube Housing houses Li-ion Cell, 18650 or AA cells, typically 2–4 units. Runtime of 3–5 hours is typical for the OLED display and Zoom Lens Group motor draw.

Military thermal scopes often include image fusion (overlaying a visible-light night-vision image with thermal), reticle colors, and encrypted ballistic tables; civilian and hunting scopes are simpler. The Mount Adapter Assembly connects the scope to a Picatinny rail or traditional scope rings on a rifle, ensuring the optical axis aligns with the bore.

Durability under recoil is essential: the Main Tube Body is typically an aluminum or steel barrel with internal bracing to withstand the shocks from rifle firing. All optical surfaces are protected: the Thermal Window is a sapphire cover that resists scratching and thermal shock.
