Overview

The rotary telephone is an electromechanical device enabling voice communication over telephone networks through mechanical number selection via a rotating dial. Introduced commercially in the 1950s, rotary phones became the global standard telephone handset, dominating residential and office use until the 1990s. The rotary dial replaced earlier operator-connected systems, enabling direct-dial calling: the user could select a phone number without human operator intervention at the exchange.

The phone operates on straightforward principles: pressing the handset to the ear/mouth completes a circuit to the telephone exchange via a two-wire line. Rotating the dial and releasing it generates a series of electrical pulses that the exchange interprets as digits, routing the call to the destination number. Incoming calls are signaled by an electromagnetically-driven bell.

Rotary Dial Mechanism

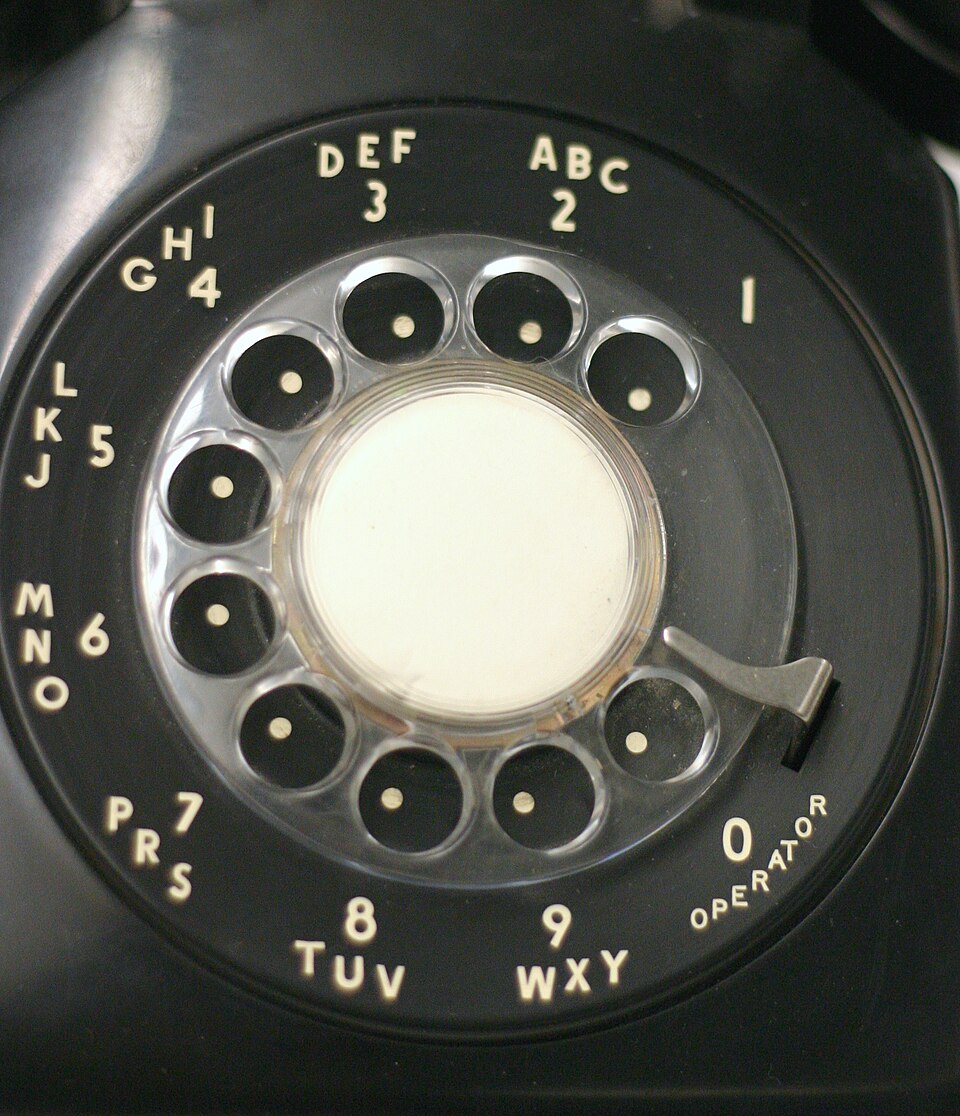

The Dial Mechanism is the signature element of rotary phones. The operator inserts a finger into a [[rotary-telephone-dial-finger-holes|finger hole]] corresponding to the desired digit (0–9) and rotates the [[rotary-telephone-dial-plate|dial]] clockwise. The dial rotates until a mechanical stop (a peg or fin matching the digit) prevents further rotation.

The operator then releases the dial. A [[rotary-telephone-dial-spring|return spring]] propels the dial back counterclockwise to its home position. However, the dial does not return instantly—a [[rotary-telephone-dial-governor|governor mechanism]] (similar to a gramophone or barograph governor) regulates the return speed, ensuring a constant rotation rate. This constant-speed return is critical: as the dial rotates back, a [[rotary-telephone-pulse-cam|pulse cam]] (a profile mounted on the dial shaft) interacts with a [[rotary-telephone-pulse-switch|pulse switch]], making and breaking the telephone line circuit.

Each complete rotation of the dial opens and closes the circuit a number of times equal to the dialed digit. For example:

  • Dialing 1: one pulse
  • Dialing 5: five pulses
  • Dialing 0: ten pulses (0 is encoded as 10 in telephone exchange logic)

The pulse rate is standardized at 10 pulses per second, so dialing a 5 takes approximately 0.5 seconds; dialing a 0 takes ~1 second. Between digits, an inter-digit delay (approximately 1 second) allows the exchange switching circuits to process the previous digit before accepting the next.

Handset and Audio Transducers

The Handset is a combined transmitter (microphone) and receiver (speaker) integrated into a single unit. Unlike older telephone handsets (which often had separate ear and mouth pieces), the rotary handset is held to the ear with the microphone near the mouth.

[[rotary-telephone-transmitter|Transmitter]]: A carbon microphone converts acoustic vibrations (voice) into varying electrical resistance. The carbon microphone is a simple device: a chamber filled with carbon granules is connected to an electrical circuit. When acoustic pressure (from the speaker''s voice) compresses the granules, resistance decreases, increasing current. When pressure relaxes, resistance increases, decreasing current. The resulting audio-frequency current (300–3400 Hz) is transmitted down the telephone line.

Carbon microphones require a small DC bias current (typically 23 mA, delivered by the telephone exchange or a local battery) to function. This bias current flows through the granules, maintaining the carbon-to-carbon contact. Without bias current, no modulation occurs and the transmitter is silent.

[[rotary-telephone-receiver|Receiver]]: An electromagnetic speaker converts electrical current back to mechanical vibration and acoustic sound. The receiver contains a permanent magnet and an electromagnet coil. As audio current flows through the coil, the electromagnet''s field varies, pulling and pushing a flexible diaphragm. The vibrating diaphragm radiates sound at the listener''s ear, reproducing the distant speaker''s voice.

Typical receiver impedance is 800 Ohm; transmitter impedance is 300 Ohm. The telephone network balances these impedances using transformer coils within the telephone set, ensuring efficient power transfer.

The [[rotary-telephone-handset-cord|handset cord]] (typically 2–3 meters of twisted pair) connects the handset to the base, carrying both transmit and receive signals, as well as DC bias current.

Hookswitch

The Hookswitch is a mechanical switch detecting whether the handset is in the [[rotary-telephone-handset-cradle|cradle]] (on-hook, idle) or being held to the ear (off-hook, active). It consists of:

Hook lever: A spring-loaded [[rotary-telephone-hook-lever|arm]] supporting the handset cradle. When the handset is resting in the cradle, the full weight of the handset pushes down on the lever, depressing it.

Contact button: As the lever is depressed by the handset weight, a [[rotary-telephone-hook-button|button]] attached to the lever presses against an electrical contact, opening a circuit that disconnects the telephone from the line.

When the user picks up the handset, the lever is no longer depressed, the button releases, and the circuit to the line closes. The telephone exchange detects this on-hook-to-off-hook transition and prepares to receive dial pulses (or alerts the line that someone has picked up).

This simple mechanical solution predates modern electronic switches by decades and requires no electronics—entirely mechanical switching.

Ringer

Incoming calls are signaled by the [[rotary-telephone-ringer|ringer]]—an electromagnetically-driven bell. The central exchange sends a 20–50 V AC signal at 20 Hz down the telephone line to activate the ringer.

When the AC signal arrives, it energizes a [[rotary-telephone-ringer-coil|solenoid coil]] surrounding an [[rotary-telephone-ringer-core|iron core]]. The alternating current causes the core''s field to reverse direction at 20 Hz. Each reversal pulls a [[rotary-telephone-ringer-armature|pivoted iron armature]], which swings and strikes a [[rotary-telephone-ringer-clapper|metal clapper]]. The clapper rings against a [[rotary-telephone-ringer-bell|brass or steel bell]], producing the characteristic loud, shrill tone (85–110 dB SPL).

The ringing continues as long as the exchange sends the 20 Hz signal (typically 1–3 seconds of ringing, pause, repeat). The user answers by picking up the handset (off-hook transition), which signals the exchange to stop the ringing signal and connect the call.

Ringers on older phones were often loud and insistent—rooms could be heard ringing from multiple phones simultaneously. Later designs included adjustable ringer volume (mechanical, by bending the striker spring) and selective ringing (decoding multiple ring patterns to differentiate lines in multi-line systems).

Telephone Network Integration

The Network Circuit connects the telephone to the wall jack, which connects to the telephone exchange via two wires (tip and ring, from old terminology). The circuit includes:

Line cord: A [[rotary-telephone-line-cord|two-wire twisted pair]] (typically 3–5 meters) connecting the telephone to a [[rotary-telephone-network-jack|wall jack]]. Modern jacks are RJ-11 connectors; older phones used various proprietary connectors.

Passive components: A [[rotary-telephone-circuit-board|simple PCB or wired circuit]] includes [[rotary-telephone-capacitor|coupling capacitors]] and [[rotary-telephone-resistor-network|resistor networks]] for impedance matching and protection. Rotary phones are entirely passive networks—no transistors, no integrated circuits. The only active element is the ringer solenoid (powered by AC from the exchange).

Impedance: The telephone network expects a 600 Ohm load impedance. The rotary telephone''s transmitter and receiver are connected through a hybrid circuit (transformer) that matches impedance, ensuring the network sees a 600 Ohm load while the handset sees appropriate impedances for its transmitter and receiver.

Operation and Dialing Procedure

  1. Idle (on-hook): The handset rests in the cradle, pressing the hookswitch button. No current flows through the telephone; it consumes no power.

  2. Pickup (off-hook): The user lifts the handset, releasing the hookswitch button. The telephone circuit closes, current flows, and the exchange detects the off-hook state. A dial tone (350 + 440 Hz combined) is sent to the user, indicating readiness to receive dialed digits.

  3. Dialing: The user rotates the dial for the first digit, releases, and repeats for subsequent digits. Each digit generates pulses that the exchange receives and routes accordingly. Inter-digit delays allow the exchange switching circuits to process each digit.

  4. Call routing: The exchange (mechanical switches or early electronic switches) interprets the pulses and routes the call toward the destination number. If the destination is busy or doesn''t answer, appropriate signals (busy tone, no-ring tone) are returned to the caller.

  5. Connection: When the destination phone is answered, both parties hear each other''s voices transmitted via the network. The connection is maintained as long as both handsets are off-hook.

  6. Disconnect: Either party hangs up by replacing the handset in the cradle (on-hook). The hookswitch button closes, breaking the circuit and signaling the exchange to disconnect the call.

Pulse Dial Limitations and Alternatives

Rotary dialing is slow by modern standards: a typical phone call requires 7–11 digit dialing, taking 10–20 seconds of dialing time. Pulse dialing also has a critical limitation: the line cannot distinguish between dialed pulses and accidental electrical noise (electromagnetic interference). This made pulse dialing unreliable in noisy environments and over long distances prone to lightning.

Tonalfrequency (DTMF or Touch-Tone) dialing, introduced in 1963, replaced pulse dialing in many networks. DTMF uses two simultaneous audio-frequency tones (one row frequency + one column frequency, transmitted over the voice channel) to encode digits. This is faster, more robust to noise, and enables more advanced services. However, rotary phones continued in service for decades after DTMF was introduced, and many networks maintained backward compatibility with pulse dialing.

Design and Manufacturing

Rotary phones were manufactured in vast quantities throughout the 1950s–1980s. Design was conservative, with little change between decades (the "Western Electric 500," introduced in 1950, was in production for 40+ years with minor variations). Phones were typically made from die-cast zinc alloy or molded thermoplastic (bakelite, later Phenolic or ABS plastic).

Manufacturing tolerances were tight: the dial return speed had to be precise (within ~2% of nominal 10 pps), and contact reliability was critical. Billions of phones were manufactured and deployed; failure rates were extremely low due to the simplicity and quality of mechanical design.

Legacy and Obsolescence

Rotary phones became increasingly rare after the 1990s as touch-tone (DTMF) phones, cordless phones, and cellular phones proliferated. By 2010, most telephone networks in developed countries had decommissioned pulse-dial support entirely, making rotary phones technically incompatible with modern networks.

However, rotary phones remain functional on legacy networks in remote areas or specialized systems. They are now primarily museum pieces, collector items, and nostalgia artifacts. The mechanical elegance of the dial—the precision engineering that translates a user''s finger rotation into precisely spaced electrical pulses—remains admired by engineers and designers.

Some modern designers have created "new" rotary phones (mechanically rotary dials with modern digital electronics inside, or completely mechanical dial designs as art pieces), celebrating the tactile satisfaction and distinctiveness of rotary dialing compared to modern touchscreen interfaces.
