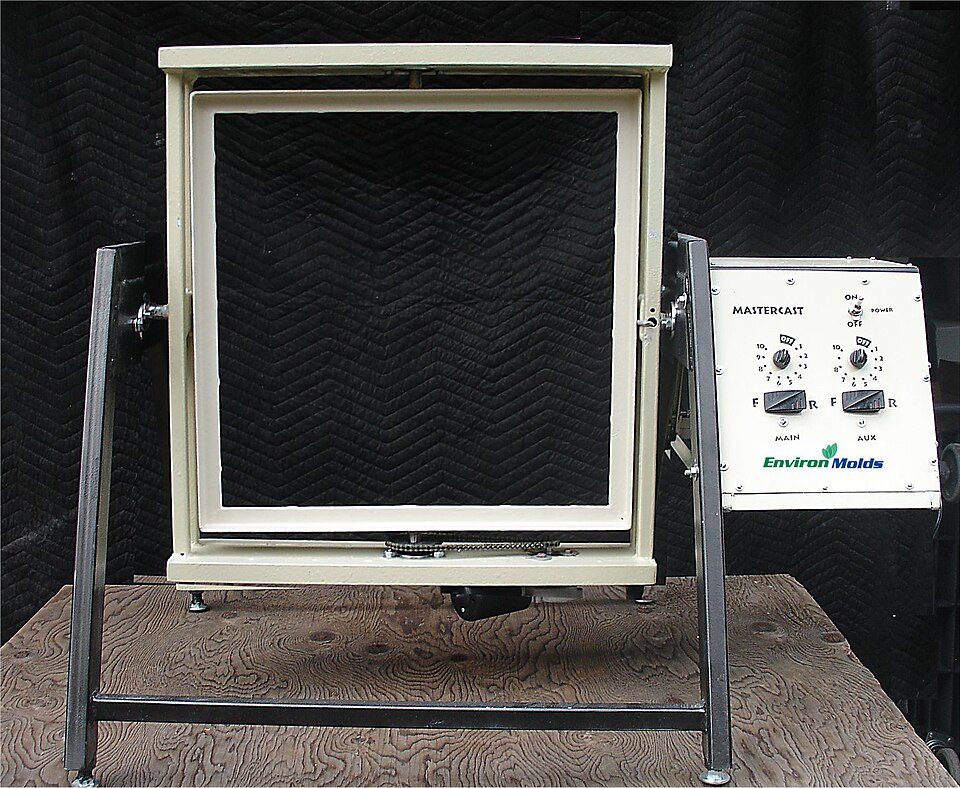

Rotational Molding Machine Product

Overview

Rotational molding is a slow but versatile process for producing seamless, hollow plastic parts from powder. The Mold Support & Fixtures holds a closed aluminum or steel mold cavity, which is charged with dry plastic powder through a hopper before heating. The entire assembly rotates on two perpendicular axes (biaxial) inside the Heating Oven at 6–20 RPM. As the mold tumbles, gravity constantly cascades the powder across all interior surfaces, coating them evenly. Once the polymer melts (around 250–280 °C for polyethylene), the molten layer fuses into a seamless, uniform-wall shell. After hours of heating and rotation, the mold exits the oven, enters the Cooling Station, and is air-cooled until the part solidifies. The cooled part is then removed from the mold.

The process is ideal for large, complex, hollow parts — fuel tanks, water storage tanks, road traffic signs, kayaks, playground equipment, large industrial containers — where uniform wall thickness, no seams or weak points, and design flexibility (multi-color inserts, internal ribs, hinges molded in place) are critical. Cycle times are long (8–12 hours per part), so production is measured in dozens to hundreds per year per mold, not thousands. High-volume applications use multi-station carousels that keep multiple molds rotating and cooling in parallel, boosting throughput.

Mold and loading

The Mold Support & Fixtures is a precision-machined cavity, typically aluminum (lighter but shorter-lived) or ductile iron (heavier but more durable). The mold is mounted to two perpendicular rotating shafts via Arm Coupler blocks. Before starting the cycle, the operator loads dry plastic powder (typically polyethylene, PVC, or nylon) into the mold through an open charging port or through the Load Hopper. The mold is then sealed and mounted to the Biaxial Rotating Arms.

Rotation and heating

The Primary Arm (horizontal) and Secondary Arm (vertical) are driven independently by Biaxial Drive Motors, each through a gear reducer that drops motor RPM to 6–20 tumble RPM. The independent speeds are chosen so the mold never stands still in any orientation; gravity always cascades the powder to a new location. The mold enters the Heating Oven, where Heating Element banks (electric or gas) heat the oven chamber to 270–280 °C. A Circulation Fan recirculates the hot air to ensure uniform temperature throughout the oven volume.

As the mold rotates, the powder tumbles across the interior walls. Conduction through the aluminum or steel mold raises the polymer temperature to melting, and it fuses into a gel layer, then a molten pool that coats the walls. The longer the heating phase, the thicker the final part wall becomes. Typical heating times are 45–90 minutes depending on part size and desired wall thickness.

The Temperature Controller monitors oven temperature via thermocouples and maintains the setpoint within ±5 °C using proportional heating (modulating heater power or gas flow).

Cooling phase

Once the polymer is fully fused and the desired wall thickness is achieved, the mold is withdrawn from the oven and rotated into the Cooling Station. The arms continue rotating at the same speed, but now the Cooling Fan blasts ambient or chilled air across the hot mold surface. The cooling phase typically lasts 20–60 minutes. Some machines include a Water Spray System with atomizing nozzles that spray a fine mist of water onto the mold exterior for faster cooling.

Part removal

Once cooled to room temperature, the mold is moved to an access position where the operator can safely open and remove the finished part. The rotated arms lower the mold to a comfortable height, and the Quick-Release Clamp is released. The mold opens (hinged or split design), and the part is pulled out. Any excess powder or edge flash is trimmed away, and the part is inspected.

Process automation

The Control & Automation orchestrates the full cycle: heating, rotation, cooling, and stopping. The PLC Module receives setpoints from the Operator Console — target oven temperature, heating dwell time, cooling dwell time — and executes the sequence. Proximity Sensor inputs detect mold position and door interlocks; Temperature Sensor feedback ensures the oven stays within tolerance. Most machines include alarms for over-temperature and under-temperature conditions.

Multi-station carousel machines

High-production facilities use carousel (or turntable) machines: a rotating platform with 4–8 arm stations arranged in a circle. While one station is heating, another is cooling, and a third is being loaded or unloaded. This overlapping operation increases effective throughput 4–8 fold compared to a single-station machine.

Material and design advantages

Rotomolded parts are seamless and uniform-walled, with no stress concentrations from weld lines or gate marks. Complex internal features — hollow handles, integral hinges, multi-color layers (by pre-loading different colors sequentially) — can be molded in a single shot. Undercuts and re-entrant geometry are achievable because the mold opens fully (unlike injection molding, which must un-mold by withdrawing from a parting line). This design flexibility, combined with the fast iteration cycles for new molds (often hand-made from aluminum for prototyping), makes rotomolding popular for custom, bespoke, or low-volume specialized parts.
