Sailing Dinghy

Overview

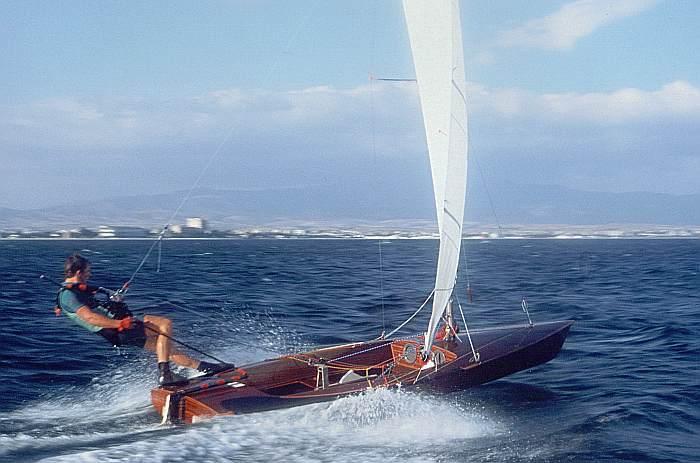

A sailing dinghy is a small open boat driven entirely by the wind on its sails and steered by hand with a tiller. With no engine and almost no creature comforts, it is the purest expression of sailing: the crew balances the boat with their own weight, reads the wind directly, and feels every adjustment immediately. Dinghies are how most sailors learn, and how many race, because the boat is light enough to respond to the smallest change in trim or crew position.

The boat is a Fiberglass Hull of moulded fiberglass with sealed buoyancy tanks so it floats even when swamped. Above it stands the Rig of mast, boom and rigging, carrying the Sails. Underwater, the Centreboard & Trunk resist the boat's tendency to slide sideways, and the Rudder & Tiller rudder points it. The crew leans out against the Hiking Straps to keep the boat upright, trims the sails through the Deck Fittings, and clears shipped water with the Self-Bailer.

How it works

A sail works like a vertical wing: wind flowing across its curved surface generates lift, and most of that force tries to push the boat sideways rather than forward. The Centreboard & Trunk centreboard, a thin blade lowered through the hull, resists that sideways push so the hull is squeezed forward along its length instead, letting the boat make progress even into the wind by tacking back and forth. Trimming the Sails with the running rigging sets the angle of attack for the conditions.

As the wind heels the boat, the crew counters it by hiking out on the Hiking Straps, moving their weight to windward to keep the sails working at full power. The transom-hung Rudder & Tiller rudder, swung by the tiller, turns the boat, while the Deck Fittings cleats and blocks let one or two people hold and release the loaded control lines. Because everything is small, light and direct, a dinghy rewards constant, fine adjustment.
