Small Cell Base Station Product

Overview

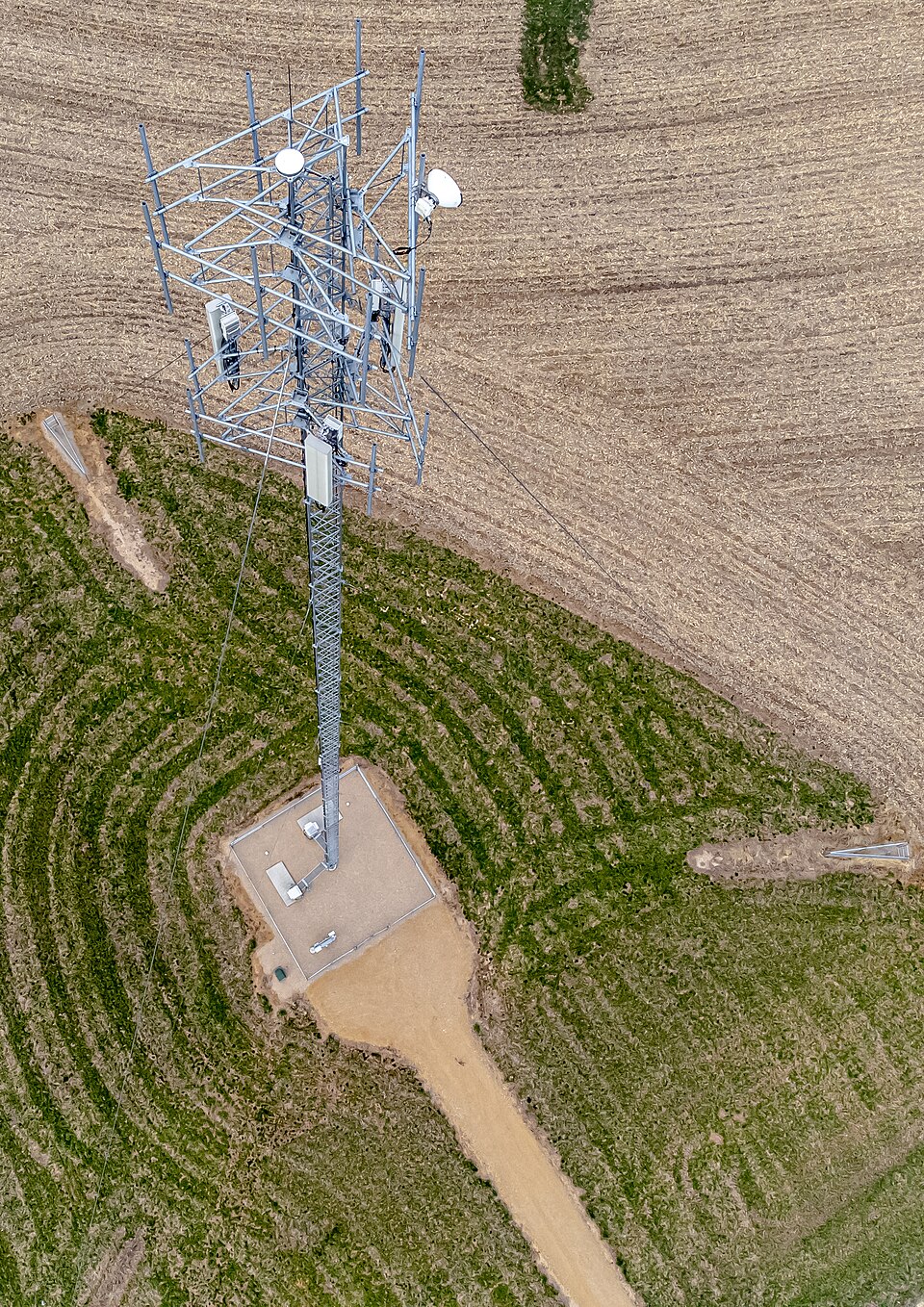

A small cell base station is a compact cellular radio unit providing LTE or 5G coverage in localized areas—residential buildings, office campuses, shopping centers, or stadium hotspots. Unlike macrocells covering several kilometers, small cells operate at reduced power (1 W versus 40 W) and serve a few hundred users within 100–300 meters. They bridge the gap between expensive macro sites and customer indoor WiFi, offering licensed-spectrum capacity, seamless handover, and QoS guarantees that WiFi cannot match.

Small cells integrate baseband processing, RF transceiver, power amplifier, MIMO antenna, and backhaul interface into a single weatherproof enclosure mounted on a pole or wall. The Baseband Processing runs DSP-accelerated decoding and turbo equalization; the RF Transceiver and Power Amplifier handles frequency conversion and power amplification; the MIMO Antenna Array provides directional transmission and reception. All components are thermally managed and synchronized to network time via CPRI backhaul or GPS.

How it works

The small cell receiver path begins with the antenna array capturing RF signals from mobile devices. The MIMO Antenna Array is typically 4x4 (four transmit, four receive) or 8x8 MIMO, where each antenna element is a dual-polarized patch operating at 2.6 GHz. Signals from four antennas are combined and fed to the RF Transceiver and Power Amplifier.

The RF chip downconverts the incoming signal to baseband IQ samples via a mixer driven by the local oscillator (LO). Automatic gain control (AGC) maintains a constant level feeding the analog-to-digital converter. The digitized IQ stream (16 bits, 30.72 MHz sample rate) is passed to the Baseband SoC.

In the baseband domain, the SoC processor performs channel equalization via OFDM subcarrier demapping, phase correction, and signal detection. For each user's data symbols, a soft-output turbo decoder (running on DSP hardware) recovers information bits from coded bits, correcting errors introduced by fading and noise. Successfully decoded MAC frames are forwarded to the backhaul interface.

The transmit path reverses this process. User data arrives via backhaul with strict timing (CPRI specifies ±20 ns timing alignment). The baseband processor assembles subcarriers, applies precoding (MIMO weights) for beamforming, and performs IFFT to generate time-domain OFDM symbols. The signal is digital-to-analog converted at 30.72 MHz, upconverted to RF frequency via the mixer, and applied to the power amplifier.

The Power Amplifier Module is a GaAs MMIC power amplifier amplifying the RF signal from -20 dBm to +28 dBm. Modern small cells apply digital predistortion (DPD) in real-time: the Predistortion DSP coprocessor measures PA output nonlinearity and generates inverse transfer function, reducing EVM (error vector magnitude) from 8% to <2%. An Harmonic Lowpass Filter attenuates 2nd and 3rd harmonics, ensuring spurious emission compliance with ETSI EN 301 489.

For efficiency, many designs use envelope tracking: the PA Power Supply modulates PA supply voltage following signal envelope, preventing unnecessary heat dissipation during low-power transmission. This improves wall-plug efficiency from 35% to 45%, reducing cooling requirements.

CPRI Backhaul and Clock Recovery

Backhaul connectivity is fundamental. The Backhaul Interface uses Common Public Radio Interface (CPRI) over fiber, a standardized serial protocol carrying IQ samples, control, and clock to the base station. CPRI line rate is typically 614 Mbps (option 2), 1228 Mbps (option 3), or 2457 Mbps (option 5) depending on bandwidth and MIMO order.

The Clock Recovery PLL PLL extracts a 122.88 MHz reference clock from the CPRI bitstream with phase lock loop, achieving timing jitter <100 ps. This clock drives the RF local oscillator and ADC/DAC sampling. In CPRI, downlink and uplink samples are multiplexed in time-division; the timing frame repeats every 307.2 microseconds, allowing synchronous transmission across the network.

Fiber backhaul uses wavelength-division multiplexing (CWDM) to separate upstream and downstream on the same fiber pair. The SFP Optical Transceiver modules operate at 1.27 µm (downstream, 2.5 Gbps) and 1.29 µm (upstream), allowing passive coupling onto a shared fiber run. Typical reach is 10 km with standard single-mode fiber (SMF-28).

Thermal Design and Reliability

The power amplifier dissipates 15–20 W during continuous transmission and 30–40 W in peaks. The PA Copper-Aluminum Heatsink is a hybrid copper-aluminum design with thermal resistance 0.4 K/W, maintaining the PA junction under 85°C when ambient is 40°C. The Baseband SoC dissipates 30 W via instruction cache misses and DSP activity; a passive Baseband Passive Heatsink with fins is sufficient for temperate climates.

In hot regions (India, Middle East), forced-air cooling becomes necessary. A 120 mm Axial Cooling Fan with thermostat activation cools the enclosure interior, preventing SoC throttling or shutdown. The die-cast aluminum housing acts as a secondary radiator, with surface area optimized for convection.

Antenna Beamforming and Coverage

The 4x4 MIMO antenna array enables spatial multiplexing and beamforming. In downlink, the baseband processor calculates precoding weights (eigenvector matrix) based on estimated channel from uplink pilot signals. These weights steer the radiation pattern toward the user's reported channel state. With 4 antennas and proper weighting, beamforming gain can reach 6 dB, improving coverage or reducing interference.

Uplink reception benefits similarly: received signals from four antennas are combined via maximal ratio combining (MRC), achieving 6 dB SNR improvement over single antenna. User terminals must report channel state information (CSI) periodically; the SoC scheduler allocates uplink pilot subcarriers for this feedback.

Integration and Future Roadmap

Small cells are rapidly merging with WiFi 6E and fixed wireless access (FWA) technologies. Next-generation units integrate LTE/5G and WiFi radios in the same enclosure with intelligent packet steering based on application type and network load. Some designs feature analog antenna arrays with RF beamforming coprocessors, eliminating digital baseband bottlenecks and enabling higher MIMO orders (64x64 arrays in 5G-RAN research).

The Baseband SoC landscape is evolving toward heterogeneous SoCs: ARM CPU handles control plane (signaling, RRC), while dedicated DSP and hardware accelerators handle O-RAN fronthaul. Open RAN architectures (O-RAN Alliance) disaggregate the small cell into open interfaces, allowing software-defined baseband running on commercial servers at the network edge.
