Smith Machine Product

Overview

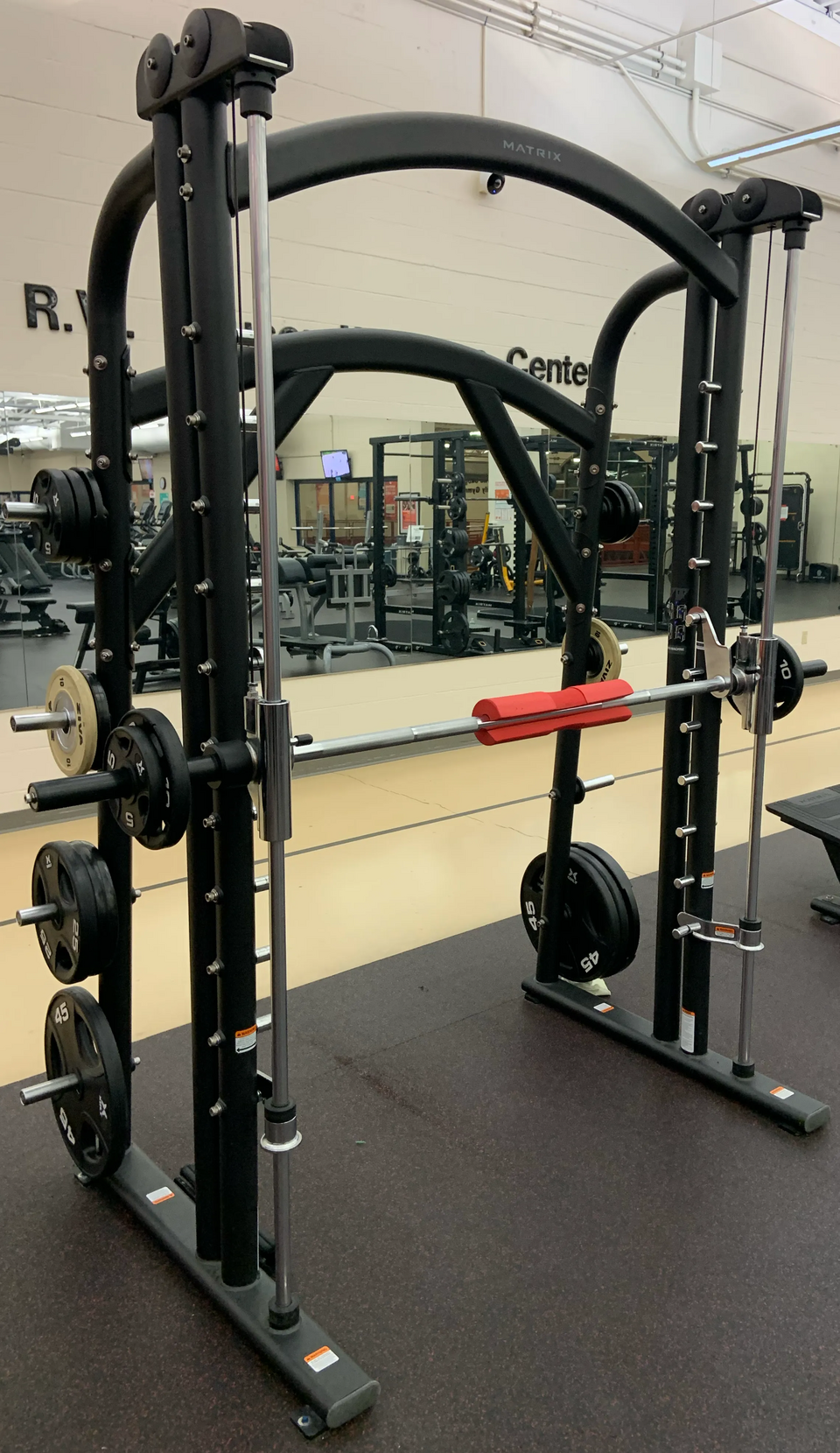

A Smith machine is a guided barbell trainer. Instead of a free bar that can drift in any direction, the bar is fixed to two carriages that ride a pair of vertical steel rails, so it can only travel straight up and down. That constraint lets a lifter work near failure without a spotter, because the bar can be racked at any point in its travel with a small wrist turn.

The whole machine is built around the Steel Frame: two Upright Rail rails on a wide welded base, tied together by a top crossmember that also carries a Pull-Up Bar. The Guided Barbell is the moving part the user loads and lifts, and four Weight Storage Peg pegs on the uprights store the plates not in use.

How it works

The bar travels on the Linear Bearing Carriage blocks, which wrap each rail and run on recirculating ball bearings so the lift stays smooth and vertical even under a heavy load. The bar ends are Loadable Bar Sleeve tubes that spin on their own bearings, so a loaded plate can rotate without twisting the lifter wrist, and Travel Stop Bumper bumpers cushion the bar at the top and bottom of its run.

Racking is the defining feature. The Hook & Safety Catch puts a Rotating Hook on each side of the bar; rolling the bar a few degrees drops those hooks onto the nearest Rack Pin Ledge ledge, and rolling it back lifts them clear. The hooks turn freely because the bar pivots on a small ball bearing in the carriage. Below the working range, two adjustable safety stops catch the bar if a rep is missed, so it never falls onto the lifter.

A heavy guided bar feels dead at the bottom, so the Counterbalance System runs a counterweight on its own cable over top pulleys. The cable pulls the carriage upward, cancelling part of the bar dead weight; that is why the bar on most Smith machines feels lighter than a true 15 kg Olympic bar. The pulleys ride on sealed bearings, and the counterweight is sized so the empty bar returns easily but a loaded bar still drops under control.
