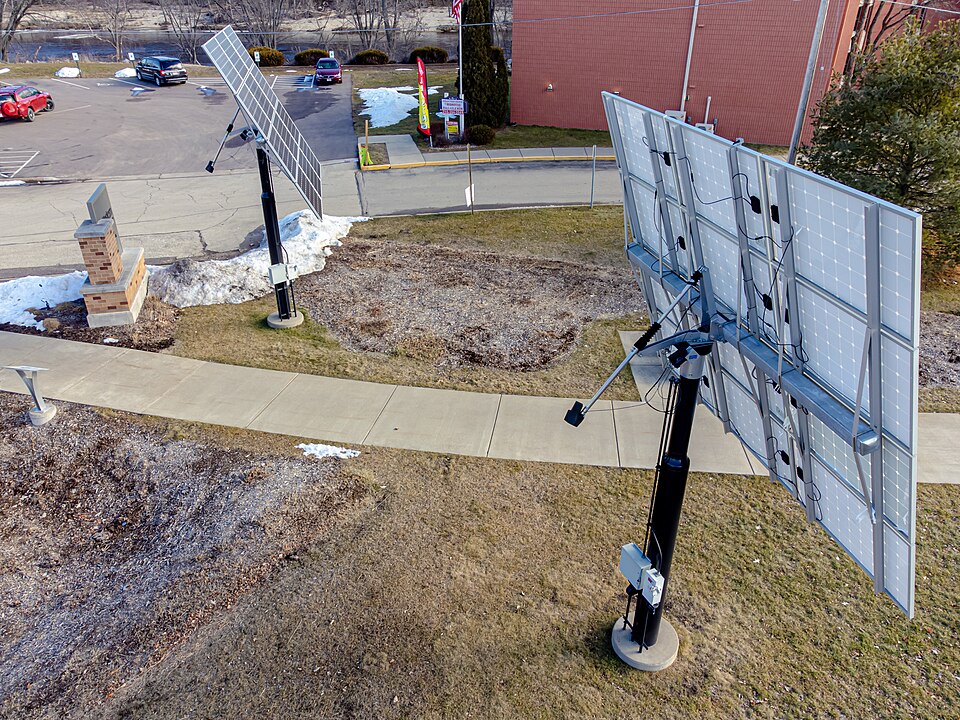

Single-Axis Solar Tracker Product

Overview

A horizontal single-axis tracker rotates a row of photovoltaic modules about a north-south axis so the panels face east in the morning, flat at noon, and west in the evening. Keeping the module surface closer to perpendicular to the sun raises annual energy production by 15-25% compared with fixed-tilt racking, which is why trackers carry the large majority of new utility-scale PV capacity in the United States and other high-irradiance markets.

The mechanical concept is simple: a long Torque Tube Assembly spans the row on a line of driven steel piles, the modules bolt to the tube through the Module Rail System, and a single Slew Drive Unit at the center post rotates the whole row. Electronics in the Tracker Control Unit compute where the sun is, step the motor a fraction of a degree at a time, and stow the row flat when the Anemometer reports dangerous wind.

Structure

The Torque Tube Assembly is the structural backbone. Roll-formed square or octagonal Torque Tube Segment sections of 120-150 mm width and 3-4 mm wall are spliced with bolted Tube Coupler sleeves into a continuous member 45-90 m long. The tube rides in self-lubricating Saddle Bearing cradles on each post, so the only greased component in the entire row is inside the sealed drive. Because a long open row is aeroelastically lively, modern designs add a Torsional Damper at each end of the tube to suppress torsional galloping, the failure mode behind several early tracker fleet losses in storms.

Foundations are driven steel piles. The Post and Foundation Set set uses six standard piles with slotted Bearing Housing tops that allow alignment adjustment, plus one reinforced center pile whose Drive Post Cap reacts the full drive torque. Pile embedment of 2-3.5 m is set per geotechnical pull-out testing. Every pile carries a Grounding Lug bonding the structure into the array earthing system.

Modules attach through the Module Rail System: galvanized Module Rail purlins clamp to the tube on Rail Bracket fittings, and bonding Mid Clamp and End Clamp hardware grips the module frames, providing electrical bonding per UL 2703 without separate jumpers.

Drive and control

The Slew Drive Unit is an hourglass Worm Gear Set set in a sealed housing, with a ratio near 60:1. The worm's friction angle makes it self-locking: wind gusts cannot back-drive the row, so position holding consumes no power. A 24 V DC Drive Motor of 50-150 W turns the worm; total motor runtime is only five to ten minutes per day, applied in small steps of 0.5-2 degrees every few minutes.

The Tracker Control Unit runs a solar position algorithm (typically NREL SPA, accurate to about 0.0003 degrees) on its Microcontroller and drives the motor through a Power MOSFET H-bridge. Closed-loop feedback comes from a MEMS Inclinometer on the tube, accurate to ±0.1 degree, with Hall Sensor counts on the motor as a cross-check. Rather than aiming directly at the sun all day, the controller also applies backtracking at dawn and dusk: it deliberately rotates rows toward flat so that adjacent rows never shade each other, trading a small cosine loss for the elimination of shading losses.

Each row controller talks to a site network control unit over a Mesh Radio Module mesh link. The NCU distributes weather commands: above roughly 16 m/s wind it orders a flat or shallow stow, the Snow Depth Sensor can trigger a steep tilt to shed snow, and hail alerts drive a 60-degree hail stow that presents the module edge to falling stones.

Power autonomy

A failed grid connection must not strand rows in a vulnerable position, so most modern trackers are self-powered. The Self-Power Module module pairs a small Auxiliary PV Panel of 50-80 W with a Li-ion Cell, 18650 battery pack and BMS Board, giving each row several days of stow capability with no external supply. Total parasitic consumption is under 1 kWh per row per day, a negligible fraction of the 30-40 MWh a 26-module row produces annually.

Design drivers

Tracker engineering is dominated by wind. ASCE 7 design wind speeds of 105-140 mph size every component from pile embedment to tube wall thickness, and dynamic effects, not static load, set the limits: torsional instability of a long tube at shallow tilt can destroy a row at wind speeds well below the static design value. Dampers, stiffer tubes, and stow strategies that move rows to their most stable angle are the standard mitigations. The other economic driver is operations cost, which pushes designs toward zero scheduled maintenance: sealed drives, polymer bearings, and 25-35 year structural life with a single gearbox oil change or none at all.
