Overview

A large space telescope trades the convenience of the ground for two things no observatory on Earth can have: a sky with no atmosphere, and optics cold enough to see the faint infrared universe without drowning it in their own thermal glow. The architecture follows directly. A 6.5 m primary mirror cannot fit in any launch fairing as one piece, so the Optical Telescope Assembly builds it from 18 hexagonal segments that fold for launch and are aligned on orbit. Cold optics cannot share a platform with warm electronics, so a five-layer Deployable Sunshield splits the observatory into a Sun-facing Spacecraft Bus running near room temperature and a shadowed telescope that passively radiates down to about 45 K.

The observatory operates in a halo orbit around the Sun–Earth L2 point, 1.5 million km anti-sunward, where Sun, Earth, and Moon stay in roughly the same direction and the shield can block all three at once.

Optics

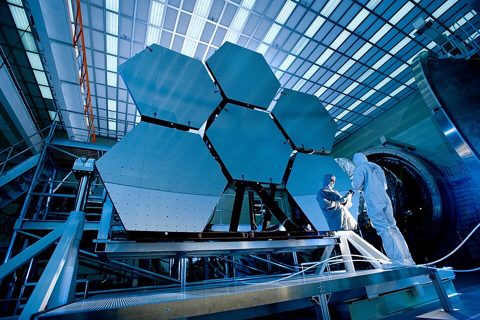

Each Primary Mirror Segment is a gold-coated Beryllium Mirror Blank, beryllium lightweighted to about 20 kg. Beryllium is the material of choice because its coefficient of thermal expansion is nearly zero below 100 K and its stiffness-to-mass ratio is high. Six Hexapod Actuator units move each segment in rigid-body degrees of freedom with ~10 nm resolution, and a central Radius-of-Curvature Actuator flexes the segment so all 18 radii of curvature match after cooldown. Wavefront sensing runs through the Near-Infrared Camera itself: defocused star images reveal each segment's error, and a control loop updates actuator positions every two weeks. The aligned segments behave as a single mirror with residual wavefront error under 100 nm.

Light reflects from the primary to the Secondary Mirror Assembly on its deployed Secondary Support Tripod, down through the Tertiary Mirror and the Fine Steering Mirror mirror, which removes the last milliarcseconds of jitter that the wheels and structure cannot. The whole train hangs off the Composite Backplane, a graphite-composite truss whose allowed thermal distortion is measured in tens of nanometres.

Instruments and cooling

The Science Instrument Module sits behind the primary. The near-infrared instruments — the Near-Infrared Camera and the Multi-Object Spectrograph with its MEMS Microshutter Array arrays opening apertures on a hundred galaxies at a time — use HgCdTe Detector Array detectors that work at the passive 40 K. The Mid-Infrared Instrument cannot: its Si:As Detector Array detectors need 7 K, supplied by the Mid-IR Cryocooler, a pulse-tube/Joule-Thomson machine whose compressors live on the warm bus with refrigerant lines running the length of the deployable tower.

The Deployable Sunshield is what makes passive cooling work. Each Sunshield Membrane is aluminised Kapton thinner than a human hair; sunlight absorbed by layer 1 is re-radiated sideways out of the vacuum gaps, so each successive layer runs colder, attenuating roughly 200 kW of incident sunlight to under a watt at layer 5. Deployment is the riskiest sequence on the mission: 107 Membrane Release Pin actuators must all fire, the Telescoping Mid-Boom pair pulls the folded stack to full width, and Spreader Bar and Tensioning Cable Drum mechanisms tension every layer into shape.

Pointing and operations

Slews and coarse pointing come from six Reaction Wheel Assembly assemblies on Wheel Vibration Isolator mounts, guided by Star Tracker and Hemispherical Resonator Gyro data fused in the Attitude Control Electronics. Once near the target, the Fine Guidance Sensor locks a guide star and closes the loop through the fine steering mirror, holding the line of sight to about 7 milliarcseconds — the width of a coin seen from 500 km.

Science frames accumulate in the Solid-State Recorder and downlink through the gimballed High-Gain Antenna via the Ka-band Transmitter during daily Deep Space Network contacts; commands and housekeeping ride the S-band Transponder link. Because L2 halo orbits are unstable, the Monopropellant Thruster set burns a few cm/s of hydrazine every three weeks for stationkeeping — always thrusting from the warm side, since a single stray plume on the cold optics would condense and stay there. The propellant in the Hydrazine Fuel Tank, not any wear-out failure, is what ultimately sets the observatory's lifetime.
