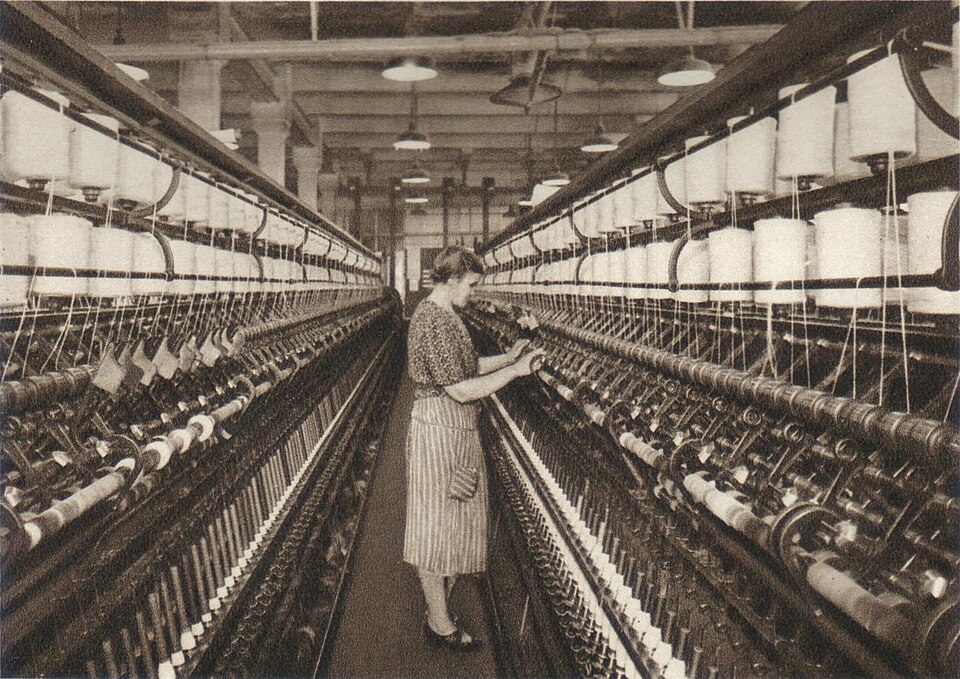

Ring Spinning Frame Product
A long ring spinning frame that drafts roving and twists it into yarn on hundreds of spindles, winding onto bobbins via ring-and-traveler. A full specification article for this item is being written. Meanwhile its bill of materials and connections are below.
Build & assembly graph
expand / collapse · shared sub-assemblies converge · links to related products · est. labour product / assembly shared across products atomic part related product
Tap an assembly to expand/collapse · tap a part to open it · use “Open page” for any node · drag to pan, scroll to zoom.
Bill of materials
13 top-level lines · 96 rows shown · 12,369 parts total · indented to 3 levels| # | Item / sub-assembly | Part no. | Qty/assy | Ext. qty | Parts | Type |
|---|---|---|---|---|---|---|
| 1 | Headstock & Frame 4 parts | spinning-frame-headstock | 1× | 1 | 5 | assembly |
| 1.1 | Machine Bed Casting | spinning-frame-frame-casting | 1× | 1 | — | part |
| 1.2 | Headstock Casing | spinning-frame-headstock-casing | 1× | 1 | — | part |
| 1.3 | End Frame | spinning-frame-end-frame | 2× | 2 | — | part |
| 1.4 | Fastener Set | fastener-set | 1× | 1 | — | part |
| 2 | Creel 4 parts | spinning-frame-creel | 1× | 1 | 1,441 | assembly |
| 2.1 | Creel Frame | spinning-frame-creel-frame | 1× | 1 | — | part |
| 2.2 | Roving Bobbin Holder | spinning-frame-roving-bobbin-holder | 480× | 480 | — | part |
| 2.3 | Roving Guide | spinning-frame-roving-guide | 480× | 480 | — | part |
| 2.4 | Ball Bearing | ball-bearing | 480× | 480 | — | part |
| 3 | Drafting Section 2 parts | spinning-frame-drafting-section | 1× | 1 | 3,660 | assembly |
| 3.1 | Drafting Unit 7 parts | spinning-frame-drafting-unit | 240× | 240 | 15 | assembly |
| 3.1.1 | Back Roller Pair 2 parts + deeper › | spinning-frame-back-roller-pair | 1× | 240 | 2 | assembly |
| 3.1.2 | Middle Roller Pair 2 parts + deeper › | spinning-frame-middle-roller-pair | 1× | 240 | 2 | assembly |
| 3.1.3 | Front Roller Pair 2 parts + deeper › | spinning-frame-front-roller-pair | 1× | 240 | 2 | assembly |
| 3.1.4 | Apron Set | spinning-frame-apron-set | 1× | 240 | — | part |
| 3.1.5 | Apron Cradle | spinning-frame-cradle | 1× | 240 | — | part |
| 3.1.6 | Top Weighting Arm | spinning-frame-top-arm | 1× | 240 | — | part |
| 3.1.7 | Ball Bearing | ball-bearing | 6× | 1,440 | — | part |
| 3.2 | Roller Stand | spinning-frame-roller-stand | 60× | 60 | — | part |
| 4 | Main Drive 5 parts | spinning-frame-main-drive | 1× | 1 | 47 | assembly |
| 4.1 | Main Drive Motor 4 parts | spinning-frame-main-motor | 1× | 1 | 25 | assembly |
| 4.1.1 | Stator Assembly 3 parts + deeper › | stator-assembly | 1× | 1 | 3 | assembly |
| 4.1.2 | Rotor Assembly 4 parts + deeper › | rotor-assembly | 1× | 1 | 19 | assembly |
| 4.1.3 | Motor Housing | motor-housing | 1× | 1 | — | part |
| 4.1.4 | Ball Bearing | ball-bearing | 2× | 2 | — | part |
| 4.2 | Drafting Gearbox 4 parts | spinning-frame-gearbox | 1× | 1 | 11 | assembly |
| 4.2.1 | Gearbox Housing | gearbox-housing | 1× | 1 | — | part |
| 4.2.2 | Helical Gear Pair | gear-pair | 4× | 4 | — | part |
| 4.2.3 | Ball Bearing | ball-bearing | 4× | 4 | — | part |
| 4.2.4 | Oil Seal | oil-seal | 2× | 2 | — | part |
| 4.3 | Tin Roller (Cylinder) | spinning-frame-tin-roller | 1× | 1 | — | part |
| 4.4 | Drive Belt | drive-belt | 2× | 2 | — | part |
| 4.5 | Ball Bearing | ball-bearing | 8× | 8 | — | part |
| 5 | Spindle Position 6 parts | spinning-frame-spindle-bank | 480× | 480 | 6 | assembly |
| 5.1 | Spindle | spinning-frame-spindle | 1× | 480 | — | part |
| 5.2 | Wharve | spinning-frame-wharve | 1× | 480 | — | part |
| 5.3 | Bolster | spinning-frame-bolster | 1× | 480 | — | part |
| 5.4 | Spindle Tape | spinning-frame-spindle-tape | 1× | 480 | — | part |
| 5.5 | Bobbin Tube | spinning-frame-bobbin-tube | 1× | 480 | — | part |
| 5.6 | Ball Bearing | ball-bearing | 1× | 480 | — | part |
| 6 | Ring Rail Assembly 4 parts | spinning-frame-ring-rail-assembly | 1× | 1 | 993 | assembly |
| 6.1 | Ring Rail | spinning-frame-ring-rail | 1× | 1 | — | part |
| 6.2 | Spinning Ring | spinning-frame-ring | 480× | 480 | — | part |
| 6.3 | Traveler | spinning-frame-traveler | 480× | 480 | — | part |
| 6.4 | Builder Motion 4 parts | spinning-frame-builder-motion | 1× | 1 | 32 | assembly |
| 6.4.1 | Ring Rail Lift Motor 4 parts + deeper › | spinning-frame-lift-motor | 1× | 1 | 25 | assembly |
| 6.4.2 | Builder Cam | spinning-frame-builder-cam | 1× | 1 | — | part |
| 6.4.3 | Helical Gear Pair | gear-pair | 2× | 2 | — | part |
| 6.4.4 | Ball Bearing | ball-bearing | 4× | 4 | — | part |
| 7 | Yarn Guide Rail 4 parts | spinning-frame-yarn-guide-rail | 1× | 1 | 1,441 | assembly |
| 7.1 | Lappet Rail | spinning-frame-lappet-rail | 1× | 1 | — | part |
| 7.2 | Lappet (Thread Guide) | spinning-frame-lappet-guide | 480× | 480 | — | part |
| 7.3 | Balloon Control Ring | spinning-frame-balloon-ring | 480× | 480 | — | part |
| 7.4 | Spindle Separator | spinning-frame-separator | 480× | 480 | — | part |
| 8 | Auto-Doffer 4 parts | spinning-frame-doffer | 1× | 1 | 510 | assembly |
| 8.1 | Doffer Bar | spinning-frame-doffer-bar | 1× | 1 | — | part |
| 8.2 | Doffer Gripper | spinning-frame-doffer-gripper | 480× | 480 | — | part |
| 8.3 | Doffer Drive Motor 4 parts | spinning-frame-doffer-motor | 1× | 1 | 25 | assembly |
| 8.3.1 | Stator Assembly 3 parts + deeper › | stator-assembly | 1× | 1 | 3 | assembly |
| 8.3.2 | Rotor Assembly 4 parts + deeper › | rotor-assembly | 1× | 1 | 19 | assembly |
| 8.3.3 | Motor Housing | motor-housing | 1× | 1 | — | part |
| 8.3.4 | Ball Bearing | ball-bearing | 2× | 2 | — | part |
| 8.4 | Pneumatic Cylinder | pneumatic-cylinder | 4× | 4 | — | part |
| 9 | Pneumatic Suction System 4 parts | spinning-frame-pneumatic-system | 1× | 1 | 508 | assembly |
| 9.1 | Pneumafil Duct | spinning-frame-pneumafil-duct | 1× | 1 | — | part |
| 9.2 | Suction Nozzle | spinning-frame-suction-nozzle | 480× | 480 | — | part |
| 9.3 | Suction Fan 5 parts | spinning-frame-suction-fan | 1× | 1 | 26 | assembly |
| 9.3.1 | Stator Assembly 3 parts + deeper › | stator-assembly | 1× | 1 | 3 | assembly |
| 9.3.2 | Rotor Assembly 4 parts + deeper › | rotor-assembly | 1× | 1 | 19 | assembly |
| 9.3.3 | Motor Housing | motor-housing | 1× | 1 | — | part |
| 9.3.4 | Fan Impeller | spinning-frame-fan-impeller | 1× | 1 | — | part |
| 9.3.5 | Ball Bearing | ball-bearing | 2× | 2 | — | part |
| 9.4 | Waste Collection Box | spinning-frame-waste-box | 1× | 1 | — | part |
| 10 | Control System 3 parts | spinning-frame-control-system | 1× | 1 | 812 | assembly |
| 10.1 | Machine Control Board 5 parts | spinning-frame-control-board | 1× | 1 | 248 | assembly |
| 10.1.1 | Bare PCB | pcb-bare | 1× | 1 | — | part |
| 10.1.2 | Compute SoC Module | soc-module | 1× | 1 | — | part |
| 10.1.3 | Microcontroller | mcu | 2× | 2 | — | part |
| 10.1.4 | SMD Passive (R/C/L) | smd-passives | 220× | 220 | — | part |
| 10.1.5 | Connector | connector | 24× | 24 | — | part |
| 10.2 | HMI Touchscreen Panel 5 parts | spinning-frame-hmi-panel | 1× | 1 | 84 | assembly |
| 10.2.1 | Bare PCB | pcb-bare | 1× | 1 | — | part |
| 10.2.2 | LCD Panel | lcd-panel | 1× | 1 | — | part |
| 10.2.3 | Touch Digitizer | touch-digitizer | 1× | 1 | — | part |
| 10.2.4 | Microcontroller | mcu | 1× | 1 | — | part |
| 10.2.5 | SMD Passive (R/C/L) | smd-passives | 80× | 80 | — | part |
| 10.3 | Broken-End Sensor | spinning-frame-broken-end-sensor | 480× | 480 | — | part |
| 11 | Lubrication System 3 parts | spinning-frame-lubrication-system | 1× | 1 | 10 | assembly |
| 11.1 | Lubrication Oil Pump | spinning-frame-oil-pump | 1× | 1 | — | part |
| 11.2 | Oil Distribution Line | spinning-frame-oil-line | 1× | 1 | — | part |
| 11.3 | Oil Seal | oil-seal | 8× | 8 | — | part |
| 12 | Wiring Harness 2 parts | spinning-frame-wiring | 1× | 1 | 61 | assembly |
| 12.1 | Wire Bundle | wire-bundle | 1× | 1 | — | part |
| 12.2 | Connector | connector | 60× | 60 | — | part |
| 13 | Fastener Set | fastener-set | 1× | 1 | — | part |
Sourcing — likely vendors
Companies that make this · indicative price $10k–$1M · MOQ & lead are typical| Vendor | HQ | Specialty | MOQ | Lead time |
|---|---|---|---|---|
| 🇨🇭Rieter rieter.com ↗ | Winterthur, CH | Spinning machinery | 10 units | 14–24 wks |
| truetzschler.com ↗ | Mönchengladbach, DE | Textile machinery | 10 units | 14–24 wks |
| 🇧🇪Picanol picanol.be ↗ | Ypres, BE | Weaving machines | 10 units | 14–24 wks |
| karlmayer.com ↗ | Obertshausen, DE | Warp knitting machines | 10 units | 14–24 wks |
| 🇨🇭Saurer saurer.com ↗ | Arbon, CH | Spinning & embroidery | 10 units | 14–24 wks |
