Marine Steering Gear Product

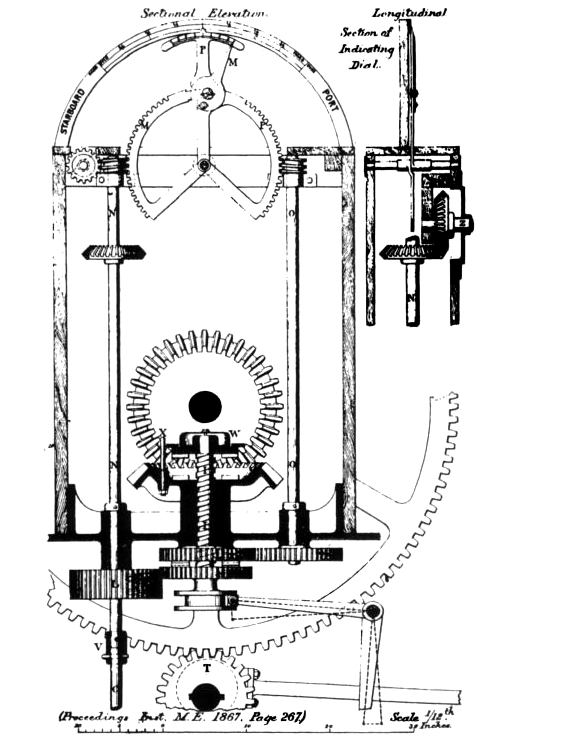

Overview

A marine steering gear is the ship's hydraulic power steering system that converts pilot commands from the bridge into rudder deflection. The system consists of dual hydraulic rams (or rotary vane motors) mechanically linked to the rudder tiller, primary and standby hydraulic pump units, a proportional directional control valve responding to the helmsman's commands, and an instrumentation system feeding rudder angle and pressure data back to the bridge.

Modern container ships, tankers, and bulk carriers use dual-ram steering because it provides load balancing—if one ram loses pressure, the other continues to support the rudder, preventing sudden heading loss. The system operates at 280–300 bar and can rotate the rudder from hard port (35° left) to hard starboard (35° right) in approximately 30–45 seconds, a response time mandated by International Maritime Organization (IMO) standards for safe navigation.

Steering gear failures are rare but catastrophic—a ship unable to steer loses way control and risks grounding or collision. To prevent this, modern steering systems mandate redundancy: dual pumps (one driven by the main engine, one by an electric motor or auxiliary engine), isolated accumulator circuits, and an emergency lower mode that allows manual rudder movement if all powered systems fail. All steering gear units are classified by DNV, ABS, or RINA and undergo annual inspections including proof load testing and functional exercises.

How it works

Dual-ram actuators. The steering gear uses two hydraulic rams mounted on either side of the rudder tiller arm. Each ram is a double-acting cylinder (bore 80–120 mm, stroke 400–600 mm) with rated pressure 280 bar. The two ram rods are mechanically linked by a clevis pin to the tiller arm. When the proportional directional control valve routes pump pressure to the port ram, that ram extends and pushes the tiller to starboard (right), rotating the rudder. Simultaneously, the return line from the starboard ram is opened to tank, allowing backpressure to decay and the starboard ram to retract. This cross-coupled action keeps both rams under load, maintaining steering authority even if one pump fails.

Proportional directional valve. The helmsman on the bridge moves the steering wheel, which generates an electrical signal (potentiometer or encoder) sent to the proportional directional control valve. The valve is a NG16 4/3 spool type with integral solenoid pilot stages. The electrical signal proportionally energizes the solenoids, which open or close pilot pressure paths, causing the main spool to move. As the spool shifts, it opens passages allowing pump pressure to flow to the command side of the selected ram and cracks open the tank return path from the opposing ram.

The proportional logic ensures smooth, continuous rudder movement with no dead zone and no overshoot. The helmsman can fine-tune rudder angle down to ~0.5 degrees, critical when docking or maintaining a precise course in traffic separation schemes.

Load balancing and accumulators. Both rams are fitted with smaller accumulators (2–5 liters each on each ram line) precharged to approximately 200 bar. These accumulators serve two functions: (1) they absorb shock loads if the rudder suddenly hits bottom or contact an underwater object, and (2) they load-share between the two rams so that if one ram loses internal pressure due to a seal leak, the other ram pressure spikes to compensate and maintain steering control until the crew can switch to the standby pump.

A larger accumulator (10–20 liters) on the system discharge line maintains pilot pressure in the event of main pump failure, allowing proportional valve operation and controlled steering descent for 10–15 minutes after engine shutdown.

Primary and standby pumps. Two variable displacement piston pumps (40–60 cc/rev each, pressure-compensated to 300 bar) supply the steering circuits. The primary pump is driven directly by the main propulsion engine via a shaft coupling. The standby pump is driven by an electric motor (sized to match main engine hydraulic output) or a dedicated auxiliary engine. Suction and discharge lines are cross-connected with non-return valves (check valves) so that whichever pump is online supplies full flow to the steering system. If the primary pump fails (engine shutdown, coupling breakage), the check valves automatically isolate that pump and the standby pump takes over without any loss of steering authority.

Rudder position feedback. A rotary position encoder on the rudder stock measures actual rudder angle (0–35°) and transmits a 4–20 mA analog signal or CAN bus digital signal back to the bridge steering indicator. The helm indicator displays current rudder angle and alarms if the actual angle lags the command angle (indicating a hydraulic fault). Pressure transducers on both ram lines and the main system pressure line provide instantaneous load feedback. Modern helmsman consoles integrate this data and can alert the captain if steering response becomes sluggish, indicating potential pump cavitation or filter clogging.

Emergency lower mode. If main hydraulic power is completely lost (both pumps failed, main engine dead, electrical failure), the steering gear includes a manual emergency lower function. A lever near the steering gear compartment manually opens a ported solenoid valve (or a manual ball valve in very old systems) that allows the ram-accumulator pressure to flow unrestricted through the proportional valve spool, allowing the helmsman to steer using only the ~10 liters of energy stored in the accumulators. This allows the ship to rotate the rudder approximately 10–15 degrees and regain basic course control while the crew restarts engines or seeks to drop anchor.

Operational procedures and safety

Steering tests. At the beginning of each watch, the helmsman conducts a bridge team steering test: engage the automatic pilot on a safe heading, then manually override to verify the rudder responds in both directions and returns to midship correctly. If any lag, dead zone, or asymmetry is detected, the chief engineer is notified and the steering gear is inspected before proceeding to sea.

High-speed turning. During high-speed maneuvers (full rudder, full speed), hydraulic fluid temperature can spike due to internal leakage within the rams and proportional valve. The seawater-cooled heat exchanger (plate-frame type) automatically regulates return fluid to 60°C. If temperature approaches 70°C, the pump load-sensing logic reduces flow and the helmsman may experience slower rudder response—a signal to reduce ship speed and allow cooling.

Heavy weather steering. In a beam sea (waves perpendicular to hull), waves rolling the ship can cause sudden rudder load spikes if the helm is adjusted abruptly. Experienced helmsmen make smooth, gradual helm movements and avoid over-correction. The accumulator system cushions shocks but cannot prevent structural stress if rudder angle is changed violently during roll motions.

Pump failure detection. Modern steering gear control systems continuously monitor pump discharge pressure and flow (inferred from proportional valve spool position and actual rudder feedback). If the primary pump pressure drops below ~100 bar while the helm is being commanded, the system automatically switches suction to the standby pump. The bridge alarms and displays "SECONDARY STEERING ACTIVE." The helmsman can continue steering normally without any interruption.

Maintenance and class surveys

Fluid sampling and analysis. Steering hydraulic fluid is sampled quarterly and analyzed for water content, particle count, viscosity, and acid number. If water exceeds 500 ppm (typical contamination from condensation in reservoir), the fluid is changed. If particle count exceeds ISO 4406 18/16/13 (abrasive wear debris), the system is flushed and fluid replaced.

Accumulator precharge inspection. Every 2 years, the nitrogen precharge in each accumulator is measured with a calibrated pressure gauge (system at rest, no pressure). If precharge has dropped below 200 bar, the accumulator is recharged using nitrogen. Nitrogen escape indicates a ruptured bladder; that accumulator must be replaced before the ship returns to service.

Ram seal inspection. External leakage at ram rods is the most common steering gear fault. If minor weeping is observed, the rod seal is replaced. If major leakage is present (>50 mL/min), the entire ram is removed and overhauled ashore. Seal replacement requires flushing the ram internally to remove contamination.

Class survey proof load. Every 5 years (annual for some classed vessels), the steering gear undergoes a witnessing proof load test: the rudder is locked in the hard-over position using a test brace, and pump pressure is increased to 350 bar (125% of normal working pressure). All components are visually inspected for deformation, leakage, or crack initiation under proof load. The test is then reversed to the opposite hard-over position. Passage of proof load testing is mandatory for classed ships.

Standards and redundancy

IMO SOLAS steering requirements. All commercial ships over 500 GT must have a steering system capable of putting the rudder from 35° starboard to 35° port in less than 28 seconds at full ahead service speed. The system must include:

• Two independent power units (pumps) capable of simultaneously achieving 60% of required rudder movement.
• Failure of any single component (pipe rupture, seal failure, pump shutdown) must not render the steering inoperable.
• An emergency lower device allowing the helmsman to manually steer, albeit slowly, after all powered steering is exhausted.

DNV steering classification. DNV notation includes steering class notation (e.g., "ST-0") indicating the system has been reviewed and certified. Annual surveys include witnessing a helm test (full port and starboard deflection) and confirming emergency lower function. Damage to the steering compartment (hull breach, fire) and its effect on steering operability must be assessed during damage stability calculations.

Redundancy architecture. Modern steering systems achieve redundancy through:

1. Dual ram design (one ram can sustain ~60% rudder effectiveness)
2. Dual pump/motor drive (one pump can sustain 60% flow, sufficient for emergency steering)
3. Isolated accumulator circuits (if one ram seal fails, the other ram's accumulator maintains pressure)
4. Manual emergency lower (allows ~10° rudder movement if all hydraulics fail)

No single failure should render the ship unable to navigate to a safe port. This design philosophy extends to all critical maritime machinery: steering, propulsion, and auxiliary power.
