Overview

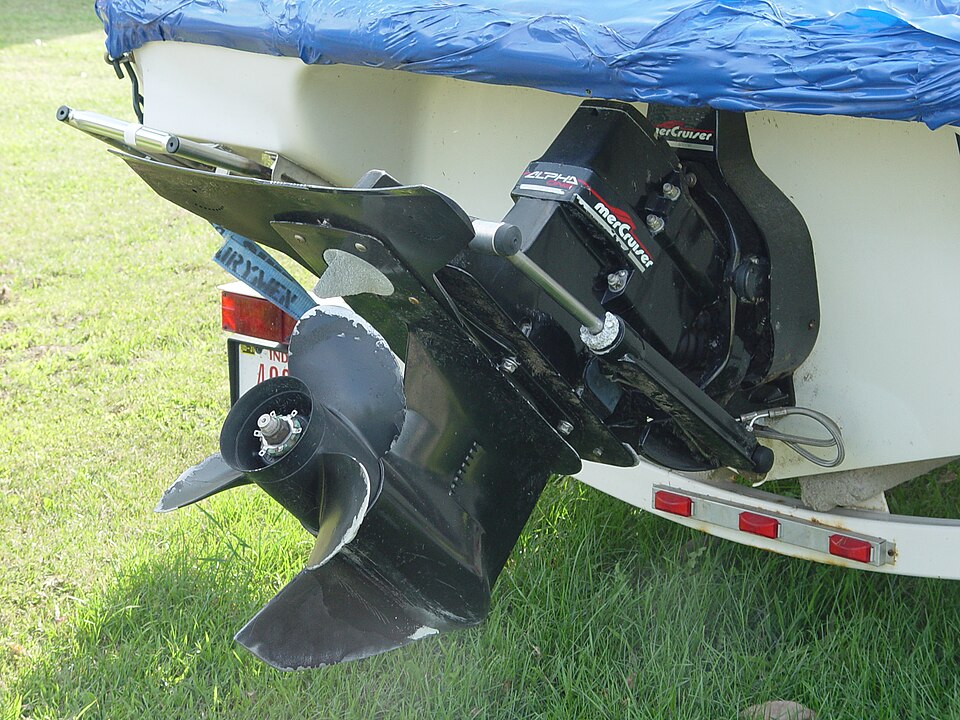

A stern drive (also called an inboard-outboard or I/O drive) is a hybrid propulsion system combining the engine location inside the vessel hull with an outdrive leg mounted externally on the transom. The engine (typically gasoline or diesel) drives a vertical Driveshaft that passes through the hull and connects to an external Drive Leg Assembly containing a Gearbox and Propeller Assembly. This arrangement offers the best of both worlds: internal engine space is preserved (compared to a full outboard engine), powerful jet-drive or helicopter-style maneuverability is available, and the gearbox can be easily serviced without hauling the vessel.

Most stern drives power recreational cruisers and performance boats 6–12 m in length, carrying 4–12 people. The drive leg incorporates Trim System hydraulics for automatic trim (tilting the propeller plane to trim the vessel fore-aft), Steering Linkage (mechanical tie-rods connecting a helm wheel to the leg pivot), and Intake and Outlet System cooling systems.

Drive leg and gearbox

The Drive Leg Assembly is an aluminium alloy die-casting containing the hypoid bevel Gearbox, the Driveshaft and universal joints. The upper portion of the leg bolts to the transom via a Transom Shield; the lower leg is submerged, with the Propeller Assembly bolted to the very bottom.

The Gearbox receives input from the vertical driveshaft (rotating at roughly 4,000–6,000 RPM at full throttle) and outputs power to the horizontal propeller shaft, typically at 1:1.5 to 1:2.0 reduction. The gear mesh is hypoid — meaning the pinion and crown gear axes do not intersect, allowing the propeller shaft to sit slightly forward of the vertical axis. This geometry provides smooth, quiet operation and allows efficient packing in a compact leg.

The gearbox has three internal positions: Forward, Neutral and Reverse. A Selector Dog slides along the propeller shaft, engaging either the forward-drive or reverse-drive gear onto the shaft. This disengagement allows true neutral — the propeller can rotate freely without any load on the engine, critical for safe maneuvering in tight spaces.

Propeller and thrust

The Propeller Assembly is typically a 3-blade stainless steel propeller, 16–24 inches in diameter, twisted along its length to generate lift (thrust) by accelerating water aft. Stainless is preferred because it resists corrosion in saltwater and can generate more thrust per RPM than a bronze propeller of the same size (though at higher stress and cost).

The propeller is keyed to the shaft with a Propeller Key, held in place by a Retaining Nut and cotter-pinned for safety. A Shear Pin deliberately weak link prevents damage to the gearbox if the propeller hits a rock, log or shallow bottom — the pin breaks, the propeller freespins, and a new pin (kept onboard) can be installed in minutes. This is far cheaper than repair of a bent driveshaft or damaged gearbox.

Transom shield

The Transom Shield is a stainless or mild-steel bracket bolted to the vessel's transom, enclosing the drive leg and isolating it from direct water drag. The shield typically carries the weight of the drive leg (150–300 kg), supported by four Rubber Bushing that dampen vibration from the spinning propeller and gearbox. The Splash Guard is a flexible rubber or plastic bellows enclosing the lower leg sections, preventing spray from entering critical areas. The Cavitation Plate — a flat horizontal plate mounted just above the propeller — prevents the formation of vapour bubbles (cavitation) on the propeller surface, which would cause erosion and loss of thrust.

Trim and tilt

The Trim System consists of two Trim Cylinder hydraulic cylinders mounted on either side of the drive leg. By extending or retracting these cylinders, the leg tilts fore-aft (trim), changing the angle of thrust relative to the vessel's hull. Forward trim (leg tilted down at the transom) drives the bow down; aft trim (leg tilted up) raises the bow.

Trim is controlled electrically: a Trim Pump pressurises hydraulic oil, a Trim Valve (solenoid-operated) directs flow to extend or retract cylinders, and a Pressure Accumulator stores energy for rapid response. Most modern drives feature automatic trim, using a Tilt Sensor to measure leg angle and adjust it automatically with engine throttle position for optimum hull attitude and fuel economy.

Full tilt (beyond trim range, typically 90° or more) is used for beaching the vessel in very shallow water or hauling out on a launch ramp. Some drives provide manual tilt via a hand pump or separate electric tilt motor.

Steering

The Steering Linkage is mechanical: a Steering Arm attached to the drive leg's Steering Pin (the vertical pivot axis) is connected via Tie Rod to the vessel's helm wheel. Turning the helm wheel left or right rotates the Steering Arm, swiveling the drive leg side-to-side. Stop Bumper on each side of the leg limit steering travel to ±30°, preventing damage from over-steer. The entire steering load is borne by large Bearing Kit needle bearings in the steering pin.

Some high-performance drives employ hydraulic steering assist, reducing the effort required to steer at high speeds.

Cooling and water intake

The Intake and Outlet System system draws cooling water through a forward-facing Water Intake Scoop at the top of the drive leg. The water passes through an Intake Screen (mesh strainer) and is split: part cools the Cooling Jacket passages around the gearbox; the remainder flows to the engine cooling circuit (via internal plumbing through the transom). A Thermostat Housing maintains the gearbox oil temperature at 50–70 °C by modulating flow; if oil gets too hot, the thermostat opens, allowing cooling water to flow. Cooled water and exhaust gases exit through the Outlet Port near the propeller, creating the characteristic "pee stream" visible on the drive leg of a running vessel — a visual indicator that cooling water is flowing.

Corrosion protection

Submerged aluminium and stainless steel components are protected by Anode Pad — bolted zinc or aluminium sacrificial anodes that corrode preferentially. The drive leg's lower regions must be inspected regularly and anodes replaced when they are half-consumed (typically every 100–200 operating hours in saltwater). All fasteners are stainless steel; no mild-steel bolts are used below the waterline.

Electrical systems

The Electrical System integrates with the vessel's 12 or 24 V DC electrical system. Trim Solenoid control the pump and directional valve for trim-up and trim-down; a Reversing Solenoid directs oil pressure to engage forward or reverse drive gears. A Pressure Sender monitors trim hydraulic pressure and reports to an instrument gauge; a Temperature Sender monitors gearbox oil temperature. The Tilt Sensor detects drive leg position for automatic trim. All electrical connections use marine-grade Wiring Harness — twisted shielded pair to minimize electromagnetic interference with the vessel's VHF radio and navigation electronics.

Service and maintenance

Stern drives are more complex than simple outboards but simpler than full inboard transmissions. Annual service includes gearbox oil changes (via a drain plug and fill tube on the leg), anode inspection and replacement, propeller inspection, and fresh-water flushing of the cooling jacket. The hydraulic trim system requires periodic fluid inspection; seals typically need replacement every 500–1,000 hours. Major overhaul (driveshaft, universal joints, gearbox internals) is rare if maintenance is diligent, typically needed only after 5,000+ hours of operation or following a hard impact (such as grounding).

Recreational stern drives are almost always freshwater-cooled — the vessel carries a keel tank or integral hot-water loop to cool the drive independently of the surrounding sea. This prolongs seal life and reduces corrosion risk compared to raw-seawater cooling. Commercial versions (fishing vessels, patrol boats) often use raw-seawater cooling for simplicity, with more frequent maintenance intervals.
