Outdoor Warning Siren Product

Overview

An outdoor warning siren exists to do one thing: reach people who are outside, away from phones and radios, with enough sound to send them indoors for instructions. A modern unit produces around 130 dB(C) at 30 m and covers a circle roughly 1.5 to 2 km in radius to the 70 dB level commonly used for coverage planning. Municipalities grid them so circles overlap; tornado-prone regions of the United States operate tens of thousands of them, activated by county dispatch when a warning is issued.

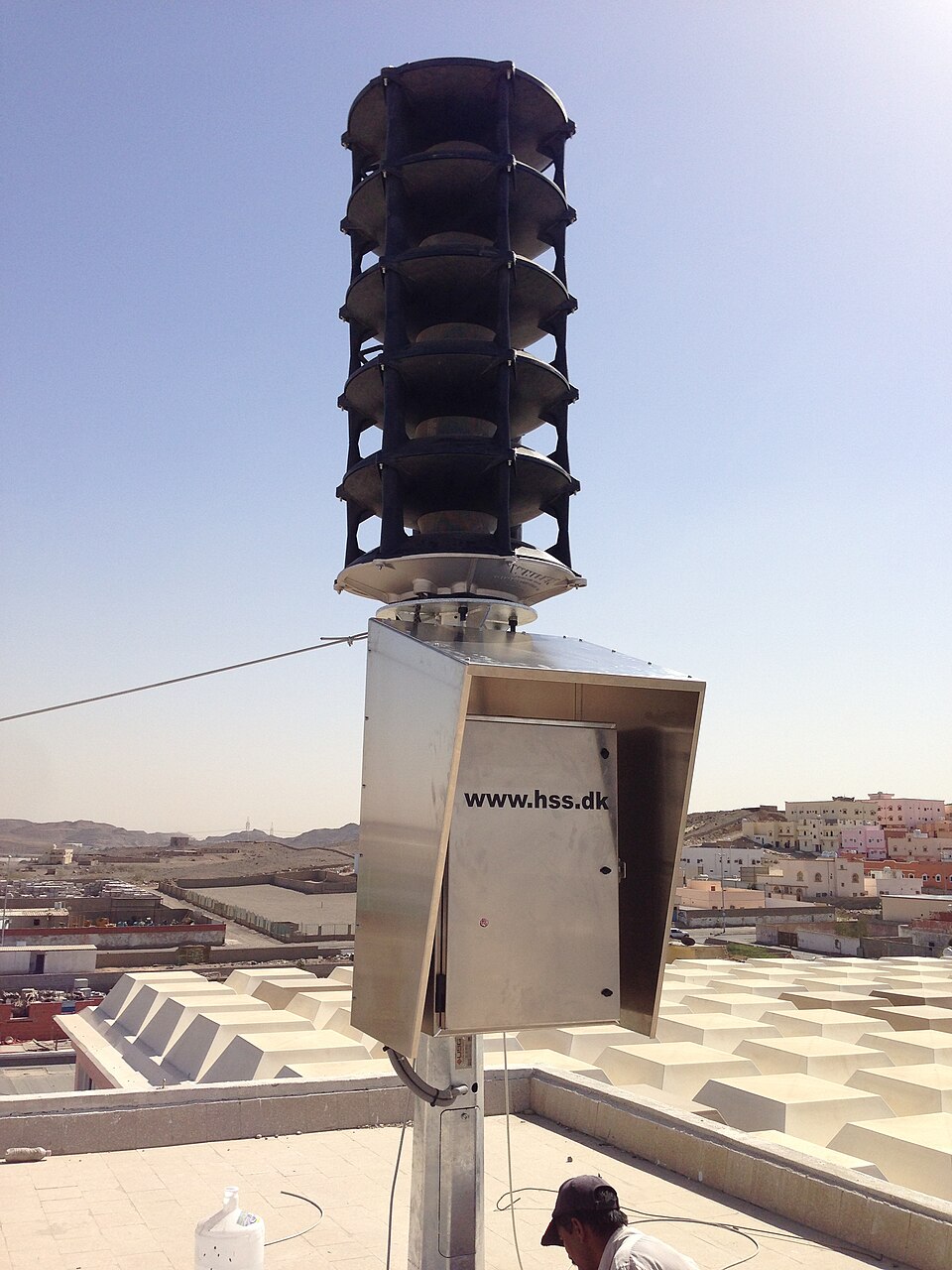

This article describes the rotating electromechanical type: a motor-driven air chopper feeding a directional horn that sweeps the horizon. Electronic speaker-array sirens exist, but the mechanical chopper remains common because it produces enormous acoustic power from simple, repairable hardware.

Making the sound

The tone comes from the Sound Generator, which is essentially a tuned air interrupter. The Chopper Motor — a series-wound DC machine of roughly 7.5 kW built from a standard Stator Assembly, Rotor Assembly, and heavy Copper Winding in a weatherproof Motor Housing — spins the Chopper Wheel inside the Stator Ring. The rotor doubles as a centrifugal blower: it draws air in through the Intake Screen and flings it outward, while its slots sweep past the stator ports, alternately opening and blocking the flow. Each opening releases a puff of air; port count multiplied by rotation speed sets the fundamental, typically near 500 Hz — low enough to diffract around buildings and carry, high enough to be heard against wind noise. Because the sound is made by chopped airflow rather than a loudspeaker, acoustic output is limited mainly by motor power, and efficiency far exceeds any voice coil.

The characteristic wail of an attack or take-cover signal is produced by cycling motor power so the chopper repeatedly accelerates and coasts, sweeping the pitch; a steady alert tone holds full speed.

The puffs would dissipate without impedance matching, which is the job of the Horn Projector. The Throat Adapter couples the stator exit into the spun-aluminum exponential Horn Flare, which transforms high-pressure, small-area pulsation into a coherent beam in open air — the same physics as a brass instrument bell. A Bird Screen keeps nests out of the horn mouth and the Horn Bracket ties the assembly to the head frame against wind load.

Covering the compass

The horn is directional, so the Rotator Assembly sweeps the whole head at about 3 rpm. A fractional-horsepower Rotator Motor drives a final Helical Gear Pair reduction; the head turns on Ball Bearing races, and a Slip Ring passes the chopper motor's several hundred amperes into the rotating structure without wrapping cables. A Hall Sensor confirms rotation to the controller — a stalled rotator means one neighborhood gets blasted while the rest hear little, so it is a monitored fault.

Everything sits on the Pole Mount: a Mounting Pole placing the Head Frame around 15 m up, clear of trees and rooftops, with a Lightning Rod and down conductor protecting what is deliberately the tallest object in its area.

Activation and power

The Control Cabinet hangs at service height on a Mount Bracket. Inside the NEMA 4 Cabinet Enclosure, the Radio Receiver — an RF Module on the county warning frequency, fed by a pole-top Antenna — decodes DTMF or POCSAG activation codes. The Controller Board validates the code, runs the commanded signal pattern through its Relay outputs, and closes the Motor Contactor to start the chopper. Many systems poll sirens for status and report back battery voltage, rotation, and last-activation results. A Surge Arrester and proper grounding keep lightning transients out of the electronics, with field wiring landed on Terminal Blocks.

Severe weather takes the grid down, so the siren cannot depend on it. The Battery Backup bank — four series 12 V Battery units on a vented Battery Rack — runs the DC chopper motor directly, kept full by the Battery Charger and protected from deep discharge by the Low-Voltage Disconnect. A healthy bank delivers multiple full alert cycles with no AC present.

Testing

Sirens are exercised on a published schedule — commonly noon on the first Saturday or Wednesday of the month — using a short growl or full wail. The test verifies the entire chain from dispatch encoder to rotating horn, which is the only way to discover a failed contactor or dead bank before a tornado does.
