Submerged Arc Welding System Product

Overview

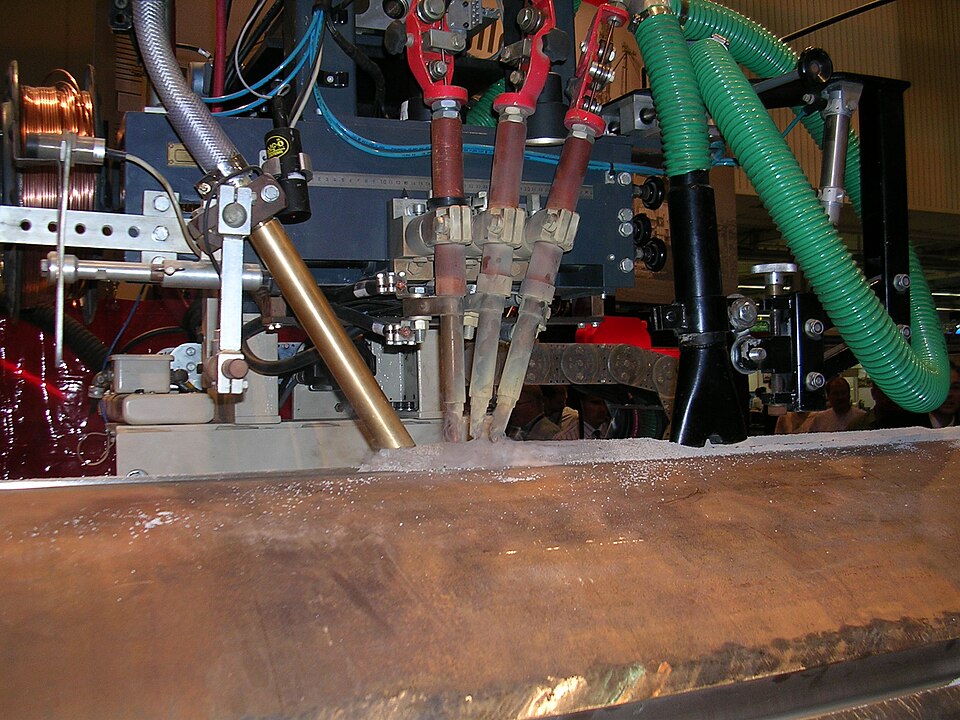

Submerged arc welding (SAW) is a high-deposition-rate process designed for long, straight seams in heavy plate and pipe. The arc burns beneath a blanket of powdered flux, shielding the weld pool from air and supplying alloying elements. No visible arc, no spatter, and minimal fumes make SAW the preferred process for structural work, pressure vessels, and offshore pipelines.

The system comprises a constant-voltage [[submerged-arc-welder-power-source|power source]] feeding bare electrode wire via a [[submerged-arc-welder-wire-feeder|motor-driven feeder]]. A [[submerged-arc-welder-flux-hopper|gravity-feed hopper]] deposits flux just ahead of the [[submerged-arc-welder-welding-head|contact tip]]. A [[submerged-arc-welder-travel-carriage|motorized carriage]] moves the gun along the joint at constant speed. The [[submerged-arc-welder-flux-recovery|flux recovery system]] collects cool, unused powder for reuse.

A typical setup produces 4–8 mm deep penetration in a single pass on plate thicker than 6 mm, with excellent fusion and minimal defects. No slag chipping, grinding, or wire brushing—just follow the torch and weld.

How it works

Arc Initiation: Before welding begins, the operator manually strikes a "strike" or "bootleg" arc on a sacrificial copper block with the contact tip, creating molten metal to complete the circuit. (Modern systems may use a pilot arc circuit). The [[submerged-arc-welder-arc-sensor|arc voltage feedback]] is established.

Constant Voltage Control: The [[submerged-arc-welder-control-pcb|control circuit]] monitors arc voltage continuously. If voltage dips (arc shortening), the controller increases [[submerged-arc-welder-feed-motor|wire feed speed]], pushing more wire into the puddle and raising arc length back to setpoint. If voltage rises (arc lengthening), feed slows. This feedback maintains precise arc length independent of travel speed or base metal geometry variations.

Wire Feed: The [[submerged-arc-welder-wire-drive-wheel|rubber pinch wheel]] grips the electrode wire, pulling it from the [[submerged-arc-welder-spool-brake|spooled coil]]. The [[submerged-arc-welder-tension-arm|dancer arm]] monitors wire tension, alerting the feeder to speed up if tension drops (indicating high feed rate) or slow if tension climbs. The wire travels through a [[submerged-arc-welder-wire-conduit|protective spiral conduit]] to the [[submerged-arc-welder-contact-tip|contact tip]], where it transfers current to the electrode.

Flux Delivery: The [[submerged-arc-welder-flux-hopper|hopper]] sits above the [[submerged-arc-welder-nozzle|nozzle]], and its metering valve opens during the weld, releasing flux continuously. A [[submerged-arc-welder-hopper-vibrator|vibrator]] prevents flux from bridging (jamming inside the cone). The [[submerged-arc-welder-metering-screw|rotating auger]] distributes flux evenly into the nozzle opening. Gravity and carriage motion carry flux into the joint, where it melts and forms a protective slag blanket over the molten weld pool.

Travel: The [[submerged-arc-welder-travel-carriage|motorized carriage]] moves the head along the seam at operator-selected speed (200–800 mm/min). An Encoder monitors carriage position; feedback allows the system to slow or pause if the operator interrupts for pool inspection or wire threading.

Heat Dissipation: The submerged arc generates intense heat (3000+ K). The [[submerged-arc-welder-welding-head|contact tip and nozzle]] are cooled by circulating [[submerged-arc-welder-circulation-pump|chilled water]] through the [[submerged-arc-welder-coolant-jacket|double-wall jacket]]. A [[submerged-arc-welder-heat-exchanger|heat exchanger]] rejects heat to shop air, and the [[submerged-arc-welder-water-tank|reservoir]] acts as a thermal buffer. Without water cooling, the tip would melt in under 5 seconds at 600 A.

Flux Recovery: Unused flux that falls below the [[submerged-arc-welder-nozzle|nozzle]] is sucked upward through the [[submerged-arc-welder-flux-pickup-tube|recovery tube]] by vacuum created as flux enters the arc. The cool powder is conveyed by the [[submerged-arc-welder-recovery-screw|low-speed auger]] into a [[submerged-arc-welder-recovery-hopper|collection bin]] where it passes through a [[submerged-arc-welder-flux-filter|sieve or magnetic separator]] removing spatter and moisture. The recovered flux is cycled back into the main hopper, reducing flux cost by 80–90%.

Penetration and Bead Geometry

SAW produces tall, narrow beads with deep penetration and minimal width. The submerged arc burns hot and concentrated; unlike GMAW (gas metal arc), which spreads energy across a wider puddle, SAW beads are typically 8–12 mm wide and 4–8 mm tall, even at high currents.

Single-pass root: With 400 A and proper travel speed (300–400 mm/min), a single pass on 10 mm plate achieves full penetration with minimal root defects. No back-gouging required if the fit-up is reasonable.

Fill and cap: Subsequent passes layer on top, building the weld to full section. Multi-pass welds are common for thick sections or high-duty applications.

Porosity risk: Dissolved hydrogen in the flux can produce porosity if cooling is too fast or base metal is high-carbon. Preheat (100–150 °C) and slow cooling (buried pass cooling) mitigate this.

Duty Cycle and Thermal Management

SAW is a high heat-input process. At 600 A and 35 V, power dissipation is ~21 kW. The [[submerged-arc-welder-cooling-system|water-cooling system]] handles ~10–12 kW; the rest goes into the weld pool and base metal.

Continuous operation at 100% is not feasible. A typical 60% duty cycle (40 min on, 60 min rest per 100 min) allows both the weld and the power supply to cool. Exceeding duty cycle will trip thermal cutouts on the [[submerged-arc-welder-power-transformer|transformer]] and rectifier.

For sustained high-deposition welding, two [[submerged-arc-welder-power-source|power sources]] are often run in parallel (tandem SAW), doubling current and deposition rate while keeping individual transformer duty cycles reasonable.

Flux Selection and Chemistry

Flux chemistry dictates weld metal composition, hardness, and impact properties. Common flux families:

• Neutral flux: ER70S wire + SiMn neutral flux = X60/X65 pipeline-grade 70 ksi tensile
• Basic flux: Lime-based flux with ER70S or ER80S wire = lower hydrogen (PWHT-exempt), tougher deposit
• Self-reducing flux: Contains iron powder and carbon—filler metals cost less but flux cost rises

Flux must be dry before use. Moisture absorbed from humid air produces hydrogen porosity. Most shops dry flux before each shift in a 100–150 °C oven for 1–2 hours.

Maintenance

Contact Tip: Copper tips wear and break regularly (every 50–100 hours of arc time). Replacements cost USD 5–15 each and are changed in under 2 minutes.

Nozzle: Ceramic or refractory nozzles spall if flux is acidic or if the nozzle overheats from poor water cooling. Replacement is similar to the tip.

Wire Feed Wheel: The rubber drive wheel flattens and hardens after 500–1000 hours, losing grip. Faced wheels can be re-crowned or replaced.

Cooling Circuit: Water must be changed seasonally to prevent algae and mineral scale. Add biocide (0.5% concentration) to the [[submerged-arc-welder-water-tank|tank]] before long shutdowns. Check hoses for pinhole leaks every quarter.

Power Supply: Diode rectifier stacks rarely fail but must be kept below 65 °C junction temperature. Monitor transformer case temperature with an infrared gun. If over 80 °C, add cooling fans or reduce duty cycle.

Troubleshooting Common Issues

Porosity: Wet flux (dry the batch), hydrogen-rich base metal (preheat 150 °C), or rapid cooling (slow down travel speed or use a larger flux blanket).

Lack of Fusion: Cold base metal (preheat), low current, or wire feeding too fast for the heat input (increase current or reduce wire feed).

Spatter in the weld: Flux stale or contaminated (replace hopper contents), wrong wire diameter for the current, or moisture in the flux.

Arc stick-outs or touch-offs: Dirty contact tip (replace), poor wire conduit contact (re-seat), or vibration from a loose carriage (check frame bolts).
