Submersible Turbine Pump Product

Overview

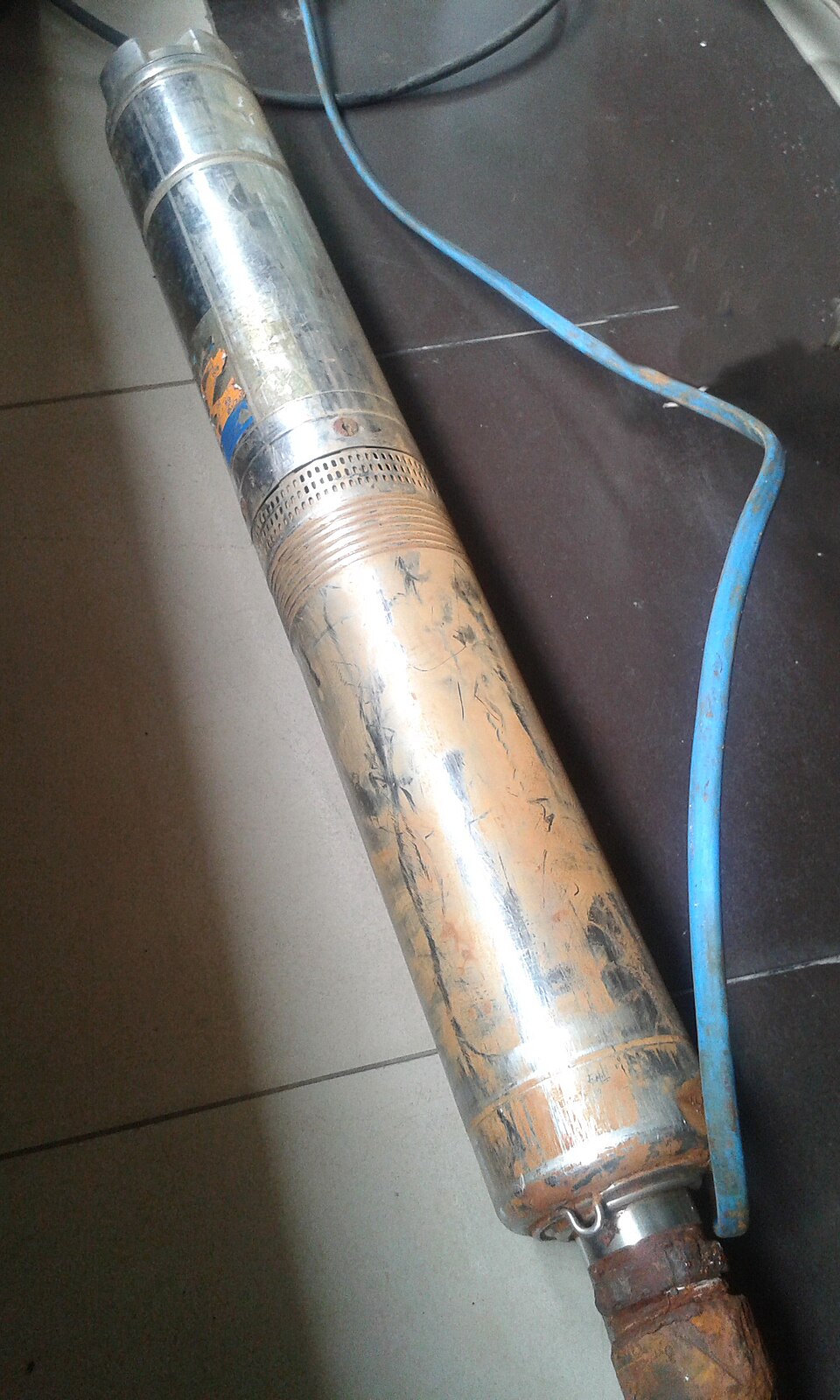

Submersible turbine pumps are the workhorse of fuel station Underground Storage Tank extraction. A typical retail gas station's fuel tank sits 20–40 feet below grade; gravity alone cannot deliver fuel to pumps at the dispenser island (typically 10–20 feet above tank bottom). A submersible turbine pump is lowered into the tank and powered by 24 VDC cable, drawing fuel from the sump and pushing it upward through a long vertical column pipe to the Pump Unit discharge head at grade level.

The pump comprises an oil-cooled brushless DC Sealed Submersible Motor, a multi-stage turbine Multi-Stage Impeller Assembly, and a long stainless steel Pump Shaft spinning within a Column Pipe Assembly column. Fuel circulates around the motor for cooling; the motor is sealed in its own oil-filled tube to prevent fuel from contaminating the electrical winding.

Motor Design and Sealing

The Sealed Submersible Motor is a sealed brushless DC motor, fundamentally different from above-ground pump motors because it operates submerged in fuel. The motor has no brushes (hence brushless), eliminating spark and carbon dust that would degrade fuel. The Motor Stator Assembly coil is potted in epoxy resin, completely encapsulating the windings against fuel ingress.

The Motor Rotor is a permanent magnet rotor on the Pump Shaft. Fuel circulates around the outside of the motor tube, passively cooling the windings by convection and ground contact. The Motor Sealed Tube is a stainless steel sealed tube filled with transformer oil; this oil layer isolates the motor winding from the surrounding fuel, preventing corrosion and providing additional insulation.

A Motor Shaft Seal at the motor-shaft exit is a critical component—a neoprene cup packer preventing motor oil from leaking into the surrounding fuel and fuel from entering the motor compartment. This seal wears over time; annual inspection is vital to detect early failure (visible fuel discoloration in the motor tube indicates seal compromise).

Multi-Stage Impeller Stack

The Multi-Stage Impeller Assembly are the pump's core. Each stage comprises a rotating Turbine Impeller Disk (soft iron or bronze disk with curved blades) and a stationary Stationary Diffuser Ring ring. As the shaft spins (typically 3500 rpm), the impeller accelerates fuel radially outward via centrifugal force; the diffuser then redirects this kinetic energy back inward, converting velocity into pressure.

Each stage contributes 5–7 psi of head. Six stages provide 30–42 psi; eight stages provide 40–56 psi. To reach the 50 psi required at the dispenser, a typical pump uses 8 stages. The Pump Shaft carries all stages; as it spins, fuel is pumped progressively upward through each stage.

Column Pipe Assembly

Fuel rises through the central Column Pipe Assembly, which is a 50-foot tall hollow tube (1.5" OD schedule 40 stainless or painted carbon steel). The shaft spins inside this column; fuel surrounds the shaft, cooling the bearings and carrying away motor heat.

The column is assembled from 20-foot sections joined by Column Coupling Sleeves NPT threaded sleeves. At 10-foot intervals, stainless steel Column Support Brackets U-bolts support the column against ground walls, preventing sagging under the weight of fuel and friction.

At the top, the column terminates at the Shaft Packer and Seal, a seal preventing air entry into the column. A Neoprene Packer Cup neoprene cup fits snugly around the 0.5" shaft, blocking outside air. This is critical: if air enters the column, the fuel surface falls below atmospheric pressure, and cavitation bubbles form, causing the pump to lose prime and cease operation.

Discharge Head and Control

At grade level, the Discharge Head Assembly is a swivel fitting housing:

• Check valve: A Discharge Check Valve spring-loaded poppet preventing backflow when the pump stops. This maintains prime in the column.
• Isolation valve: A Manual Isolation Ball Valve ball valve allowing technicians to stop fuel flow for maintenance without stopping the pump motor.
• Gauge port: A Gauge and Relief Port 1/4" NPT connection for a pressure gauge, allowing technicians to monitor pump discharge pressure and detect cavitation or wear.

From the discharge head, piping routes to the Pump Unit suction inlet (typically a 1.5" line) and a return line from the Valve Block Assembly by-pass solenoid.

Leak Detection

The Leak Detection Probe is a critical safety feature. The Motor Shaft Seal can fail, allowing fuel to enter the motor oil chamber. If undetected, this can cause motor winding deterioration and eventual failure. The detector tube vents the motor oil chamber to a surface-mounted float switch; if water or fuel contaminates the oil, a Leak Float Sensor float rises, triggering a Leak Detection Reed Switch reed switch.

The SPST alarm contact closes, sending a discrete signal to the Site Controller Module. The FMS logs the alarm, alerts technicians, and may shut down dispensers pending pump inspection.

Power Cable and Electrical Safety

Power to the motor is delivered via a long armored submersible cable. The Submersible Power Cable is a specialty product: Submersible Cable Conductors 10 AWG stranded copper (two conductors: +24 VDC and ground) surrounded by Cable Armor Braid steel spiral braid for mechanical protection, then a Cable Jacket oil and UV-resistant jacket.

At the pump end, a watertight M20 connector joins the cable to the motor leads. At the surface, the cable is routed to a junction box powered by a 24 VDC regulated supply. The supply is typically part of the fuel-management-system-power-supply, which also powers the Console Display Unit and Monitoring Console Unit.

Voltage drop is a concern over 50 feet: 10 AWG copper has a resistance of ~1 Ω per 1000 feet; 50 feet of 10 AWG is ~0.05 Ω. At 2 A motor current, this is only ~0.1 V drop, acceptable. However, older installations with smaller-gauge cable (12 or 14 AWG) may see 0.5+ V drop, reducing motor starting torque. Upgrade to 10 AWG if motors stall on startup.

Shaft Bearings and Lubrication

The Pump Shaft rotates at 3500 rpm, supported by Ball Bearing journal bearings (bronze or rubber-cup type) spaced at 5–10 foot intervals along the column. These bearings ride on the shaft and inside the column, reducing radial friction. Fuel itself provides lubrication; circulating fuel cools and lubricates the bearings.

At the motor top, a Thrust Ball Bearing ball thrust bearing carries the downward axial load (weight of the shaft, impellers, and fuel column above).

Priming and Starting

When the pump first starts, the column and discharge line may be full of air. The pump must move this air out before it can deliver fuel. The Discharge Check Valve prevents backflow, maintaining prime. Priming typically takes 10–30 seconds; the Display Head on the dispenser remains inactive during this period.

If the packer fails or a fitting leaks, air enters the column, and the pump cavitates (produces vapor bubbles instead of liquid pumping). Cavitation sounds like a grinding noise from the pump; performance drops dramatically. Technicians identify this by checking the discharge gauge—cavitation is indicated by erratic pressure swings and low flow.

Maintenance and Lifespan

Submersible pumps are rated 15–20 years in normal duty. Key maintenance:

• Monthly: Visual inspection of pump head, check for leaks at packer seal
• Quarterly: Press gauge on discharge port, verify 50+ psi (if lower, pump wear or cavitation suspected)
• Annually: Full pump inspection by technician, leak detector test, cable insulation resistance check
• Every 3–5 years: Pull pump, inspect shaft bearings, replace any degraded seals or bushings

If the motor seal fails (fuel in oil chamber), the pump must be pulled and the motor replaced. If column pipe cracks or corrodes (visible rust on above-ground section), the entire column must be replaced. These are significant maintenance events, justifying preventive care.

Modern Efficiency Improvements

Latest-generation submersible pumps use variable-frequency drives (VFD) or soft-starters that reduce inrush current during startup, extending cable and bearing life. Brushless DC motors with Hall sensors enable speed control, allowing the pump to modulate RPM based on dispenser demand, reducing wasted energy and motor heat.
