Surrey Quadricycle

Overview

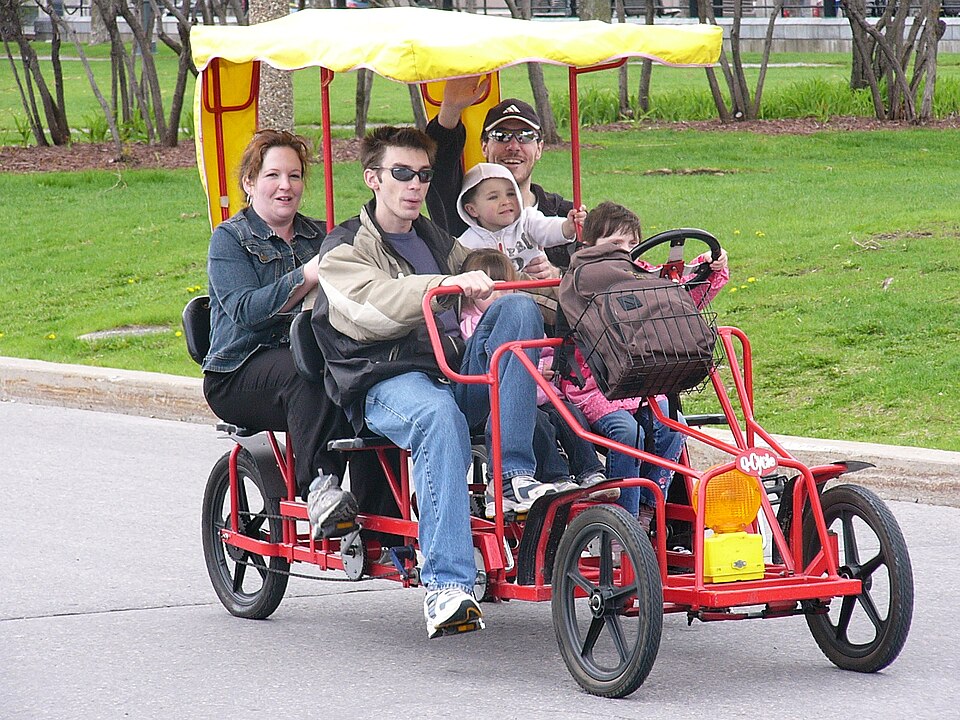

The Surrey quadricycle is a four-wheeled recreational pedal vehicle accommodating 2–4 riders, with two or more riders providing pedal power. The vehicle is named after the Surrey, a type of horse-drawn carriage popular in 19th-century America; the pedal-powered version emerged in the late 1800s as a novelty and persists as a recreational tourist vehicle.

Modern Surrey quadricycles are commonly seen at coastal towns, parks, and tourist destinations worldwide, where they are operated as rental vehicles. Riders (typically 2–4, with 2 actively pedaling) sit on bench or individual seats, often under a decorative canopy. The vehicle is steered via a hand wheel and propelled by pedal-driven chain transmission to the rear wheels.

A typical Surrey quadricycle weighs 60–100 kg and can carry 3–4 riders (200–300 kg), achieving speeds of 8–12 km/h on level ground with comfortable pedaling effort.

How it works

Dual Pedal Drivetrain

Two riders sit facing forward, one slightly left and one slightly right, with pedals positioned on independent cranksets. As both riders pedal, their individual chainrings (typically 40 teeth each) engage a common chain system that drives the rear axle via a smaller rear sprocket (20 teeth), producing a 2:1 gear ratio.

The two pedal inputs are mechanically combined at the rear axle: both riders' power combines additively. If each pedaler produces 100 W at 70 rpm, approximately 180–190 W of effective power (accounting for drivetrain losses) reaches the rear wheels. This doubled power input allows the Surrey to carry additional non-pedaling passengers and achieve reasonable speeds even with lightweight riders.

The pedal cadence must be reasonably synchronized; unlike tandem bicycles where synchronization is mechanically enforced, Surrey riders can drift apart, creating slack or excessive tension in the chain. Experienced Surrey rental operators minimize this issue by encouraging riders to maintain steady, comfortable rhythms.

Four-Wheel Stability

The four-wheel design provides inherent stability compared to two-wheeled bicycles. The wide stance (front and rear track separation) resists tipping during turns, making the Surrey suitable for casual, non-athletic riders. The wheelbase (distance between front and rear axles) is typically 1000–1200 mm, creating a stable platform that handles minor road imperfections smoothly.

The trade-off is reduced agility: the longer wheelbase and wider track make quick directional changes difficult. Sureys are optimized for leisurely speeds (8–12 km/h) on relatively smooth surfaces; they are not suitable for high-speed cornering or rough terrain.

Steering Mechanism

A hand steering wheel (typically 400 mm diameter) is mounted on a vertical column with a bearing at the base. The steering column is mechanically linked to the front wheels via tie-rods, rigid rods with ball joints connecting the steering column rotation to the front wheel knuckle arms. Turning the steering wheel right (e.g., 30 degrees) causes the front wheels to turn right by a proportional amount, creating a gentle turn with a large turning radius suitable for slow speed operation.

The steering ratio (amount of wheel turn per unit steering input) is selected for comfort: typical ratios are 4:1 to 6:1, meaning a 30-degree steering wheel turn produces 5–8 degrees of front wheel turn. This low sensitivity is intentional, it prevents overcorrecting and provides stable straight-line tracking.

Wheel Configuration and Tires

The Surrey typically uses four pneumatic tires (32–40 mm wide) on 500–600 mm diameter wheels, mounted on two axles: a front axle supporting the steering wheels and a rear axle supporting the drive wheels. The front axle is solid (no differential), so both front wheels turn by the same amount during steering maneuvers. The rear axle may include a freewheel clutch, allowing the vehicle to coast without pedal input and enabling neutral coasting on downhill slopes.

Wheel bearings are typically sealed ball races, chosen for low maintenance and smooth rolling. The relatively low speeds (maximum 20 km/h) and moderate loading allow simpler, lighter bearing designs compared to bicycles or automobiles.

Braking System

Brakes are typically mechanical drum brakes on the rear wheels, operated by a single hand lever accessible to either pedaler or an operator. Drum brakes are self-energizing (increasing braking force with increasing wheel speed), making them suitable for emergency stops, though they require careful modulation to avoid wheel lockup and skidding.

Some modern rental Sureys use mechanical disc brakes or even simple friction pads against the wheel rims, prioritizing simplicity and cost over performance. Braking is typically proportional to hand lever force, providing gradual deceleration suitable for crowded tourist areas.

Seating and Comfort

Seating is typically bench-style with side-by-side pedestals or individual bucket seats. The seat height is optimized for leg extension during pedaling (knees should bend to approximately 15–20 degrees at the bottom of the pedal stroke). Many modern Sureys include padded seats and backrests for comfort during longer rides (30 min to 2 hours).

The optional canopy provides essential sun protection, typically a fabric or vinyl covering stretched over an aluminum frame, providing partial shade while allowing airflow. Canopies are often decorative, with colorful patterns, fringe, or lights, enhancing the festive appearance for tourist operations.

Recreational and Tourist Applications

The Surrey quadricycle is almost exclusively found as a rental vehicle at tourist destinations: beaches, parks, riverside towns, and theme parks. Rental operations typically provide 2–4 hour excursions on flat, smooth paths or streets with low traffic. Rental charges are moderate (15–30 USD per hour per vehicle), making family outings accessible.

The rental model emphasizes safety, convenience, and social experience over athletic performance. Riders of all ages and fitness levels can participate, and the leisure pace makes conversation easy. Many rental operations group multiple Sureys together for organized tours, with guides riding ahead on bicycles or motorcycles.

Design Variations

Four-Seater (Double Surrey): Some designs seat four pedaling riders (2 on each side), creating a wider vehicle and more stable power distribution. Four-seater Sureys are less common due to increased weight and complexity.

Electric Assist: Modern variants include electric hub motors on the rear wheels, providing supplemental power for pedal input. Electric-assist Sureys reduce fatigue and allow longer rides without the physical demands of pure pedal power.

Recumbent Configuration: Some custom builds use recumbent seating (rider lying back) instead of upright, offering a more aerodynamic posture and reduced fatigue for longer rides, though the novelty appeal is diminished.

Off-Road Variants: All-terrain quadricycles with knobby tires and suspension are used on gravel or dirt paths, though these are less common than street-touring models.

Cultural and Historical Significance

The Surrey quadricycle represents a niche in recreational transport, neither a serious athletic vehicle (like racing bicycles or tandems) nor practical primary transport (like cars or motorcycles), but rather a social and leisurely experience. Its persistence as a rental vehicle speaks to its accessibility and novelty appeal. For many people, riding a Surrey is a memorable vacation activity, combining exercise, social bonding, and sightseeing in a single vehicle.

The term "surrey" retains its connection to the horse-drawn carriage heritage: both are designed for slow, scenic travel with multiple occupants in a social setting, contrasting sharply with the speed-focused mentality of modern transportation.
