Tempering Furnace Product
Overview
A tempering furnace is a relatively simple yet essential heat-treatment machine that reheats hardened steel to low temperatures (150–350 °C) to relieve quenching stresses and optimize the balance between hardness and toughness. Hardened steel is inherently brittle; tempering introduces a controlled amount of softening, making the part more ductile and shock-resistant while retaining most of its hardness.
Tempering is the final step in the hardening cycle for nearly all steel parts. A hardened gear or bearing might be too brittle to survive shock loads in service. A light tempering at 180 °C restores ductility, reducing the risk of catastrophic failure under impact. Different tempering temperatures produce different hardness-toughness trade-offs: higher temperatures yield lower hardness but greater toughness.

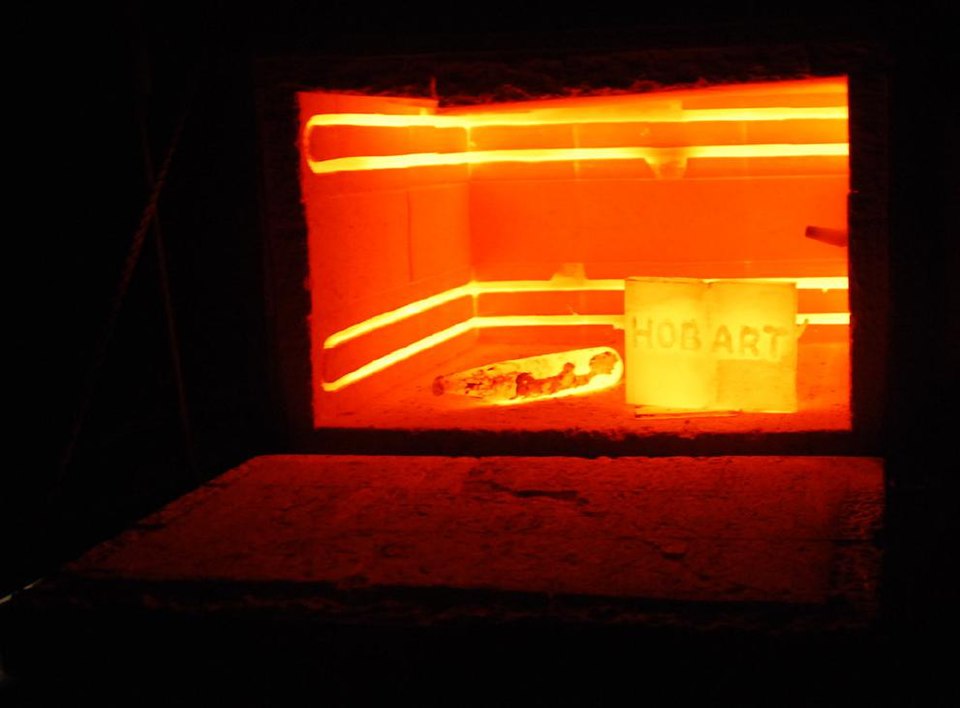

Tempering furnaces are straightforward: an insulated chamber with electric heating elements or a gas burner, a circulation fan ensuring uniform temperature, and thermostatic control. Unlike hardening furnaces (which must rapidly heat and cool large masses), tempering furnaces operate at modest temperatures and heating rates, making them energy-efficient and long-lived.
How it works
Hardened parts, fresh from the quench tank or induction hardening station, are loaded onto stainless steel trays and placed inside the tempering furnace. The parts are typically still warm (50–100 °C) when inserted, accelerating the overall thermal cycle.
The furnace door is closed. The operator sets the dwell time on a programmable timer (e.g., 2 hours) and activates the furnace. Heating elements (typically 10–50 kW of electric resistance wire) begin energizing under proportional control. A thermocouple in the chamber measures temperature continuously, feeding back to a PID temperature controller that adjusts element power to ramp the furnace toward the setpoint (typically 200–250 °C for most steels).
Heating rate is typically 20–50 °C per hour, slower than hardening furnace ramps because parts are crowded on trays and uniform internal-external heating is desired. As internal temperature rises, an internal circulation fan (driven by a small electric motor) pushes air across the heating elements and around the parts, ensuring even temperature distribution throughout the chamber.
Once the furnace reaches the setpoint, the proportional thermostat reduces element power to a low maintenance level, holding the temperature constant. The timer begins counting down the programmed dwell time (typically 0.5–4 hours depending on part size and desired hardness level). During the soak, the tempering transformation progresses: martensite (the very hard, brittle phase from hardening) gradually decomposes into a mixture of ferrite (soft iron) and cementite (iron carbide particles), a more ductile, tougher microstructure.
At the end of the programmed dwell time, an alarm buzzer sounds. The operator opens the furnace door, removes the parts, and places them on a cooling tray or rack to air-cool to ambient temperature. The parts are now tempered: harder than their pre-hardening state, but much tougher than immediately after hardening.
Once cool, the parts proceed to finishing operations (grinding, plating, assembly) or directly to inspection and shipment if no further work is required.
Tempering Temperature and Hardness Trade-Off
The tempering temperature determines the final hardness and toughness balance. This relationship (the tempering curve) is material-specific and well-understood for standard steels:
Tempering at 150 °C: Minimal softening, hardness remains 58–62 HRC, toughness is still low. Used for cutting tools (drills, taps, end mills) that must retain maximum hardness.
Tempering at 200 °C: Moderate softening, hardness 50–55 HRC, toughness improving. Used for gears, bearings, and structural components where both hardness and impact resistance are required.
Tempering at 250–300 °C: Significant softening, hardness 40–50 HRC, good toughness. Used for large forgings, dies, and shock-absorbing applications.
Tempering at 350+ °C: Substantial softening, hardness drops to 30–40 HRC, very high toughness. Rarely used for hardened parts; more common for stress-relief of other heat-treated components.
The operator or engineer selects the tempering temperature based on the final application requirements. For a precision gear, 200 °C might be chosen to maximize surface hardness and wear resistance. For a heavy-duty coupling or link, 250 °C might be preferred to reduce brittleness risk.
Furnace Heating Methods
Electric resistance elements: Nichrome or Kanthal wire coils, simple and reliable, most common in industrial tempering furnaces. Power consumption is directly controlled by thermostatic or PLC regulation, making temperature control precise.
Gas burner: Natural gas or propane, faster heating but less precise temperature control, more common in older furnaces or captive forge shops with abundant waste heat recovery potential.
Modern furnaces use electric resistance with proportional control (10–100 % power modulation) for superior uniformity and energy efficiency.
Circulation Fan and Uniformity
A forced-air circulation fan ensures that hot air is constantly mixed and distributed throughout the chamber. Without circulation, temperature could vary by ±15–25 °C between different regions; with circulation, uniformity is typically ±5 °C or better.
Proper ducting (stainless steel to avoid corrosion and contamination) routes air across heating elements, then distributes it evenly across part trays. Return air flows back to the fan inlet, creating continuous mixing. This convection is essential for large furnaces or high-density part loads.
Process Control and Repeatability
Modern tempering furnaces integrate proportional heating and PLC-controlled timers, achieving excellent repeatability. Hardness variation within a batch is typically ±2–3 HRC, and between batches ±3–4 HRC, assuming consistent part geometry and furnace maintenance.
Some furnaces log temperature profiles (time-temperature data) to a USB drive or Ethernet connection for traceability. This data, combined with final hardness spot-checks, confirms that all parts received the intended thermal cycle.
Load Density and Throughput
A 300 L tempering furnace can accommodate 100–200 kg of parts per load, depending on size and density. At 2-hour dwell times and 20-minute load/unload time, one furnace processes 200–400 kg per 8-hour shift. High-volume shops often operate 2–3 furnaces in parallel for greater throughput.
For continuous-feed operations, some installations use belt conveyor furnaces with programmed heating and cooling zones, passing parts through in continuous motion. These are more capital-intensive but enable very high throughput (500+ kg/hour).
Safety and Operator Considerations
Tempering furnaces operate at relatively modest temperatures (200–350 °C), making them safer than hardening furnaces. External shell temperatures remain below 60 °C (due to insulation), preventing burns. However, care is needed:
Door interlock: Many furnaces include a safety interlock preventing heating if the door is open, avoiding accidental burns or fire hazard.
Overheat thermostat: A redundant high-limit thermostat (set 20–30 °C above normal max) de-energizes heating if temperature runaway occurs, protecting against thermal runaway from stuck thermostat.
Audible alarm: A loud buzzer alerts operators when the dwell time is complete, preventing forgotten parts and reducing scrap.
E-stop: A hardwired emergency stop button cuts all power, suitable for emergency response.
Most tempering furnace accidents are minor (forgotten parts becoming over-tempered and soft, or slight temperature excursions). Serious incidents are rare.
Energy Efficiency
Tempering furnaces are among the most efficient industrial furnaces because they operate at low absolute temperature (200–350 °C). Radiant and conductive losses are small compared to high-temperature furnaces (900+ °C hardening furnaces). Typical energy consumption is 0.5–1.5 kWh per kilogram of parts processed, vs. 2–4 kWh/kg for hardening.
Insulation thickness (100–150 mm ceramic fiber) is cost-effective, and payback from energy savings occurs within 1–2 years of operation.
Maintenance and Service Life
Tempering furnaces are robust and long-lived. A well-maintained unit operates reliably for 20–30 years. Routine maintenance includes:
- Annual inspection: Visual check of insulation for damage or settling, heating element condition, thermocouple function.
- Element replacement: Typically every 3–5 years depending on power level and duty cycle.
- Thermocouple replacement: Every 2–3 years or if accuracy degrades.
- Circulation fan bearing lubrication: Annual or per motor manufacturer recommendations.
- Door gasket replacement: Every 3–5 years or if sealing degrades.
Parts costs are modest ($500–$2000 for a complete heating element replacement), making repair affordable even for older furnaces.
Integration with Production Workflows
Tempering is often the final step in a hardening-and-tempering sequence. A typical workflow:
- Part hardening (furnace or induction system)
- Cooling / quench
- Tempering (this furnace)
- Air cooling / cooldown
- Finish operations (grinding, plating) or inspection
For high-volume production, multiple furnaces run in parallel, and parts progress through as one batch. For job-shop operations, furnaces run intermittently as needed.
Some advanced shops integrate automatic load/unload systems (robotic arms or conveyor feed) to maximize throughput and minimize operator exposure to heat and fumes.
Special Applications
Stress relief: Parts that have been welded or heavily machined can develop residual stresses. Low-temperature baking (150–250 °C, 1–4 hours) relieves these stresses without inducing phase transformations, improving dimensional stability and fatigue strength.
Artificial aging: In some aluminum and precipitation-hardening stainless alloys, controlled heating at moderate temperatures produces precipitation of strengthening phases. Tempering furnaces can be used for these cycles.
Drying: Furnaces can be used to dry parts after washing or coating to prepare for the next operation.
The versatility and simplicity of tempering furnaces make them standard equipment in any heat-treatment or forge shop supporting hardened parts manufacturing.
Build & assembly graph
expand / collapse · shared sub-assemblies converge · links to related products · est. labourTap an assembly to expand/collapse · tap a part to open it · use “Open page” for any node · drag to pan, scroll to zoom.
Bill of materials
8 top-level lines · 38 rows shown · 30 parts total · indented to 3 levels| # | Item / sub-assembly | Part no. | Qty/assy | Ext. qty | Parts | Type |
|---|---|---|---|---|---|---|
| 1 | Furnace Chamber 4 parts | tempering-furnace-chamber | 1× | 1 | 4 | assembly |
| 1.1 | Outer Steel Shell | tempering-furnace-outer-shell | 1× | 1 | — | part |
| 1.2 | Thermal Insulation | tempering-furnace-insulation | 1× | 1 | — | part |
| 1.3 | Furnace Hearth | tempering-furnace-hearth | 1× | 1 | — | part |
| 1.4 | Door and Latch Mechanism | tempering-furnace-door-latch | 1× | 1 | — | part |
| 2 | Heating System 4 parts | tempering-furnace-heating-element | 1× | 1 | 4 | assembly |
| 2.1 | Heating Element Wires | tempering-furnace-element-wires | 1× | 1 | — | part |
| 2.2 | Element Terminal Block | tempering-furnace-element-terminal | 1× | 1 | — | part |
| 2.3 | Temperature Thermostat | tempering-furnace-thermostat | 1× | 1 | — | part |
| 2.4 | Element Control Contactor | tempering-furnace-contactor | 1× | 1 | — | part |
| 3 | Circulation Fan System 4 parts | tempering-furnace-circulation-fan | 1× | 1 | 4 | assembly |
| 3.1 | Circulation Motor | tempering-furnace-fan-motor | 1× | 1 | — | part |
| 3.2 | Fan Impeller | tempering-furnace-fan-blade | 1× | 1 | — | part |
| 3.3 | Circulation Ducting | tempering-furnace-circulation-duct | 1× | 1 | — | part |
| 3.4 | Furnace Air Outlet | tempering-furnace-air-outlet | 1× | 1 | — | part |
| 4 | Multi-Zone Temperature Control 4 parts | tempering-furnace-temperature-control | 1× | 1 | 4 | assembly |
| 4.1 | Main Chamber Thermocouple | tempering-furnace-chamber-thermocouple | 1× | 1 | — | part |
| 4.2 | Left Zone Thermocouple | tempering-furnace-zone-thermo-left | 1× | 1 | — | part |
| 4.3 | Right Zone Thermocouple | tempering-furnace-zone-thermo-right | 1× | 1 | — | part |
| 4.4 | Thermocouple Selector Switch | tempering-furnace-selector-switch | 1× | 1 | — | part |
| 5 | Cooling System 4 parts | tempering-furnace-cooling-system | 1× | 1 | 4 | assembly |
| 5.1 | External Cooler | tempering-furnace-external-cooler | 1× | 1 | — | part |
| 5.2 | Cooler Fan Motor | tempering-furnace-fan-for-cooler | 1× | 1 | — | part |
| 5.3 | Cooling Damper Control | tempering-furnace-thermostatic-air-damper | 1× | 1 | — | part |
| 5.4 | Overheat Protection Sensor | tempering-furnace-overheat-sensor | 1× | 1 | — | part |
| 6 | Tray and Loading System 3 parts | tempering-furnace-tray-system | 1× | 1 | 3 | assembly |
| 6.1 | Work Tray | tempering-furnace-tray | 1× | 1 | — | part |
| 6.2 | Tray Stand | tempering-furnace-tray-stand | 1× | 1 | — | part |
| 6.3 | External Cooling Tray | tempering-furnace-cooling-tray | 1× | 1 | — | part |
| 7 | Timer and Control Logic 3 parts | tempering-furnace-timer | 1× | 1 | 3 | assembly |
| 7.1 | Digital Timer Unit | tempering-furnace-timer-clock | 1× | 1 | — | part |
| 7.2 | Timer Output Relay | tempering-furnace-timer-output | 1× | 1 | — | part |
| 7.3 | Timer Display Panel | tempering-furnace-counter-display | 1× | 1 | — | part |
| 8 | Safety and Overheat Protection 4 parts | tempering-furnace-safety | 1× | 1 | 4 | assembly |
| 8.1 | High-Limit Thermostat | tempering-furnace-limit-thermostat | 1× | 1 | — | part |
| 8.2 | E-Stop Button | tempering-furnace-estop-button | 1× | 1 | — | part |
| 8.3 | Door Safety Interlock | tempering-furnace-safety-interlock | 1× | 1 | — | part |
| 8.4 | Alarm Buzzer | tempering-furnace-alarm-buzzer | 1× | 1 | — | part |
