Thermal Vacuum Chamber Product

Overview

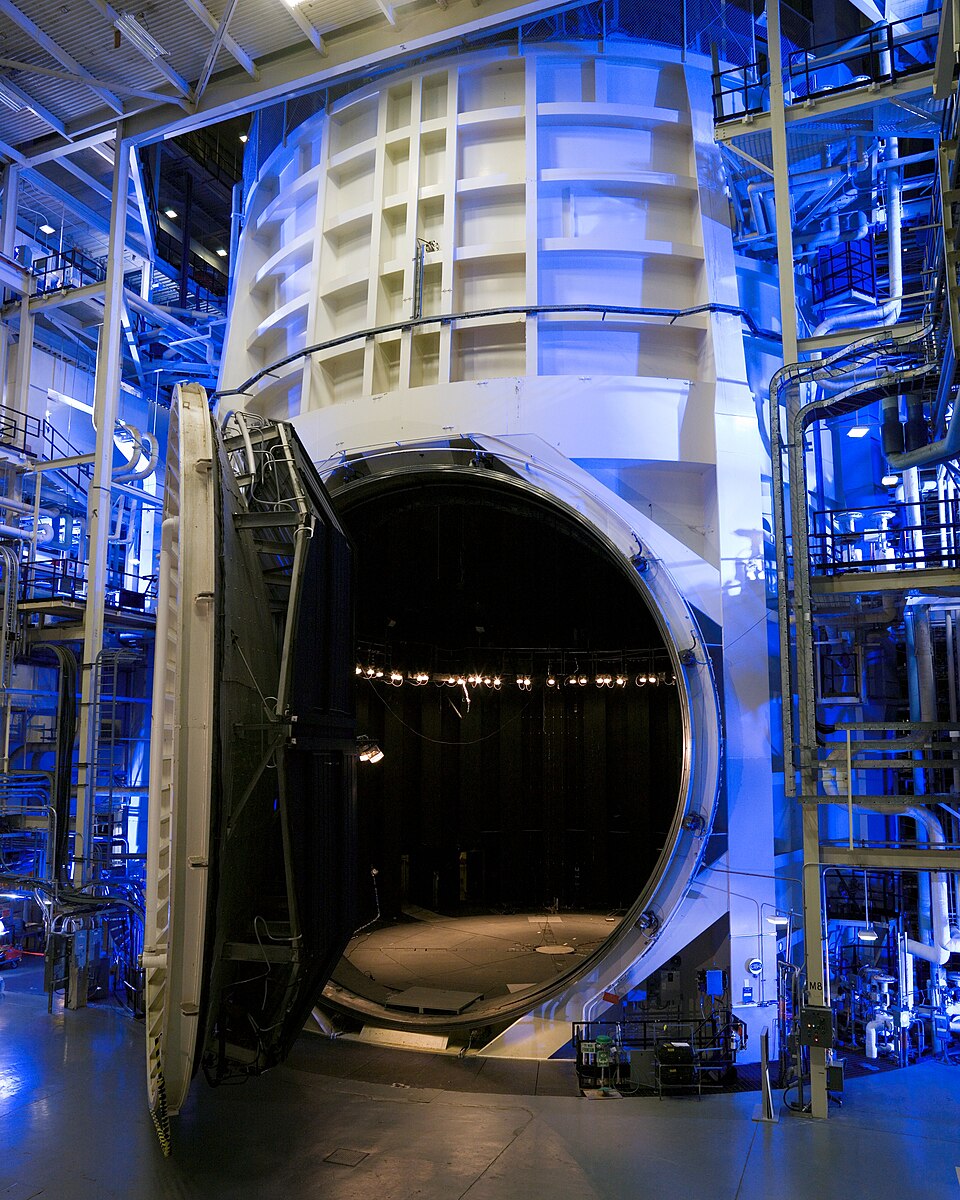

A thermal-vacuum chamber is the definitive ground-test facility for spacecraft qualification. Satellites and deep-space probes must operate in space's extreme environment: hard vacuum (10⁻⁷ Torr or better), intense solar heating on sun-facing surfaces, deep cryogenic cooling (-100 °C to -170 °C) on shadowed surfaces due to radiative loss to deep space, and thermal cycling every orbit (or every day on Mars rovers).

The [[thermal-vacuum-chamber|thermal-vacuum chamber]] duplicates these conditions: a [[tvc-vacuum-vessel|vacuum vessel]] creates high vacuum; electrical [[tvc-heating-system|heaters]] and a [[tvc-cryogenic-shroud|liquid-nitrogen cryogenic shroud]] impose controlled temperatures; and [[tvc-instrumentation|sensor arrays]] measure the spacecraft's response. Over weeks or months, the test article is cycled through representative thermal and vacuum profiles, validating thermal models and revealing design weaknesses before flight.

Vacuum Vessel and Chamber Design

The [[tvc-vacuum-vessel|chamber vessel]] is a large cylindrical or spherical pressure vessel made of stainless steel (304 or 316) to resist corrosion from moisture and cryogenic condensation. A typical chamber is 3 meters in diameter and 5 meters long, providing 35 m³ of internal volume—large enough to accommodate a full satellite or spacecraft mock-up with supporting infrastructure.

The [[tvc-shell-cylinder|cylindrical shell]] is TIG-welded from rolled stainless steel plates, then stress-relieved at 1000 °C to remove residual welding stresses. The vessel is rated for full vacuum (external pressure) with a safety factor of 4×, so it can withstand 1 atm external pressure indefinitely without collapse.

Access is provided by removable [[tvc-end-cap-door|hemispherical end doors]] bolted to the vessel via large flanges. Each door has a machined [[tvc-door-seal-plate|seal face]] with an O-ring groove; when the door is bolted and torqued to specification (typically 500 N·m per bolt), the O-ring compresses into the groove, creating a vacuum-tight seal.

The interior walls are [[tvc-internal-absorber|black-anodized aluminum or carbon-composite]] to absorb radiated heat. This is critical: a bare stainless steel chamber acts as a mirror, reflecting radiated heat back toward the test article and preventing it from cooling to space-like temperatures. The black absorber (α > 0.95) converts radiated photons to internal thermal energy, which is then removed by the cryogenic shroud or vented to ambient.

Cryogenic Shroud for Space Simulation

The [[tvc-cryogenic-shroud|cryogenic shroud]] is the key innovation simulating deep space. A [[tvc-shroud-plates|parallel-plate or cylindrical shroud]], typically 500 mm away from the test article, is cooled by liquid nitrogen (LN₂) circulation. The shroud reaches 40–77 K, emulating space's effective radiation sink temperature (accounting for cosmic background ~3 K and Earth albedo/IR in LEO).

The shroud is [[tvc-shroud-support|supported on low-conductivity stands]] (fiberglass or composite struts) so heat conduction from the warm chamber walls is minimized. [[tvc-temperature-sensor-shroud|Temperature sensors]] on the shroud feed back to a [[tvc-regulator-cryogenic|proportional LN₂ flow control valve]], which meters [[tvc-cryogenic-inlet|LN₂ supply]] into the shroud cooling passages. Return boil-off nitrogen gas exits via a [[tvc-cryogenic-outlet|return line]] to the external [[tvc-cryogen-dewar|LN₂ dewar]].

Typical LN₂ consumption: at full cooling capacity (shroud at 40 K), the chamber evaporates ~200–300 liters of LN₂ per week. Dewars are re-supplied weekly from bulk liquid nitrogen suppliers.

The shroud creates a view factor environment: the test article "sees" the cold shroud (high emissivity), and heat radiated from the article to the shroud is immediately removed by cryogenic cooling. This contrasts sharply with vacuum alone (which isolates the article thermally) and reproduces the radiative coupling between spacecraft and deep space.

Heating System for Thermal Cycling

The [[tvc-heating-system|electrical heating system]] comprises four [[tvc-heater-panel|5 kW quartz radiant heater panels]], totaling 20 kW capacity. These are positioned around the chamber interior, and their output is modulated to raise the chamber temperature.

Quartz heaters are preferred over resistive elements because they radiate uniformly across a wide area, heating the chamber uniformly. A [[tvc-heater-thermoststat|bi-metallic thermostat]] at 150 °C cuts all power if overheating is detected (backup safety).

A [[tvc-control-proportional-heater|proportional controller]] adjusts heater power from 0% to 100% in response to a thermal setpoint. Combined with cryogenic cooling, this allows arbitrary thermal profiles:

• Isothermal soak: Hold chamber at constant +20 °C for days, testing spacecraft systems at room temperature.
• Thermal ramp: Increase temperature at 1 °C/minute to +100 °C, simulating slow solar heating.
• Thermal cycle: Cycle between -80 °C and +100 °C with adjustable dwell times at extremes, mimicking LEO orbit diurnal heating/cooling.

A typical LEO thermal cycle (90-minute orbit, 50% lit, 50% shadow) is replicated as:

1. Heat to +60 °C over 20 minutes (sun).
2. Soak at +60 °C for 5 minutes.
3. Cool to -40 °C over 20 minutes (eclipse).
4. Soak at -40 °C for 5 minutes.
5. Repeat 100+ times over weeks.

The test validates that spacecraft components survive thermal stress (fatigue, seal degradation, material property changes) and that thermal models correctly predict temperature profiles.

Vacuum Pumping System

The [[tvc-pumping-train|vacuum pumping system]] has two stages:

Roughing stage: A [[tvc-rotary-vane-pump|rotary vane pump]] (10 L/min displacement) connected to the chamber via a gate valve. As the pump runs, chamber pressure drops from 760 Torr (atmospheric) toward 0.1 Torr. Typical roughing time: 30–60 minutes to reach 0.1 Torr.

Fine pumping stage: A [[tvc-turbomolecular-pump|turbo-molecular pump]] with 500 L/s pumping speed (for air). Once chamber pressure drops below 1 Torr, the turbo is activated via a [[tvc-turbo-motor-control|soft-start controller]] that ramps its motor from 0 to 90,000 RPM over 5 minutes. The soft-start protects magnetic bearings from thermal shock.

A [[tvc-backing-valve|solenoid backing valve]] automatically isolates the turbo from the roughing pump when chamber pressure drops below ~0.5 Torr, preventing backflow of pump oil vapor into the chamber.

Typical pump-down timeline:

• 0–30 min: Rough down to 1 Torr (heater load warms chamber slightly, out-gassing).
• 30–120 min: Turbo pumping from 1 Torr to 10⁻⁶ Torr (exponential decay).
• 120+ min: Stabilize at base pressure 10⁻⁷ Torr (water vapor and pump oils slowly being removed).

A [[tvc-cold-trap|liquid-nitrogen cold trap]] on the pump inlet condenses water vapor and pump oil vapors, preventing them from being pumped back into the chamber. The cold trap is cleaned or replaced between test runs.

Vacuum is monitored by two gauges:

• [[tvc-pressure-transducer-rough|Pirani gauge]] (0.001–100 Torr range) for rough vacuum.
• [[tvc-pressure-transducer-fine|Penning gauge]] (10⁻⁹–10⁻³ Torr range) for high vacuum.

Instrumentation and Data Acquisition

The [[tvc-instrumentation|instrumentation system]] enables comprehensive test monitoring. [[tvc-electrical-feedthrough|Multi-pin vacuum feedthroughs]] on the chamber allow sensors inside to communicate with exterior electronics without breaking vacuum.

Typical instrumentation:

• Temperature: 50+ thermocouple or RTD sensors (test article surfaces, internal components, chamber wall, shroud).
• Vacuum: Pressure transducers (Pirani and Penning).
• Power: Current and voltage monitors on test article power supplies.
• Operational: Test article status telemetry (if the spacecraft has its own telemetry bus).

A [[tvc-data-acquisition-system|64-channel data acquisition module]] samples all sensors at up to 100 kS/s (simultaneous). Post-test, the data is exported to CSV and analyzed in thermal-analysis software (SINDA/FLUINT, TSS, etc.) to validate computational thermal models.

Temperature accuracy is critical: ±0.5 K is typical. [[tvc-thermal-feedthrough|Thermally-isolated feedthroughs]] minimize parasitic heat conduction through sensor leads, and [[tvc-temperature-controller|RTD/thermocouple conditioning modules]] provide cold-junction compensation and linearization.

Test Article Support and Thermal Control

The [[tvc-support-structure|internal test article support]] is a [[tvc-mounting-pedestal|pedestal]] made of low-conductivity material (aluminum, glass-fiber composite, or phenolic), mounted on [[tvc-isolation-standoff|fiberglass standoffs]] that isolate it thermally from the chamber floor. This prevents parasitic heat conduction from the warm chamber walls to the test article.

A custom [[tvc-adapter-plate|mechanical interface plate]] bolts the spacecraft to the pedestal, allowing repeatable test article positioning. Optional [[tvc-thermal-strap-sensor|copper thermal straps]] connect the spacecraft to the cryogenic shroud, allowing engineers to actively control spacecraft temperature via shroud cooling rather than relying solely on radiation balance.

Operational Procedure and Safety

A typical thermal-vacuum test follows this sequence:

1. Assembly: Install test article on mounting pedestal, connect electrical feedthroughs and thermal sensors.
2. Pumpdown: Close chamber door, activate roughing pump, then turbo pump. Monitor pressure decline.
3. Temperature conditioning: Once vacuum reaches 10⁻⁶ Torr, activate heaters and cryogenic shroud. Temperature-control loop stabilizes chamber to initial setpoint (e.g., +20 °C).
4. Profile execution: Cycle through programmed thermal profile (ramp, soak, cycle). Test article monitors spacecraft operation.
5. Data logging: Continuous acquisition of all sensor data to disk.
6. Venting and recovery: After final thermal cycle, heat chamber to above 0 °C, slowly vent to atmosphere, open door, and remove test article.

Safety interlocks prevent hazards:

• If cooling flow stops (detected by [[tvc-proportional-cryogen-valve|cryogenic valve]] feedback), heaters are automatically shut off to prevent over-pressurization.
• If vacuum pressure rises above 10⁻² Torr (indicating a leak), alarms sound and heaters cut off.
• Manual [[tvc-main-power-disconnect|main power disconnect]] allows emergency shutdown.

Modern Facilities and Industry Standards

Large spacecraft manufacturers (Boeing, Lockheed Martin, Northrop Grumman) operate multiple thermal-vacuum chambers, ranging from 5 m³ (small satellite testing) to 200+ m³ (human spaceflight module qualification). Standard test profiles are defined by MIL-STD-1540 (spacecraft structural and thermal verification) and ECSS standards (European space agency) specifying temperature ranges, cycle rates, and instrumentation requirements.

Test duration varies by program: small satellite development might require 20–50 thermal cycles over 2 weeks; crewed spacecraft require 100–200 cycles over 2–3 months, with intermediate inspections to catch latent failures.

The test provides confidence that thermal design is robust, that materials survive cycling without fatigue, and that the spacecraft's internal temperature control systems (radiators, heaters, louvers) operate as predicted by simulation. No subsequent anomaly traceable to thermal design should occur in flight.
