Tree Shaker Product

Overview

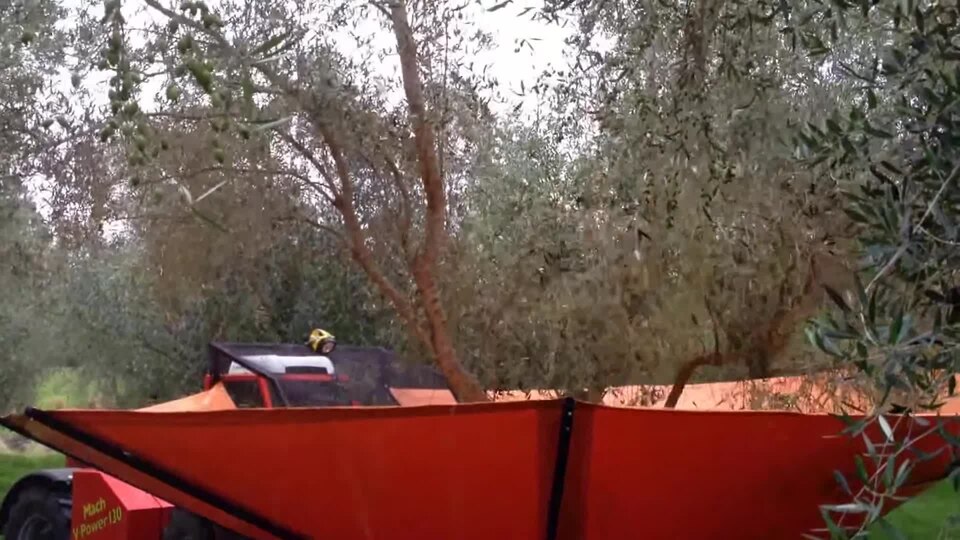

A tree shaker is a specialized harvesting machine designed to vibrate mature fruit or nut crops loose from tree canopies with minimal tree damage. Common targets include walnuts, almonds, olives, pecans, apples, and cherries. The machine clamps the trunk with pneumatic jaws rated for 30–50 kN grip force, then applies controlled vibration at 8–15 Hz frequency via an eccentric-mass hydraulic motor. Fallen fruit lands on a canvas catching cloth spread beneath the canopy, which channels the harvest into a collection bin.

Tree shakers exist in two main configurations: tractor-mounted (requiring 25–30 kW PTO power) and fully self-propelled (with onboard diesel engine and hydrostatic drive). Mounted units are cost-effective for small to mid-scale orchards; self-propelled shakers suit larger operations where repositioning speed and independence from tractor availability drive productivity.

Modern designs use proportional hydraulic controls for smooth, repeatable shaking motion and adaptive pneumatic clamping that adjusts grip force based on trunk diameter. Sensor feedback enables automated height and lateral positioning, reducing operator fatigue and improving harvest quality.

How it works

Positioning: The operator drives the tractor-mounted harvester alongside a tree row. A proportional joystick raises and lowers the shaker head via a hydraulic vertical cylinder, then shifts it left/right via a lateral cylinder. The Position Sensor feeds back actual position, allowing the proportional valve to modulate cylinder flow for smooth, gentle motion that avoids sudden movements that could damage low branches.

Clamp Engagement: Once the shaker head is centered on the trunk, the operator activates the pneumatic clamp solenoid. Two double-acting air cylinders push the rubber-faced jaws together, gripping the trunk with 30–50 kN force. Pneumatic pressure is adjusted via a regulator to avoid bark crushing (bark tears at >60 kN). The clamp can accommodate trunk diameters from 80 mm to 400 mm.

Vibration Phase: After secure clamping, the operator increases hydraulic flow to the Vibration Motor. The radial-piston motor runs at 600–1200 rpm, driving an eccentric mass that rotates with 50 mm offset. This converts rotational motion into up-down oscillation transmitted through the clamp jaws to the trunk. Vibration amplitude is typically 5–10 mm at the clamp contact point. Frequency is tuned 8–15 Hz to match the natural resonance of fruit peduncle (the woody connector between fruit and branch). Excessive frequency or amplitude breaks branches; gentle tuning detaches fruit cleanly.

Catch & Funnel: Below the canopy, the catch cloth (6 m × 8 m canvas, UV-treated) is held taut by four articulated arms. Falling fruit lands on this surface and rolls downward by gravity toward a funnel-shaped chute. Cloth tensioners maintain even tension to prevent sagging, which would slow fruit roll and increase labor for manual recovery.

Bin Discharge: The funnel chute directs cleaned fruit into an open-top harvest bin (typically 2–3 m³ capacity) mounted alongside the machine. Once full, the bin is unhitched and transported to the processor.

Arm Collapse & Row Advance: The operator retracts the catch-cloth arms via proportional hydraulic control (typically takes 15–20 seconds), then drives forward to the next tree. Total cycle time per tree is typically 2–3 minutes, including positioning, shaking (20–40 seconds), and arm collapse.

Operational Considerations

Fruit Ripeness: Ripe fruit detaches with minimal vibration (8–10 Hz, 15–20 seconds). Under-ripe fruit requires aggressive shaking (12–15 Hz, 30–40 seconds) and risks branch breakage. Optimal harvest occurs when fruit moisture is stable—late morning or after dew dries but before afternoon heat stress.

Trunk Diameter Variation: Smaller trunks (80–150 mm) require lighter clamping force (<30 kN) and lower vibration frequency (8–10 Hz). Large trunks (300–400 mm) benefit from firmer grip (45–50 kN) and moderate frequency (10–12 Hz). Pneumatic pressure regulators are field-adjustable for diameter adaptation.

Catch Cloth Maintenance: Canvas cloth deteriorates under UV exposure; annual replacement is typical in high-sun regions. Heavy fruit crops compress the cloth and increase roll friction, so tension adjustment every 10–15 trees prevents slippage. Holes in the cloth must be patched immediately to prevent fruit loss.

Operator Skill: Smooth operation requires practice. Jerky joystick movements, excessive vibration duration, or off-center clamping cause branch damage and reduced fruit quality. Well-trained operators achieve <2% fruit bruising and <1% branch breakage rates.

Self-Propelled vs. Tractor-Mounted

Tractor-Mounted Advantages: Lower capital cost (typically 60–70% of self-propelled), uses existing farm tractor, easier maintenance (single hydraulic system). Drawback: tractor availability limits harvest window, and repositioning time is slower.

Self-Propelled Advantages: Independent operation, dedicated control system, higher throughput (harvest 30–40 acres/day vs. 15–20 on tractor). Drawbacks: higher fuel costs, higher initial investment ($120,000–180,000 vs. $50,000–80,000 mounted).

Fruit-Specific Tuning

Walnuts & Pecans: Hard hulls require 10–12 Hz frequency, 30–35 second shake duration. Hulls naturally separate from kernel without excessive vibration.

Almonds: Early ripeness is critical; optimal harvest is a 2–3 week window. Frequency 9–11 Hz; lower amplitude (3–4 mm) prevents hull-splitting.

Olives: Mature olives separate easily at 8–9 Hz with light clamping. Green olives (for brined harvest) require 12–14 Hz and firm grip (45–50 kN).

Apples & Cherries: Soft fruits bruise easily; low frequency (8–9 Hz) and short duration (15–20 seconds) essential. Padded clamp jaws recommended.

Common Issues & Troubleshooting

Incomplete Fruit Detachment: Usually due to under-ripeness. Verify fruit moisture content (should be <10% for walnuts). Increase vibration frequency by 1–2 Hz and extend shake duration by 5–10 seconds. If persistent, delay harvest 3–7 days.

Branch Damage: Indicates clamping off-center or excessive frequency. Re-center trunk in clamp jaws; reduce vibration to 8–10 Hz. Limit shake duration to 20–25 seconds.

Catch Cloth Slippage: Check cloth tension (should be snug but not overstretched). Tighten tensioner springs. Verify cloth surface is clean (dirt reduces friction). If cloth is >2 years old, plan replacement.

Hydraulic Overheating: Extended shaking with full-displacement pump raises oil temperature >60°C, degrading seal life. Install thermostat-controlled cooler or reduce pump displacement via pressure-compensator adjustment. Idle pump between trees when possible.

Pneumatic Clamp Slippage: Often due to mud/bark debris on jaw faces. Clean clamp jaws with stiff brush before engagement. Verify air pressure is set correctly (typically 6–7 bar). If slippage persists, check neoprene facing for wear; worn facing loses grip coefficient.

Integration with Post-Harvest

Freshly harvested fruit has high respiration rates. Temperature control is critical: walnuts and almonds should drop to <15°C within 4–6 hours of harvest to prevent aflatoxin mold growth. Mobile hydraulic coolers or refrigerated bin trailers are often used during daytime harvest to chill fruit in-field.

For olives destined for oil pressing, fruit should reach the mill within 12–24 hours of harvest. Shaker timing is coordinated with mill capacity and harvester availability to minimize oxidative degradation during fruit storage.

Maintenance & Wear

Hydraulic System: Oil should be sampled every 250 operating hours for viscosity and particle count. Filter replacement at 250-hour intervals prevents pump wear. Hose inspection for swelling or brittleness; typical hose life is 2000–3000 hours.

Pneumatic System: Air drying is essential; a refrigerated air dryer reduces moisture to <−40°C dew point, preventing corrosion in cylinders and solenoid valves. Filter element replacement quarterly.

Clamp Rubber Facing: Neoprene facing wears gradually over 500–1000 operating hours. Worn facing reduces grip and increases likelihood of clamp slip. Replacement involves removing jaw castings and bonding new rubber—typically a field maintenance task.

Catch Cloth: Canvas fibers degrade under UV; protective covers extend cloth life. Small tears (<50 mm) are patched on-site with adhesive fabric patches. Larger damage requires cloth replacement ($3000–5000 per unit).

Engine (Self-Propelled): Air-cooled diesel engines used in self-propelled units require frequent air filter cleaning (every 50 hours) due to orchard dust. Oil changes at 500-hour intervals or annually.
