Truck-Mounted Crane Product
Overview

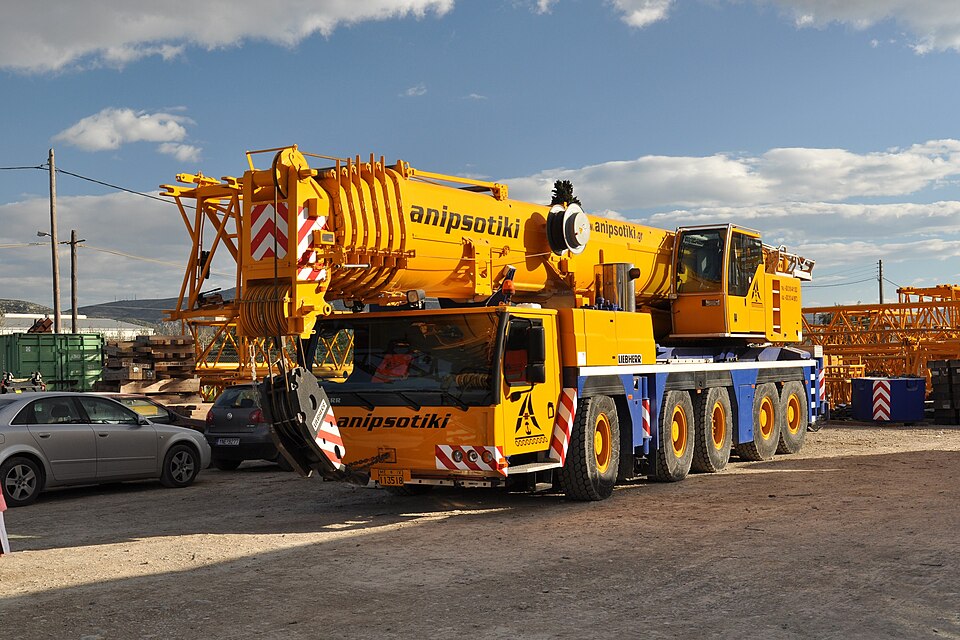

A truck-mounted crane is a mobile lifting solution: a heavy-duty truck chassis carries a telescopic boom, slewing ring, and proportional hydraulic controls, enabling the operator to lift and place loads anywhere within reach. The truck engine drives the hydraulic pump via a power take-off (PTO), so craning and site mobility are decoupled; a single vehicle can travel to the work, set outriggers, and begin lifting within 30 minutes. Typical capacities are 5–30 t at the boom base, with reach of 20–40 m, making them the workhorse for light-to-moderate structural and mechanical lifting in construction, utilities, and industrial maintenance.
Truck chassis and PTO system
The Truck Chassis is a standard heavy commercial truck: 6×4 or 8×4 drive, GVW 20–40 t, powered by a turbodiesel of 200–400 kW. The engine is connected to the hydraulic pump via a [[truck-mounted-crane-transmission|power-take-off shaft]] on the transmission or transfer case. When the operator is ready to crane, the PTO is engaged (via an electric or pneumatic clutch), and the engine speed is set to a constant 1400–1600 rpm — optimal for pump efficiency. The truck's engine simultaneously idles just enough to keep the pump pressure at setpoint, so fuel consumption during long hoisting sessions is modest (diesel idling at PTO speed is cheaper than a dedicated compressor).
Slewing ring and boom mount
The Slewing Ring is a massive geared ball bearing, often 2–3 m in diameter, bolted vertically between the truck frame and the crane superstructure. This bearing handles moment loads from the suspended boom: a 30 t load 30 m from the slewing ring centerline produces ~900 kN⋅m moment, equivalent to the weight of a family car hanging sideways off the truck. The bearing is permanently greased and rated for 10,000–20,000 hours of continuous rotation before seal replacement is needed.
A Slew Motor hydraulic motor and Slew Gearbox gearbox drive the rotation at 1–2 rpm. The operator controls slewing via a proportional joystick; the joystick position modulates a solenoid valve's spool, which in turn meters oil flow to the motor. This proportional architecture allows smooth, multi-function operation: the operator can simultaneously raise the boom, extend the sections, hoist the load, and slew — all at the speeds they've selected — limited only by the pump's total flow.
Boom assembly
The Boom Assembly is the signature load path. The [[truck-mounted-crane-main-boom|main boom]] section is a hollow-section steel tube, typically 600×400 mm in cross-section and 6 m long, pinned to the slewing ring. Telescopic [[truck-mounted-crane-boom-sections|intermediate and fly sections]] nest inside, each 500 mm shorter than the last, extending hydraulically via [[truck-mounted-crane-extension-cylinder|extension rams]]. The boom is elevated by twin [[truck-mounted-crane-boom-lift-cylinder|lift cylinders]] pinned to the frame and boom base, allowing angle adjustment from −30° to +85°.
Boom engineering is optimized for strength-to-weight. Moment diagrams are computed for every possible load and reach combination; section wall thickness is stepped to shed weight at the fly section where bending stresses are lowest. A 40 m boom fully extended might weigh only 8–12 t despite carrying 5 t at the tip. Outrigger placement is critical: if the outrigger pads are too close together, the truck can tip backward when lifting forward-facing loads; regulatory charts show safe load diagrams as a function of boom angle and extension.
Outriggers and stabilization
The Outrigger System are mandatory whenever the boom is used. Four [[truck-mounted-crane-outrigger-beam|telescopic beams]] extend 2–4 m perpendicular to the truck's longitudinal axis, and [[truck-mounted-crane-jack-cylinder|hydraulic jacks]] press [[truck-mounted-crane-stabilizer-pad|stabilizer pads]] against the ground. Once the pads are planted, the jacks lift the truck's suspension wheels 10–50 cm off the ground, transferring the truck's weight and all lifting moment to the outriggers. Pressure sensors in each jack send feedback to the control system, preventing overload and signaling the operator if ground pressure is uneven (indicating soft soil on one side).
Proper outrigger setup is critical. Under-extension or failure to lower all pads means uneven load distribution, risking truck tip-over. Many accidents occur when operators rush and forget one outrigger. Hydraulic-locking pins and position sensors have reduced but not eliminated this hazard.
Proportional hydraulic control
The Hydraulic System is the nerve center. A load-sensing axial piston pump driven from the PTO supplies 30–60 cc/rev at 100–210 bar. The pump's displacement is fixed, but a compensator valve modulates the swashplate angle to deliver exactly the flow demanded by the load, plus a constant 15–20 bar margin. Excess flow returns to the tank.
The [[truck-mounted-crane-control-valve-block|control valve block]] houses proportional spool valves for boom lift, extension, hoist, slew, and outrigger jacks. Each valve's spool position is set by a solenoid coil powered by a joystick input signal (0–10 V analog or CAN bus). The operator can move the joystick continuously from center (idle) to full deflection (maximum flow), and the spool follows proportionally. This proportional architecture is what allows simultaneous multi-function operation: hoisting while slewing while extending — a feat impossible with simple on/off directional solenoids.
Control cabin and instrumentation
The Control Cabin is a small operator booth mounted on the slewing ring turntable itself. As the boom rotates, the cabin rotates with it, so the operator always faces the load. The [[truck-mounted-crane-operator-controls|controls]] are two proportional joysticks and foot pedals: left joystick for boom lift/lower and extension, right joystick for slew, feet for hoist up/down. Modern designs add an [[truck-mounted-crane-camera-system|array of video cameras]] on the boom, load block, and rear, with monitors in the cabin, extending the operator's line of sight.
The Instrument Panel displays pump pressure, individual circuit pressures (boom, hoist, outrigger), oil temperature, boom angle, and a digital load indicator (derived from hoist motor current or a tension load pin in the hook). Alarms sound if pressure exceeds a setpoint or if load is estimated to exceed 110% of the rated SWL.
Hoist mechanism
The Hoist Mechanism is the final link. A [[truck-mounted-crane-hoist-motor|hydraulic motor]] (usually 5–15 kW) drives a [[truck-mounted-crane-hoist-drum|flange drum]] spooling in or out 100–300 m of [[truck-mounted-crane-load-rope|6×36 galvanized wire rope]] (12–20 mm diameter). A [[truck-mounted-crane-hoist-brake|spring-applied friction brake]] holds the load if power is cut. The rope exits the drum, runs through a block and tackle arrangement (typically 2:1 or 3:1 mechanical advantage if a secondary sheave is used), and terminates in a [[truck-mounted-crane-load-shackle|shackle]] where rigging hardware is attached.
Hoist speed is typically 0.5–1.5 m/s under rated load. Descent is controlled by proportional valve modulation; a load check valve (counterbalance valve) prevents uncontrolled descent if a hose ruptures.
Failure modes and maintenance
Truck-mounted cranes see hard use and accumulated fatigue. Common failure points:
- Slewing ring seals: grease seals degrade from weather exposure and particulate ingress, eventually allowing water into the bearing. This causes rust and roughness within 6–12 months of seal failure.
- Boom welds: stress concentrations at section transitions can fatigue and crack under cyclic loading. UT (ultrasonic) testing is recommended every 5 years.
- Hose and seal failures: proportional solenoid coils and spool seals wear from pressure cycling. A proportional valve rebuild costs USD 2,000–5,000 and requires 2–4 weeks lead time.
- Outrigger hydraulics: jack seals fail from repeated extension/retraction and side loads. Replacement is USD 1,000–3,000 per jack.
- Rope degradation: wire rope must be replaced every 5–10 years or 10,000 hoisting hours, whichever is sooner. Inspections for corrosion, wear, and kink damage are mandatory.
Scheduled maintenance includes hydraulic fluid analysis (oil every 1,000 hours), filter changes (every 500 hours), boom inspection, and PTO coupling greasing. Downtime is common: a 2–3 week shop interval every 2 years for major component service is typical for a busy rental crane.
Purchase cost for a new 25 t truck-mounted crane is USD 400,000–600,000. Rental rates (daily/weekly/monthly) are USD 600–1,200/day, making ownership viable only for contractors using the crane 100+ days/year. Most cities have rental fleets.
Build & assembly graph
expand / collapse · shared sub-assemblies converge · links to related products · est. labourTap an assembly to expand/collapse · tap a part to open it · use “Open page” for any node · drag to pan, scroll to zoom.
Bill of materials
8 top-level lines · 50 rows shown · 141 parts total · indented to 3 levels| # | Item / sub-assembly | Part no. | Qty/assy | Ext. qty | Parts | Type |
|---|---|---|---|---|---|---|
| 1 | Truck Chassis 6 parts | truck-mounted-crane-truck-chassis | 1× | 1 | 95 | assembly |
| 1.1 | Frame Rails | truck-mounted-crane-frame-rails | 1× | 1 | — | part |
| 1.2 | Diesel Engine | truck-mounted-crane-diesel-engine | 1× | 1 | — | part |
| 1.3 | Transmission | truck-mounted-crane-transmission | 1× | 1 | — | part |
| 1.4 | Axle Assembly | truck-mounted-crane-axle-assembly | 1× | 1 | — | part |
| 1.5 | Wheel Assembly 5 parts | wheel-assembly | 10× | 10 | 9 | assembly |
| 1.5.1 | Alloy Wheel | alloy-wheel | 1× | 10 | — | part |
| 1.5.2 | Tire | tire | 1× | 10 | — | part |
| 1.5.3 | TPMS Sensor | tpms-sensor | 1× | 10 | — | part |
| 1.5.4 | Lug Nut | lug-nut | 5× | 50 | — | part |
| 1.5.5 | Valve Stem | valve-stem | 1× | 10 | — | part |
| 1.6 | Cab | truck-mounted-crane-cab | 1× | 1 | — | part |
| 2 | Slewing Ring 5 parts | truck-mounted-crane-slewing-ring | 1× | 1 | 5 | assembly |
| 2.1 | Ring Bearing | truck-mounted-crane-ring-bearing | 1× | 1 | — | part |
| 2.2 | Slew Motor | truck-mounted-crane-slew-motor | 1× | 1 | — | part |
| 2.3 | Slew Gearbox | truck-mounted-crane-slew-gearbox | 1× | 1 | — | part |
| 2.4 | Drive Pinion | truck-mounted-crane-drive-pinion | 1× | 1 | — | part |
| 2.5 | Collector Ring | truck-mounted-crane-collector-ring | 1× | 1 | — | part |
| 3 | Boom Assembly 6 parts | truck-mounted-crane-boom-assembly | 1× | 1 | 9 | assembly |
| 3.1 | Main Boom Section | truck-mounted-crane-main-boom | 1× | 1 | — | part |
| 3.2 | Boom Section | truck-mounted-crane-boom-sections | 3× | 3 | — | part |
| 3.3 | Boom Pin | truck-mounted-crane-boom-pins | 1× | 1 | — | part |
| 3.4 | Boom Lift Cylinder | truck-mounted-crane-boom-lift-cylinder | 2× | 2 | — | part |
| 3.5 | Extension Cylinder | truck-mounted-crane-extension-cylinder | 1× | 1 | — | part |
| 3.6 | Load Block | truck-mounted-crane-load-block | 1× | 1 | — | part |
| 4 | Jib Arm 2 parts | truck-mounted-crane-jib-arm | 1× | 1 | 2 | assembly |
| 4.1 | Jib Beam | truck-mounted-crane-jib-beam | 1× | 1 | — | part |
| 4.2 | Jib Hoist | truck-mounted-crane-jib-hoist | 1× | 1 | — | part |
| 5 | Outrigger System 4 parts | truck-mounted-crane-outriggers | 1× | 1 | 16 | assembly |
| 5.1 | Outrigger Beam | truck-mounted-crane-outrigger-beam | 4× | 4 | — | part |
| 5.2 | Jack Cylinder | truck-mounted-crane-jack-cylinder | 4× | 4 | — | part |
| 5.3 | Stabilizer Pad | truck-mounted-crane-stabilizer-pad | 4× | 4 | — | part |
| 5.4 | Pressure Sensor | pressure-sensor | 4× | 4 | — | part |
| 6 | Hydraulic System 5 parts | truck-mounted-crane-hydraulic-system | 1× | 1 | 5 | assembly |
| 6.1 | Hydraulic Pump | truck-mounted-crane-hydraulic-pump | 1× | 1 | — | part |
| 6.2 | Oil Tank | truck-mounted-crane-oil-tank | 1× | 1 | — | part |
| 6.3 | Control Valve Block | truck-mounted-crane-control-valve-block | 1× | 1 | — | part |
| 6.4 | Pressure Line | truck-mounted-crane-pressure-line | 1× | 1 | — | part |
| 6.5 | Return Filter | truck-mounted-crane-return-filter | 1× | 1 | — | part |
| 7 | Control Cabin 4 parts | truck-mounted-crane-control-cabin | 1× | 1 | 4 | assembly |
| 7.1 | Cabin Shell | truck-mounted-crane-cabin-shell | 1× | 1 | — | part |
| 7.2 | Operator Controls | truck-mounted-crane-operator-controls | 1× | 1 | — | part |
| 7.3 | Instrument Panel | truck-mounted-crane-instrument-panel | 1× | 1 | — | part |
| 7.4 | Camera System | truck-mounted-crane-camera-system | 1× | 1 | — | part |
| 8 | Hoist Mechanism 5 parts | truck-mounted-crane-hoist-mechanism | 1× | 1 | 5 | assembly |
| 8.1 | Hoist Motor | truck-mounted-crane-hoist-motor | 1× | 1 | — | part |
| 8.2 | Hoist Drum | truck-mounted-crane-hoist-drum | 1× | 1 | — | part |
| 8.3 | Hoist Brake | truck-mounted-crane-hoist-brake | 1× | 1 | — | part |
| 8.4 | Load Rope | truck-mounted-crane-load-rope | 1× | 1 | — | part |
| 8.5 | Load Shackle | truck-mounted-crane-load-shackle | 1× | 1 | — | part |
