Power Block Product

Overview

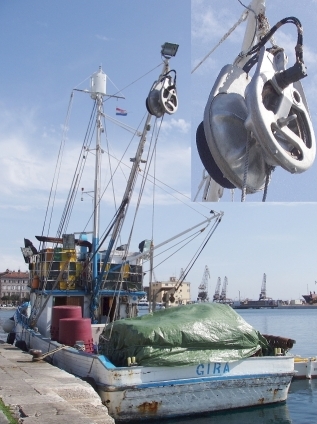

A power block (or "net drum" in some contexts) is the essential hauling machinery on modern purse-seine fishing vessels, designed to lift entire catches—schools of tuna, mackerel, sardine, or anchovies weighing 10–50 tonnes—directly from the water and inboard in 10–20 minutes. The core innovation is the V-shaped elastomer-lined sheave: a large rotating pulley (1.2–2.0 m diameter) with a precision-machined V-groove lined with rubber or synthetic elastomer for high-friction grip. Unlike traditional block-and-tackle systems or rope spools, the power block applies direct mechanical advantage through contact friction rather than wrapping, allowing extraordinarily fast and efficient haul cycles.

The V-Sheave is directly driven by a massive Hydraulic Motor (40–100 hp, variable-displacement swashplate) at 10–30 rpm output. The sheave is suspended from a Boom Mount (swivel bearing) that pivots from an overhead boom structure, allowing the operator to rotate the entire power block 180° or more during the fishing cycle. A strong Brake Unit (200+ kg clamping force) holds the catch in place when hauling pauses, preventing net descent and fish spillage.

The system is controlled via a proportional Control Valve fed by the main auxiliary diesel hydraulic pump (typically 100+ hp engine pumping 200+ bar). The power block transformed commercial purse seining from a labor-intensive, 2–3 hour manual haul (20+ crew hand-lining the net) into an automated 15-minute mechanical operation requiring 5–8 deck crew.

Historical Context

The power block was invented in California in the 1950s by Mario Puratich, a Yugoslavian immigrant. It revolutionized the global tuna industry by enabling rapid haul cycles, allowing vessels to fish multiple sets per day in dense stock grounds. Prior to power blocks, purse seiners were limited to 1–2 hauls per 24-hour period; modern vessels now achieve 3–4 profitable hauls, driving massive efficiency gains and contributing to the sharp decline in global tuna populations (now regulated by international commissions like IATTC and WCPFC).

How It Works

Pre-haul setup: The Purse Seine Net has been deployed and encircled. The Power Block is positioned via the swivel boom mount, sheave suspended directly above the net mouth. The purse-line (threaded through Purse Rings) hangs freely; the power block's V-groove is aligned vertically, ready to receive the purse line from the water.

Purse closure (manual or hydraulic): Crew or an auxiliary winch haul the Purse Line tight, drawing the net bottom closed. This typically happens before power block engagement (though some modern vessels use the power block itself to haul the purse line, saving equipment).

Power block engagement: The operator engages the hydraulic Control Valve joystick, and the Hydraulic Motor begins rotating the V-Sheave at 10–30 rpm (adjustable). The elastomer liner in the V-groove grips the purse line through high-friction contact. The rising tension pulls the net toward the vessel. The Boom Mount swivel allows the sheave to be rotated as needed to maintain optimal line angle and deck clearance.

Continuous haul: As the net ascends, the catch—now concentrated in a shrinking "purse bag" at the net bottom—rises toward the deck. The elastomer liner ensures high grip even if the purse line is wet or slimy. The Brake Unit is held in proportional release mode (pilot pressure maintained by the Control Valve), allowing smooth speed control. The operator can modulate joystick input to increase or decrease sheave rotation speed (10–30 rpm range) based on catch load feedback (felt through motor current demand).

Mid-haul catch extraction (optional): For very large schools, crew may hook a Power Block brail net (separate equipment, not part of this BOM) into the rising purse bag and use a second smaller power block or hand-winch to extract fish mid-haul, preventing the net from becoming dangerously loaded. This is called "spilling" the catch into the brail.

Final ascent and brailing: Once the purse bag breaks the surface, crew secure the net bridles with grapple hooks and begin brailing—scooping live fish from the net into chilled tanks or pumping them via fish pump into refrigerated holds. The Power Block sheave rotation slows or stops during this phase (operator releases joystick), and the Brake Unit automatically engages, holding the net stationary. Brailing typically takes 5–10 minutes for a 20–30 tonne catch.

Net recovery: Once emptied, the now-slack net hangs from the power block. The operator reverses sheave rotation to lower the net back to the deck or stack it in a net drum (Net Drum) for re-rigging.

Load and Stress Management

Elastomer selection: The rubber or polyurethane liner thickness (20–40 mm) and durometer (hardness) is tuned to the expected catch size and fish species. Soft rubber (Shore A 60–70) provides high grip but wears faster; harder rubber (Shore A 80+) lasts longer but may slip under shock load. Most operators prefer 70–75 Shore A as a compromise.

Dynamic loading: Fish inside the net create dynamic sloshing loads as the catch rises. Load spikes of 20–50% above average are common. The Brake Unit accumulator (10 L, 100 bar pre-charge) dampens these spikes, preventing sudden pressure surges that could rupture hoses or damage the motor.

Motor displacement adjustment: Variable-displacement motors allow load-sensing compensation: as load increases, the motor displacement automatically reduces, slowing rotation speed proportionally. This prevents motor stall and maintains constant torque (and pressure) across varying loads—a critical feature for reliable operation.

Typical Purse-Seine Operation (Tuna Example)

• Vessel class: Purse seiner, 40–90 m length
• Catch size per set: 20–100 tonnes (depends on school density and net capacity)
• Haul time: 15–25 minutes (5 min purse, 15 min power block raise, 5 min brailing)
• Sets per day: 1–4 depending on search time and hold capacity
• Crew: 18–30 personnel (captain, navigator, net master, deck crew, hold processors, engineers)
• Hydraulic power: 200+ hp main auxiliary diesel, 250 bar system

Comparison with Alternative Hauling Methods

Manual block-and-tackle: Older vessels use a large fixed block suspended from a boom, with crew hauling rope hand-over-hand in a coordinated line. Requires 20+ trained crew and 2–3 hours per haul; still used on small artisanal seiners.

Trawl winch variant: Bottom trawlers use a Trawl Winch (split drums and warp spooling) rather than power blocks, because trawl nets are hauled horizontally at the rail, not vertically via a boom.

Alternative sheave designs: Some regional designs use fixed sheaves (not rotating), with the net pulled directly through a u-shaped guide. These are slower and less efficient than power blocks but simpler mechanically.

Maintenance and Wear

• Daily: Inspect elastomer liner for chunks or delamination; if >5% of surface is missing, rotation may become unsafe.
• Weekly: Check braiding/brail net for wear; verify Brake Unit accumulator pressure (100 bar target).
• Monthly: Drain oil sample for wear analysis; inspect motor coupling bolts for looseness.
• Quarterly: Replace suction-strainer cartridge; perform full system pressure test at 280 bar for 30 seconds.
• Annually (or every 500 operating hours): Motor displacement calibration; sheave bearing visual inspection (may require block removal); elastomer liner thickness measurement. If liner is <15 mm, replacement is recommended.

Elastomer replacement: Removing and bonding a new elastomer liner is a specialized, labor-intensive job (24–48 hours shipyard time). Cost is $5000–$15,000 USD depending on vessel and liner quality. Preventive replacement every 3–5 years is standard practice on active fleet vessels.

Safety and Operational Hazards

Line whip: If the purse line slips suddenly or breaks, the power block sheave may decelerate rapidly, creating violent whip-back of the line. The Safety Guards (wire mesh cage) around the sheave prevent crew contact, but a well-trained operator can feel slippage through motor load and prevent catastrophic failure by controlling deceleration.

Entanglement: The rotating sheave is an intense entanglement hazard. Loose clothing, fishing nets, and lines must be cleared from the immediate working area. Heavy synthetic guard mesh surrounds the sheave on all modern vessels.

Boom swing: The Boom Mount allows 180° rotation. In extreme sea states, the boom can swing wildly, potentially striking crew or rigging. Experienced operators avoid heavy fishing in dangerous beam seas.

Brake failure: If the Brake Unit fails to engage, the full catch (10–50 tonnes) will descend uncontrolled, potentially dumping back into the sea or striking deck crew. A mechanical redundant lock (chain or heavy rope securing the boom structure) is standard practice during extended breaks.

Regulatory Context

Purse seining is strictly regulated in all major fisheries (Eastern Pacific Tuna Commission, Western and Central Pacific Fisheries Commission, Indian Ocean Tuna Commission). Observers are placed on many vessels; electronic monitoring (EM) cameras are increasingly mandated. Power blocks have no specific regulation, but vessel-level catch reporting and electronic monitoring systems interface with power block controls in modern integrated bridge systems.

Future Trends

Electrification: Modern vessels are exploring electric or hybrid power blocks, reducing diesel consumption and heat load. Battery-driven power blocks have been tested but are still niche.

Automated controls: AI-driven joystick pilots and load feedback systems that optimize haul speed for specific catch sizes and fish species are being developed.

Composite materials: Fiberglass or carbon-fiber booms are lighter than steel, reducing strain on vessel structure and improving stability in heavy seas.
