Bow Thruster Product

Overview

A bow thruster is a transverse propulsion device that produces lateral thrust at the bow, independent of the main propeller and rudder. It consists of an electric or hydraulic motor driving a right-angle gearbox, which powers a small transverse propeller housed within a streamlined tunnel embedded in the ship's bow structure. Modern container ships, tankers, and cruise vessels routinely use bow thrusters to improve maneuverability at low speed and enable docking without tugboat assistance.

The bow thruster is particularly valuable in confined waters: narrow rivers, congested ports, or alongside operations where the main propeller cannot be relied upon for fine steering control. A ship with a 100 kN bow thruster can be pushed sideways at approximately 0.3–0.5 knots, enough to maintain precise lateral control during docking. The lateral thrust complements the main rudder (which only works effectively at ship speed) by providing independent steering authority at any speed from zero to full speed.

Electric bow thrusters are preferred on modern ships because of their simplicity, controllability, and low energy consumption during standby. Hydraulic thrusters are used on vessels where a central hydraulic power plant already exists (tugs, offshore supply vessels) or where extremely compact installation is required.

How it works

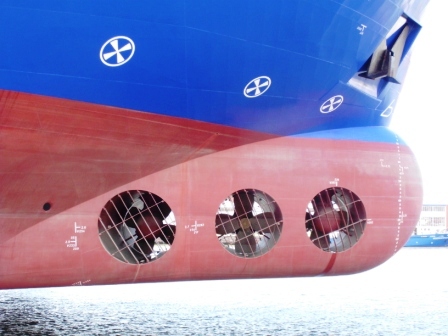

Tunnel geometry and flow. The tunnel is a streamlined duct (600–1200 mm diameter) built into the ship's hull structure, typically 8–12 meters forward of the bow. The tunnel inlet is a bell-mouth opening on the forward hull face; the outlet is a streamlined opening on the port or starboard side. The transverse propeller (400–1000 mm diameter) is mounted inside the tunnel, with its axis perpendicular to the ship's centerline. As the propeller rotates, it accelerates seawater through the tunnel and expels it laterally, generating lateral thrust. The streamlined tunnel shape minimizes drag on the ship's hull and improves propeller efficiency compared to an open propeller.

Motor and gearbox. An electric AC induction motor (30–200 kW) or a hydraulic motor (8–30 cm³/rev) is mounted at the base of the bow structure. The motor output shaft is connected to the input of a right-angle bevel gearbox via a flexible jaw coupling (which isolates vibration and accommodates minor shaft misalignment). The gearbox contains a hard-cut bevel gear pair (typically 3:1 ratio) that converts the motor's longitudinal axis rotation into a transverse axis rotation aligned with the propeller shaft. A dog clutch on the gearbox output shaft allows forward/reverse engagement, so the thruster can push the bow port or starboard.

Proportional speed control. For electric motors, a variable frequency drive (VFD) controls motor speed (0–100% rpm). The operator on the bridge commands the desired thrust level (0–100%) via a proportional joystick on the thruster control pendant. The VFD proportionally adjusts motor frequency, producing a smooth increase in propeller rotation and thrust. Maximum thrust is reached in approximately 2–5 seconds from zero command.

For hydraulic motors, a proportional directional spool valve controls pilot pressure and flow to the motor, providing proportional speed control. The accumulator system (if present) cushions shock loads if the thruster suddenly engages.

Thrust magnitude control. The maximum thrust produced depends on the propeller pitch, diameter, and rotational speed. Fixed-pitch propellers (most common) produce approximately 20–150 kN thrust depending on motor power and propeller design. Variable-pitch propellers (used on high-performance ships) can adjust blade angle, allowing thrust to be modulated even at constant motor speed—valuable for energy efficiency.

Forward and reverse thrust. The dog clutch on the gearbox output shaft is a sliding engagement mechanism. Moving the clutch selector forward engages the forward drive, rotating the propeller in one direction to push the bow to starboard (if a starboard thruster). Moving the clutch backward engages reverse, rotating the propeller in the opposite direction to push the bow to port. Switching from forward to reverse requires stopping the thruster momentarily, engaging the dog clutch, and then restarting—a sequence that takes approximately 5–10 seconds. On highly automated vessels, this switching is controlled electronically and coordinated with main engine and rudder commands.

Bearing and seal system. The propeller shaft passes through the tunnel hull via a packing gland (stuffing box) filled with graphite-impregnated PTFE packing rope. A primary dynamic radial seal (double-lip) prevents seawater ingress while allowing shaft rotation. Behind the seal is a bearing block supporting the propeller shaft with a tapered roller thrust bearing (absorbing propeller thrust reaction) and cylindrical roller radial bearings (supporting side loads).

The bearing block includes cooling passages so that seawater-cooled oil circulating through the block dissipates frictional heat. In continuous operation, bearing temperature is monitored; if temperature approaches 80°C, thrust duty is reduced until cooling brings the bearing back to safe temperature (~50°C).

Operational considerations

Docking maneuver. A 100 kN bow thruster on a 30,000 tonne ship produces approximately 0.03 m/s² lateral acceleration when operated full thrust. In a typical docking approach, the captain reduces main engine to slow ahead (~0.5 knots through water), then engages the bow thruster at 50–80% thrust to push the bow toward the wharf. The rudder is positioned amidships to avoid cross-flow interference. The mate on the bow uses hand signals to guide lateral spacing (6–12 inches from the quay) while the thruster maintains lateral position. This process eliminates the need for tugs in many ports.

Confined waters maneuvering. In a narrow river or canal where the main propeller cannot be reversed without stopping forward momentum, the bow thruster provides independent lateral force. A skipper can maintain a constant slow-ahead on the main engine while using the thruster to dodge other traffic or align with lock approaches.

Power consumption. A bow thruster rated 100 kW operating at full thrust draws 100 kW from the ship's electrical or hydraulic power plant. For a ship with 5–10 MW total installed power, the thruster represents 1–2% of power and is engaged only intermittently during maneuvering. The VFD proportional control ensures the thruster idles at minimal power when not actively maneuvering.

Noise and vibration. Propeller cavitation at high speed (>500 rpm in tunnel) can generate noise and vibration transmitted through the hull. Modern thrusters are designed with optimized propeller blade geometry to suppress cavitation. Isolation mounts between the thruster motor block and the ship's structure reduce vibration transmission to the hull.

Maintenance and troubleshooting

Tunnel inspection. Every 3 years during dry-dock, the tunnel interior is inspected for corrosion, silt accumulation, or marine growth. The inlet bell-mouth is cleaned and any erosion cracks in the tunnel wall are ground and epoxy-patched. If heavy corrosion is detected (>1 mm deep pitting), the tunnel section is renewed using welded Grade 50 steel.

Propeller and bearing overhaul. The propeller and shaft are removed every 5 years for inspection and renewal of thrust and radial bearings. The propeller is inspected for blade erosion or blade-tip damage from struck underwater objects. The shaft is magnet-particle tested for subsurface fatigue cracks. If the shaft has cracking, the entire shaft is replaced.

Packing gland maintenance. Graphite packing rope is renewed every 2–3 years during the thrust bearing overhaul. If excessive leakage is observed between maintenance intervals (>5 mL/min), the packing gland nut is tightened gradually (1/4 turn at a time, waiting 24 hours between adjustments) until weeping reduces. Over-tightening causes excessive friction and bearing overheating.

Electric motor winding inspection. The motor insulation resistance is measured annually using a megohmmeter (1000 VDC applied). If resistance drops below 10 MΩ, the motor is removed and the winding is dried in an industrial oven at 80°C for 24 hours, then re-tested. If resistance remains low, the motor is rewound.

Gearbox oil sampling. Mineral ISO VG 46 oil lubricates the bevel gears. Oil is sampled annually and analyzed for wear metal content and particle count. If ferrous particle count (indicating gear wear) exceeds specification, the oil is changed and the gears are inspected for spalling or pitting. Spalled gears require gearbox replacement.

Standards and classification

DNV and ABS notation. All bow thrusters on classed ships are designed and tested per DNV-GL or ABS standards. Thrusters are subjected to:

• Proof thrust test: Motor driven to produce 125% rated thrust for 10 minutes under static load; all seals and structure are visually inspected for leakage or deformation.
• Endurance test: Motor cycled (full forward thrust → zero → full reverse) 100 times to verify bearing and seal durability.
• Cavitation margin: Propeller is designed and tested to operate cavitation-free at the full-power design point.

IMCA standards. For offshore supply vessels and tugs using bow thrusters, the International Marine Contractors Association (IMCA) specifies additional testing for tow-line shock loads and dynamic thrust control during heavy weather operations.

Electrical safety (IEC 60092-502). All electric bow thrusters on ships are designed and tested per IEC 60092-502 (electrical installations on ships). The motor is TEFC (totally enclosed fan-cooled), IP55 rated, with Class H insulation for the 60°C seawater-cooled temperature environment. The VFD includes short-circuit protection, thermal overload protection for the motor, and emergency stop interlock preventing thruster engagement if main engine is not running or propulsion power is unstable.
