Industrial UV Curing Lamp Product
Overview

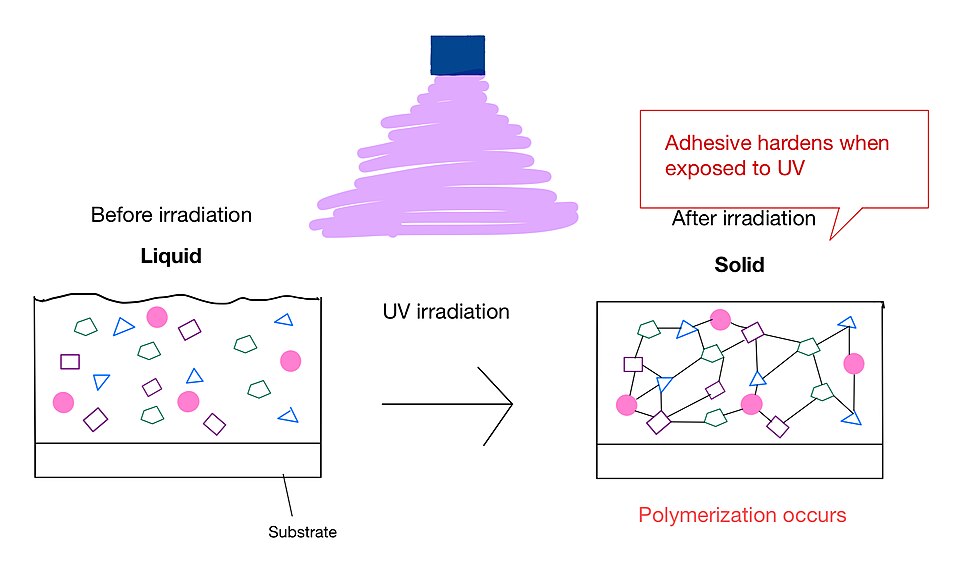

An industrial UV curing lamp converts liquid, UV-reactive chemistry into a solid film in a fraction of a second. Printing presses use it to fix inks the instant they leave the impression cylinder; wood and metal finishing lines use it to harden clear coats; electronics assembly uses it to set adhesives and conformal coatings. The product passes under the lamp's Quartz Output Window at line speed, absorbs a dose of ultraviolet energy on the order of 0.5–4 J/cm², and emerges fully cured, ready to stack or machine.
Two source technologies serve this job. Medium-pressure mercury arc lamps, the older approach, emit a broad spectrum from 200 to 450 nm at electrode powers of 80–240 W per centimetre of arc length, and need a high-voltage ballast, minutes of warm-up, and a mechanical Shutter Mechanism because the arc cannot be switched off between products. UV-LED units, now the dominant choice for new installations, emit a narrow band centred at 365, 385, 395, or 405 nm, switch in microseconds, contain no mercury, and put almost no infrared onto the substrate, which lets them cure heat-sensitive films and plastics that an arc lamp would warp.
How it works
The emitting element is the UV LED Lamp Head: rows of UV LED COB Module modules, each a dense cluster of UV LED dies, soldered to a Metal-Core PCB. Packing density sets the figure that matters most to a press operator, peak irradiance, typically 8 to 24 W/cm² measured at the window. Behind and around the dies, the Reflector Assembly recovers light that would otherwise miss the work; its Dichroic Mirror Coating reflects UV while transmitting infrared into the Reflector Shell, where the cooling system removes it.
UV LEDs convert roughly 30–45 % of electrical input to light; the rest is heat that must leave through the back of the die, not the front. The Cooling System stack therefore dominates the mechanical design. Junction heat flows through the board into a Copper Cold Plate, across a film of Thermal Interface Compound, and into the Finned Heatsink, where fans built around Blower Motor units carry it off. Larger heads above about 2 kW switch to water cooling. A pair of Cold-Plate Temperature Sensor thermistors lets the controller derate output if the plate climbs past about 55 °C, and a Thermal Fuse opens the supply outright if regulation fails. Holding the junction near its rated temperature is what delivers the quoted 20,000-hour life; every 10 °C of overheat roughly halves it.
Electrically, the LED Driver / Power Unit runs the LED strings at constant current rather than constant voltage, because LED forward voltage drifts with temperature while cure dose tracks current. The Driver PCB carries one buck-converter channel per string, switched by Power MOSFET pairs and regulated against a Current-Sense Shunt to within ±2 %. Output is dimmable from 10 to 100 % by PWM at several kilohertz, fast enough to be invisible to the chemistry. An EMI Line Filter keeps converter noise off the plant mains.
Dose control and safety
Curing is a dose problem: irradiance multiplied by exposure time must land inside the ink maker's window. Too little and the film stays tacky at the bottom; too much wastes energy and can yellow the coating. The Control Module module ties output to line speed, raising drive current as the press accelerates, and the UV Irradiance Sensor photodiode watches actual emission so the loop also compensates for LED ageing. Run, fault, and dose-low signals reach the line PLC through relay outputs on the Control PCB, and a small LCD Panel shows set-point, plate temperature, and accumulated lamp hours.
UV-A at these irradiances burns skin and eyes in seconds, so containment is part of the product. The Enclosure & Mounting and its UV Shield Baffle baffles trap stray light around the cure gap, and Safety Interlock Switch contacts on every removable guard cut LED current the moment shielding is opened. The Shutter Mechanism earns its keep during line stops: when the conveyor halts with product under the head, the Shutter Blade swings across the window in under half a second, driven by a Servo Motor and returned by a fail-safe Coil Spring, so a stationary carton is not cooked while the line clears. On LED units the shutter is a backup to electronic switch-off; on mercury-arc retrofits it is the only way to blank the beam.
Integration
A typical head mounts above the conveyor on slotted Mounting Bracket rails, set 5–50 mm from the substrate; irradiance falls off quickly with distance, so the gap is fixed during commissioning and rarely touched. Multiple heads gang side by side to cover wide webs, each running from its own driver but sharing a dose set-point. Input power runs 1–3 kW per head at 200–480 V AC. Compared with the mercury lamps they replace, LED units cut electrical consumption roughly in half, eliminate ozone extraction ducting, and start instantly, which is why most new press installations specify them and many arc-lamp lines are converted at rebuild.
