Vacuum Furnace Product

Overview

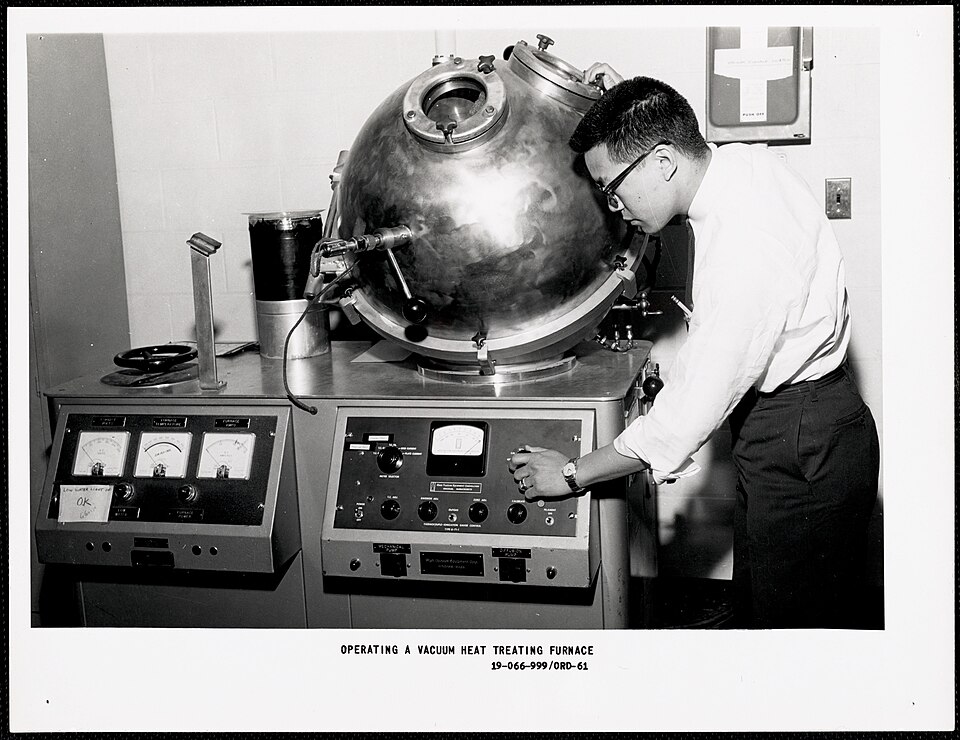

A vacuum furnace is essential for specialty alloy processing, heat treatment of reactive materials, and high-purity applications where atmospheric oxygen and nitrogen must be excluded. The Furnace Chamber is a sealed, heavily insulated vessel containing resistively heated elements that raise material to 1200–1700 °C while the Vacuum Pump System maintains pressure below 1 Pa (0.001% atmosphere). With no oxygen, alloys cannot oxidize; with no nitrogen (in the gases), they cannot form brittle nitrides. The Quench System backfills with inert gas at the end of heating, enabling rapid cooling for hardening.

Vacuum furnaces are used for titanium alloys (aerospace turbine blades), superalloys (jet engine components), tool steels, specialty stainless steels, and powder-metallurgy consolidation. They are also used for brazing assemblies in oxygen-sensitive applications (e.g., copper-nickel compounds where oxidation causes joint porosity).

Chamber and design

The Furnace Chamber is a cylindrical stainless-steel (304/316L) or molybdenum vessel, 300–600 mm diameter, with a hinged Chamber Door providing access. It is lined with Refractory Brick (alumina or zirconia, rated for 1600–1800 °C) and Ceramic Fiber Blanket blanket insulation. The Crucible Support is a ceramic or graphite pedestal that holds the work load off the floor. Multiple Thermocouple Feedthrough hermetic seals allow temperature sensors to be inserted into the hot zone without breaking vacuum.

Heating elements

The Heating Element Assembly are the key difference from conventional air furnaces. Rather than nichrome wire (which oxidizes above 1100 °C), vacuum furnaces use graphite (up to 1500 °C) or molybdenum (up to 1800 °C) resistance elements. Graphite is cheaper and widely used for 1200–1500 °C work; molybdenum is required for higher temperatures but is more fragile and oxidizes in air (so it must be kept under vacuum or inert atmosphere at all times).

The elements are supported in a Element Support Frame of graphite or ceramic, positioned to radiate heat uniformly. The Element Connector terminals carry 50–100 A of current, typically fed from step-down transformer taps.

Vacuum system

The Vacuum Pump System system typically consists of a Rotary Vane Pump (rotary-vane pump, 1–5 cc/rev) that pulls the chamber down to ~1 Pa in 3–10 minutes. The pump is isolated from the chamber by a Pump Inlet Valve solenoid. A Foreline Trap (typically liquid-nitrogen cooled) prevents pump oil and water vapor from backflowing into the hot zone.

For ultra-high-vacuum processing (< 0.01 Pa), a Diffusion Pump secondary stage can be added, but it requires the roughing pump to have first brought pressure below ~10 Pa.

The Vacuum Gauge (capacitive manometer or Pirani gauge) continuously monitors pressure. If vacuum is lost (e.g., door seal leaks), alarms sound and the heating ramps down to prevent oxidation and element damage.

Heating cycle

A typical vacuum furnace cycle:

1. Chamber is loaded and door sealed.
2. Roughing pump is started, evacuating to < 1 Pa (typically 5–10 minutes).
3. Heating begins, with the Temperature Controller ramping at 5–20 °C/min toward the setpoint.
4. Material soaks at the target temperature for 30 minutes to several hours depending on part size and material properties.
5. At the end of soak, the Quench Solenoid Valve opens, backfilling the chamber with Quench Gas Bottle argon at 2–5 bar (controlled by the Quench Regulator).
6. The gas cools the load rapidly (cooling rate 50–200 °C/min depending on load mass and gas pressure).
7. Once cool, the pump valve closes, and the door can be opened.

Quenching and cooling

For hardening operations (e.g., tool steel, stainless steel), the Quench System is essential. Backfilling with 3–5 bar of argon or nitrogen from the Quench Gas Bottle creates a heat-transfer medium analogous to a quench tank, but in the vacuum chamber. Cooling rates of 50–200 °C/min are typical; higher pressure yields faster cooling.

Some furnaces include an Oil Mist Quench that atomizes a fine oil mist into the chamber for extremely rapid hardening quench. The oil vaporizes, cools the part, and is removed by the next evacuation cycle.

Control and automation

The Control & Monitoring is sophisticated. The Sequence Controller coordinates heating power (via proportional SCR control), vacuum pump operation, quench valve timing, and safety interlocks. The Temperature Controller uses Thermocouple feedback to maintain the target setpoint ±10 °C.

The Operator Panel displays real-time temperature, vacuum pressure, current cycle stage, and any faults. Operators can reprogram heating rates, soak temperatures, soak times, and quench pressures for different materials and part sizes.

Advantages and constraints

Vacuum furnaces are invaluable for reactive materials and high-purity processes, but they are expensive (capital cost $50,000–$200,000+ for industrial units) and slower than conventional furnaces (4–8 hour cycles vs. 1–2 hours in air). They are justified for high-value parts (aerospace turbine blades, tool steels) where oxidation or nitrogen pickup would cause part failure.
